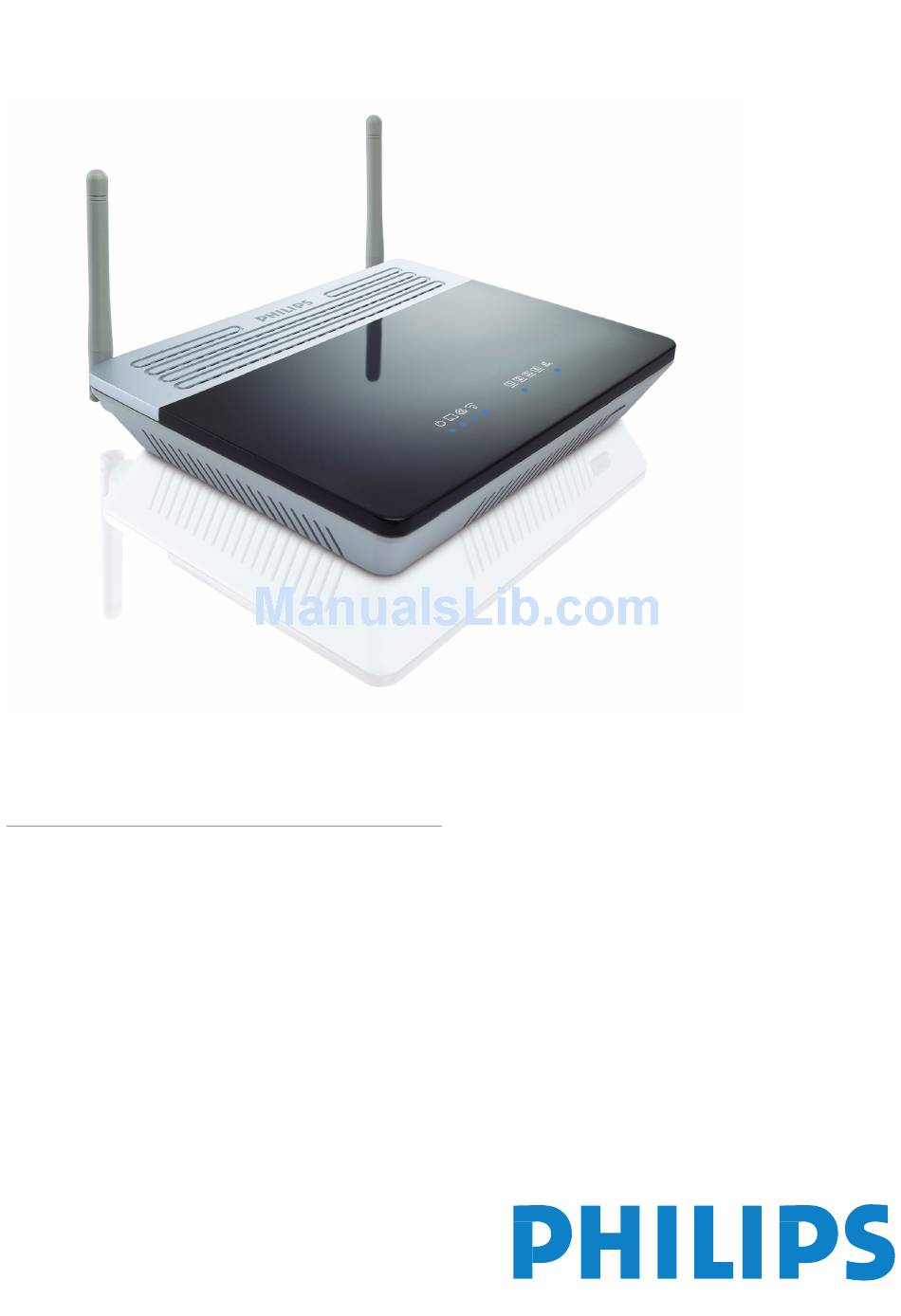

- Page 1 Register your product and get support at www.philips.com/welcome CAW7740N Wireless Router...
-
Page 3: Table Of Contents
Table of contents Important Safety information Network range & speed information Conformity Recycling and disposal FCC Radiation Exposure Statement Software licenses Disclaimer Your Wireless Router What’s in the box What else will you need Overview of the front side of the wireless router Overview of the rear side of the wireless router Getting started Install... -
Page 4: Important
1.7 Disclaimer This product is provided by "Philips" "as is" and without any express or implied warranty of any kind of warranties, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose are disclaimed. -
Page 5: Your Wireless Router
Your Wireless Router Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome. 2.1 What’s in the box Wireless Router Installation CDRom 2.2 What else will you need... -
Page 6: Overview Of The Front Side Of The Wireless Router
2.3 Overview of the front side of the wireless router A B C D ON: Power on, normal operation OFF: Power off or failure ON: WAN connection is OK Blinking: Send/Receive data OFF: Connection is not established ON: Internet connection is up Blinking: data transfering OFF: Internet connection is down or failure ON: Wireless link is up... -
Page 7: Getting Started
Getting started 3.1 Install Insert the installation CD into the PC’s CDROM (or DVDROM) drive • The installation program will start automatically Follow instructions on the screen Note If for some reason the installation does not start automatically: 1 Click on Windows START and then RUN 2 Type explorer and navigate to the CD ROM (or DVDROM) drive 3 Double-click on Setup.exe... -
Page 8: Connection Overview
• Once the installation completed, the following screen will be displayed Note This screen is the Philips support site. It is a live Internet page, subject to change. The screen displayed may differ from the one shown. Click on Menu if you want to go back to the menu screen... -
Page 9: Install Another Wps Device
Note At any time you can retrieve your wireless security settings using your installation CDROM on the computer where you installed your gateway and by clicking on the security icon 3.5 Install another WPS device You can install another WPS device on your network in any of the three following ways: 3.5.1 via the PIN method Check that your Wireless router and that the other WPS device are... -
Page 10: Configuring The Wireless Router
Configuring the Wireless Router Advanced users may want to change the configuration of their Wireless Router. This chapter explains how to access the configuration webpages, show you the struture of these webpages and it describes them. 4.1 Log on the webpages Open your Internet Browser Enter http://192.168.1.2 in the address field Click on GO... -
Page 11: Password Settings
4.3.2 Password Settings Use this page to change the password for accessing the management interface of the Wireless Router. Passwords can contain from 3~12 alphanumeric characters and are case sensitive. Note If you lost the password, or you cannot gain access to the user interface, press the reset button on the rear panel, holding it down for at least five seconds to restore the factory defaults. -
Page 12: Static Ip Address
4.4.5 DNS Domain Name Servers (DNS) are used to map a domain name (e.g., www.philips.com) with the IP address (e.g., 64.147.25.20). The DNS address is usually configured automatically. If this is not the case, one or more DNS address will be provided to you by your ISP. -
Page 13: Access Control
4.6.2 Access control Access Control allows users to define the outgoing traffic permitted or not-permitted through the WAN interface. The default is to permit all outgoing traffic. 4.6.3 Security The router can transmit your data securely over the wireless network. Matching security mechanisms must be setup on your router and wireless client devices. -
Page 14: Nat
WPS can be done in any of the following ways: PIN method - PBC method - Manual method Enter the PIN from the client device and click Start PIN. Push and hold the WPS button, located on the front side on your router, for 3 seconds or click Start PBC Manual This method enables you to configure client devices without WPS... -
Page 15: Special Applications
For example, if you set Type/Public Port to TCP/80 (HTTP or web) and the Private IP/Port to 192.168.2.2/80, then all HTTP requests from outside users will be transferred to 192.168.2.2 on port 80. Therefore, by just entering the IP address provided by the ISP, Internet users can access the service they need at the local address to which you redirect them. -
Page 16: Mac Filter
4.8.2 MAC Filter The Wireless Router can also limit the network access based on the MAC address. The MAC Filtering Table allows the Wireless Router to enter up to 32 MAC addresses that are allowed to access to the WAN port. -
Page 17: Dmz
Connection Policy Enter the appropriate values for TCP/UDP sessions as described in the following table. Note The firewall does not significantly affect system performance, so we advise enabling the prevention features to protect your network. 4.8.6 DMZ If you have a client PC that cannot run an Internet application properly from behind the firewall, you can open the client up to unrestricted two-way Internet access. -
Page 18: Configuration Tools
Use the Firmware Upgrade screen to update the firmware or user interface to the latest versions. Download the upgrade file from www.philips.com/support (Model CAW7740N), and save it to your hard drive. Then click "Browse..." to look for the downloaded file. Click "BEGIN UPGRADE". -
Page 19: Time Zone
4.13.2Time zone This page allows you to configure the local time zone and automatic time maintenance. Automatic time maintenance synchronizes the router with a public time server on the Internet. 4.13.3Wireless settings: In step 2 you can change the Wireless settings of the Wireless Router. For easy installation it is advised to keep the default settings. -
Page 20: Technical Data
Technical data Ports • Four 10/100Mbps Rj-45 Ports Management Features • Firmware upgrade via web based management • Web based management (configuration) • Power indicators • Event and history logging • Network ping Security Features • Password protected configuration access •... -
Page 21: Frequently Asked Questions
Frequently asked questions In this chapter you will find the most frequently asked questions and answers about your Wireless Router. Set-up I cannot connect using the Web browser • Check that you have a valid network connection to your Wireless Router •... - Page 23 Copyright © 2007 Koninklijke Philips Electronics N.V. All rights reserved. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners. Specifications are subject to change without notice. Document order number: 3111 285 40861...
