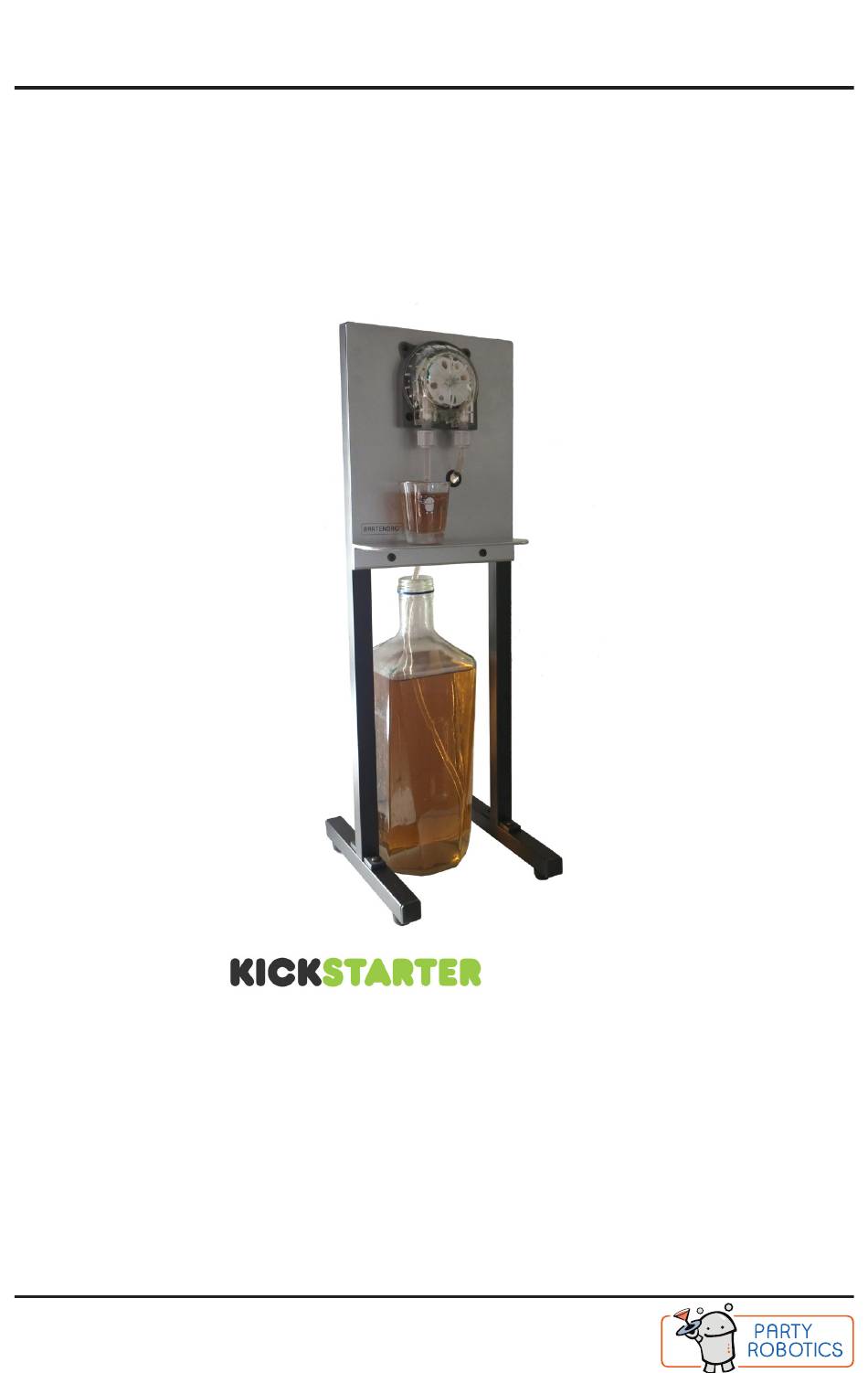

- Page 1 Bartendro ShotBot Getting Started Guide Model Number: B001V1 EDITION Thanks for backing us! Please read this guide before operating your ShotBot v 1.0 www.partyrobotics.com...
-
Page 2: Important Precautions
Bartendro ShotBot Congratulations! You are one of the first owners of the latest in cocktail dispensing technology. Bartendro Cocktail Bots and Dispensers pour a variety of liquids precisely, and you can control them from phones or tablets. Whether you set up ShotBot to remind you to drink your water, or use it for a quick round of no-mess shots, it will be sure to liven things up. - Page 3 Bartendro ShotBot Bartendro ShotBot Contents What’s Included A001V1 Horizontal Foot (2) A002V1 Vertical Leg (2) A003V1 Faceplate M041V1 Screw (8) T002V1 Spout T060V1 Food Grade Tubing M054V1 Wire Clips (4) M080V1 Alcohol Pad Dispenser Compression Nut (2) M101V1 Chopstick (tubing replacement tool) E008V1 24V, 72W Power Supply with AC Power Cord...
- Page 4 Bartendro ShotBot Assembly Instructions Step 1 Build Frame Legs Press vertical leg (B) onto the square fitting on the horizontal foot (A). Orientation of the holes should be in-line with the foot. Do this for both legs. TIP: If the vertical leg is difficult to slide onto the fitting, try flipping it upside-down and resting it on a solid surface while using both hands to push down on the foot.
- Page 5 Bartendro ShotBot Step 3 Install Tubing and Spout 1) Feed the rigid spout and flexible tubing through the compression nuts. The end with the angled cut goes into bottles and the flat end towards the dispenser. Make sure the tubing goes all the way through the nut and sticks out by about 1/8”...
-
Page 6: Step 4 Insert Sd Card
Bartendro ShotBot Step 4 Insert SD Card While looking at the back of ShotBot, hold the SD card with the pins facing you and carefully insert into the slot on the back side of the Raspberry Pi board. It will hang out a little bit. This is okay. Step 5 Attach Wire Clips (optional) We’ve included some adhesive wire clips... - Page 7 Bartendro ShotBot Step 6 Power Up Important: Before plugging the AC power cord into the wall outlet, insert the DC plug (see image at right) into the miniRouter board. Then plug the AC power cord into an outlet for Bartendro to begin booting. When the time comes to turn off Bartendro, start by unplugging the AC power cord from the wall first.
-
Page 8: Open Browser
Bartendro ShotBot Connect to Bartendro Find Network and Connect Using a WiFi-enabled device, find the “bartendro” WiFi network by looking for it in your settings, and connect to it. The first time you connect may take as long as 30 seconds to establish the connection. Open Browser iPhones and iPads will automatically display the Bartendro user interface (UI) soon after they connect to the Bartendro network. - Page 9 Bartendro ShotBot Getting to the Admin Menu To get to the Admin menu, find the hidden link at the bottom left corner of the main menu, or type “bartendro/admin” in the address bar of your browser. When prompted use the default: Name: bartendro Password: boozemeup Note: You can change the login name and password by going to...
-
Page 10: Cleaning And Maintenance
Bartendro ShotBot Cleaning and Maintenance For longest tube life, you should clean all of Bartendro’s tubing after every use. Step 1 Get three tall glasses or containers. Fill one with hot soapy water, one with clean water, and keep the third one empty. Step 2 Go to Admin >... -
Page 11: Troubleshooting
Bartendro ShotBot Troubleshooting Dispenser is blue / green / blank after power up This is normal. The lights will remain in this mode until proper communication with Bartendro establishes a proper connection with the Dispenser(s) (which takes about one minute). If after a minute the lights don’t begin fading in and out, make sure the SD card is inserted properly. - Page 12 Bartendro ShotBot Having Issues? If you didn’t find what you were looking for in this manual, try some of these options: • Search the forums at www.partyrobotics.com/forums. We en- courage you to post your questions so that others may learn from them.
