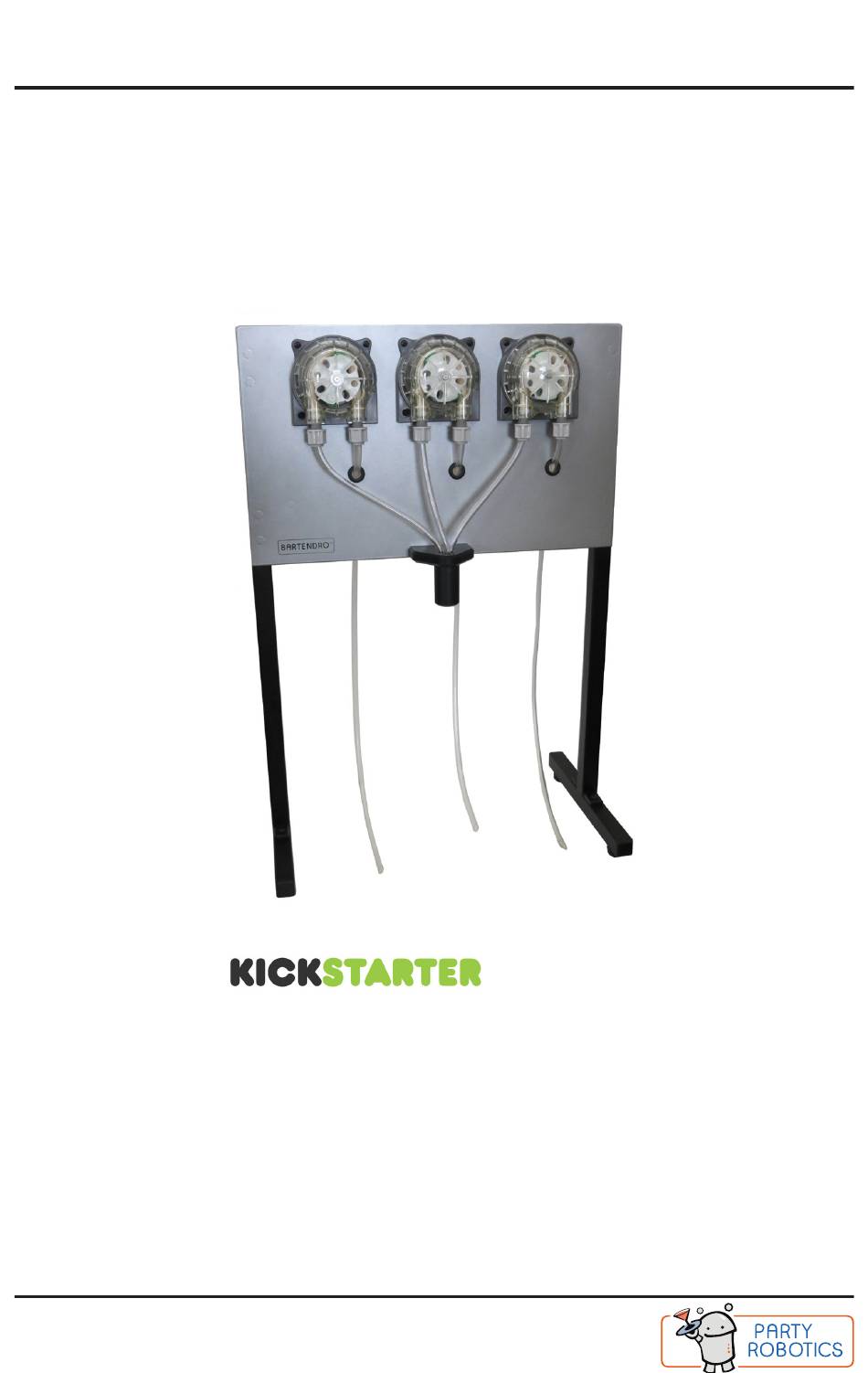

- Page 1 Bartendro Getting Started Guide Model Number: B003V1 EDITION Thanks for backing us! Please read this guide before operating your Bartendro Bot v 1.0 www.partyrobotics.com...
-
Page 2: Important Precautions
Bartendro Congratulations! You are one of the first owners of the latest in cocktail dispensing technology. Bartendro Cocktail Bots and Dispensers pour a variety of liquids precisely, and you can control them from phones or tablets. Whether you set up B3 to have a margarita night, or use it for mixing flavored syrups in your coffee, it will be sure to liven things up. - Page 3 Bartendro Bartendro B3 Contents What’s Included A001V1 Horizontal Foot (2) A002V1 Vertical Leg (2) A018V1 Faceplate M041V1 Screw (10) A025V1 Spout T022V1 Input Tubing (3) TXXXV1 Output Tubing (3) M054V1 Wire Clips (4) M080V1 Alcohol Pad Dispenser Compression Nut (6) M101V1 Chopstick (tubing replacement tool) E008V1...
- Page 4 Bartendro Assembly Instructions Step 1 Build Frame Legs Press vertical leg (B) onto the square fitting on the horizontal foot (A). Orientation of the holes should be in-line with the foot. Do this for both legs. TIP: If the vertical leg is difficult to slide onto the fitting, try flipping it upside-down and resting it on a solid surface while using both hands to push down on the foot.
- Page 5 Bartendro Step 3 Attach Spout Use 2 screws (D) to attach the spout (E) to the faceplate (C) Step 4 Insert Tubes into Compression Nuts Feed the tubes through the compression nuts. Make sure the flat end of each tube sticks out of the nut by 1/8”...
- Page 6 Bartendro Step 5 Attach Tubing to Dispensers Turn each tube / compression nut combo onto the Dispenser until they are finger tight. You should only see one or two threads remaining. Attach the three longest tubes to the right side of each dispenser (F). Then (3X) feed them through the holes in the (3X)
-
Page 7: Step 7 Power Up
Bartendro Step 7 Power Up Important: Before plugging the AC power cord into the wall outlet, insert the DC plug (see image at right) into the miniRouter board. Then plug the AC power cord into an outlet for Bartendro to begin booting. When the time comes to turn off Bartendro, start by unplugging the AC power cord from the wall first. -
Page 8: Open Browser
Bartendro Connect to Bartendro Find Network and Connect Using a WiFi-enabled device, find the “bartendro” WiFi network by looking for it in your settings, and connect to it. The first time you connect may take as long as 30 seconds to establish the connection. Open Browser iPhones and iPads will automatically display the Bartendro user interface (UI) soon after they connect to the Bartendro network. - Page 9 Bartendro Getting to the Admin Menu To get to the Admin menu, find the hidden link at the bottom left corner of the main menu, or type “bartendro/admin” in the address bar of your browser. When prompted use the default: Name: bartendro Password: boozemeup Note: You can change the login name and password by going to...
-
Page 10: Cleaning And Maintenance
Bartendro Cleaning and Maintenance For longest tube life, you should clean all of Bartendro’s tubing after every use. Step 1 You will need three tall containers or glasses. Fill one with hot soapy water, one with clean water, and keep the third one empty. Step 2 Go to Admin >... -
Page 11: Troubleshooting
Bartendro Troubleshooting Dispenser is blue / green / blank after power up This is normal. The lights will remain in this mode until proper communication with Bartendro establishes a proper connection with the Dispensers (which takes about one minute). If after a minute the lights don’t begin fading in and out, make sure the SD card is inserted properly. - Page 12 Bartendro Having Issues? If you didn’t find what you were looking for in this manual, try some of these options: • Search the forums at www.partyrobotics.com/forums. We en- courage you to post your questions so that others may learn from them.
