Technical Manual
Of

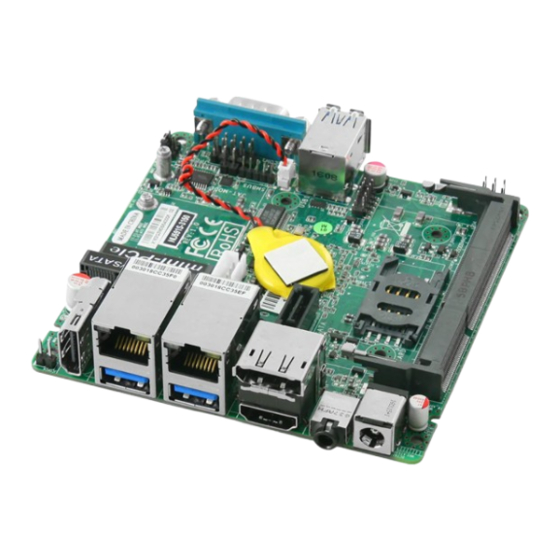

Intel Braswell Series CPU
Based SBC
NO.G03-NU591-F
Revision: 4.0
Release date: October 1, 2019
Trademark:
* Specifications and Information contained in this documentation are furnished for information use only, and are
subject to change at any time without notice, and should not be construed as a commitment by manufacturer.
Advertisement
Table of Contents
Related Manuals for JETWAY NU591S
Summary of Contents for JETWAY NU591S
- Page 1 Technical Manual Intel Braswell Series CPU Based SBC NO.G03-NU591-F Revision: 4.0 Release date: October 1, 2019 Trademark: * Specifications and Information contained in this documentation are furnished for information use only, and are subject to change at any time without notice, and should not be construed as a commitment by manufacturer.
- Page 2 Environmental Protection Announcement Do not dispose this electronic device into the trash while discarding. To minimize pollution and ensure environment protection of mother earth, please recycle.
-
Page 3: Table Of Contents
TABLE OF CONTENT ENVIRONMENTAL SAFETY INSTRUCTION ................iv USER’S NOTICE ........................v MANUAL REVISION INFORMATION ..................v ITEM CHECKLIST ........................v CHAPTER 1 INTRODUCTION OF THE MOTHERBOARD FEATURE OF MOTHERBOARD ................1 SPECIFICATION ......................2 LAYOUT DIAGRAM ....................3 CHAPTER 2 HARDWARE INSTALLATION JUMPER SETTING .....................7 CONNECTORS AND HEADERS ................10 2-2-1 CONNECTORS .....................10 2-2-2... -
Page 4: Environmental Safety Instruction
Environmental Safety Instruction Avoid the dusty, humidity and temperature extremes. Do not place the product in any area where it may become wet. 0 to 60 centigrade is the suitable temperature. (The figure comes from the request of the main chipset) ... -
Page 5: User's Notice
USER’S NOTICE COPYRIGHT OF THIS MANUAL BELONGS TO THE MANUFACTURER. NO PART OF THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE REPRODUCED, TRANSMITTED OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN PERMISSION OF THE MANUFACTURER. -
Page 6: Chapter 1 Introduction Of The Motherboard
Chapter 1 Introduction of the Motherboard 1-1 Feature of Motherboard Onboard Intel ® Braswell series SoC Processor, with low power consumption never denies high performance Support 1* DDR3L 1600 MHz SO-DIMM, up to 8GB Onboard 2 * RJ-45 gigabit Ethernet LAN port ... -
Page 7: Specification
1-2 Specification Spec Description Design NUC form factor; PCB size: 10.1 cm x 10.1 cm Intel Braswell *SoC CPU ® Embedded CPU *CPU model varies from different IPC options. Please consult your dealer for more information of onboard CPU. 1 * DDR3L SODIMM Slot for un-buffered *DDR3L 1600 MHz ... -
Page 8: Layout Diagram
1* 9-Pin USB 2.0/1.1 header for 2* USB 2.0/1.1 ports 2* LAN LED activity header 1* GPIO header 1* SMBUS header * Note: 1. Many PCs now include XHCI USB controllers which allow for the support of USB 3.0 and higher USB speeds. - Page 9 Internal Diagram-Front Side: Full-size Mini-PCIE/MSATA Slot JPCOM1 JCOPEN （ MMPE ） Half-size HDMI Port Mini-PCIE Slot (MPE) GPIO Port JAT_MODE Header RJ-45 LAN Port SMBUS Header Over USB 3.0 Port Serial Port SATA HDD Power-Out Connector RJ-45 LAN Port LAN2_LED Header Over USB 3.0 Port USB 3.0 Ports LAN1_LED Header...
- Page 10 Internal Diagram-Back Side: FP_CON1 Connector Intel CPU CPUFAN Connector (*Optional) *Note: CPUFAN connector is optional for specific model. Please refer to the product you purchased for actual specifications.
- Page 11 Connectors Connector Name HDMI2 HDMI Connector UL1/UL2 Top: RJ-45 LAN Port Connector Bottom: USB 3.0 Port Connector HDMI-DP Top: Display Port Connector Bottom: HDMI Connector AUDIO1 Line-Out/MIC Combo Connector DCIN1 12V DC–in System Power Jack USB1 USB 3.0 Port Connector x2 SATA SATAIII Port Connector PWOUT1...
-
Page 12: Chapter 2 Hardware Installation
Jumper Jumper Name Description JPCOM1 COM1 Port Pin9 Function Select 4-Pin Block JCOPEN Case Open Message Display Function Select 2-Pin Block JAT_MODE ATX Mode & AT Mode Select 2-Pin Block JBAT Pin (1-2): Clear Me Function Setting 6-Pin Block Pin (3-4): Clear CMOS RAM Setting Pin (5-6): Flash Descriptor Security Override Chapter 2 Hardware Installation... - Page 13 JCOPEN (2-pin): Case Open Message Display Function Select JCOPEN JCOPEN 1-2 Open: Normal(Defualt); 1-2 Short: Case Open Function Selected (One Touch). Pin 1-2 Short: When Case open function pin short to GND, the Case open function was detected. When Used, needs to enter BIOS and enable ‘Case Open Detect’ function. In this case if your case is removed, next time when you restart your computer, a message will be displayed on screen to inform you of this.
- Page 14 Pin (1-2) of JBAT (6-pin): Clear ME Setting Pin (1-2) of JBAT → Clear ME Pin 1 1-2 Open: Normal (Default); Pin 1 JBAT 1-2 Closed: Clear ME(One Touch). Pin (3-4) of JBAT (6-pin): Clear CMOS RAM Setting Pin (3-4) of JBAT →...
-
Page 15: Connectors And Headers
Pin (5-6) of JBAT (6-pin): Flash Descriptor Security Override Pin (5-6) of JBAT → Flash Override Pin1 5-6 Open: Enable Security Measures in the Flash Descriptor(Default); Pin1 JBAT 5-6 Closed: Disable Security Measures in the Flash Descriptor(Override). Connectors and Headers 2-2-1 Connectors Rear IO Panel Diagram: RJ-45 LAN Ports... - Page 16 Front IO Panel Diagram: Serial Port USB 3.0 Ports Icon Name Function 12V DC–in system power connector Power Connector For user to connect compatible power adapter to provide power supply for the system. This connector is standard RJ-45 LAN jack for RJ-45 LAN Port Network connection.
- Page 17 COM1 (9-pin Block): RS232/422/485 Serial Port COM1 port can function as RS232/422/485 port. In normal settings COM1 functions as RS232 port. With compatible COM cable they can function as RS422 or RS 485 port. User also needs to go to BIOS to set ‘Transmission Mode Select’ for COM1 (refer to Page 22) at first, before using specialized cable to connect different pins of this port.
- Page 18 PWOUT1 (4-pin): SATA HDD Power-Out Connector Pin1 Pin No. Definition +12V FP_CON1 (4-pin): Front Panel Connector Pin No. Definition Power_SW Pin1 PWRLED - PWRLED+...
-
Page 19: Headers
CPUFAN (3-pin): CPUFAN Connector Pin1 Pin No. Definition Fan Detect *Note: CPUFAN connector is optional for specific model. Please refer to the product you purchased for actual specifications. 2-2-2 Headers FP_USB1 (9-pin): USB 2.0 Port Header FP_USB1 Pin 1... - Page 20 LAN1_LED (2-pin): LAN1 Activity LED Header Pin 1 LAN1_LED LAN2_LED (2-pin): LAN2 Activity LED Header Pin 1 LAN2_LED...
- Page 21 GPIO_CON1 (10-pin): GPIO Header GPIO_CON1 GPIO_27 GPIO_26 GPIO_24 GPIO_25 GPIO_22 GPIO_23 GPIO_20 GPIO_21 Pin 1 SMBUS (5-Pin): SM BUS Header Pin 1 SMBUS SMBUS_CLK SMBUS_DATA 3VSB...
-
Page 22: Chapter 3 Introducing Bios
Chapter 3 Introducing BIOS Notice! The BIOS options in this manual are for reference only. Different configurations may lead to difference in BIOS screen and BIOS screens in manuals are usually the first BIOS version when the board is released and may be different from your purchased motherboard. Users are welcome to download the latest BIOS version form our official website. -
Page 23: Bios Menu Screen
BIOS Menu Screen The following diagram show a general BIOS menu screen: Menu Bar General Help Items Menu Items Current Setting Value Function Keys Function Keys In the above BIOS Setup main menu of, you can see several options. We will explain these options step by step in the following pages of this chapter, but let us first see a short description of the function keys you may use here: ... -
Page 24: Getting Help
Press <+>/<–> keys when you want to modify the BIOS parameters for the active option. [F1]: General help. [F2]: Previous value. [F3]: Optimized defaults. [F4]: Save & Exit. [F7]: To enter pop-up boot menu to select boot device. ... -
Page 25: Main Menu
Main Menu Main menu screen includes some basic system information. Highlight the item and then use the <+> or <-> and numerical keyboard keys to select the value you want in each item. System Date Set the date. Please use [Tab] to switch between data elements. System Time Set the time. -
Page 26: Advanced Menu
3-7 Advanced Menu Trusted Computing Press [Enter] to enable or disable Security Device Support. TPM20 Device Found Security Device Support Use this item to enable or disable BIOS support for security device. TCG EFI protocol and INT1A interface will not be available. The optional settings: [Disabled];... - Page 27 The optional settings: [Disabled]; [Enabled]. TPM2.0 UEFI Spec Version Use this item to select the TCG2 spec. version supported. The optional settings: [1.0]; [1.x]. [1.0]: compatible mode for Win8/Win10. [1.x]: for TCG2 newer spec. compatible mode for Win10. ACPI Settings Press [Enter] to make settings for the following sub-item: ACPI Settings ACPI Sleep State...
- Page 28 This item should be set as [Disabled] if you wish to have all active wake-up functions. Case Open Detect This item controls detect case open function. The optional settings: [Disabled]; [Enabled]. WatchDog Reset Timer Use this item to enable or disable WatchDog Timer reset function. When set as [Enabled], the following sub-items shall appear: WatchDog Reset Timer Value User can set a value in the range of [10] to [255].
- Page 29 The optional settings are: [Disabled]; [Enabled]. When set as [Enabled], user can make further settings in the ‘Console Redirection Settings’ screen: Console Redirection Settings The settings specify how the host computer and the remote computer (which the user is using) will exchange data. Both computers should have the same or compatible settings.
- Page 30 Redirection After BIOS POST The optional settings are: [Always Enable]; [BootLoader]. Serial Port for Out-of-Band Management/ Windows Emergency Management Services (EMS) Console Redirection The optional settings: [Disabled]; [Enabled]. When set as [Enabled], user can make further settings in ‘Console Redirection Settings’: ...
- Page 31 PC Health Status Press [Enter] to view current hardware health status, set shutdown temperature, or make further settings in ‘SmartFAN Configuration’. SmartFAN Configuration Press [Enter] to make settings for SmartFAN Configuration: CPUFAN Smart Mode The optional settings: [Disabled]; [Enabled]. When set as [Enabled], the following sub-items shall appear: CPUFAN Full-Speed Temperature Use this item to set CPUFAN full speed temperature.
-
Page 32: Sata Configuration
Intel Virtualization Technology The optional settings: [Enabled]; [Disabled]. When set as [Enabled], a VMM can utilize the additional hardware capabilities provided by Vanderpool Technology. EIST The optional settings: [Disabled]; [Enabled]. Use this item to enable or disable Intel SpeedStep. CPU C State Report Use this item to enable or disable CPU C state report to OS. -
Page 33: Network Stack Configuration
Network Stack Configuration Press [Enter] to go to ‘Network Stack’ screen to make further settings. Network Stack The optional settings are: [Enabled]; [Disabled]. When set as [Enabled], the following sub-items shall appear: Ipv4 PXE Support The optional settings are: [Disabled]; [Enabled]. Use this item to enable Ipv4 PXE Boot Support. -
Page 34: Usb Configuration
Other PCI devices This item determines OpROM execution policy for devices other than Network, storage or video. The optional settings are: [Do not launch]; [UEFI]; [Legacy]. Wake-up Function Settings Press [Enter] to make settings for the following sub-items: Wake-up System with Fixed Time Use this item to enable or disable system wake-up by RTC alarm. - Page 35 Use this item to set the time-out value for control, bulk, and interrupt transfers. The optional settings are: [1 sec]; [5 sec]; [10 sec]; [20 sec]. Device Reset Time-out Use this item to set USB mass storage device start unit command time-out. The optional settings are: [10 sec];...
-
Page 36: Chipset Menu
Intel(R) I211 Gigabit Network Connection -XX:XX:XX:XX:XX:XX/ Intel(R) I211 Gigabit Network Connection -XX:XX:XX:XX:XX:XX This item gives Intel gigabit ethernet controller basic driver information. 3-8 Chipset Menu North Bridge Press [Enter] to view memory configurations or make settings for the following sub-items: PAVC Use this item to enable or disable protected audio video control. -
Page 37: South Bridge
[256M]; [288M]; [320M]; [352M]; [384M]; [416M]; [448M]; [480M]; [512M]. DVMT Total Gfx Mem Use this item to select DVMT 5.0 total graphics memory size used by the internal graphics device. The optional settings are: [128M]; [256M]; [MAX]. Aperture Size The optional settings are: [128MB]; [256MB]; [512MB]. GTT Size The optional settings are: [2MB];... -
Page 38: Security Menu
PWR Status after PWR Failure Use this item to select AC power state when power is re-applied after a power failure. The optional settings are: [Always Off]; [Always On]; [Former State]. *Note: The option [Always On] and [Former State] are affected by ERP function. Please disable ERP to support [Always On] and [Former State] function. -
Page 39: Boot Menu
3-10 Boot Menu Setup Prompt Timeout Use this item to set number of seconds to wait for setup activation key. Bootup Numlock State Use this item to select keyboard numlock state. The optional settings are: [On]; [Off]. Quiet Boot The optional settings are: [Disabled]; [Enabled]. Boot Option Priorities Boot Option #1/ Boot Option #2…... -
Page 40: Save & Exit Menu
3-11 Save & Exit Menu Save Changes and Reset This item allows user to reset the system after saving the changes. Discard Changes and Reset This item allows user to reset the system without saving any changes. Restore Defaults Use this item to restore /load default values for all the setup options. Save as User Defaults Use this item to save the changes done so far as user defaults. - Page 41 Press this item to select the device as boot disk after save configuration and reset. Launch EFI Shell from filesystem device This item is used for attempts to launch EFI shell application from one of the available file system devices. Reset System with TXE disable Mode Press [Enter] for TXE to run into the temporary disable mode.
