Page 1: Installation Manual

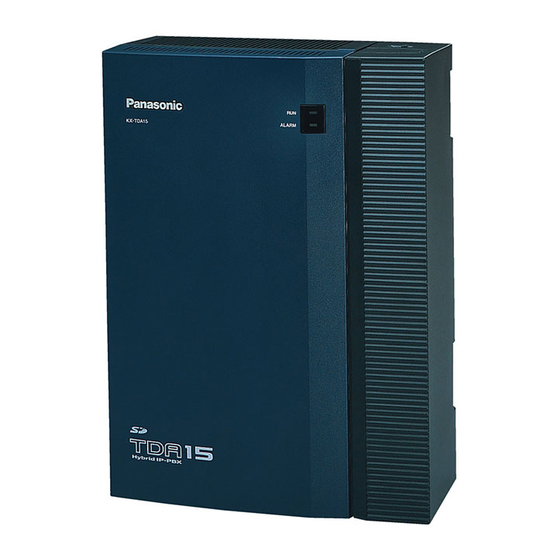

Hybrid IP-PBX Installation Manual KX-TDA15 Model No. Thank you for purchasing the Panasonic Hybrid IP-PBX, KX-TDA15. Please read this manual carefully before using this product and save this manual for future use. SD Logo is KX-TDA15: Version 1.1 a trademark.
Page 2: System Components
2-Channel Cell Station Unit Using a Super Hybrid Port or a DLC Card for DECT Portable Station Proprietary Equipment KX-T30865 Doorphone Available Proprietary Telephones The Hybrid IP-PBX supports all of the Panasonic KX-T7000, KX-TD7000, and KX-TCA series: • Digital/Analogue proprietary telephones (e.g., KX-T7625, KX-T7630, KX-T7633, KX- T7636) •...
Page 3 Notice • There are some optional service cards and features that are not available for certain countries/areas. Consult your certified Panasonic dealer for detailed instructions. • The power supply capacity of the Hybrid IP-PBX may differ from the values described in this manual depending on the model number.
Page 4: Important Safety Instructions
Important Safety Instructions SAFETY REQUIREMENTS When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: Read and understand all instructions. Follow all warnings and instructions marked on the product. Unplug this product from the wall outlet before cleaning.
Page 5 If the product exhibits a distinct change in performance. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning. Do not use the telephone to report a gas leak in the vicinity of the leak. SAVE THESE INSTRUCTIONS Installation Manual...
Page 6 If the telephone operates properly, do not reconnect the unit to the line until the trouble has been repaired by an authorised Panasonic Factory Service Centre. If the telephone does not operate properly, chances are that the trouble is in the telephone network, and not in the Hybrid IP-PBX.
Page 7 • Analogue Public Switched Telephone Network (PSTN) of a European country • Pan-European Integrated Services Digital Network (ISDN) using ISDN basic rate access We, Panasonic Communications Co., Ltd./Panasonic Communications Company (U.K.) Ltd., declare that this equipment is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
Page 8 Introduction This Installation Manual is designed to serve as an overall technical reference for the Panasonic Hybrid IP-PBX, KX-TDA15. It provides instructions for installing the hardware, and programming the Hybrid IP-PBX using the KX-TDA15 Maintenance Console. The Structure of this Manual...
Page 9 If you lose the fuse cover, the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be purchased from your local Panasonic Dealer. IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR PREMISES, THEN THE FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF AND DISPOSED OF SAFELY.
Page 10 How to replace the fuse: Open the fuse compartment with a screwdriver and replace the fuse and fuse cover. This equipment should be used on PSTN lines requiring 2-wire Loop calling unguarded clearing with Loop Disconnect or DTMF address signalling. The equipment must be connected to direct exchange lines and a payphone should not be connected as an extension.
Page 11: Table Of Contents
2.2.5 Frame Earth Connection ..................34 2.2.6 Installing/Removing the Optional Service Cards............35 2.2.7 Types of Connectors ....................44 2.2.8 Wall Mounting (KX-TDA15) ..................45 2.2.9 Wall Mounting (AC Adaptor) ..................48 2.2.10 Lightning Protector Installation.................51 Installation of the Trunk Cards ................54 2.3.1 LCOT2 Card......................54 2.3.2...
Page 12 Overview ......................126 3.1.1 Overview ....................... 126 Connection......................127 3.2.1 Connection ......................127 Installation of the KX-TDA15 Maintenance Console ........129 3.3.1 Installing and Starting the KX-TDA15 Maintenance Console........ 129 3.3.2 Structure of the KX-TDA15 Maintenance Console..........133 3.3.3 Hybrid IP-PBX Configuration................. 134 3.3.4...
Page 13: System Outline
Section 1 System Outline This section provides general information on the Hybrid IP-PBX, including the system capacity and specifications. Installation Manual...
Page 14: System Highlights
1.1 System Highlights System Highlights 1.1.1 System Highlights Networking Features This Hybrid IP-PBX supports the following networking features: Virtual Private Network (VPN) VPN is a service provided by the telephone company. It uses an existing line as if it were a private line.
Page 15 (Wireless XDP Parallel Mode). In this case, the wired telephone is the main telephone and the PS is the sub telephone. PC Phone/PC Console Features This Hybrid IP-PBX supports PC Phone and PC Console. These Panasonic CTI applications provide advanced features. Installation Manual...
Page 16: Basic System Construction
1.2 Basic System Construction Basic System Construction 1.2.1 Main Unit The main unit is equipped with one BRI2 card, one EXT-CID card, and 4 Super Hybrid Ports. For system expansion, optional service cards can be installed. Construction of Main Unit Main Board BRI2 card (installed by default)
Page 17: System Connection Diagram
1.2 Basic System Construction 1.2.2 System Connection Diagram Trunk (Telephone Company Lines) Analogue/BRI Remote PC Private IP Network Hybrid IP-PBX Router Server PC Printer Fax Machine Wireless Phone DSS Console ISDN Telephone Doorphone & Door Opener DSS Console BGM/Music On Hold (MOH) KX-T7636/ Pager/ Amplifier...
Page 18 1.2 Basic System Construction Hybrid IP-PBX KX-T7636/KX-T7633 DLC8 Console LCOT2 (KX-TDA3172) (KX-TDA3183) Analogue Voice Trunk Processing PT-interface CS System Telephone Company SLC8 (KX-TDA3174) ISDN BRI Line ISDN BRI Line ISDN BRI Line (Digital Trunk) (Digital Trunk) (Digital Trunk) BRI2 (KX-TDA3280) BRI1 Wireless Phone Fax Machine...
Page 19: Options
1.3 Options Options 1.3.1 Options Maximum Model No. Model Name Description Quantity KX-TDA3161 4-Port Doorphone Card 4-port doorphone card for 4 doorphones (DPH4) and 4 door openers. KX-TDA3162 2-Port Doorphone Card 2-port doorphone card for 2 German (German Type) (DPH2) type doorphones and 2 door openers.
Page 20: Specifications
1.4 Specifications Specifications 1.4.1 General Description Switching Non-blocking AC Adaptor AC Input 100 V AC to 240 V AC, 1.5 A, 50 Hz/60 Hz DC Output 40 V, 1.38 A (55.2 W) DC Input 40 V, 1.38 A (55.2 W) Maximum Power Failure 300 ms Tolerance...
Page 21 1.4 Specifications Extension Connection Cable 1-pair wire (T, R) 1-pair wire (D1, D2) or 2-pair wire (T, R, D1, D2) 2-pair wire (T, R, D1, D2) PT-interface CS 1-pair wire (D1, D2) DSS Console and Add-on Key Module 1-pair wire (D1, D2) 275 mm (W) ×...
Page 22: Characteristics
1.4 Specifications 1.4.2 Characteristics Terminal Equipment Loop Limit • PT: KX-T7600 series: 90 ; all other DPTs/APTs: 40 • SLT: 600 including set • Doorphone: 20 • PT-interface CS: 65 Minimum Leakage Resistance 15 000 minimum Maximum Number of Extension 1 for PT or SLT Instruments per Line 2 by Parallel or eXtra Device Port connection of a PT and an SLT...
Page 23: System Capacity
1.4 Specifications 1.4.3 System Capacity Maximum Trunk and VoIP Line The Hybrid IP-PBX supports the following number of trunk lines and VoIP lines. Line Type Maximum Number Trunk Line VoIP Line Maximum Terminal Equipment The following amount of terminal equipment can be supported by the Hybrid IP-PBX. Terminal Equipment Type Maximum Number Total 16...
Page 24 1.4 Specifications If the total load figure exceeds 32, it cannot be supported by the KX-TDA15. In this case, use the KX-TDA30 with Additional AC Adaptor. If the load figure exceeds 96, use the KX-TDA100 with M-Type Power Supply Unit (PSU-M), or the KX-TDA200 with either PSU-M or L-Type Power Supply Unit (PSU-L).
Page 25: Installation
Section 2 Installation This section describes the procedures to install the Hybrid IP-PBX. Detailed instructions for planning the installation site, installing the optional service cards, and cabling of peripheral equipment are provided. Further information on system expansion and peripheral equipment installation is included. Installation Manual...
Page 26: Before Installation
2.1 Before Installation Before Installation 2.1.1 Before Installation Please read the following notes concerning installation and connection before installing the Hybrid IP-PBX. Be sure to comply with applicable local regulations (e.g., law, guidelines). Safety Installation Instructions When installing telephone wiring, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: Never install telephone wiring during a lightning storm.
Page 27 2.1 Before Installation Avoid using the same power supply outlet for computers, telexes, and other office equipment. Otherwise, the Hybrid IP-PBX operation may be interrupted by the inducted noise from such equipment. Please use 1-pair telephone wire for extension connection of (telephone) equipment such as standard telephones, data terminals, answering machines, computers, Voice Processing Systems, etc., except PTs (e.g., KX-T7600 series).
Page 28: Installation Of The Hybrid Ip-Pbx
2.2 Installation of the Hybrid IP-PBX Installation of the Hybrid IP-PBX 2.2.1 Unpacking Unpack the box and check the items below: Main Unit AC Cord AC Adaptor Screws for Wall Mounting Washers for Wall Mounting Mini Plug (for pager and music source) SD Memory Card Main Strap Optional Card Label Sheet...
Page 29: Names And Locations
2.2 Installation of the Hybrid IP-PBX 2.2.2 Names and Locations SD Memory Card Slot Cover Reset Button System Initialise Switch MOH port Pager port Super Hybrid Ports Earth Terminal RS-232C port USB port DC IN 1 Power Switch Installation Manual...
Page 30: Opening/Closing The Covers
2.2 Installation of the Hybrid IP-PBX 2.2.3 Opening/Closing the Covers Opening the Covers Pull the slide button to the right and, holding it, slide the cable cover upwards. Then turn the cable cover slightly to remove it. Slide Button Cable Cover Remove the three screws.
Page 31 2.2 Installation of the Hybrid IP-PBX Removing/Attaching the Front Cover If you prefer, you can remove the front cover. Removing the Front Cover Holding the front cover open at about a 45° angle, remove the front cover by pushing it in the direction of the arrow as shown below.
Page 32 2.2 Installation of the Hybrid IP-PBX Closing the Covers Close the front cover, then tighten the three screws. Screw Attach the rear hooks on the cable cover to the main unit, then swing the cable cover closed so that the front hooks fit in place. Cable Cover Slide the cable cover down until it locks.
Page 33: Installation Of The Sd Memory Card
2.2 Installation of the Hybrid IP-PBX 2.2.4 Installation of the SD Memory Card SD Memory Card SD Memory Slot Cover Card CAUTION • Use only the SD Memory Card included with the Hybrid IP-PBX. • The SD Memory Card contains software for all the processes of the Hybrid IP-PBX and all the customer data.
Page 34: Frame Earth Connection
2.2 Installation of the Hybrid IP-PBX 2.2.5 Frame Earth Connection IMPORTANT Connect the frame of the Hybrid IP-PBX to earth. Loosen the screw. Screw Insert an earthing wire (user- supplied)*. Tighten the screw. Earthing Connect the earthing wire to wire earth.
Page 35: Installing/Removing The Optional Service Cards
2.2 Installation of the Hybrid IP-PBX 2.2.6 Installing/Removing the Optional Service Cards Slot Position Slots 10 and 11 accept only cards that do not have external ports. Therefore, these slots do not have removable cover plates. Slot 08 contains the pre-installed EXT-CID card. Slot 02 contains the pre-installed BRI2 card.
Page 36 2.2 Installation of the Hybrid IP-PBX Trunk Card Combination Trunk cards can be installed along with the pre-installed BRI2 card in any one of the following combinations: • BRI2 + BRI2 • BRI2 + BRI1 • BRI2 + LCOT2 • BRI2 + BRI1 + LCOT2 CAUTION To protect the main board from static electricity, do not touch parts on the main board or...
Page 37 2.2 Installation of the Hybrid IP-PBX Position the card in the open slot, making sure that the tabs on the both sides of the card fit into place. Then, holding the card firmly in place, lower the rear end so that the hole of the card fits over the extension bolt.
Page 38 2.2 Installation of the Hybrid IP-PBX Stick an appropriate optional card label (included) to the left side of the corresponding card. Optional Card Label Connect a cable to an appropriate port of the card. For details about pin assignments, refer to the appropriate section in "2.3 Installation of the Trunk Cards"...
Page 39 2.2 Installation of the Hybrid IP-PBX Repeat the procedure for other cards. When installing a card in Slot 11, tighten the card using the screw included with the card, instead of the extension bolt. Screw Installation Manual...
Page 40 2.2 Installation of the Hybrid IP-PBX Handling of the Cables Attach the strap included with the card to one of the connected cables. Strap Bind all the connected cables together using the strap. Repeat the procedure for other cards. Installation Manual...
Page 41 2.2 Installation of the Hybrid IP-PBX Attach the main strap (included with the Hybrid IP-PBX) to any of the 5 rails depending on your preference. Main Strap Installation Manual...
Page 42 2.2 Installation of the Hybrid IP-PBX Bind all the connected cables together using the main strap, and then close the cable cover. For how to close the cable cover, refer to "2.2.3 Opening/Closing the Covers". Cable Cover Main Strap Notes •...
Page 43 2.2 Installation of the Hybrid IP-PBX Removing the Optional Service Cards Loosen and remove the extension bolt. Holding the protrusions of the card, pull the card in the direction of the arrows. CAUTION When removing the optional service cards, do not put pressure on any parts of the main board.
Page 44: Types Of Connectors
2.2 Installation of the Hybrid IP-PBX 2.2.7 Types of Connectors Connector Type Pin Number Used for • DPH4 (KX-TDA3161) RJ45 • DPH2 (KX-TDA3162) • DLC8 (KX-TDA3172) • SLC8 (KX-TDA3174) • LCOT2 (KX-TDA3183) • BRI2 (KX-TDA3280) (Twisted pair cable) • BRI1 (KX-TDA3283) •...
Page 45: Wall Mounting (Kx-Tda15)
2.2 Installation of the Hybrid IP-PBX 2.2.8 Wall Mounting (KX-TDA15) Mounting on Wooden Wall Place the reference for wall mounting (on the last page of this manual) on the wall to mark the 3 screw positions. 130 mm 250 mm Install the screws and washers (included) in the wall.
Page 46 2.2 Installation of the Hybrid IP-PBX Mounting on Concrete or Mortar Wall CAUTION Drive mounting screws into the wall. Be careful to avoid touching any metal laths, wire laths or metal plates in the wall. Place the reference for wall mounting (on the last page of this manual) on the wall to mark the 3 screw positions.
Page 47 2.2 Installation of the Hybrid IP-PBX Notes • Do not block the openings of the cabinet. Allow space of at least 20 cm above and 10 cm at the sides of the cabinet. • Make sure that the wall behind the cabinet is flat and free of obstacles, so that the openings on the back of the cabinet will not be blocked.
Page 48: Wall Mounting (Ac Adaptor)
2.2 Installation of the Hybrid IP-PBX 2.2.9 Wall Mounting (AC Adaptor) Mounting on Wooden Wall Place the reference for wall mounting (on the following page) on the wall to mark the 2 screw positions. 110 mm Install the screws and washers (included) in the wall. Washer Drive the screw to this position.
Page 49 2.2 Installation of the Hybrid IP-PBX Mounting on Concrete or Mortar Wall CAUTION Drive mounting screws into the wall. Be careful to avoid touching any metal laths, wire laths or metal plates in the wall. Place the reference for wall mounting (on the following page) on the wall to mark the 2 screw positions.
Page 50 2.2 Installation of the Hybrid IP-PBX Reference for Wall Mounting Please copy this page and use as a reference for wall mounting. Install a screw here. 110 mm Install a screw here. Note When you print out this page, the distance on the paper output may deviate slightly from the measurement indicated above.
Page 51: 2.2.10 Lightning Protector Installation
2.2 Installation of the Hybrid IP-PBX 2.2.10 Lightning Protector Installation Overview A lightning protector is a device that must be installed on a trunk to prevent a dangerous surge from entering the building and damaging equipment. A dangerous surge can occur if a telephone line comes in contact with a power line. Trouble due to lightning surges has been showing a steady increase with the development of electronic equipment.
Page 52 2.2 Installation of the Hybrid IP-PBX Outside Installation (Main Building) Lightning Protectors Trunk (Another Building) Trunk Extn. Hybrid Terminal IP-PBX Board Lightning Extn. Protector Extn. Extn. Earth Extn.: Extension Line If you install an extension outside of the building, the following precautions are recommended: Install the extension wire underground.
Page 53 2.2 Installation of the Hybrid IP-PBX Check obstructions..None Composition of the earth rod..Metal Depth of the earth rod..More than 50 cm Cross sectional area of the earthing wire..More than 1.3 mm Notes • The above figures are recommendations only. • The length of earth rod and the required depth depend on the composition of the soil.
Page 54: Installation Of The Trunk Cards
2.3 Installation of the Trunk Cards Installation of the Trunk Cards 2.3.1 LCOT2 Card Function 2-port analogue trunk card. RJ45 To trunk Accessory and User-supplied Items Accessory (included): Extension Bolt × 1, Strap × 1 User-supplied (not included): RJ45 connector Notes •...
Page 55: Bri2 Card
2.3 Installation of the Trunk Cards 2.3.2 BRI2 Card Function 2-port ISDN Basic Rate Interface card. EURO-ISDN/ETSI compliant. RJ45 (LINE 1) RJ45 (LINE 2) LED 1 To NT1/Extension LED 2 Accessory and User-supplied Items Accessory (included): Extension Bolt × 1, Strap × 1 User-supplied (not included): RJ45 connector Notes •...
Page 56 2.3 Installation of the Trunk Cards Pin Assignments RJ45 Connector for Trunk Use Signal Name Level [V] Function Transmit data 1 TX1(+) RX2(+) RX1(-) Receive data 2 TX2(-) Receive data 1 Transmit data 2 – – Reserved RJ45 Connector for Extension Use Signal Name Level [V] Function...
Page 57 2.3 Installation of the Trunk Cards Master LED Pattern Clock L1: ON (Synchronous) L2: ON (Link established)/OFF (Link not established) Master Clock: ON (Master)/OFF (Slave) Maximum Cabling Distance of S0 Bus Connection The maximum distance of the extension cable that connects the Hybrid IP-PBX and the ISDN terminal equipment (TE) is shown below: CAT 5: Under 1000 m Point-to-Point...
Page 58: Bri1 Card
2.3 Installation of the Trunk Cards 2.3.3 BRI1 Card Function 1-port ISDN Basic Rate Interface card. EURO-ISDN/ETSI compliant. RJ45 To NT1/Extension Accessory and User-supplied Items Accessory (included): Extension Bolt × 1, Strap × 1 User-supplied (not included): RJ45 connector Notes •...
Page 59 2.3 Installation of the Trunk Cards Pin Assignments RJ45 Connector for Trunk Use Signal Name Level [V] Function Transmit data 1 TX1(+) RX2(+) RX1(-) Receive data 2 TX2(-) Receive data 1 Transmit data 2 – – Reserved RJ45 Connector for Extension Use Signal Name Level [V] Function...
Page 60 2.3 Installation of the Trunk Cards Master LED Pattern Clock L1: ON (Synchronous) L2: ON (Link established)/OFF (Link not established) Master Clock: ON (Master)/OFF (Slave) Maximum Cabling Distance of S0 Bus Connection The maximum distance of the extension cable that connects the Hybrid IP-PBX and the ISDN terminal equipment (TE) is shown below: CAT 5: Under 1000 m Point-to-Point...
Page 61: Ip-Gw4 Card
2.3 Installation of the Trunk Cards 2.3.4 IP-GW4 Card Function 4-channel VoIP gateway card. VoIP H.323 V.2, ITU-T G.729a, G.723.1 and G.711 compliant. RJ45 LEDs To private IP network Accessory and User-supplied Items Accessory (included): Extension Bolt × 1, Strap × 1 User-supplied (not included): RJ45 connector Notes •...
Page 62 2.3 Installation of the Trunk Cards LED Indications Indication Colour Description ON LINE Green On-line status indication • ON: On-line mode • OFF: Off-line mode • Flashing: Maintenance mode Note If the LINK indicator is OFF, the ON LINE indicator will also be OFF.
Page 63: Installation Of The Extension Cards
2.4 Installation of the Extension Cards Installation of the Extension Cards 2.4.1 DLC8 Card Function 8-port digital extension card for DPTs, DSS consoles, a VPS, and PT-interface CSs. RJ45 To extension Accessory and User-supplied Items Accessory (included): Extension Bolt × 1, Strap × 1 User-supplied (not included): RJ45 connector Note For details about connecting the CS, refer to "2.7.7 Connecting a Cell Station to the Hybrid...
Page 64: Slc8 Card
2.4 Installation of the Extension Cards 2.4.2 SLC8 Card Function 8-port extension card for SLTs. RJ45 To extension Accessory and User-supplied Items Accessory (included): Extension Bolt ×1, Strap × 1 User-supplied (not included): RJ45 connector Pin Assignments RJ45 Connector Signal Name Function Ring –...
Page 65: Installation Of The Other Cards
2.5 Installation of the Other Cards Installation of the Other Cards 2.5.1 DPH4 Card Function 4-port doorphone card for 4 doorphones and 4 door openers. 10-pin 8-pin To door openers To doorphones Telephone Line Cord Accessory and User-supplied Items Accessory (included): Extension Bolt × 1, Strap × 1, 8-pin terminal block × 1, 10-pin terminal block ×...
Page 66 2.5 Installation of the Other Cards 8-pin Terminal Block Signal Name Function – Reserved – Reserved – Reserved – Reserved – Reserved – Reserved – Reserved – Reserved 10-pin Terminal Block Signal Name Function OP1b Door opener 1 OP1b OP1a OP1a Door opener 1 com OP2b...
Page 67: Dph2 Card
2.5 Installation of the Other Cards 2.5.2 DPH2 Card Function 2-port doorphone card for 2 German type doorphones and 2 door openers. RJ45 10-pin 8-pin To doorphones/ Telephone Line Cord door openers Accessory and User-supplied Items Accessory (included): Extension Bolt × 1, Strap × 1, 8-pin terminal block × 1, 10-pin terminal block ×...
Page 68 2.5 Installation of the Other Cards Pin Assignments RJ45 Connector Signal Name Function OP1b Door opener 1 OP1b OP2b OP1a OP2a Path_1b Path_2b OP1a Door opener 1 com Path_1a Path_2a Call_1b Call_2b Call_1a Call_2a Path_1b Doorphone 1 transmit DC1b DC2b DC1a DC2a Path_1a...
Page 69 2.5 Installation of the Other Cards 10-pin Terminal Block Signal Name Function – Reserved – Reserved – Reserved – Reserved – Reserved – Reserved – Reserved – Reserved – Reserved Installation Manual...
Page 70: Echo8 Card
Accessory (included): Extension Bolt × 1, Screw × 1 User-supplied (not included): none Note To establish a conference call involving 6 to 8 parties, install an ECHO8 card and enable the echo cancellation for conference using the KX-TDA15 Maintenance Console (refer to "3.3.3 Hybrid IP-PBX Configuration"). Installation Manual...
Page 71: Msg2 Card
2.5 Installation of the Other Cards 2.5.4 MSG2 Card Function 2-channel message card. Accessory and User-supplied Items Accessory (included): Extension Bolt × 1, Screw × 1 User-supplied (not included): none Installation Manual...
Page 72: Ext-Cid Card
2.5 Installation of the Other Cards 2.5.5 EXT-CID Card Function Sends Caller ID signals to extension ports. Accessory and User-supplied Items Accessory (included): Extension Bolt × 1, Screw × 1 User-supplied (not included): none Note This card is installed by default. Installation Manual...
Page 73: Connection Of Extensions
2.6 Connection of Extensions Connection of Extensions 2.6.1 Maximum Cabling Distances of the Extension Wiring (Twisted Cable) Cable Maximum Distance ø 0.4 mm: Under 222 m PT-interface CS ø 0.5 mm: Under 347 m ø 0.6 mm: Under 500 m CAT 5: Under 347 m KX-T7600 Series...
Page 74: Parallel Connection Of The Extensions
2.6 Connection of Extensions 2.6.2 Parallel Connection of the Extensions Any SLT can be connected in parallel with an APT or a DPT as follows. Note In addition to an SLT, an answering machine, a fax machine or a modem (PC) can be connected in parallel with an APT or a DPT.
Page 75 2.6 Connection of Extensions Using an EXtra Device Port With KX-T7600 Series DPT (except KX-T7665) To a Super Hybrid Port 2-conductor wiring cord 4-conductor wiring cord Connect pins "T" and "R". Connect pins "T", "R", "D1" and "D2". TO MAIN UNIT / PABX TO TEL To a Super Hybrid Port...
Page 76: Digital Extra Device Port (Digital Xdp) Connection
2.6 Connection of Extensions 2.6.3 Digital EXtra Device Port (Digital XDP) Connection A DPT can be connected to another DPT on the Digital XDP connection. In addition, a DPT connected to a Super Hybrid Port can also have an SLT connected in Parallel mode or XDP mode.
Page 77 2.6 Connection of Extensions Using an Extra Device Port To a Super Hybrid Port 4-conductor wiring cord Connect pins "T", "R", 2-conductor wiring cord "D1" and "D2". Connect pins "T" and "R". 4-conductor wiring cord Connect pins "T", "R", "D1" and "D2". Master DPT Slave DPT Back View of DPTs...
Page 78 2.6 Connection of Extensions With KX-T7600E Series DPT Using a Modular T-Adaptor To a Super Hybrid Port Modular T-Adaptor 2-conductor wiring cord Connect pins "T" and "R". 4-conductor wiring cord Connect pins "D1" and "D2". 4-conductor wiring cord Connect pins "D1" and "D2". Master DPT Slave DPT Back View of DPTs...
Page 79 2.6 Connection of Extensions Using an Extra Device Port Connecting to a Slave DPT To a Super Hybrid Port 4-conductor wiring cord Connect pins "T", "R", 2-conductor wiring cord "D1" and "D2". Connect pins "T" and "R". 4-conductor wiring cord Connect pins "T", "R", "D1"...
Page 80 2.6 Connection of Extensions Connecting to a Master DPT To a Super Hybrid Port 4-conductor wiring cord Connect pins "D1" and "D2". 4-conductor wiring cord Connect pins "T", "R", "D1" and "D2". Master DPT Slave DPT 2-conductor wiring cord Connect pins "T" and "R". Back View of DPTs TO MAIN UNIT / PABX...
Page 81: First Party Call Control Cti Connection
2.6 Connection of Extensions 2.6.4 First Party Call Control CTI Connection CTI connection between a PC and a KX-T7633/T7636 DPT provides first party call control. The CTI connection is made via a USB interface (version 1.1), and uses the CSTA Phase 3 protocol.
Page 82: Connection Of Dect Portable Stations
This Cell Station Unit for DECT is for connection to a Panasonic PBX of a European country. PS: DECT Portable Station (KX-TCA155/KX-TCA255/KX-TD7590/KX-TD7580) The KX-TDA15 can support up to 28 PSs. For more details about the PS, please refer to the PS Operating Instructions. RF Specification...
Page 83 2.7 Connection of DECT Portable Stations • Do not use this wireless system near another high power cordless system such as DECT or SS wireless. • Keep the distances listed below between equipment in order to prevent noise, interference or the disconnection of a conversation. (The distance may vary depending on the environment.) Equipment Distance...
Page 84: Procedure Overview
2.7 Connection of DECT Portable Stations 2.7.2 Procedure Overview When connecting the wireless system, use extreme care to conduct a site survey. Site surveys can be conducted using the KX-TCA255 or KX-TD7590 PS. Inadvertent site survey can result in poor service area, frequent noise, and disconnection of calls. 1.
Page 85 2.7 Connection of DECT Portable Stations Make sure that the radio signal strength level is greater than "3" at any location within the service area demanded by the user. 4. Finish the site survey Refer to "2.7.6 After Site Survey". Return all DIP switches of each CS to the OFF position, and stop supplying power.
Page 86: Site Planning
2.7 Connection of DECT Portable Stations 2.7.3 Site Planning Choosing the best site for the CS requires careful planning and testing of essential areas. The best location may not always be convenient for installation. Read the following information before installing the unit. Understanding Radio Waves Characteristics of Radio Waves The transmission of radio waves and the CS coverage area depend on the structure and...
Page 87 2.7 Connection of DECT Portable Stations Object Material Transmission Tendency Wall Concrete The thicker they are, the less radio waves penetrate them. Ferroconcrete Radio waves can penetrate them, but the more iron there is, the more radio waves are reflected. Window Glass Radio waves usually penetrate them.
Page 88 2.7 Connection of DECT Portable Stations CS Coverage Area The example below shows the size of the coverage area of 1 CS if it is installed where there is no obstacle. Note Radio signal strength levels are measured during the site survey (refer to "2.7.5 Site Survey Using the KX-TCA255/KX-TD7590").
Page 89 2.7 Connection of DECT Portable Stations If 1 CS cannot cover the entire service area, install additional CSs as required. Overlap the coverage areas of adjacent CSs. Where CS coverage areas overlap, the PS will start call handover to the next CS if the signal from one CS becomes weak.
Page 90: Before Site Survey
2.7 Connection of DECT Portable Stations 2.7.4 Before Site Survey Use the KX-TCA255 or KX-TD7590 PS to conduct the site survey. Note The display language for the site survey is only in English. Checking the CS ID Number Check the CS ID number label attached to the CS. Assigning the CS ID Number to the PS Using the KX-TCA255 To enter letters...
Page 91 2.7 Connection of DECT Portable Stations Using the KX-TD7590 To enter letters INT' CS No. CS ID No. Press 1, 9, and POWER 0 to 7 0 to 9 and A to F for more than 5 seconds. To the Desired CS No. To the initial display Note To clear the CS ID number assigned to the PS, follow the procedure below:...
Page 92 2.7 Connection of DECT Portable Stations Setting and Installing the CS Temporarily for Site Survey Switch the Radio Signal Test switch from OFF to ON. Set the channel number switches as desired. DIP Switch Channel Number Switch Radio Signal Test Switch Channel 0 Channel 1 Channel 2 Channel 3 Channel 4 Channel 5 Channel 6 Channel 7 Channel 8 Channel 9 Notes...
Page 93 2.7 Connection of DECT Portable Stations After setting the DIP switch, connect an AC adaptor or battery box to the CS using a power supply adaptor. Note for users in the United Kingdom 240 V AC must not be used on a building site. Instead of an AC adaptor, connect a battery box to the CS.
Page 94: Site Survey Using The Kx-Tca255/Kx-Td7590
2.7 Connection of DECT Portable Stations 2.7.5 Site Survey Using the KX-TCA255/KX-TD7590 The PS has a Radio Signal Test mode that monitors the state of the radio link to the CS for site survey. In the Radio Signal Test mode, the frame loss and signal strength of a synchronous slot, and the signal strength of the other slots can be measured when the PS is monitoring the CS.
Page 95 2.7 Connection of DECT Portable Stations Measure the radio signal strength by moving to and away from the CS. Move to the CS until the point the radio signal strength level becomes "12". Move away from the CS and identify the CS coverage area within which the radio signal strength level is greater than "8".
Page 96 2.7 Connection of DECT Portable Stations Overlap the CS coverage areas of at least 2 CSs at any location in the installation site. Channel no. 0 Channel no. 1 Channel no. 2 Channel no. 3 Make sure that the radio signal strength level is greater than "3" at any location in the service area demanded by the user.
Page 97 2.7 Connection of DECT Portable Stations Referring to the Stored Scan Data Using the KX-TCA255 Log No. Press 1, 9, and POWER 0 to 9 for more than 2 seconds. To go to other slots To go to specific channel Channel No.
Page 98: After Site Survey
2.7 Connection of DECT Portable Stations 2.7.6 After Site Survey After obtaining the proper measurement results, exit the Radio Signal Test mode before connecting the CS to the Hybrid IP-PBX. Keep pressing POWER button on the PS until the PS is turned OFF. Disconnect the AC adaptor or battery box from the CS and stop supplying electricity.
Page 99: Connecting A Cell Station To The Hybrid Ip-Pbx
2.7 Connection of DECT Portable Stations 2.7.7 Connecting a Cell Station to the Hybrid IP-PBX Refer to the following example to connect a CS to the Hybrid IP-PBX. Super Hybrid Port Cable Maximum Distance ø 0.4 mm: Under 222 m ø...
Page 100 2.7 Connection of DECT Portable Stations Connecting the CS Connect the cable from a Super Hybrid Port or the DLC8 card to the CS. Modular To a Super Hybrid Port or DLC8 card Pass the cable through the groove of the CS (in any direction depending on your preference).
Page 101 2.7 Connection of DECT Portable Stations Registering the PS The PS must be registered to the Hybrid IP-PBX before it can be used. Programming of both the PS and Hybrid IP-PBX is required. A PT with multiline display (e.g., KX-T7636 6-line display) is required for the Hybrid IP-PBX system programming.
Page 102 2.7 Connection of DECT Portable Stations Using the KX-TD7590 System lock can be set after PS registration. When system lock is enabled, the system lock password will be required for system setting. Press POWER for 5 seconds. To register for the first time SELECT Select "INITIAL SETTING".
Page 103 2.7 Connection of DECT Portable Stations Setting the Personal Identification Number (PIN) for PS Registration To prevent registering the PS to a wrong Hybrid IP-PBX, a PIN for PS registration can be set to the Hybrid IP-PBX. Before registering the PS to the Hybrid IP-PBX, register the PIN set to the Hybrid IP-PBX into the PS.
Page 104 2.7 Connection of DECT Portable Stations PS Termination Confirm the following before cancelling the PS registration: • PS is turned on. • PS is within the range. [691] PS No. 001 to 028 ENTER ENTER If "Rejected" or "Time out" is displayed CLEAR To the PS operation...
Page 105 2.7 Connection of DECT Portable Stations Testing the Operation Walk around the service area while having a conversation using a registered PS. If noise is frequent or conversations disconnect, relocate the CSs or install an additional CS. Installation Manual...
Page 106: Wall Mounting
2.7 Connection of DECT Portable Stations 2.7.8 Wall Mounting Place the reference for wall mounting (on the following page) on the wall to mark the 2 screw positions. Install the 2 screws and washers (included) into the wall. Notes • Make sure that the screw heads are at the same distance from the wall.
Page 107 2.7 Connection of DECT Portable Stations Reference for Wall Mounting Please copy this page and use as a reference for wall mounting. Install a screw here. 71 mm Install a screw here. Note When you print out this page, the distance on the paper output may deviate slightly from the measurement indicated above.
Page 108: Connection Of Doorphones And Door Openers
IP-PBX with a DPH4 card. A maximum of 2 doorphones (German type) and 2 door openers can be connected to the Hybrid IP-PBX with a DPH2 card. Notes • KX-T30865 is a Panasonic doorphone. • German type doorphones and door openers are user-supplied. Maximum Cabling Distance...
Page 109 2.8 Connection of Doorphones and Door Openers Pass the wires through the hole in the base cover, and attach the base cover to a wall using 2 screws. Screw To terminal box Note Two kinds of screws are included with KX-T30865. Please choose the appropriate kind for your wall type.
Page 110 2.8 Connection of Doorphones and Door Openers Connection of Doorphones to the DPH4 Card with RJ45 Connectors Unlatch the cover of the terminal box by inserting a flathead screwdriver into the openings and levering the cover open. Follow the order indicated by the numbers 1 to 4. Connect the wires of doorphones to the terminal box.
Page 111 2.8 Connection of Doorphones and Door Openers Cut and remove the appropriate parts from the cover depending on your preference. Make sure to run the connected wires through the opening. Then, close the cover. Installation Manual...
Page 112 2.8 Connection of Doorphones and Door Openers Connect the terminal box to the DPH4 card in the Hybrid IP-PBX using the telephone line cords included with the card. To DPH4 card Telephone Line Cord To doorphones Installation Manual...
Page 113 2.8 Connection of Doorphones and Door Openers Connection of Door Openers and German Type Doorphones to DPH2 Card Unlatch the cover of the terminal box by inserting a flathead screwdriver into the openings and levering the cover open. Follow the order indicated by the numbers 1 to 4. Connect the wires of door openers and doorphones to the terminal box.
Page 114 2.8 Connection of Doorphones and Door Openers Cut and remove the appropriate parts from the cover depending on your preference. Make sure to run the connected wires through it. Then, close the cover. Installation Manual...
Page 115 2.8 Connection of Doorphones and Door Openers Connect the terminal box to the DPH2 card in the Hybrid IP-PBX using the telephone line cords included with the card. To DPH2 card Telephone Line Cord To doorphones/door openers Installation Manual...
Page 116 2.8 Connection of Doorphones and Door Openers Connection of Door Openers to DPH4 Card Use 10-pin terminal block (included with the card) for connection. While pressing down on the hole at the top of the terminal block using a screwdriver, insert the wire into the side hole as shown below.
Page 117: Connection Of Peripherals
2.9 Connection of Peripherals Connection of Peripherals 2.9.1 Connection of Peripherals Cable Maximum Distance ø 0.4 mm: Under 10 m ø 0.5 mm: Under 10 m ø 0.6 mm: Under 10 m CAT 5: Under 10 m BGM/ Music on Hold Cable Maximum Distance Pager:...
Page 118 2.9 Connection of Peripherals Pager Only 1 paging device (user-supplied) can be connected to the Hybrid IP-PBX. CAUTION An External Paging Jack is an SELV port and should only be connected to an approved SELV device. PC/Printer (via RS-232C) The Hybrid IP-PBX is equipped with an RS-232C interface. This interface provides communication between the Hybrid IP-PBX and the user-supplied devices such as PC or line printers.
Page 119 2.9 Connection of Peripherals For connecting a printer/PC with a 25-pin RS-232C connector Hybrid IP-PBX Printer/PC Circuit Type Signal Signal Circuit Type Pin No. Pin No. (EIA) Name Name (EIA) RD (RXD) SD (TXD) RD (RXD) ER (DTR) SD (TXD) ER (DTR) DR (DSR) RS (RTS)
Page 120 2.9 Connection of Peripherals PC/Server PC (via USB version 1.1) The Hybrid IP-PBX is equipped with a USB interface. This interface provides communication between the Hybrid IP-PBX and a PC or a Server PC. The PC is used for system programming, diagnostics and external system database storage (save/load) functions.
Page 121: 2.10 Starting The Hybrid Ip-Pbx
2.10 Starting the Hybrid IP-PBX 2.10 Starting the Hybrid IP-PBX 2.10.1 Starting the Hybrid IP-PBX CAUTION • SD Memory Card must be inserted in the SD Memory Card slot of the main board before start up. • Before touching the System Initialise Switch and the Reset Button, discharge static by touching ground or wearing an earthing strap.
Page 122 2.10 Starting the Hybrid IP-PBX Plug the DC connector of the AC adaptor into DC IN 1. DC IN 1 DC Connector AC Adaptor Plug the AC cord into the AC adaptor, and then plug the other end into an AC outlet. AC Adaptor AC Cord To AC outlet...
Page 123 2.10 Starting the Hybrid IP-PBX • For safety reasons, do not stretch, bend, or pinch the AC cord and the DC cable of the AC adaptor. Press the Reset Button with a pointed tool. (The RUN indicator will flash.) While the RUN indicator is flashing (within about 10 s), return the System Initialise Switch to the "NORMAL"...
Page 124 2.10 Starting the Hybrid IP-PBX Installation Manual...
Page 125: Guide For The Kx-Tda15 Maintenance Console
Section 3 Guide for the KX-TDA15 Maintenance Console Explains the installation procedure, structure, and basic information of the KX-TDA15 Maintenance Console. Installation Manual...
Page 126: Overview
Overview 3.1.1 Overview KX-TDA15 Maintenance Console is designed to serve as an overall system programming reference for the Hybrid IP-PBX. To programme and administer the Hybrid IP-PBX by PC, you need to install the KX-TDA15 Maintenance Console onto the PC.
Page 127: Connection
3.2 Connection Connection 3.2.1 Connection Serial Interface Connection RS-232C Port To COM Port To USB Port USB Port Note For pin assignments and maximum cabling distance, refer to "2.9.1 Connection of Peripherals". Installation Manual...
Page 128 • An AT command (for initialisation, enabling automatic answer, etc.) can only be programmed by KX-TDA15 Maintenance Console. "AT&F0E0V1X1S10=30S12=50" is stored as the default value. • For more information about the AT command, refer to the external modem’s instructions.
Page 129: Installation Of The Kx-Tda15 Maintenance Console
3.3 Installation of the KX-TDA15 Maintenance Console Installation of the KX-TDA15 Maintenance Console 3.3.1 Installing and Starting the KX-TDA15 Maintenance Console System Requirements Operating System ® ® • Microsoft Windows 98 SE, Windows Me, Windows 2000, or Windows XP Hardware ®...
Page 130 Starting the KX-TDA15 Maintenance Console and Assigning the Basic Items (Quick Setup) When you start the KX-TDA15 Maintenance Console with the Installer Level Programmer Code and connect to the Hybrid IP-PBX for the first time after initialisation (with the factory default setting), Quick Setup will launch automatically.
Page 131 3.3 Installation of the KX-TDA15 Maintenance Console 1. Connect the PC to the Hybrid IP-PBX with a USB cable. 2. Start the KX-TDA15 Maintenance Console from the start menu. 3. Type the Installer Level Programmer Code (default: 1234), then click [OK].
Page 132 To save the system data to the SD Memory Card, (1) click the "SD Memory Backup" icon before resetting the PBX or turning off the power, or (2) exit the KX-TDA15 Maintenance Console so that the PBX starts automatically saving the system data.
Page 133: Structure Of The Kx-Tda15 Maintenance Console
3.3 Installation of the KX-TDA15 Maintenance Console 3.3.2 Structure of the KX-TDA15 Maintenance Console Menu Bar File Connect Tool Utility Diagnosis File Transfer PC to PBX (SD Card) File Transfer PBX (SD Card) to PC SD Card File View and Load...
Page 134: Hybrid Ip-Pbx Configuration
Hybrid IP-PBX Configuration This section briefly describes how to check the configuration of the Hybrid IP-PBX using the KX-TDA15 Maintenance Console when PC and the Hybrid IP-PBX are connected by USB cable. For detailed descriptions of each feature and related PT programming, refer to the on-line help at each screen.
Page 135: Hybrid Ip-Pbx Maintenance
3.3 Installation of the KX-TDA15 Maintenance Console 3.3.4 Hybrid IP-PBX Maintenance This section briefly describes how to perform maintenance of the Hybrid IP-PBX using the KX- TDA15 Maintenance Console when PC and the Hybrid IP-PBX are connected by USB cable.
Page 136 3.3 Installation of the KX-TDA15 Maintenance Console File Transfer PC to PBX (SD Card) The programme files in the PC are transferred to SD Memory Card of the Hybrid IP-PBX. Programme files in the SD Memory Card is overwritten in this process.
Page 137: Troubleshooting
Section 4 Troubleshooting This section provides information on the Hybrid IP-PBX and telephone troubleshooting. Installation Manual...
Page 138: Troubleshooting
Wireless Phones. (KX-T7880/KX-T7885/KX- TD7894/KX-TD7895). The ALARM indicator on the A major system error occurs See the error log using the KX-TDA15 front of the cabinet turns on in the Hybrid IP-PBX. Maintenance Console (refer to "4.1.5 red. Troubleshooting by Error Log").
Page 139: Connection
4.1 Troubleshooting 4.1.2 Connection Connection between the Hybrid IP-PBX and a PT: CAUSE SOLUTION Can you dial The T/R is connected to the D1/D2. Use the correct cord (the an extension? inner 2 wires are for T/R and the outer 2 wires are for D1/D2).
Page 140 4.1 Troubleshooting Connection between the trunk and the Hybrid IP-PBX: CAUSE SOLUTION (Continued from the Trunk is connected to the T2/T1. Reconnect the trunk to previous page.) the T1/R1 or T2/R2 of the telephone jack using 2-conductor wiring. Can you dial out on a Trunk Hybrid IP-PBX...
Page 141: Operation
4.1 Troubleshooting 4.1.3 Operation PROBLEM PROBABLE CAUSE SOLUTION • When using the • The HANDSET/ • When the headset is not used, set the speakerphone on an HEADSET selector is HANDSET/HEADSET selector to the APT, nothing is audible. set to the "HEADSET" "HANDSET"...
Page 142: Using The Reset Button
4.1 Troubleshooting 4.1.4 Using the Reset Button If the Hybrid IP-PBX does not operate properly, use the Reset Button. Before using the Reset Button, try the system feature again to confirm whether there definitely is a problem or not. Notes When the System Initialise Switch is set to "NORMAL", pressing the Reset Button causes the following: •...
Page 143 4.1 Troubleshooting If the Hybrid IP-PBX still does not work: Unplug the Hybrid IP-PBX. Set the System Initialise Switch to the "SYSTEM INITIALIZE" position. Plug in the Hybrid IP-PBX after 5 min. Press the Reset Button. Set the System Initialise Switch to the "NORMAL" position while the RUN indicator is flashing (within approximately 10 s).
Page 144: Troubleshooting By Error Log
Error Log Display Format Below is the display format of the error log. To see the error log using the KX-TDA15 Maintenance Console, refer to "3.3.4 Hybrid IP-PBX Maintenance".
Page 145 4.1 Troubleshooting Item Description Sub Code Five-digit sub code (1XXYY) 1: Cabinet number XX: Slot number 00 to 11 (00: MPR; 01: Super hybrid ports; 02 to 11: Slots for optional service cards) YY: Physical port number (01 to 16) For optional service cards that are installed in Slots 08 to 11, sub slot number + port number will be displayed.
Page 146 When other errors are logged, the ALARM indicator will turn off only when the log for major or minor errors is cleared from the KX-TDA15 Maintenance Console. In other words, the ALARM indicator will turn off under the following conditions: •...
Page 147 4.1 Troubleshooting Error Code Error Message PROBABLE CAUSE SOLUTION System Restart • Reset Button is • Ignore if not frequent pressed • Press the Reset Button • Power failure • Reprogramme the Hybrid IP-PBX • Main Board • Replace the Main Board (be sure to malfunction turn off the Hybrid IP-PBX when •...
Page 148 "$" from SD Memory Card the system data, or to Note upload system files Do not delete the "PSMPR" file; it is the from the KX-TDA15 programme file of the Main Board Maintenance Console (MPR). System data file •...
Page 149 4.1 Troubleshooting Error Code Error Message PROBABLE CAUSE SOLUTION 031* System data file • SD Memory Card not • Press the Reset Button not found installed • Reprogramme the Hybrid IP-PBX • Bad connection of SD • Replace the SD Memory Card 032* System Memory Card...
Page 150 4.1 Troubleshooting Error Code Error Message PROBABLE CAUSE SOLUTION MSG DSP failure • Optional service card • See if the corresponding optional malfunction: MSG service card is installed properly • Replace the corresponding optional service card 305* Data Link failure •...
Page 151 4.1 Troubleshooting Error Code Error Message PROBABLE CAUSE SOLUTION IP-GW LAN Chip • Detection of IP-GW • Replace the corresponding optional Failure LAN Chip failure service card • Collect the log data of IP-GW (refer to the documentation for the IP-GW card) IP-GW Stop •...
Page 152 4.1 Troubleshooting Installation Manual...
Page 153: Index
Index Installation Manual...
Page 154 Installation of the Trunk Cards Installation Precautions Basic System Construction Installing and Starting the KX-TDA15 Maintenance Console Before Installation Installing the KX-TDA15 Maintenance Console and Selecting Appropri- Before Site Survey ate Country/Area Data BRI1 Card Installing/Removing the Optional Service Cards...
Page 155 Site Survey Using the KX-TCA255/KX-TD7590 SLC8 Card Slot Position Slot Restrictions Specifications Starting the Hybrid IP-PBX Starting the KX-TDA15 Maintenance Console and Assigning the Basic Items (Quick Setup) Structure of the KX-TDA15 Maintenance Console System Capacity System Components Table System Connection Diagram...
Page 156 Index Installation Manual...
Page 157 Install a Install a screw here. screw here. 130 mm Reference for Wall Mounting Install a screw here. 65 mm...
Page 158 1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531, Japan Copyright: This manual is copyrighted by Panasonic Communications Co., Ltd. (PCC). You may print out this manual solely for internal use with this model. Except above, you may not reproduce this manual in any form, in whole or part, without the prior written consent of PCC.

Panasonic KX-TDA15 Installation Manual

1 System Outline

2 Installation

3 Guide for the KX-TDA15 Maintenance Console

4 Troubleshooting

Index

Quick Links

Installation Manual

Troubleshooting

Related Manuals for Panasonic KX-TDA15

Summary of Contents for Panasonic KX-TDA15

Table of Contents
