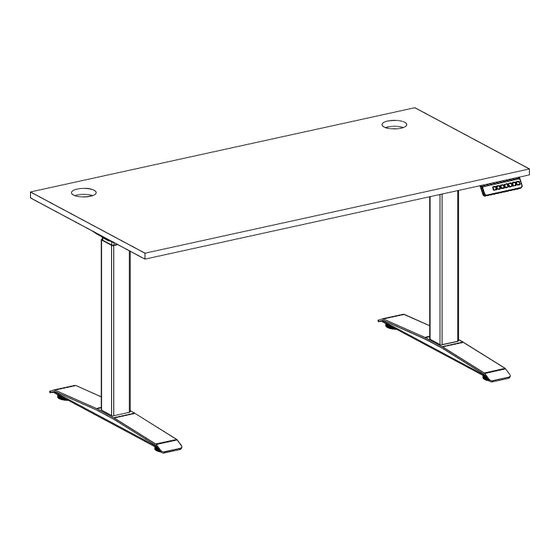

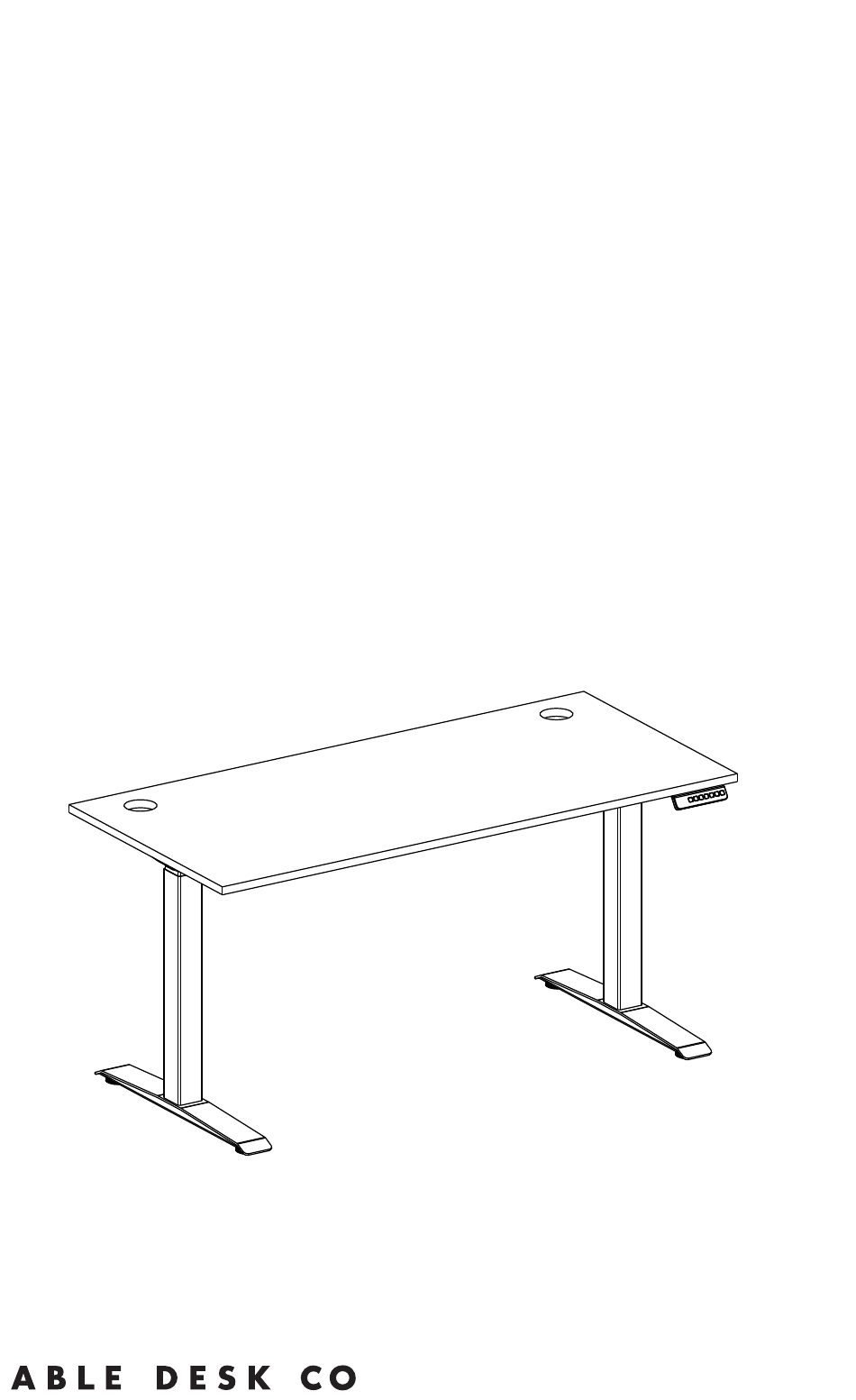

- Page 1 No. ADC – SD1 – 101 Adjustable standing desk Assembly instructions 90.014.01.0699v.A...
-
Page 2: Table Of Contents
Cautions and use Parts key Specs Assembly Calibration Memory presets Reset procedure Troubleshooting... -
Page 3: Cautions And Use
This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury. Important If any parts are missing or faulty, contact Able Desk Co for assistance. Atención Lea todo el manual de instrucciones antes de comenzar el montaje. Si tiene algunas preguntas sobre cualquiera de las instrucciones o advertencias, por favor comuníquese con Able Desk Co. -
Page 4: Parts Key
Part H (16x) Part A (2x) M6x10 machine Lifting columns short screws Part I (16x) Part B (2x) M6x14 machine Frame ends long screws Part J (12x) Part C (2x) M5x16 wood Side brackets screws Part D (2x) Part K (1x) Center rails 4mm hex key Part L (10x) -
Page 5: Specs
Use a padded or carpeted area when assembling the Able desk frame. Refer to page 2 to make sure no parts are missing. If you are not using an Able desk top, ensure that your top is between 46” – 70” in width and 27” – 36” in depth for maximum stability. -
Page 6: Assembly
Step 1 : Attach lifting columns to frame ends to create legs Part A (2x) Part B (2x) Part H (8x) Part K (1x) Lay legs on their sides and thread short machine screws as shown. DO NOT completely tighten screws at this time. - Page 7 Step 2 : Attach brackets and add noise reduction pads Part C (2x) Part I (8x) Part K (1x) Part L (10x) Thread long machine screws as shown here. Once all screws are in place, tighten all screws from step 1 and step 2 with the long end of the hex key (Part K).
- Page 8 Step 3 : Attach one leg to the table top Desk top Leg 1/2 Part J (4x) If using an Able desk top, pre-drilled holes are provided.
- Page 9 Step 4 : Insert the center rails and second leg Part D (2x) Leg 2/2 1. Insert center rails into the opening slots of the frame ends. Ensure that the gaps in the center rails are facing inwards towards each other. 2.
- Page 10 Step 5 : Secure the second leg to the desk top Part J (4x) Step 6 : Secure the center rails to the rest of the frame Part H (8x) Part K (1x)
- Page 11 Step 7 : Attach the feet to the frame Part E (2x) Part I (8x) Part K (1x)
- Page 12 Step 8 : Attach handset to the desk top Part F (1x) Part J (2x) If using an Able desk top, pre-drilled holes are provided. Step 9 : Attach control box to the center of the desk top Part G (1x) Part J (2x) If using an Able desk top, pre-drilled holes are provided.
-
Page 13: Calibration
Step 10 : Insert cables to the control box Power cable (1x) Cable clips (optional) 1. Connect the cables from both legs to the control box. Follow labels for M1 and M2. 2. Connect the cable from the handset to the control box. Follow the label for HS. 3. -
Page 14: Memory Presets
Setting memory presets Use the UP/DOWN buttons to adjust desk to the desired height. Press the to display the letter S. Press one of the four memory presets (1,2,3, or 4) to save the current height position to that button’s function. Your desired height has now been set. -
Page 15: Troubleshooting
(E01 - E13), confirm that all wires are connected and secure. Once all connections are secure, perform a reset procedure. If the error message is still shown after performing the reset, contact Able Desk Co. If height difference between the two legs exceed 1.5 inches, stop the reset procedure and contact Able Desk Co. - Page 16 For assistance, visit abledesk.co/help or email support@abledesk.co...
