JVC EX-D1 Schematic Diagrams

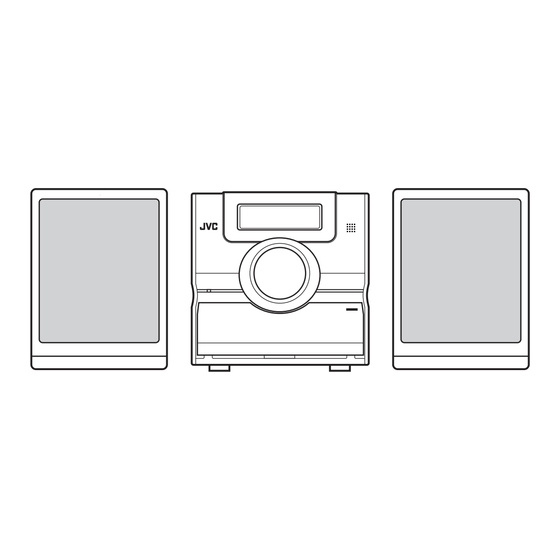

Compact component system
Hide thumbs Also See for EX-D1:

Advertisement

Quick Links

Download this manual See also: Service Manual, Instruction Manual
SCHEMATIC DIAGRAMS
COMPACT COMPONENT SYSTEM
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
Contents
Standard schematic diagrams
Printed circuit boards
EX-D1
CD-ROM No.SML200506
(SP-EXD1)
(CA-EXD1)
COPYRIGHT
2005 Victor Company of Japan, Limited.
Area suffix
B ------------------------------ U.K.
E ---------- Continental Europe
EN ----------- Northern Europe
EV ------------- Eastern Europe
EE -------- Russian Federation
(SP-EXD1)
2-1
2-2
2-10 to 13
No.MB399SCH
2005/6

Advertisement

loading

Related Manuals for JVC EX-D1

Summary of Contents for JVC EX-D1

  • Page 1 SCHEMATIC DIAGRAMS COMPACT COMPONENT SYSTEM EX-D1 CD-ROM No.SML200506 Area suffix B ------------------------------ U.K. E ---------- Continental Europe EN ----------- Northern Europe EV ------------- Eastern Europe EE -------- Russian Federation (SP-EXD1) (CA-EXD1) (SP-EXD1) Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
  • Page 2 In regard with component parts appearing on the silk-screen printed side (parts side) of the PWB diagrams, the parts that are printed over with black such as the resistor ( ), diode ( ) and ICP ( ) or identified by the " " mark nearby are critical for safety.

  • Page 3: Block Diagram

    Block diagram System control, volume, AHB circuit, HP. circuit Digital amplifier circuit section and subwoofer section IC111 to IC113 L+,L- IC132 SPEAKER IC121 to IC123 R+,R- HALF Headphone section IC131 TERMINAL BRIDGE WOOFER Q5912 W OUT AMP. Q5913 HPL,HPR AHBCTL HPIN HPL,HPR Q5813...
  • Page 4 Standard schematic diagrams DC regulator and audio output section TO CN1 (SHEET 8) (SHEET 2) (SHEET 2) (SHEET 2) CN210 QGF1036C1-05 Q2040 IC235 KTC3203/OY/-T LB1641 Q2041 KTB772/Y/ Q2043 R2045 US7V AHBCTL Q2042 AGND R2042 D2038 1N4003S-T5 DVDL D2037 KRC102S-X 1N4003S-T5 DVDR D2036 1N4003S-T5...
  • Page 5 Digital amplifier circuit section R1204 C1202 C1203 16K 2200P 2200P R1217 R1205 C1232 R1236 180P 3.3K C1208 R1222 R1206 A.GND A15V C1223 470K 330P 100K R1203 2SC3661-X C1205 R1210 R1211 10/35 R1218 C1201 C1213 R1237 R1234 Q1203 8.2K 4.7/50 IC121 1/6.3 R1223 8.2K...
  • Page 6 System control and RDS decoder section CN421 QGF1205F1-11 C4702 C4708 2SA1037AK/RS/-X Q4600 C4707 X4700 QAX0868-001Z C4703 B4024 B4021 IC420 Q4601 BU1924F-X C4705 560p TO CN201 C4704 (SHEET 1) C4706 2.2/50 B4022 270p CN423 QGB2024K1-20S IC410 BR24L08F-W-X C4709 C4719 10/16 RDSDATA AHBCTL DVDL DVDR...
  • Page 7 Volume, AHB circuit, HP. circuit and subwoofer section TO FW621 (SHEET 5) CN501 R5817 QGA2001C1-10 C5815 0.0022/50 R5821 C5810 C5819 Q5810 C5802 R5827 R5823 150P/50 4.7/50 2SD2114K/VW/-X R5810 R5829 3.3K R5822 C5816 220/10 3.3k R5814 10/50 R5815 R5832 R5830 Q5750 C5804 KRA111S-X Q5811...
  • Page 8 FL display, user control keys, USB circuit, remocon circuit and headphone section R6101 R6100 4.3K 2.7K FL615 QLF0153-001 C6155 C6156 JS612 QSW1130-001 IC617 C6157 GP1UE281YK0F D6115 D6150 100/16 1SS133-T2 D6110 SPR-325MVW/L/-T Q6111 C6158 R6118 D6114 KTC3199/GL/-T 1SS133-T2 R6116 100P 5.6K C6153 C6159 C6120...
  • Page 9 Video driver and video out component section J701 QNN0624-001 CN702 QGB1214K1-12S R7006 V-MUTE1 L7006 QQL25CK-221Z C7028 180P V-MUTE2 IC701 BH7868FS-X R7007 C7032 100P C7005 SCLK U2SDT 0.1/16 S2UDT CPURST C7031 R7008 0.01 V-MUTE1 CN703 J702 C7010 QNN0434-001 C7020 QGF1036C1-17 1/6.3 R7009 C7014 470/6.3...
  • Page 10 DVD servo and DVD system control section (1/2) (SHEET 8) D3.3V IC302 D3.3V LM1117MP-ADJ-X P3.3V C373 C374 C375 C376 C372 P3.3V R310 0.47 D1.2V C306 0.1/16 R311 0.1/16 C359 DGND MDQ9 EXDAT8 MDQ5 DGND MDQ10 TP325 CN101 S3.3V MDQ4 C101 QGF0523F1-24W TP324 0.1/16...
  • Page 11 DVD servo and DVD system control section (2/2) / DVD tray loading control section R716 PCMCLK R719 IC704 IC705 R717 R720 S3.3V D3.3V P3.3V C712 C714 R701 R702 K4S641632F-TC75 IC505 22/6.3 C553 IC701 DGND QSW1074-001 C551 AK4384VT-X 0.1/16 MDQ0 MDQ15 R710 C558 TO CN210...
  • Page 12 Printed circuit boards Main board (1/2) Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade) Forward side (Micom board) CN421 Q5750 CN426 C5505 C5506 C5510 C5602 Q5511 C5508 C4600 CN422 CN427 C5504 C5603 D5501 R5610 C4207 C5503...
  • Page 13 Main board (2/2) Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade) Reverse side (Micom board) R5376 Q4601 CN422 CN421 Q5511 C5508 C5510 CN426 R4202 C5506 B5003 C5504 R5610 CN427 D5501 R5505 R5178 Q4201 X4700 CN501 R5179...
  • Page 14 FL board DVD module board Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade) Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade) Forward side (Front board) S6100 C508 C510 S6101...
  • Page 15 DVD loading switch board Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade) 2-13...
  • Page 16 Victor Company of Japan, Limited AV & MULTIMEDIA COMPANY AUDIO/VIDEO SYSTEMS CATEGORY 10-1,1chome,Ohwatari-machi,Maebashi-city,371-8543,Japan Printed in Japan (No.MB399SCH)

This manual is also suitable for:

Sp-exd1Ca-exd1
