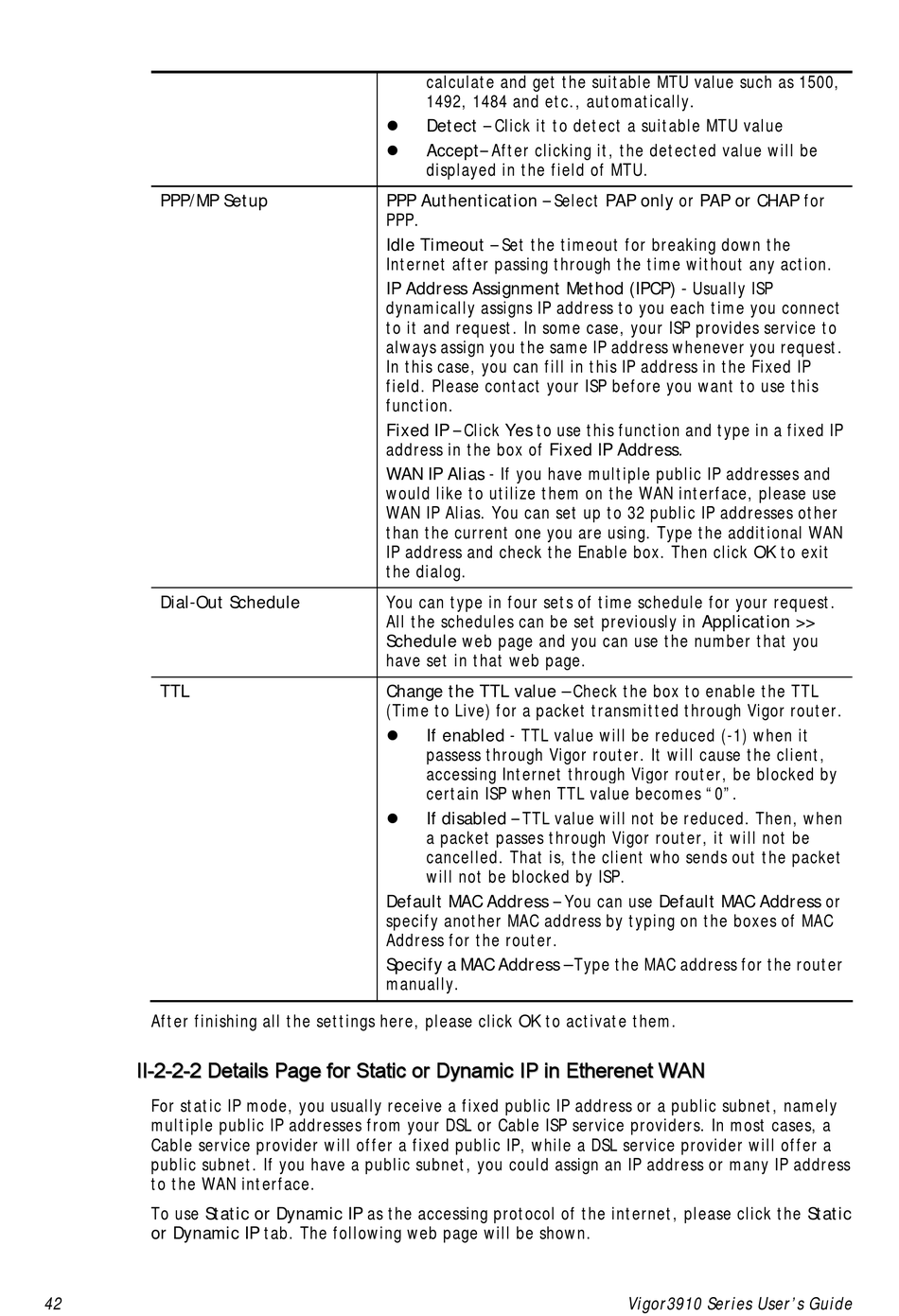

PPP/MP Setup
Dial-Out Schedule
TTL
After finishing all the settings here, please click OK to activate them.
I I I I - - 2 2 - - 2 2 - - 2 2 D D
For static IP mode, you usually receive a fixed public IP address or a public subnet, namely
multiple public IP addresses from your DSL or Cable ISP service providers. In most cases, a
Cable service provider will offer a fixed public IP, while a DSL service provider will offer a
public subnet. If you have a public subnet, you could assign an IP address or many IP address
to the WAN interface.
To use Static or Dynamic IP as the accessing protocol of the internet, please click the Static
or Dynamic IP tab. The following web page will be shown.
42


PPP Authentication – Select PAP only or PAP or CHAP for
PPP.
Idle Timeout – Set the timeout for breaking down the
Internet after passing through the time without any action.
IP Address Assignment Method (IPCP) - Usually ISP
dynamically assigns IP address to you each time you connect
to it and request. In some case, your ISP provides service to
always assign you the same IP address whenever you request.
In this case, you can fill in this IP address in the Fixed IP
field. Please contact your ISP before you want to use this
function.
Fixed IP – Click Yes to use this function and type in a fixed IP
address in the box of Fixed IP Address.
WAN IP Alias - If you have multiple public IP addresses and
would like to utilize them on the WAN interface, please use
WAN IP Alias. You can set up to 32 public IP addresses other
than the current one you are using. Type the additional WAN
IP address and check the Enable box. Then click OK to exit
the dialog.
You can type in four sets of time schedule for your request.
All the schedules can be set previously in Application >>
Schedule web page and you can use the number that you
have set in that web page.
Change the TTL value – Check the box to enable the TTL
(Time to Live) for a packet transmitted through Vigor router.


Default MAC Address – You can use Default MAC Address or
specify another MAC address by typing on the boxes of MAC
Address for the router.
Specify a MAC Address – Type the MAC address for the router
manually.
e e t t a a i i l l s s P P a a g g e e f f o o r r S S t t a a t t
calculate and get the suitable MTU value such as 1500,
1492, 1484 and etc., automatically.
Detect – Click it to detect a suitable MTU value
Accept– After clicking it, the detected value will be
displayed in the field of MTU.
If enabled - TTL value will be reduced (-1) when it
passess through Vigor router. It will cause the client,
accessing Internet through Vigor router, be blocked by
certain ISP when TTL value becomes "0".
If disabled – TTL value will not be reduced. Then, when
a packet passes through Vigor router, it will not be
cancelled. That is, the client who sends out the packet
will not be blocked by ISP.
i i c c o o r r D D y y n n a a m m i i c c I I P P i i n n E E t t h h e e r r e e n n e e t t W W A A N N
