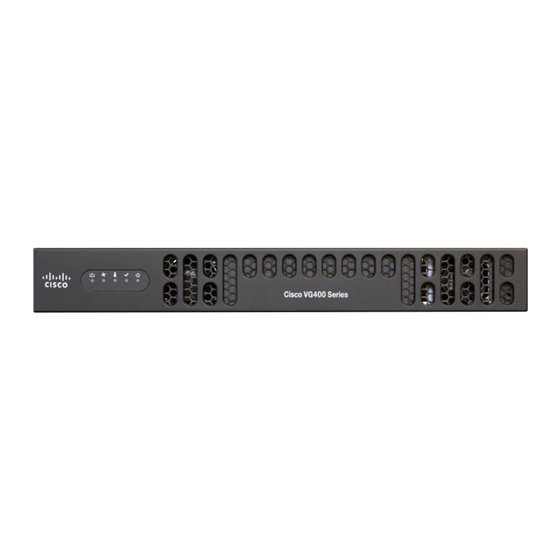

Cisco VG400 Installing

Voice gateway
Hide thumbs Also See for VG400:
Table of Contents

Advertisement

Quick Links

Download this manual
Installing the Cisco VG400 Voice Gateway
The following chapter describes how to install and connect a Cisco VG400 Voice Gateway. The following
sections provide the installation procedures in detail:
Warning
This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work
on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard
practices for preventing accidents. Use the statement number provided at the end of each warning to locate
its translation in the translated safety warnings that accompanied this device. Statement 1071
Warning
Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Statement
1030
Warning
Read the installation instructions before using, installing or connecting the system to the power source.
Statement 1004
Warning
Ultimate disposal of this product should be handled according to all national laws and regulations. Statement
1040
•
•
•
•
•
Safety Recommendations
Before you begin the installation, read the following safety warnings and recommendations. The following
information is included to alert you to safety recommendations and best practices when working with this
equipment.
Safety Recommendations, on page 1
Unpacking and Inspection, on page 3
Install the Cisco VG400 Voice Gateway, on page 3
Connect to Power Supply, on page 10
Power-On Procedure, on page 10
Installing the Cisco VG400 Voice Gateway
1

Advertisement

Table of Contents
loading

Related Manuals for Cisco VG400

Summary of Contents for Cisco VG400

  • Page 1 Installing the Cisco VG400 Voice Gateway The following chapter describes how to install and connect a Cisco VG400 Voice Gateway. The following sections provide the installation procedures in detail: Warning This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents.

  • Page 2: Maintaining Safety With Electricity

    Installing the Cisco VG400 Voice Gateway Maintaining Safety with Electricity Maintaining Safety with Electricity Follow these guidelines when working on equipment powered by electricity. Warning Installation of the equipment must comply with local and national electrical codes. Statement 1074 Warning Avoid using or servicing any equipment that has outdoor connections during an electrical storm.

  • Page 3: Preventing Electrostatic Discharge Damage

    (Mohm). Unpacking and Inspection Do not unpack the Cisco VG400 until you are ready to install it. If the installation site is not ready, keep the chassis in its shipping container to prevent accidental damage. The Cisco VG400, cables, printed publications, and any optional equipment you ordered might be shipped in more than one container.

  • Page 4: Attach Cisco Vg400 Voice Gateway Chassis To Wall

    Step 1 Attach the voice gateway chassis to the wall by using the fasteners. The fasteners that you use must support the weight of the VG400 Voice Gateway. Note The head diameter of the fasteners should be sized to fit in the key slot on the chassis bottom. The maximum diameter of the fastener head should not exceed .250”...

  • Page 5: Mount Cisco Vg400 Voice Gateway Chassis In Rack

    • If the rack is provided with stabilizing devices, install the stabilizers before mounting or servicing the unit in the rack. Statement 1006. Cisco VG400 Voice Gateway can be installed in 19-inch (48.26-cm) EIA racks. Use the standard brackets shipped with the hardware for mounting the chassis in a 19-inch EIA rack.
  • Page 6 Installing the Cisco VG400 Voice Gateway Mount Cisco VG400 Voice Gateway Chassis in Rack You can mount the voice gateway in the following ways: • Center-front mounting: Brackets attached in the center front of the chassis with only the front panel facing forward.
  • Page 7 Installing the Cisco VG400 Voice Gateway Mount Cisco VG400 Voice Gateway Chassis in Rack Installing the Cisco VG400 Voice Gateway...
  • Page 8 Installing the Cisco VG400 Voice Gateway Mount Cisco VG400 Voice Gateway Chassis in Rack Figure 2: Bracket Installation for Back Mounting Screws 19-inch EIA brackets 3. Use the screws provided with the rack to install the chassis in the rack. For the 19-inch EIA bracket, start the lower pair of screws first, and rest the brackets on the lower screws while you insert the upper pair of screws.

  • Page 9: Chassis Grounding

    Installing the Cisco VG400 Voice Gateway Chassis Grounding The screw slots in the brackets are spaced to line up with every second pair of screw holes in the rack. When the correct screw holes are used, the small, threaded holes in the brackets line up with unused screw holes in the rack.

  • Page 10: Connect To Power Supply

    2. Plug the adapter cord into the router. Power-On Procedure Perform this procedure to power on your Cisco VG400 Voice Gateway, and verify that it goes through its initialization and self-test. When this is finished, the Cisco VG400 Voice Gateway is ready to configure.
  • Page 11 If the rommon 1> prompt appears, your system has booted in ROM monitor mode. For information on the Note ROM monitor, refer to the router rebooting and ROM monitor information in the Cisco IOS Configuration Fundamentals Configuration Guide for your Cisco IOS software release.
  • Page 12 Installing the Cisco VG400 Voice Gateway Power-On Procedure Installing the Cisco VG400 Voice Gateway...
