AUDIO SYSTEM
USER MANUAL
Oct . 2019 Ver. 2.0

Advertisement

Table of Contents
loading

Related Manuals for Lancia Ypsilon

Summary of Contents for Lancia Ypsilon

  • Page 1 AUDIO SYSTEM USER MANUAL Oct . 2019 Ver. 2.0...

  • Page 3: Table Of Contents

    CONTENTS 1. INTRODUCTION...................... 2 2. TIPS AND GENERAL INFORMATION..............3 ROAD SAFETY ........................3 RECEPTION OF RADIO BROADCATINGS..............3 PROTECTION AND MAINTENANCE................3 3. CONTROLS......................4 4. CONTROLS ON STEERING WHEEL..............6 5. IDENTIFYING YOUR RADIO.................. 7 SWITCHING THE SYSTEM ON / OFF ...................

  • Page 4: Introduction

    1. INTRODUCTION The audio system in your car is designed to match the characteristics of the passenger cabin, and in particular the appearance of the front panel. The instructions for use are given below; we recommend you read them carefully and always keep them on hand (for example, in the glove compartment).

  • Page 5: Tips And General Information

    IMPORTANT In case of a malfunction, the system should only be checked and repaired by an authorized Lancia Service. If the temperature is too low, it can take time for the screen to reach optimum brightness. If the vehicle has been stopped for a period of time and the outdoor temperature is too high, the system may enter “thermal protection”...

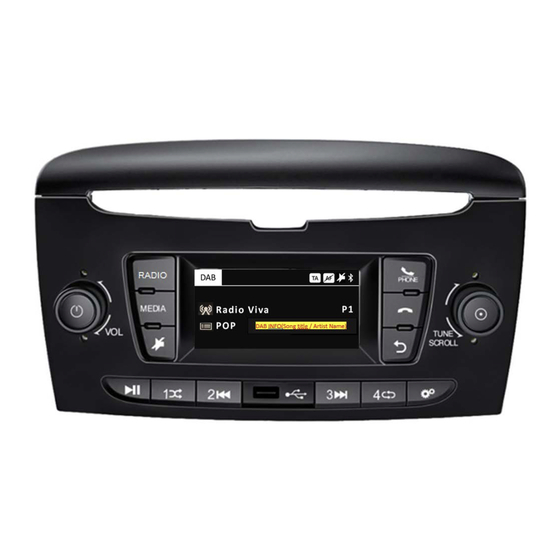

  • Page 6: Controls

    CONTROLS Button Functions Mode Switching On Brief Button Press Switching Off Long Button Press Volume Adjustment Knob Rotation Goes to Last Active FM/AM/DAB Source and Cycles Radio Sources Brief Button Press Last Active Source Goes to Media Brief Button Press Cycles Media Sources (USB/Ipod/Bluetooth) Volume Activation/Deactivation (Mute/Unmute) Brief Button Press...
  • Page 7 CONTROLS Button Functions Mode Confirmation of Option Displayed Brief Button Press Manual Seek for Radio / Knob Rotation by Change the Selection Up/Down Step Knob Rotation Change the Selection Up/Down Continuous Play/Pause the Playing Track Brief Button Press Recall Stored Radio Station / Brief Button Press Shuffle Active Playlist for USB/iPod Store Current Radio Station...

  • Page 8: Controls On Steering Wheel

    CONTROLS ON STEERING WHEEL The controls for the main system functions are present on the steering wheel to make control easier. The activation of the function selected is controlled, in some cases, by the duration of pressing button (short or long press) as described in the table below. Button Functions Mode Volume Activation / Deactivation (Mute / Unmute) Brief Button Press...

  • Page 9: Switching The System On/Off

    GENERAL INFORMATION SWITCHING THE SYSTEM ON/OFF The system is switched on by pressing briefly the button/knob. For switching off the radio, press the button/knob long. Turn the button/knob clockwise to increase the radio volume or anticlockwise to decrease it. PASSWORD SCREEN When the system is turned on for the first time after battery detachment&attachment, the radio will display “Password”...

  • Page 10: Radio Mode

    RADIO (TUNER) MODE GENERAL DESCRIPTION Press the RADIO button, to enter the radio mode and switches to the band AM, FM and DAB. The radio is equipped with the following modes: • AM • FM • DAB Volume & Mute •...
  • Page 11 RADIO (TUNER) MODE FM/AM Tune/Scroll Control • Turn the rotary “TUNE / SCROLL” control knob clockwise to increase the radio station frequency or counter clockwise for decreasing. • Seek Functions: Auto-Seek Up/Down can be carried out by steering wheel control commands.
  • Page 12 RADIO (TUNER) MODE BROWSE menu appears when user presses “TUNE / SCROLL” button. User can navigate inside the list by rotating “TUNE /SCROLL” knob, enter in directories by pressing same button. RADIO STATION SELECTION / Tune/Scroll Control to select next / previous available station, turn the knob step-by-step.
  • Page 13 RADIO (TUNER) MODE GENRE DAB channels are classified by PTY information. In related genre list, desired station could be selected by pressing button. ABC JUMP function is used for finding the radio stations or directory easily by entering first letter of the station. CURRENT STATION COMPONENTS If selected station has any secondary component, ‘Current station components’...

  • Page 14: Media Mode

    MEDIA MODE AUDIO SOURCE SELECTION This chapter describes the interaction modes concerning the operation of Bluetooth MEDIA Audio / USB / iPod. To activate or change “Media Mode” press the button. Enables/Disables shuffle of the active playlist. Default status is Random Off. If elapsed time of actual track is less than 2 seconds, radio jumps to the beginning of previous track.
  • Page 15 MEDIA MODE BROWSE menu appears when user presses “TUNE / SCROLL” button. User can navigate inside list by rotating “TUNE /SCROLL” knob, enter in directories by pressing same button. Pressing a song directly starts playing the song with creating playlist from songs in the same directory.
  • Page 16 BT functionality. After that, Radio will show PIN on display, then it is necessary to search the Radio “Lancia” from Phone. Insert the PIN shown on radio display to Phone. After entering Pin number shown on radio screen to the mobile phone, mobile phone will be connected to the radio automatically.
  • Page 17 PHONE PHONE-SELECT screen is selecting already paired (before paired) phone to start Bluetooth connection. PHONE-DELETE screen is deleting an already paired (before paired) phone from radio paired list. Thus, radio will not try to connect to deleted phone. If there is a connected device to the radio.
  • Page 18 PHONE PHONE-CONTACTS can be seen by entering “Contacts” menu item. During new pairing process, or connection in- process (after radio turns on, it takes up to 20 seconds to connect already paired phones), “Loading, Please Wait” warning will be shown, until whole phonebook is downloaded to the radio.

  • Page 19: Phone Mode

    PHONE PHONE-CONNECTED main screen is shown when “Connected Devices” menu item is selected from the PHONE BROWSE screen. There are 2 different modes for connecting Bluetooth devices; • PHONE Mode: For Handsfree talk with BT-enabled mobile phone. • AUDIO Mode: For listening music from BT-enabled devices.

  • Page 20: Audio

    SETTINGS SETTINGS To access the SETTINGS menu, press button. The menu includes the following items: • AUDIO • SYSTEM • RADIO AUDIO SETTINGS To access the “AUDIO” Settings menu, press the button and chose the AUDIO. The menu includes the following items: •...
  • Page 21 SETTINGS - AUDIO EQUALIZER MODE Selection of Preset Equalizer Modes • Rock • Jazz • Classic • User Defined CUSTOMIZE USER - SELECT Setting up frequency values for user customization; Use the TUNE / SCROLL rotary button to select the frequency bar you want to set and press OK to confirm.
  • Page 22 SETTINGS - AUDIO BALANCE This function allows you to adjust the balance of the sound coming from the left and right speakers. Set the balance as desired using the TUNE / SCROLL rotary knob, press OK to confirm. The adjustment can be set to 19 positions: from -9 to +9, “0”...
  • Page 23 SETTINGS - SYSTEM SYSTEM SETTINGS To access the “SYSTEM” Settings menu, press the button and chose the SYSTEM. The menu includes the following items: • Language • Text Scrolling • Display Media Info • Ignition Time • Autoplay LANGUAGE English or Italian User Interface selection. To selected the Language, turn the rotary knob between English / Italian, then confirm by pressing OK.
  • Page 24 SETTINGS - SYSTEM DISPLAY MEDIA INFO With this option, you can see the file name and path or ID3 Tag information (Song and Artist Name) of the Mp3 media. IGNITION TIME If option is set 20 min, radio will be stayed ON for 20 minutes after key is set to Off.
  • Page 25 RADIO SETTINGS To access the “RADIO” Settings menu, press the button and chose the RADIO. The menu includes the following items: • Auto Frequency / DAB>FM • Traffic Announcement • Other DAB announcements Auto Frequency / DAB>FM When active radio station receiving performance becomes weak, if the station...

  • Page 26: Safety Guidelines

    SAFETY GUIDELINES WARNING! ALWAYS drive safely with your hands on the steering wheel. You have full responsibility and assume all risks related to the use of the device features and applications in this vehicle. Only use device when it is safe to do so. Failure to do so may result in an accident involving serious injury or death.
  • Page 27 RED homologation ref.
  • Page 28 RED homologation ref.
  • Page 29 ENGLISH This user manual publication is provided for information purposes only. Lancia may modify the features described in this publication at any time for technical or commercial reasons. For further information, please contact the Lancia Assistance Network. Printed on chlorine-free ecological paper.
