Philips 24BDL4151T User Manual

Hide thumbs Also See for 24BDL4151T:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

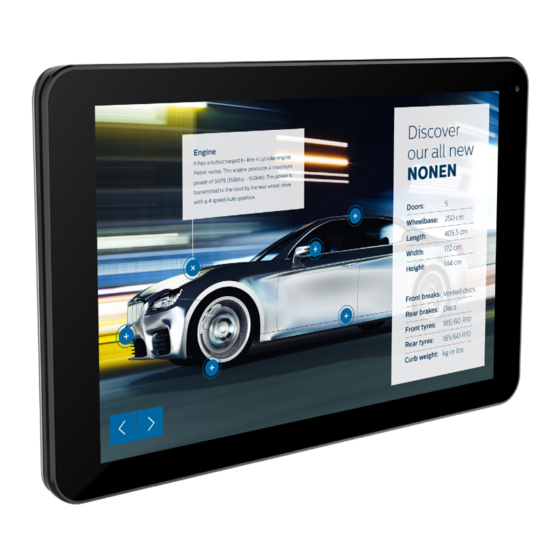

PHILIPS 24BDL4151T
V1.01
www.philips.com/welcome
User Manual (English)

Advertisement

Table of Contents
loading

Related Manuals for Philips 24BDL4151T

Summary of Contents for Philips 24BDL4151T

  • Page 1 PHILIPS 24BDL4151T V1.01 www.philips.com/welcome User Manual (English)
  • Page 2 Operation: • Keep the display out of direct sunlight and away from stoves or any other heat sources. • Remove any object that could fall into ventilation holes or prevent proper cooling of the display’s electronics. • Do not block the ventilation holes on the cabinet. • When positioning the display, make sure the power plug and outlet are easily accessible. • When turning off the display by detaching the power cord, wait 6 seconds before re-attaching the power cord for normal operation. • Ensure the use of an approved power cord provided by Philips at all times. If your power cord is missing, please contact your local service center. • Do not subject the display to severe vibration or high impact conditions during operation. • Do not knock or drop the display during operation or transportation. • The eye bolt is for usage in short-time maintenance and installation. We suggest not to use the eye bolt for more than 1 hour. Prolong usage is prohibited. Please keep a clear safety area under the display while using the eye bolt. Maintenance: • To protect your display from possible damage, do not put excessive pressure on the LCD panel. When moving your display, grasp the frame to lift; do not lift the display by placing your hand or fingers on the LCD panel.
  • Page 3 24BDL4151T Read and follow these instructions when connecting and using your display: • Unplug the display if you are not going to use it for an extensive period of time. • Unplug the display if you need to clean it with a slightly damp cloth. The screen many be wiped with a dry cloth when the power is off. However, never use alcohol, solvents or ammonia-based liquids. • Consult a service technician if the display does not operate normally when you have followed the instructions in this manual. • The casing cover should be opened only by qualified service personnel. • Keep the display out of direct sunlight and away from stoves or any other heat sources. • Remove any object that could fall into the vents or prevent proper cooling of the display’s electronics. • Do not block the ventilation holes on the cabinet. • Keep the display dry. To avoid electric shock, do not expose it to rain or excessive moisture.
  • Page 4 24BDL4151T Europe – EU Declaration of Conformity This device complies with the essential requirements of the Radio Equipment Directive (2014/53/EU). The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the Radio Equipment Directive (2014/53/EU): - EN60950-1/EN62311/EN300328/EN301893/EN301489 Europe Statement IMPORTANT NOTE: The device is restricted to indoor use only when operating in the 5150 to 5350MHz frequency range. 、 Radiation Exposure Statement: T his equipment complies with CE radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & body. The frequency, mode and the maximum transmitted power in EU are listed below: 2412-2472MHz(802.11g 6Mbps): 19.98dBm 2402-2480MHz (EDR 3Mbps): 9.65dBm 2402-2480MHz (LE 1Mbps): 9.80dBm 5180-5240/5260-5320/5500-5700MHz (802.11 ac VHT40 MCS0/NSS1): 22.95dBm Taiwan: 低功率電波輻射性電機管理辦法...
  • Page 5 24BDL4151T Canada: Industry Canada statement: This device complies with RSS-247 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Ce dispositif est conforme à la norme CNR-247 d’Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable. Radiation Exposure Statement: This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Déclaration d’exposition aux radiations:Cet équipement est conforme aux limites d’exposition aux rayonnements ISED établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps.
  • Page 6 24BDL4151T Polish Center for Testing and Certification Notice The equipment should draw power from a socket with an attached protection circuit (a three-prong socket). All equipment that works together (computer, display, printer, and so on) should have the same power supply source. The phasing conductor of the room’s electrical installation should have a reserve short-circuit protection device in the form of a fuse with a nominal value no larger than 16 amperes (A). To completely switch off the equipment, the power supply cable must be removed from the power supply socket, which should be located near the equipment and easily accessible. A protection mark “B” confirms that the equipment is in compliance with the protection usage requirements of standards PN-93/T-42107 and PN-89/ E-06251. Electric, Magnetic and Electromagnetic Fields (“EMF”) 1. We manufacture and sell many products targeted at consumers, which, like any electronic apparatus, in general have the ability to emit and receive electromagnetic signals.
  • Page 7 24BDL4151T Information for U.K. only WARNING - THIS APPLIANCE MUST BE EARTHED. Important: This apparatus is supplied with an approved moulded 13A plug. To change a fuse in this type of plug proceed as follows:+ 1. Remove fuse cover and fuse. 2. Fit new fuse which should be a BS 1362 5A,A.S.T.A. or BSI approved type. 3. Refit the fuse cover. If the fitted plug is not suitable for your socket outlets, it should be cut off and an appropriate 3-pin plug fitted in its place. If the mains plug contains a fuse, this should have a value of 5A. If a plug without a fuse is used, the fuse at the distribution board should not be greater than 5A.
  • Page 8 24BDL4151T China RoHS 根据中国大陆《电子电气产品有害物质限制使用标识要求》，以下部分列出了本产品中可能包含的有害物 质的名称和含量。 有害物质 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (Cr (VI)) (PBB) (PBDE) 外壳 ○ ○ ○ ○ ○ ○ 液晶显示屏 × ○ ○ ○ ○ ○ 电路板组件* × ○ ○ ○ ○...
  • Page 9 24BDL4151T 限用物質及其化學符號 單元 鉛 汞 鎘 六價鉻 多溴聯苯 多溴二苯醚 (Pb) (Hg) (Cd) (PBB) (PBDE) 塑料外框 ○ ○ ○ ○ ○ ○ 後殼 ○ ○ ○ ○ ○ ○ 液晶面板 － ○ ○ ○ ○ ○ 電路板組件 － ○ ○ ○...
  • Page 10 24BDL4151T End-of-Life Disposal Your new Public Information Display contains materials that can be recycled and reused. Specialized companies can recycle your product to increase the amount of reusable materials and to minimize the amount to be disposed of. Please find out about the local regulations on how to dispose of your old display from your local Philips dealer. (For customers in Canada and U.S.A.) This product may contain lead and/or mercury. Dispose of in accordance to local-state and federal regulations. For additional information on recycling contact www.eia.org (Consumer Education Initiative) Waste Electrical and Electronic Equipment-WEEE Attention users in European Union private households This marking on the product or on its packaging illustrates that, under European Directive 2012/19/EU governing used electrical and electronic appliances, this product may not be disposed of with normal household waste. You are responsible for disposal of this equipment through a designated waste electrical and electronic equipment collection.
  • Page 11 24BDL4151T Information for EAC Month and year of manufacturing please refer information in Rating label. ООО “Профтехника” Name and location of manufacturer Адрес: 3-й Проезд Марьиной рощи, 40/1 офис 1. Москва, 127018, Россия Наименование организации: ООО “Профтехника” Адрес: 3-й Проезд Марьиной рощи, 40/1 офис 1. Москва, 127018, Россия...
  • Page 12 24BDL4151T NOTICE SOFTWARE END USER LICENSE AGREEMENT THIS SOFTWARE END USER LICENSE AGREEMENT (THIS “AGREEMENT”) IS A LEGAL AND BINDING AGREEMENT BETWEEN YOU (EITHER AN INDIVIDUAL OR ENTITY) AND MMD MONITORS & DISPLAYS NEDERLAND B.V., A DUTCH LIMITED LIABILITY COMPANY, WITH ITS PRINCIPAL OFFICE AT PRINS BERNHARDPLEIN 200, 1097 JB AMSTERDAM, THE NETHERLANDS AND ITS SUBSIDIARY COMPANIES (INDIVIDUALLY AND COLLECTIVELY “MMD”).
  • Page 13 24BDL4151T 8. Support Services. MMD is not obligated to provide technical or other support (“Support Services”) for the Software. If MMD does provide you with Support Services, these will be governed by separate terms to be agreed between you and MMD. 9. Limited Software Warranty. MMD provides the Software ‘as is’ and without any warranty except that the Software will perform substantially in accordance with the documentation accompanying the Software for a period of one year after your first download, installation or use of the Software, whichever occurs first. MMD’s entire liability and your exclusive remedy for breach of this warranty shall be, at MMD’s option, either (i) return of the price paid by you for the Software (if any); or (ii) repair or replacement of the Software that does not meet the warranty set forth herein and that is returned to MMD with a copy of your receipt. This limited warranty shall be void if failure of the Software has resulted from any accident, abuse, misuse or wrongful application. Any replacement Software will be warranted for the remainder of the original warranty period or thirty (30) days, whichever is longer.
  • Page 14 24BDL4151T Open source licenses statement Disclaimer regarding services and/or software offered by third parties Services and/or software offered by third parties may be changed, suspended, or terminated without prior notice. MMD does not bear any responsibility in these sorts of situations. Third Party (Open) Source Software This product may make use of third party (open) source software and the use of this third party (open) source software may be subject to terms and conditions of such third party. In case open source software is used, MMD provides source attribution, where applicable. When required by the terms of the open source license, MMD published the relevant parts of the source code for the product on http://licenses.cmnd.io. MMD hereby offers to deliver, upon request, a copy of the complete corresponding source code for the copyrighted open source packages used in this product for which such offer is requested by the respective license.

  • Page 15: Table Of Contents

    24BDL4151T Table Of Contents Cleaning and Troubleshooting ..........30 8.1. Cleaning ..................30 8.2. Troubleshooting .................30 Unpacking and Installation ............1 Technical Data ................. 31 1.1. Unpacking ..................1 9.1. Specifications ................31 1.2. Package Contents ................1 9.2. Disclaimer ..................32 1.3.

  • Page 16: Unpacking And Installation

    DC power adapter Stand Screws for Stand Wire Clamper Screws for 4G module (4 PCS) (2 PCS) board (2 PCS) * Items may differ in different locations * Display design and accessories may differ from the images shown. Notes: • The recommended AC/DC adapter model: Philips ADPC2065 The recommended AC/DC adapter model: ADP-65DE B (for India). • For all other regions, apply a power cord that conforms to the AC voltage of the power socket and has been approved by and complies with the safety regulations of the particular country (Type H05W-F, 2G or 3G, 0.75 or 1 mm should be used). • Keep the packaging materials appropriately after unpacking the product.

  • Page 17: Installation

    24BDL4151T 1.3. Installation 1.3.4. Installing the stand 1. Ensure that the display is powered off. 1.3.1. Connecting the power cable 2. Spread a protective sheet on a flat surface to facilitate your operation without scratching the screen. 1. Connect the power adapter’s connector into the display’s power input socket. 3. Lay the display face-down on the protective sheet. 2. Insert the matching AC plug fully into the power adapter. 4. Install the stand with four screws. 3. Plug the AC plug of your power adapter into an electric outlet to power on the device. 5. Lift the stand until a click sound is heard. The tile angles for keeping the stand stable are 24.5 and 62 degrees.
  • Page 18 24BDL4151T 1.3.5. Installing the 4G Module 1.3.6. Mounting the display to the wall 1. Carefully insert the flat head screwdriver into the gap of the rear 1. Wall mount holes grid: 100mm(H) x 100mm(V) cover. 2. Wall mount screw: M4x(14+X) (X=thickness of wall mount plate) 2. Slightly lift the rear cover open. 3. Install the 4G module board by tightening the two screws using a suitable screwdriver. 4. Connect the 4G antenna cables to the connectors on the board. 5. Install back the rear cover.

  • Page 19: Physical View And Features

    24BDL4151T Physical view and features 2.3. Input/Output Terminals 2.1. Front View HDMI OUT Connect to an HDMI device. Front camera and microphone receiver USB PORT Power status indicator Connect to a USB storage device. 2.2. Rear View Connect to a USB storage for updating the firmware of the mainboard. Note: Reserved for updating the firmware only. USB touch will switch to PC USB upstream when the source selected is HDMI. (refer to 1.3.3. Using the touch function through a PC) Micro SD Insert a Micro SD card. • The LAN control function is used for sending the remote control signal from the control center.

  • Page 20: Operation

    2. Applications: show all Apps. 3. Network: setup Wi-Fi, Ethernet and mobile network. 4. S torage: a simple file manager for user to view the list of file in the system. 5. H elp: a link is provided for user to get help from Philips official website. Note: W hen leaving from the Admin mode, the system goes back to boot on source. 1) Settings page: Settings: go to settings page. Signage Display: go to signage display settings page. • Exit the App by pressing the “Return” key and the screen will enter Android PD launcher.
  • Page 21 24BDL4151T 3 ） Network page: Wi-Fi and Mobile options appear only when the Wi-Fi and Mobile modules are available. 4) Storage page: Select from internal and external memories. 5) Help page: Scan the QR code to link to Philips support website.

  • Page 22: Media Player

    All media files should be stored in /philips/ of root directory. For example: - Every week: videos: {root dir of storage}/philips/video/ ■ Set a weekly schedule. photos: {root dir of storage}/philips/photo/ music : {root dir of storage}/philips/music/ - Save ■ Save the schedule. 3.3.2. Media Player introduction 1. Main page of Media Player App, this App consists of three items: “Play”, “Compose” and “Settings”. Play: select the playlist to play.
  • Page 23 24BDL4151T 5. If you select “USB” storage, the App will guide you through selecting 7-1 From the side menu bar, the following functions are available: - Select all: select all files saved in the storage. the USB device. - Delete all: delete all playlist files. - Add/Remove: add or remove a playlist from source. - Sort: sort the playlist. - Save/abort: save or abort the playlist. - Back: return to the previous menu. 6. To edit or delete a non-empty playlist, select the desired playlist that has a pencil icon on right side of the file. 8. If “Sort” is selected, you can customize the file order severally.
  • Page 24 Note: If a playlist contains both video and music files, a black screen will display when the system plays the music file. 11. If you create a playlist with all image files, you will be asked to add a background music to the slideshow before saving. Step 2. Copy “mpplaylistX.txt” to “philips” folder of the internal storage. You may use FTP to do this. - File path : /storage/emulated/legacy/philips Ex. /storage/emulated/legacy/philips/mpplaylist1.txt Step 3. Add the media files in “Photo”, “Video” and “Music” folders which are under “Philips” folder of your internal storage. - Ex. /storage/emulated/legacy/philips/photo/xxx.jpg /storage/emulated/legacy/philips/video/yyy.mp4 /storage/emulated/legacy/philips/photo/zzz.mp3 Step 4. Start Media player App, it will import the text file of media 12.

  • Page 25: Browser

    24BDL4151T 3.4. Browser 4. From the side menu bar on left side of the screen, the following functions are available: Before using this feature, ensure that the system is connected Import: import the file of URL list successfully to the network. (See 4.1. Wi-Fi & 4.2. Ethernet) Export: export the file of URL list 1. Main page of “Browser” App which allows you to make related Delete all: delete all URL records from the main screen settings. Back: close the side menu bar 2. U p to 7 browsers can be set. Select one and click the “OK” button.
  • Page 26 24BDL4151T • Import the browser file and the URL will be listed on the screen. • A dialog box displays the path of the file to be saved as well as the file name. Press the “Save” button to save the URL. • The file format supported for import is “.txt”. 5. Press the “OK” button to save the URL record. 4.2 Export: • Select export. 6. If you select a non-empty item from the URL list, a message will appear asking if you want to edit or play the URL. If you select “Edit”, a dialog box allows you to edit the URL. If you select “Play”, a web • Select the storage where the file will be exported to. page of the selected URL appears.

  • Page 27: Pdf Player

    “Play”, “Compose” and “Settings”. Play: select a playlist to play. Compose: edit the playlist. Step 2. Copy bookmarklist.txt to “philips” folder of the internal Settings: configure the properties of PDF Player. storage. You may use FTP to do this. - File path: /storage/emulated/legacy/philips (for DL, PL) Ex. /storage/emulated/legacy/philips/bookmarklist.txt Step 3. Start Browser App, it will import the text file of Browser automatically. Note: Once the playlist file (text) is imported, any changes made through the remote control will not be recorded in the playlist text file.
  • Page 28 - Select all: select all files saved in the storage - Delete all: delete all playlist files - Add/Remove: add or remove a playlist from source - Sort: sort the playlist - Save/Abort: save or abort the playlist 4. If an empty playlist is selected, the App will guide you through - Back: return to the previous page selecting the media source. All media files should be stored in /philips/ of root directory. For example: pdfs : {root dir of storage}/philips/pdf/ 7. If “Sort” is selected, you can customize the file order severally.

  • Page 29: Cmnd & Play

    If customer source APK is not set, the system shows a black screen when switching to customer input source. If a custom source APK is set, the APK name will be displayed. Otherwise, it means that the custom App has not been set. Step 2. Copy pdfplaylistX.txt to “philips” folder of the internal storage. You may use FTP to do this. Dialog box of “Select app”: - File path: /storage/emulated/legacy/philips (for DL, PL) Ex. /storage/emulated/legacy/philips/pdfplaylist1.txt Note: Step 3. Add the PDF files in “PDF” folder which is under “Philips” folder of your internal storage. The APKs pre-installed by the system will not be shown on the list. Only the APKs that were installed manually will be listed. - Ex. /storage/emulated/legacy/philips/pdf/xxx.pdf Save /storage/emulated/legacy/philips/pdf/yyy.pdf...

  • Page 30: Osd (On-Screen Display)

    24BDL4151T OSD (On-Screen Display) Forget Clear the custom source application. It will be shown in gray if the The OSD menu consists of the following items: customer source application has not been set. (1) Wi-Fi (See 4.1. Wi-Fi) Cancel (2) Ethernet (See 4.2. Ethernet) Cancel and close the dialog box. (3) Bluetooth (See 4.3. Bluetooth) (4) Signage Display (See 4.4. Signage Display) (5) Display (See 4.5. Display) (6) Apps (See 4.6. Apps) (7) Storage (See 4.7. Storage) (8) Security (See 4.8. Security) (9) Language & input (See 4.9. Languages & input) (10) Date & time (See 4.10. Date & time) (11) Developer options (See 4.11.

  • Page 31: Bluetooth

    24BDL4151T Note : Ethernet will be disabled automatically if Wi-Fi is connected to the network correctly. 4.3. Bluetooth [Off] 1. Go to the Bluetooth settings by selecting “Settings” > “Bluetooth” Turn off boot animation. > “On”. 2. The system scans for and displays the IDs of available Bluetooth [On] devices within range. Turn on boot animation and use the default logo of PHILIPS. 3. Touch the ID of the Bluetooth device to pair with it. [User] 4. Confirm the passkey that appears and touch Pair. On the other Turn on boot animation and use the boot animation file selected Bluetooth device, accept the identical passkey for pairing. by the user. The name for boot animation file is “bootanimation. 5. To unpair the Bluetooth device, select “Unpair” on the connected zip”.
  • Page 32 24BDL4151T The files “bootanimation.zip” found under external storage (USB, SD 3. T he hot key is available when the system enters sleep mode. card) are listed in the dialog box. You can enter the Admin mode or show the Quick Info dialog box by using the hot key. If the file “bootanimation.zip “ can be found in the folder “/data/local/ bootanimation/”, the pop-up dialog box will show that file as the first option. It simply means that user has previously copied (saved) the file “bootanimation.zip” and that the system will boot up with boot animation from “bootanimation.zip”. [ Schedule list] Up to 7 schedules can be set. Each schedule can be set independently. [Enable] The user can replace the boot animation file by using the “SAVE” Enable/Disable the schedule selected from the schedule list. Each button. schedule has its own Enable/Disable switch. [Boot on source] [Start time] Boot on source for the user to set up the default source when the Set the start time of the selected schedule.
  • Page 33 24BDL4151T Notes: A. The screenshot images will be deleted automatically under the following conditions: 1. When the start time of screenshot feature is set to 0 second. 2. Starting the screenshot at 40 seconds of minute. 3. I f you decide to purge the screenshot photos every week, the data of deleting the photos will be changed to the day that you apply the setting of screenshot feature. [SMTP] For example, if you set the purging day to Monday of every Setup sender’s E-mail address and SMTP server information. week, then changed other settings in screenshot feature on There are two types of SMTP server for user to set up: “Gmail” Friday, the purging day will be changed to Friday (the day of and “Other”. By using the “Other” option, you can manually setup system’s current time). the STMP server, security type and server port. B.
  • Page 34 24BDL4151T In the entry field of “Server”, input the URL address with the prefix of “https://”. If the device is not bound with the remote control server, please enter the PIN code provided by the server. Bind status: (1) I f the device does not have appropriate network connection, a message “Network is disconnected” will appear. [Manager Email] (2) If the device is equipped with network function, but is not Specify the destination address to receive the e-mail. connected to the remote control server, a message “Server is disconnected” will appear. (3) I f the server is connected, but not bound, a message “Server is unbinded” will appear. (4) I f the device is bound with the server successfully, a message [Test] “Server is binded” will appear.
  • Page 35 24BDL4151T [All] If the proxy server requests a login name and password for authorization, enable “Authorization” first and enter the user Clear the folder “Philips” from the internal storage, USB and SD name and password. card. [Internal Storage] Clear the folder “Philips” from the internal storage only. [USB Storage] [Platform Web API] Clear the folder “Philips” from the USB storage only. Enable/disable Platform Web API by clicking the checkbox. The default setting is “Disabled”. [SD Card] Clear the folder “Philips” from the SD card only. A dialog box lists all folders that the system is going to clear. Press “RESET” to clear all data under the listed folder. [SICP network port] Set up the default port of SICP and enable/disable the network SICP. The default SICP is enabled with the port 5000. Note: Port number ranges from 1025 ~ 65535.
  • Page 36 Export Signage Display Settings CMS file will be saved to Philips/ folder ii. Target is the external storage (SD card or USB storage) The data and 3rd party APKs will be exported to the folder “Philips” of the selected storage (Internal storage, SD card or USB). CMS file will be saved to the root directory of storage (1) Export Database (.xml files and .db files) (2) Export 3rd party APK to Philips/app/ folder Note: If the selected storage (internal storage, USB or SD card) does not contain the folder “Philips”, then the system will create it automatically. A list of all available storage (internal storage, SD card and USB storage): 4.4.5.6. Security Set the password for Admin mode and lock/unlock the external Import Signage Display Settings storage. The data and 3rd party APKs will be imported from the folder “Philips” of the selected storage (Internal storage, SD card or USB). (1) Import Database (.xml files and .db files) Change the Administrator Password (2) Import 3rd party APK under Philips/app/ folder Change the password to log in to the Admin mode.

  • Page 37: Display

    Scaler FW updates Select “Start update” to update scalar firmware for Android system. 4.6. Apps Display information about the installed APKs. If the file “scarler.bin” cannot be found on the internal storage, a dialog box will be shown as below: Please note that: 1. The update file should be named as “scaler.bin” only. 2. T he “scaler.bin” file should only be stored in the folder “Philips/ scaler/” of your internal storage. 3. A fter selecting “OK” to start updating scaler firmware, do not turn off the power or remove the power adapter until the update is complete. 4. Wait for about 3 minutes, Android will start rebooting. 5. A fter rebooting, it is recommended that you remove the AC power cable and plug it in again. 6. T o check Scaler FW version via Quick Info, go to Monitor Information and press “Menu + Volume up”.

  • Page 38: Storage

    24BDL4151T 4.7. Storage 4.11. Developer options Display the storage status of the device. Android developer options are available for developers who want to make changes that may impact the system’s performance. The If an external storage devices (SD card or USB) is inserted, the default setting is “On” and USB debugging is also “On” by default. storage status of the external storage will be listed under “Portable storage”. 4.8. Security [Device administrators] The available device administrators for enterprises and the related settings are listed. [Credential storage] The CA certificates pre-installed in the system are listed. Installation of user CA certificates is not allowed. 4.9. Languages & input Set the system language and change the IME settings. 4.12. About [Languages] Go to “Settings” > “About” to view the following information of the system. Set the system language. The first language listed on the “Language Preferences” from the first page of OOBE is the language selected...
  • Page 39 24BDL4151T 4.13.2. How to customize an Android boot The next number defines the delay time(ms). For example, if it is set to 10, the system will be delayed for 10ms when all image files animation? finished playing. 1. Overview Part 0 and part 1 refer to image folder names. The Android boot animation is a script used to load PNG files when As to the above example, the boot animation will play at a resolution of the device boots. It is included in an uncompressed zip file called 1920 by 1080 pixels, at a frame rate of 30 fps, starting with the contents bootanimation.zip. of part0 folder. After playing them in one loop, switch to the contents of 2.
  • Page 40 “com.example.apk_name”); “OK” on the selected APK. intent.putExtra(“activityName”, “com.example.apk_name.MainActivity”); 2. Download an APK using the Chromium browser. sendBroadcast(intent) 2.1 The next steps are the same as described above. Please note, each model may have different <internal storage path>. (b) Via Adb Shell 1. Make sure that your PC can connect to Philips Android Signage Display using adb. 2. Prepare your apk in a folder (for example, C:\apkfolder) on your 3. Execute the following instruction using command line tool. C:\apkfolder> adb install -r apk_name.apk (c) Via Customized Intent 1. If you develop an apk which can download any Android app, then your apk can issue a customized intent. 2. Given that the apk name and the path have been stored, the...

  • Page 41: Supported Media Formats

    24BDL4151T Supported Media Formats USB Multimedia Codec Formats Video Decode Type Video Codec Container Decode Remark MPEG program stream (.DAT, .VOB, .MPG, .MPEG) MPEG transport stream (.ts) Max Resolution: 1080P@60fps MPEG1/2 MPEG1/2 MP4 (.mp4) Max Bit Rats : 40Mbps AVI (.avi) MKV (.mkv) MP4 (.mp4) Max Resolution: 1080P@60fps MPEG-4 MPEG4 AVI (.avi)

  • Page 42: Input Mode

    24BDL4151T Image Decode Type Image Codec Photo Decode Remark Max Resolution: 7000 x 7000 JPEG JFIF file format 1.02 File Format: JPG, JPEG The limitation of max resolution depends on DRAM Max Resolution: 15360 x 8640 File Format: BMP The limitation of max resolution depends on DRAM Max Resolution: 15360 x 8640 File Format: PNG The limitation of max resolution depends on DRAM Notes: • Sound or video may not work if the contents have a standard bit rate/frame rate above the compatible Frame/sec listed in the table above. • Video content with a Bit rate or Frame rate larger than the rate specified in the table above can cause choppy video during playback. Input Mode...

  • Page 43: Pixel Defect Policy

    We strive to deliver the highest quality products and use some of the industry’s most advanced manufacturing processes whilst practicing stringent quality control. However, pixel or sub-pixel defects on the PDP / TFT panels used in Plasma- & LCD- displays are sometimes unavoidable. No manufacturer can guarantee that all panels will be free from pixel defects, but Philips guarantees that any Plasma- & LCD- displays with an unacceptable number of defects will be repaired during the warranty period in line with your local guarantee conditions. This notice explains the different types of pixel defects and defines the acceptable defect level for the LCD screen. In order to qualify for repair under warranty, the number of pixel defects must exceed a certain level as shown in the reference table. If the LCD screen is within specification a warranty exchange / claim back will be refused. Additionally, because some types or combinations of pixel defects are more noticeable than others, Philips sets even higher quality standards for those. 7.1. Pixels and Sub-Pixels A pixel, or picture element, is composed of three sub-pixels in the primary colors of red, green and subpixel blue.

  • Page 44: Dark Dot Defects

    Dark Dot Defects Black dot defects appear as pixels or sub-pixels that are always dark or “off ”. These are the examples of black dot defects: One dark dot Two adjacent dark dots = 1 pair of dark dots Two dark dots, specifications defines the minimum distance between dark dots 7.5. Proximity of Pixel Defects Because pixel and sub-pixels defects of the same type that are nearby one another may be more noticeable, Philips also specifies tolerances for the proximity of pixel defects. In the table below you can find specifications about: • Allowed amount of adjacent dark dots = (adjacent dark dots =1 pair of dark dots) • Minimum distance between dark dots • Total no. of all defective dots 7.6. Pixel Defect Tolerances In order to qualify for repair due to pixel defects during the warranty period, a PDP / TFT panel in a Philips Plasma / LCD- display must have pixel or sub- pixel defects exceeding the tolerances listed in the following table.
  • Page 45 24BDL4151T Cleaning and Troubleshooting 8.1. Cleaning Caution When Using the Display • Be sure to disconnect all cables before moving the monitor. Moving the monitor with its cables attached may damage the cables and thus cause fire or electric shock. • Disconnect the power plug from the wall outlet as a safety precaution before carrying out any type of cleaning or maintenance procedure. Front Panel Cleaning Instructions • The front of the display has been specially treated. Wipe the surface gently using only a cleaning cloth or a soft, lint-free cloth. • If the surface becomes dirty, soak a soft, lint-free cloth in a mild detergent solution. Wring the cloth to remove excess liquid. Wipe the surface of the display to remove dirt. Then use a dry cloth of the same type to dry.
  • Page 46 24BDL4151T Technical Data 9.1. Specifications Display: Item Specifications Screen Size (Active Area) 521.28 (H) x 293.22 (V) mm Aspect Ratio 16:9 Number of pixels 1920 (H) x 1080 (V) Displayable colors 16. 7M colors (6-bit +Hi-FRC) Brightness (typical) 210 cd/m Contrast ratio (typical) 1000:1 Viewing angle Up 80 / Down 80 / Left 85 / Right 85 ( typ ) @ CR ≥10 In/Out Terminals: Item Specifications VIDEO HDMI x1 (with HDCP) Input Signal RJ-45 (10/100/1000 Base-T) (With PoE) VIDEO HDMI x1 (Android system output) Output Signal AUDIO Earphone out Internal Speaker 2W + 2W Touch panel...
  • Page 47 24BDL4151T Environmental Condition: Item Specifications Temperature Operational 0 ~ 40°C Storage -20 ~ 60°C Humidity Operational 20 ~ 80% RH (No condensation) Storage 10 ~ 90% RH (No condensation) Altitude Operational 0 ~ 3,000 m Storage / Shipment 0 ~ 9,000 m 9.2. Disclaimer Image Retention Disclaimer When an image is monitored on-screen for prolonged periods of time, you may see a faint image after it is replaced. This is an expected normal behavior for monitors. Image retention may be reduced by: * Avoiding still images shown on-screen for more than a few minutes * Using non-contrasting colors and brightness * Using background colors other than gray...
  • Page 48 2018 © Koninklijke Philips N.V. All rights reserved. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license from Koninklijke Philips N.V. Specifications are subject to change without notice.
