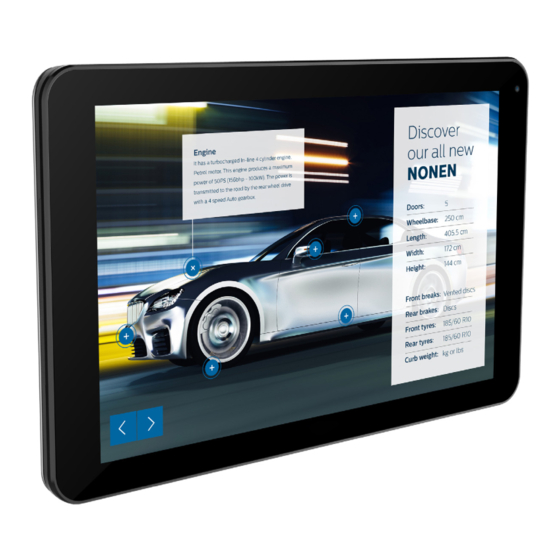

Philips 24BDL4151T User Manual

Hide thumbs Also See for 24BDL4151T:
Table of Contents

Advertisement

Quick Links

PHILIPS 24BDL4151T
V1.00
www.philips.com/welcome
User Manual (English)

Advertisement

Table of Contents
loading

Related Manuals for Philips 24BDL4151T

Summary of Contents for Philips 24BDL4151T

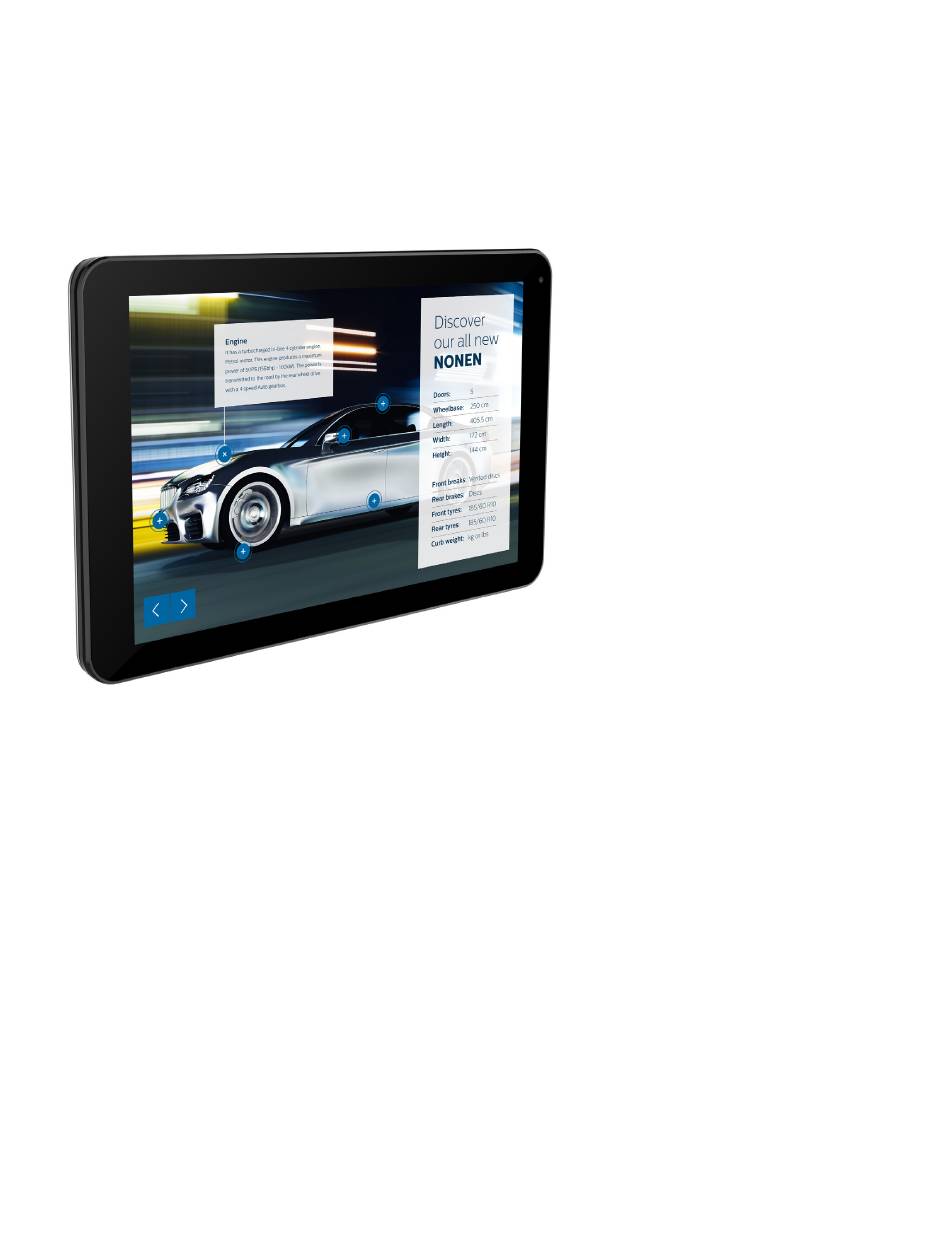

  • Page 1 PHILIPS 24BDL4151T V1.00 www.philips.com/welcome User Manual (English)
  • Page 2 Operation: • Keep the display out of direct sunlight and away from stoves or any other heat sources. • Remove any object that could fall into ventilation holes or prevent proper cooling of the display’s electronics. • Do not block the ventilation holes on the cabinet. • When positioning the display, make sure the power plug and outlet are easily accessible. • When turning off the display by detaching the power cord, wait 6 seconds before re-attaching the power cord for normal operation. • Ensure the use of an approved power cord provided by Philips at all times. If your power cord is missing, please contact your local service center. • Do not subject the display to severe vibration or high impact conditions during operation. • Do not knock or drop the display during operation or transportation. • The eye bolt is for usage in short-time maintenance and installation. We suggest not to use the eye bolt for more than 1 hour. Prolong usage is prohibited. Please keep a clear safety area under the display while using the eye bolt. Maintenance: • To protect your display from possible damage, do not put excessive pressure on the LCD panel. When moving your display, grasp the frame to lift; do not lift the display by placing your hand or fingers on the LCD panel.
  • Page 3 24BDL4151T Read and follow these instructions when connecting and using your display: • Unplug the display if you are not going to use it for an extensive period of time. • Unplug the display if you need to clean it with a slightly damp cloth. The screen many be wiped with a dry cloth when the power is off. However, never use alcohol, solvents or ammonia-based liquids. • Consult a service technician if the display does not operate normally when you have followed the instructions in this manual. • The casing cover should be opened only by qualified service personnel. • Keep the display out of direct sunlight and away from stoves or any other heat sources. • Remove any object that could fall into the vents or prevent proper cooling of the display’s electronics. • Do not block the ventilation holes on the cabinet. • Keep the display dry. To avoid electric shock, do not expose it to rain or excessive moisture.
  • Page 4 24BDL4151T Europe – EU Declaration of Conformity This device complies with the essential requirements of the Radio Equipment Directive (2014/53/EU). The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the Radio Equipment Directive (2014/53/EU): - EN60950-1/EN62311/EN300328/EN301893/EN301489 Europe Statement IMPORTANT NOTE: The device is restricted to indoor use only when operating in the 5150 to 5350MHz frequency range. 、 Radiation Exposure Statement: T his equipment complies with CE radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & body. The frequency, mode and the maximum transmitted power in EU are listed below: 2412-2472MHz(802.11g 6Mbps): 19.98dBm 2402-2480MHz (EDR 3Mbps): 9.65dBm 2402-2480MHz (LE 1Mbps): 9.80dBm 5180-5240/5260-5320/5500-5700MHz (802.11 ac VHT40 MCS0/NSS1): 22.95dBm Taiwan: 低功率電波輻射性電機管理辦法...
  • Page 5 24BDL4151T Canada: Industry Canada statement: This device complies with RSS-247 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Ce dispositif est conforme à la norme CNR-247 d’Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable. Radiation Exposure Statement: This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Déclaration d’exposition aux radiations:Cet équipement est conforme aux limites d’exposition aux rayonnements ISED établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps.
  • Page 6 24BDL4151T Polish Center for Testing and Certification Notice The equipment should draw power from a socket with an attached protection circuit (a three-prong socket). All equipment that works together (computer, display, printer, and so on) should have the same power supply source. The phasing conductor of the room’s electrical installation should have a reserve short-circuit protection device in the form of a fuse with a nominal value no larger than 16 amperes (A). To completely switch off the equipment, the power supply cable must be removed from the power supply socket, which should be located near the equipment and easily accessible. A protection mark “B” confirms that the equipment is in compliance with the protection usage requirements of standards PN-93/T-42107 and PN-89/ E-06251. Electric, Magnetic and Electromagnetic Fields (“EMF”) 1. We manufacture and sell many products targeted at consumers, which, like any electronic apparatus, in general have the ability to emit and receive electromagnetic signals.
  • Page 7 24BDL4151T Information for U.K. only WARNING - THIS APPLIANCE MUST BE EARTHED. Important: This apparatus is supplied with an approved moulded 13A plug. To change a fuse in this type of plug proceed as follows:+ 1. Remove fuse cover and fuse. 2. Fit new fuse which should be a BS 1362 5A,A.S.T.A. or BSI approved type. 3. Refit the fuse cover. If the fitted plug is not suitable for your socket outlets, it should be cut off and an appropriate 3-pin plug fitted in its place. If the mains plug contains a fuse, this should have a value of 5A. If a plug without a fuse is used, the fuse at the distribution board should not be greater than 5A.
  • Page 8 24BDL4151T China RoHS 根据中国大陆《电子电气产品有害物质限制使用标识要求》，以下部分列出了本产品中可能包含的有害物 质的名称和含量。 有害物质 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (Cr (VI)) (PBB) (PBDE) 外壳 ○ ○ ○ ○ ○ ○ 液晶显示屏 × ○ ○ ○ ○ ○ 电路板组件* × ○ ○ ○ ○...
  • Page 9 24BDL4151T 限用物質及其化學符號 單元 鉛 汞 鎘 六價鉻 多溴聯苯 多溴二苯醚 (Pb) (Hg) (Cd) (PBB) (PBDE) 塑料外框 ○ ○ ○ ○ ○ ○ 後殼 ○ ○ ○ ○ ○ ○ 液晶面板 － ○ ○ ○ ○ ○ 電路板組件 － ○ ○ ○...
  • Page 10 24BDL4151T End-of-Life Disposal Your new Public Information Display contains materials that can be recycled and reused. Specialized companies can recycle your product to increase the amount of reusable materials and to minimize the amount to be disposed of. Please find out about the local regulations on how to dispose of your old display from your local Philips dealer. (For customers in Canada and U.S.A.) This product may contain lead and/or mercury. Dispose of in accordance to local-state and federal regulations. For additional information on recycling contact www.eia.org (Consumer Education Initiative) Waste Electrical and Electronic Equipment-WEEE Attention users in European Union private households This marking on the product or on its packaging illustrates that, under European Directive 2012/19/EU governing used electrical and electronic appliances, this product may not be disposed of with normal household waste. You are responsible for disposal of this equipment through a designated waste electrical and electronic equipment collection.
  • Page 11 24BDL4151T Information for EAC Month and year of manufacturing please refer information in Rating label. ООО “Профтехника” Name and location of manufacturer Адрес: 3-й Проезд Марьиной рощи, 40/1 офис 1. Москва, 127018, Россия Наименование организации: ООО “Профтехника” Адрес: 3-й Проезд Марьиной рощи, 40/1 офис 1. Москва, 127018, Россия...
  • Page 12 24BDL4151T NOTICE SOFTWARE END USER LICENSE AGREEMENT THIS SOFTWARE END USER LICENSE AGREEMENT (THIS “AGREEMENT”) IS A LEGAL AND BINDING AGREEMENT BETWEEN YOU (EITHER AN INDIVIDUAL OR ENTITY) AND MMD MONITORS & DISPLAYS NEDERLAND B.V., A DUTCH LIMITED LIABILITY COMPANY, WITH ITS PRINCIPAL OFFICE AT PRINS BERNHARDPLEIN 200, 1097 JB AMSTERDAM, THE NETHERLANDS AND ITS SUBSIDIARY COMPANIES (INDIVIDUALLY AND COLLECTIVELY “MMD”).
  • Page 13 24BDL4151T 8. Support Services. MMD is not obligated to provide technical or other support (“Support Services”) for the Software. If MMD does provide you with Support Services, these will be governed by separate terms to be agreed between you and MMD. 9. Limited Software Warranty. MMD provides the Software ‘as is’ and without any warranty except that the Software will perform substantially in accordance with the documentation accompanying the Software for a period of one year after your first download, installation or use of the Software, whichever occurs first. MMD’s entire liability and your exclusive remedy for breach of this warranty shall be, at MMD’s option, either (i) return of the price paid by you for the Software (if any); or (ii) repair or replacement of the Software that does not meet the warranty set forth herein and that is returned to MMD with a copy of your receipt. This limited warranty shall be void if failure of the Software has resulted from any accident, abuse, misuse or wrongful application. Any replacement Software will be warranted for the remainder of the original warranty period or thirty (30) days, whichever is longer.
  • Page 14 24BDL4151T Open source licenses statement Disclaimer regarding services and/or software offered by third parties Services and/or software offered by third parties may be changed, suspended, or terminated without prior notice. MMD does not bear any responsibility in these sorts of situations. Third Party (Open) Source Software This product may make use of third party (open) source software and the use of this third party (open) source software may be subject to terms and conditions of such third party. In case open source software is used, MMD provides source attribution, where applicable. When required by the terms of the open source license, MMD published the relevant parts of the source code for the product on http://licenses.cmnd.io. MMD hereby offers to deliver, upon request, a copy of the complete corresponding source code for the copyrighted open source packages used in this product for which such offer is requested by the respective license.

  • Page 15: Table Of Contents

    24BDL4151T Table Of Contents Cleaning and Troubleshooting ..........31 8.1. Cleaning ..................31 8.2. Troubleshooting .................31 Unpacking and Installation ............1 Technical Date ................. 32 1.1. Unpacking ..................1 9.1. Specifications ................32 1.2. Package Contents ................1 9.2. Disclaimer ..................33 1.3.

  • Page 16: Unpacking And Installation

    • Wire Clamper (2PCS) • Screws for 4G Board (2PCS) HDMI Cable USB Cable Stand Screws for Wire Clamper Screws for 4G Stand (4PCS) (2PCS) Board (2PCS) * Differences according to regions Display design and accessories may differ from those illustrated above. NOTES: • Use only the AC/DC adapter model: Philips ADPC2065. • For all other regions, apply a power cord that conforms to the AC voltage of the power socket and has been approved by and complies with the safety regulations of the particular country (Type H05W-F, 2G or 3G, 0.75 or 1 mm should be used). • You might like to save the package box and packing material for shipping the display.

  • Page 17: Installation

    24BDL4151T 1.3. Installation 5. Unfold the stand until hear the click sound. There are two available tile angles (24.5° & 62.0°). Please let the display stay on above tile angles to keep stable. 1.3.1. Securing the power cable. 1.3.2. Securing Micro SD card. 24.5° 1.3.3. Installing the stand. 1. Ensure the display is powered off. 2. Spread a protective sheet on a flat surface. 3. Place the display face-down on the protective sheet. 4. Installing the stand with the screws. 62.0°...
  • Page 18 24BDL4151T 1.3.4. Installing the 4G Module. 1.3.5. Mounting the display to the wall. 1. Insert the flat head screwdriver to the gap of rear cover slightly as 1. Wall mount holes grid: 100mm(H) x 100mm(V) shown. 2. Wall mount screw: M4x(14+X) (X=thickness of wall mount plate) 2. Open the rear cover slightly. 3. Installing the 4G module board with 2PCS of screws. 4. Connect the 4G antenna cables to the connectors on the board. 5. Installing back the rear cover. 1.3.6. Using of the wire clampers.

  • Page 19: Physical View And Features

    24BDL4151T Physical view and features 2.3. Input/Output Terminals 2.1. Front View HDMI OUT HDMI video/audio output. Front camera and microphone receiver USB PORT Power status indicator Connect your USB storage device. 2.2. Rear View Connect to USB storage for main board Firmware update. NOTE: It’s for updating firmware only. USB touch will switch to PC USB upstream when HDMI Source. Micro SD Connect your Micro SD card. • LAN control function for the use of remote control signal from control center. • PoE+ (power over Ethernet) Menu: To activate the menu. NOTE: Volume +/- ：...

  • Page 20: Operation

    Applications: show all apps. 3. Network: setup Wi-Fi, Ethernet and mobile network 4. S torage: simple file manager for user view the list of file in system. 5. H elp: provide link for user get help from Philips official website. NOTE: W hen user leaving admin mode, system will back to boot on source. 1) Settings page: Settings : go to settings page. Signage Display : go to signage display settings page. • Every apps leave by press back key, the screen will go to android PD launcher.
  • Page 21 24BDL4151T 3 ） Network page Wi-Fi and Mobile will only show up if system having available Wi-Fi module and mobile module. 4) Storage page: 5) Help page: Showing support website in link and QRcode.

  • Page 22: Media Player

    - Every week : For example, ■ Set lifecycle. videos: {root dir of storage}/philips/video/ photos: {root dir of storage}/philips/photo/ - Save music : {root dir of storage}/philips/music/ ■ Store schedule. 3.3.2. Media Player introduction: 1. Home page of Media Player app, this page has three items: “Play”, “Compose” and “Settings”. Play : select playlist to play.
  • Page 23 24BDL4151T 5. If you select “USB” storage, the app will guide you select USB device. 6-1 In the slide bar, it helps you to do the following: - select all : select all storage files. - delete all : delete all playlist files. - add/remove : update playlist from source. - sort : sort playlist. - save/abort : save or abort playlist. - back : return. 6. You could edit or delete a non-empty playlist, just choose the desired playlist which is with pencil icon. 8. If you choose “Sort” in the slide bar, you can change the order of files one by one. 7. Once you start to edit a playlist, you will see below screen.
  • Page 24 Note : if playlist file contains video and music, when the pd plays music file, the screen will be black. 11. If you make a playlist with all images files, before saving, the app Step 2. Copy mpplaylistX.txt to “philips” folder of internal storage. will ask you if you want to have background music while playing You may use FTP to do this. slideshow. - File path : /storage/emulated/legacy/philips Ex. /storage/emulated/legacy/philips/mpplaylist1.txt Step 3. Prepare media files to “photo”, “video” and “music” folder under “philips” folder, internal storage only. - Ex. /storage/emulated/legacy/philips/photo/xxx.jpg /storage/emulated/legacy/philips/video/yyy.mp4 /storage/emulated/legacy/philips/photo/zzz.mp3 Step 4.

  • Page 25: Browser Manual

    24BDL4151T 3.4. Browser manual 4. Press “Option” then left side will pop up a list Import : Import url list file 1. Home page of Browser app, this page has one item: “Settings”. Export : Export url list file Press Settings then enter next page. Delete all : Delete all url record on right side Back : left side list will be closed. 2. U sers can choose 1~7. Press any one will show a dialog. 4.1 Import • Click import 3. Enter url and press OK then data will save on List • Choose storage...
  • Page 26 24BDL4151T • Import file and url will show on list • Dialog shows path file will be saved and file’s name. Press “save” button then urls on list will be saved. • File format for import Format should be like below with file extension “txt” 5. Press OK then url records will be saved 4.2 Export: • Click export 6. On url list page, if you select non-empty item, it will show a dialog to ask edit or play url. If press “Edit”, it will show edit url dialog, if press “Play”, it will show web page of item’s url. • Choose storage...

  • Page 27: Pdf Player

    1. Home page of PDF Player, this page has three items: “Play”, “Compose” and “Settings”. Play : select playlist to play. Compose: edit playlist. Step 2. Copy bookmarklist.txt to “philips” folder of internal storage. Settings: setting play properties. You may use FTP to do this. - File path : /storage/emulated/legacy/philips (for DL, PL) Ex. /storage/emulated/legacy/philips/bookmarklist.txt Step 3. Start browser app, it will auto import browser text file. PS. Once the playlist file (text) is imported, if an user change playlist by remote controller, this change will not be written to playlist text file.
  • Page 28 - select all : select all storage files. - delete all : delete all playlist files. - add/remove : update playlist from source. - sort : sort playlist. - save/abort : save or abort playlist. - back : return. 4. If an empty playlist is chosen, the app will guide you to select the media source. All media files should be placed in /philips/ of root directory. For example, pdfs : {root dir of storage}/philips/pdf/ 7. If you choose “Sort” in the slide bar, you can change the order of files one by one.

  • Page 29: Cmnd & Play

    Settings -> Signage Display -> Source settings -> Custom app User set up customer source APK. The selected APK will be launch Step 2. Copy pdfplaylistX.txt to “philips” folder of internal storage. when switch into customer input source. If user does not set up You may use FTP to do this. customer source APK, system will show black screen when switch into customer input source. - File path : /storage/emulated/legacy/philips (for DL, PL) Ex. /storage/emulated/legacy/philips/pdfplaylist1.txt If user set up APK for custom app source, it will show APK name. If not, Step 3. Prepare pdf files to “pdf ” folder under “philips” folder, means that user does not set up custom app. internal storage only. - Ex. /storage/emulated/legacy/philips/pdf/xxx.pdf Select APP dialog /storage/emulated/legacy/philips/pdf/yyy.pdf...

  • Page 30: Setting

    B. Static IP User can set up device boot up logo (boot animation) mode. Default In Static IP mode, user can input IP Address, Netmask, DNS is ON. address and Gateway Note: IP address, netmask, DNS address and gateway address input limitation (1)Format: number 0-9, decimal point “. ” (2) Mac Address (Show Ethernet MAC address, cannot be A. Off: Turn off boot animation. changed) B. On: Turn on boot animation, using PHILIPS default logo.
  • Page 31 24BDL4151T C. User If /data/local/bootanimation/ folder is not empty, and system find a bootanimation.zip in it. The dialog will show the file in first option Turn on boot animation, using user choose boot animation and select it. That means user copy (SAVE) the bootanimation.zip file. The boot animation file name is “bootanimation.zip”. file before. System will boot up with boot animation in /data/local/ Click “Choose Boot Animation” will pop up a dialog for user bootanimation/bootanimation.zip. select boot animation file. System will auto scan the files under SD card and USB storage. User can replace the boot animation file by using “SAVE” button. 4. Boot on source Boot on source for user set up the default source when device power on. Function introduction: a. Option description File under /data/local/bootanimation/: Input: System will boot to selected source automatically after boot Use customized boot animation file which is complete.
  • Page 32 24BDL4151T (1) S chedule list: You can set up total 7 schedules. Each schedule (3) End Time setting are independent. Set up screenshot end time of a day. (2) E nable: Enable/disable selected schedule in schedule list. Each a. U ser must click “SAVE” before leaving dialog, schedule has its own enable/disable switch. otherwise the time will not be saved. (3) Start time: Set up selected schedule start time. b. T he start time must lower than end time. A toast (4) End time: Set up selected schedule end time. message will notify user when interval is wrong. (5) I nput: set up selected schedule auto playback source during...
  • Page 33 24BDL4151T 2)Manager Email Setup manager’s (receiver’s) E-mail address. Device will send E-mail to this account. 3)Test Click “Send Test Mail” will send out a test mail to check if settings are correct. 2. FTP Click the checkbox to enable/disable FTP server feature. After enable, user can setup account, password and port number. Gmail safety setting a. A ccount: The username for login FTP server. The length of If you are using Gmail but cannot sent out E-mail, please check name in range 4~20 charters, and only allow [a-z][A-Z][0-9]. Google Account Security Setting in website: b. P assword: The password for login FTP server. Password length https://www.google.com/settings/security/lesssecureapps.
  • Page 34 Enable/disable network proxy by click “Enable” checkbox. User can set up host IP and port number of the proxy server. Default is disabled. 6.4.5.1  Navigation Bar Device support proxy type: HTTP, HTTPS, SOCKS4, SOCKS5. Choose Set up to enable or disable navigation bar during touch gesture. one for your proxy server. 6.4.5.2 Clear Storage Used to clear data under Philips/ folder in internal and external storage (1) Clear Philips/ folder in internal storage, USB and SD card. (2) Internal Storage If proxy server request authorization by login name and password, Clear Philips/ folder in internal storage only. enable Authentication and enter Username and Password. (3) USB Storage Clear Philips/ folder in USB storage only. (4) SD Card 2.
  • Page 35 H. Smartcms.db a. Source storage (2) Export files to Philips/ folder in selected storage i. Source is internal storage (3) “Signage Display Name” will not be imported/exported. 1. Check if there is CMS file in FTP Export Signage Display Settings 2. I f no CMS file in FTP, check Philips/ folder in source storage Will export database data and 3rd party APKs into Philips/ folder in selected storage (internal, SD card or USB storage). ii. Source is external storage (SD card or USB storage) (1) Export Database (.xml files and .db files) 1. C heck CMS file in root directory of storage...

  • Page 36: Display

    SD card. If system found “update.zip” in external storage, pop-up a selectable list for user select which file user wants to use for update. After select the file in list, system will reboot and do system update. Please note that: 1. Keep system power alive during system update, do not remove power adapter. 4.6. Apps 2. Currently system only support full Android update. 3. The update file should be named “update.zip” only. Display installed APKs information. 4. The “update.zip” file should be only put in root folder of external storage. Scalar FW updates Tap “Start update” for Android system update scaler firmware. If system cannot find “scaler.bin” file in internal storage, system will pop-up a dialog notify user. Please note that: 1. The update file should be named “scaler.bin” only. 2. T he “scaler.bin” file should be only put in “Philips/scaler/” folder of internal storage.

  • Page 37: Storage

    24BDL4151T 4.7. Storage 4.11. Developer options Showing device storage usage in this activity. Android developer options for developers, default is on and USB debugging is default on. If device has plug-in external storage devices (SD card or USB disk), the size of external storage will be list in “Portable storage” below. 4.8. Security Device administrators List available device administrators for enterprises and related settings. Credential storage List installed CA certificates pre-install in system. User cannot install user CA certificates. 4.9. Languages & input User can set system language and change IME settings here. 4.12. About Languages Following list will be show in Settings -> About Setup system language. The first language list in “Language (1) Status preferences” is user selected language in first page of OOBE. The (2) Legal information, Open source licenses will be list in here.
  • Page 38 24BDL4151T 4.13.2. How to custom an Android boot of part1 folder and playing them continuously till the device boot complete. animation? 3. Zip file: 1. Overview Select everything (image folders and desc.txt) inside the Bootanimation The Android boot animation is used script to load PNG files when folder and zip them into a new uncompressed zip archive using your the device boots. It is contained within an uncompressed zip file called favorite compression utility like 7zip or WinRAR and so on. bootanimation.zip. If using 7zip, set compression level to “Store” 2. Inside the bootanimation.zip file The bootanimation.zip as follow: • The image folder (Contains PNG images named in incremental numbers) • The desc.txt file (1) The image folder These contain PNG images named in numbers, starting from something like 0000.png or 0001.png and proceeding with...
  • Page 39 1.2 Go to Admin Mode > Apps > File Manager 1.3 Using File Manager and find out your apk and then you can install. Just press “ok” on the selected apk. 2. Download apk by Chromium browser, and then go to <internal storage path>/Download/ by File Manager. 2.1 The rest of steps is the same as above. Please note, each model may have different <internal storage path>. (b) Via Adb Shell 1. Make sure that your PC can connect to Philips Android Signage Display using adb. 2. Prepare your apk in a folder(for example, C:\apkfolder) on PC. 3. Execute the following instruction by command line tool. C:\apkfolder> adb install -r apk_name.apk (c) Via Customized Intent 1. If you develop an apk which can download any android app, then your apk can issue a customized intent. 2. Giving the apk name and the path it was stored. The system will help you to install by program.

  • Page 40: Supported Media Formats

    24BDL4151T Supported Media Formats USB Multimedia Codec Formats Video Decode Type Video Codec Container Decode Encode Channel Remark MPEG program stream (.DAT, .VOB, .MPG, .MPEG) MPEG transport stream (.ts) Max Resolution: 1080P@60fps MPEG1/2 MPEG1/2 MP4 (.mp4) Max Bit Rats : 40Mbps AVI (.avi) MKV (.mkv) MP4 (.mp4) Max Resolution: 1080P@60fps...
  • Page 41 24BDL4151T Image Decode Type Image Codec Photo Decode Encode Channel Remark Max Resolution: 7000 x 7000 JPEG JFIF file format 1.02 File Format: JPG, JPEG The limitation of max resolution depends on DRAM Max Resolution: 15360 x 8640 File Format: BMP The limitation of max resolution depends on DRAM Max Resolution: 15360 x 8640 File Format: PNG The limitation of max resolution depends on DRAM NOTES: • Sound or video may not work if the contents have a standard bit rate/frame rate above the compatible Frame/sec listed in the table above.

  • Page 42: Input Mode

    24BDL4151T Input Mode Timing support: Item Mode Resolution H.Freq. (KHz) V.Freq. (Hz) IBM VGA 12H 640x480 31.469 59.94 VESA 640x480 37.861 72.809 VESA 800x600 35.156 56.25 VESA 800x600 37.879 60.317 VESA 800x600 48.077 72.188 VESA 1024x768 48.363 60.004 VESA 1024x768 56.476...
  • Page 43 24BDL4151T • The PC text quality is optimum in HD 1080 mode (1920 x 1080, 60Hz). • Your PC display screen might appear different depending on the manufacturer (and your particular version of Windows). • Check your PC instruction book for information about connecting your PC to a display. • If a vertical and horizontal frequency-select mode exists, select 60Hz (vertical) and 31.5KHz (horizontal). In some cases, abnormal signals (such as stripes) might appear on the screen when the PC power is turned off (or if the PC is disconnected). If so, press the [INPUT] button to enter the video mode. Also, make sure that the PC is connected. • When horizontal synchronous signals seem irregular in RGB mode, check PC power saving mode or cable connections. • The display settings table complies to the IBM/VESA standards, and based on the analog input. • The DVI support mode is regarded as same to the PC support mode. • The best timing for the vertical frequency to each mode is 60Hz.

  • Page 44: Pixel Defect Policy

    We strive to deliver the highest quality products and use some of the industry’s most advanced manufacturing processes whilst practicing stringent quality control. However, pixel or sub-pixel defects on the PDP / TFT panels used in Plasma- & LCD- displays are sometimes unavoidable. No manufacturer can guarantee that all panels will be free from pixel defects, but Philips guarantees that any Plasma- & LCD- displays with an unacceptable number of defects will be repaired during the warranty period in line with your local guarantee conditions. This notice explains the different types of pixel defects and defines the acceptable defect level for the LCD screen. In order to qualify for repair under warranty, the number of pixel defects must exceed a certain level as shown in the reference table. If the LCD screen is within specification a warranty exchange / claim back will be refused. Additionally, because some types or combinations of pixel defects are more noticeable than others, Philips sets even higher quality standards for those. 7.1. Pixels and Sub-Pixels A pixel, or picture element, is composed of three sub-pixels in the primary colors of red, green and subpixel blue.

  • Page 45: Dark Dot Defects

    Dark Dot Defects Black dot defects appear as pixels or sub-pixels that are always dark or “off ”. These are the examples of black dot defects: One dark dot Two adjacent dark dots = 1 pair of dark dots Two dark dots, specifications defines the minimum distance between dark dots 7.5. Proximity of Pixel Defects Because pixel and sub-pixels defects of the same type that are nearby one another may be more noticeable, Philips also specifies tolerances for the proximity of pixel defects. In the table below you can find specifications about: • Allowed amount of adjacent dark dots = (adjacent dark dots =1 pair of dark dots) • Minimum distance between dark dots • Total no. of all defective dots 7.6. Pixel Defect Tolerances In order to qualify for repair due to pixel defects during the warranty period, a PDP / TFT panel in a Philips Plasma / LCD- display must have pixel or sub- pixel defects exceeding the tolerances listed in the following table.
  • Page 46 24BDL4151T Cleaning and Troubleshooting 8.1. Cleaning Caution When Using the Display • Be sure to disconnect all cables before moving the monitor. Moving the monitor with its cables attached may damage the cables and thus cause fire or electric shock. • Disconnect the power plug from the wall outlet as a safety precaution before carrying out any type of cleaning or maintenance procedure. Front Panel Cleaning Instructions • The front of the display has been specially treated. Wipe the surface gently using only a cleaning cloth or a soft, lint-free cloth. • If the surface becomes dirty, soak a soft, lint-free cloth in a mild detergent solution. Wring the cloth to remove excess liquid. Wipe the surface of the display to remove dirt. Then use a dry cloth of the same type to dry.
  • Page 47 24BDL4151T Technical Date 9.1. Specifications Display: Item Specifications Screen Size (Active Area) 521.28 (H) x 293.22 (V) mm Aspect Ratio 16:9 Number of pixels 1920 (H) x 1080 (V) Displayable colors 16. 7M colors (6-bit +Hi-FRC) Brightness (typical) 250 cd/m Contrast ratio (typical) 1000:1 Viewing angle Up 80 / Down 80 / Left 85 / Right 85 ( typ ) @ CR ≥10 In/Out Terminals: Item Specifications VIDEO HDMI x1 (with HDCP) Input Signal RJ-45 (10/100/1000 Base-T) (With PoE) VIDEO HDMI x1 (Android system output) Output Signal AUDIO Earphone out Internal Speaker 2W + 2W Touch panel...
  • Page 48 24BDL4151T Environmental Condition: Item Specifications Temperature Operational 0 ~ 40°C Storage -20 ~ 60°C Humidity Operational 20 ~ 80% RH (No condensation) Storage 10 ~ 90% RH (No condensation) Altitude Operational 0 ~ 3,000 m Storage / Shipment 0 ~ 9,000 m 9.2. Disclaimer Image Retention Disclaimer When an image is monitored on-screen for prolonged periods of time, you may see a faint image after it is replaced. This is expected normal behavior for monitors. Image retention may be reduced by: * Avoiding still images shown on-screen for more than a few minutes * Using non-contrasting colors and brightness * Using background colors other than gray...
  • Page 49 2018 © Koninklijke Philips N.V. All rights reserved. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license from Koninklijke Philips N.V. Specifications are subject to change without notice.
