Installation Manual
GUIDA ALL'INSTALLAZIONE
INSTALLATION GUIDE
INSTALLATIONSANLEITUNG
NOTICE D'INSTALLATION
GUÍA PARA LA INSTALACIÓN

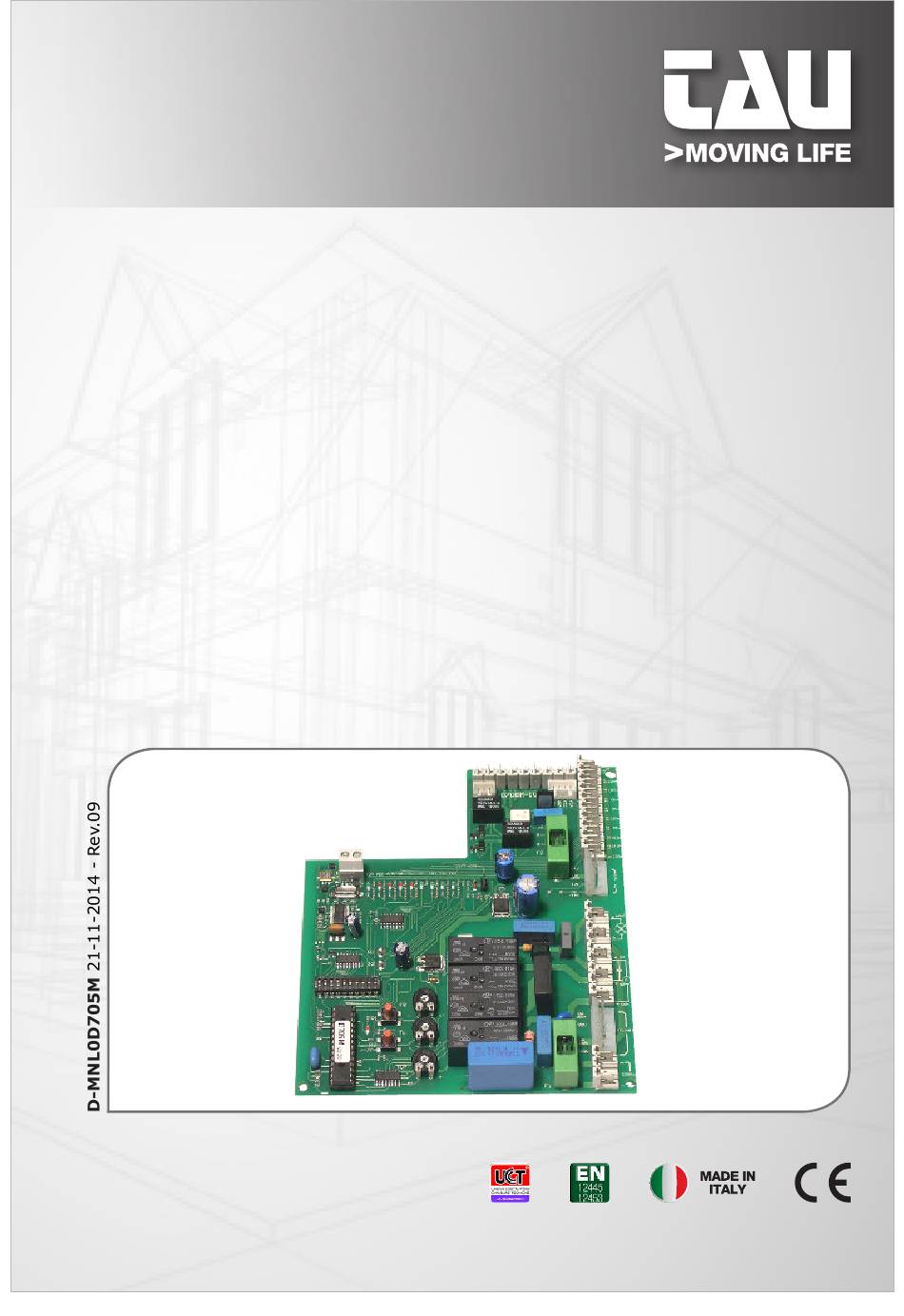

D705M
Quadro di comando per motoriuttore MASTER20Q
Control panel for MASTER20Q gearmotor
Steuerplatine für den getriebemotor MASTER20Q
Logique de commande pour motoréducteur MASTER20Q
Panel de mandos para motorreductor MASTER20Q
IT - Istruzioni originali
Via Enrico Fermi, 43 - 36066 Sandrigo (VI) Italia
Tel +39 0444 750190 - Fax +39 0444 750376
info@tauitalia.com - www.tauitalia.com
D705M
1
Advertisement
Related Manuals for tau D705M
Summary of Contents for tau D705M
- Page 1 GUIDA ALL’INSTALLAZIONE INSTALLATION GUIDE INSTALLATIONSANLEITUNG NOTICE D’INSTALLATION GUÍA PARA LA INSTALACIÓN D705M Quadro di comando per motoriuttore MASTER20Q Control panel for MASTER20Q gearmotor Steuerplatine für den getriebemotor MASTER20Q Logique de commande pour motoréducteur MASTER20Q Panel de mandos para motorreductor MASTER20Q...
- Page 2 Gate open warning light 2nd radio max. 3W channel Antenna D705M-1V0 STOP P.P. (24V) (12V) (80V) (230V) 230V D705M...
- Page 3 Photocell RX - 24 Vac Fixed safety edge Common Photocell Close Open Common Stop Common Flashing (24V) light (12V) 230Vac max. 20W 0 Vac 230 Vac Close Open Common (80V) TF.PRIM (230V) 230V Phase Neutral D705M...
- Page 4 MANUFACTURER’S DECLARATION OF INCORPORATION (in accordance with European Directive 2006/42/EC App. II.B) Manufacturer: TAU S.r.l. Address: Via E. Fermi, 43 36066 Sandrigo (Vi) ITALY Declares under its sole responsibility, that the product: Electronic control unit designed for automatic movement of:...
- Page 5 This manual has been especially written for use by qualiied itters. No information given in this manual can be considered as being of interest to end users. This manual is attached to the D705M control unit mounted on the MASTER20Q gearmotor, therefore it may not be used for different products! Important information: Disconnect the panel from the power supply before opening it.
-
Page 6: Technical Characteristics
At the next command, the opposite operation to 9 - 10 STOP the previous one is performed (common=9); PEDESTRIAN button input (normally open contact); partially opens the automatic system (by about 1 m) to allow pedestrians 9 - 11 PEDESTRIAN to pass by (common=9); D705M... - Page 7 SAFETY MICROSWITCH input (normally closed contact), the FCC - FCA motor stops when the guard is removed. WARNING: the con- trol unit is still live! quick coupling for ENCODER connection. Blue= 0 Vdc (GND), brown= 5 Vdc (+5V), white= ENCODER ENCODER SIGNAL (ENC); D705M...
- Page 8 180 sec. braking enabled; BRAKING braking disabled; Note: the braking system activates whenever the motor must stop (CLS - OLS - STOP – change of direction) and reduces the inertia accumulated by the gear motor during movement. D705M...
-
Page 9: Advanced Functions
REMOTE PROGRAMMING BY MEANS OF T-4RP and K-SLIM-RP (V 4.X) With the new version of software V 4.X it is possible to carry out the remote self-learning of the new version of transmitters T-4RP and K-SLIM-RP (V 4.X), that is without pressing the receiver’s program- ming buttons. D705M... -
Page 10: Diagnostics Led
In the event of 5 consecutive activations (during the same closing manoeuvre) of the encoder (ob- stacle detection), the control unit opens completely on the next manoeuvre. To reset, the automation must complete a manoeuvre (opening and then closing); otherwise the end stop search process will be repeated after each activation of the encoder. D705M... - Page 11 GUARANTEE: GENERAL CONDITIONS TAU guarantees this product for a period of 24 months from the date of purchase (as proved by the sales document, receipt or invoice). This guarantee covers the repair or replacement at TAU’s expense (ex-works TAU: packing and transport at the customer’s expense) of parts that TAU recognises as being faulty as regards work-...
