Removing and Installing the WS-F6K-VPWR Inline-Power
Daughter Card
The WS-F6K-VPWR inline-power daughter card is supported only on the following Ethernet modules:
•
•
•
The WS-F6K-VPWR inline-power daughter card supports Cisco prestandard inline power; it does not
support IEEE 802.3af.
Removing the WS-F6K-VPWR Inline-Power Daughter Card
To remove the WS-F6K-VPWR inline-power daughter card from the module, perform these steps:

Step 1

Remove the six screws as shown in
Figure 3
Step 2 Grasp the inline-power daughter card at the edges and carefully lift up to disconnect the inline-power
daughter card from the Ethernet module connectors.
78-10826-08
WS-X6148-RJ-21
WS-X6148-RJ-45
WS-X6348-RJ-45

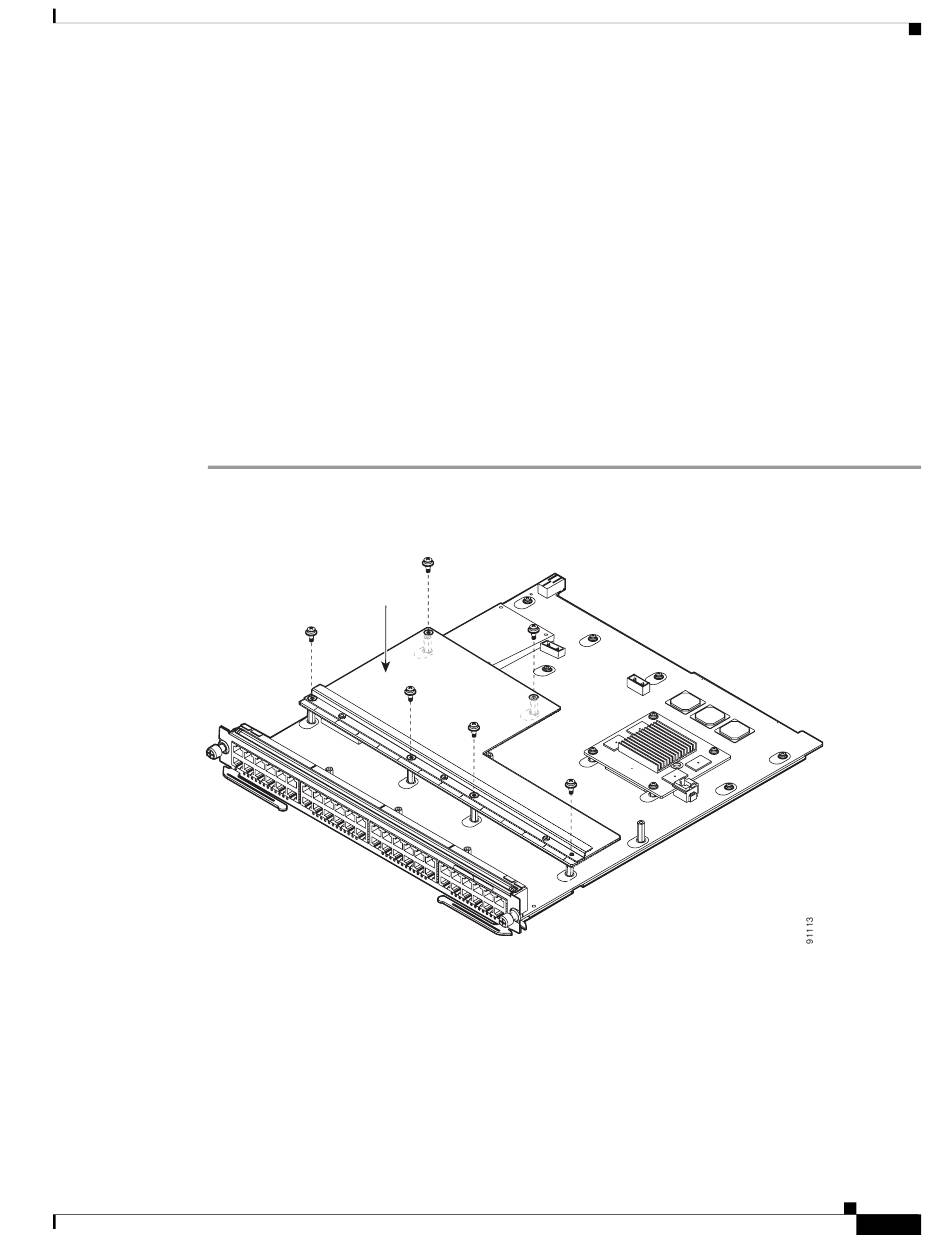

Removing the Mounting Screws (WS-F6K-VPWR)
Inline-power
module
Catalyst 6500 Series Power over Ethernet Daughter Cards Field-Upgrade Installation Note

Removing and Installing the WS-F6K-VPWR Inline-Power Daughter Card

Figure 3.
