Canon Additional Finisher Tray-A1 Installation Procedure

Finisher, sorter, deliverytray
Hide thumbs Also See for Additional Finisher Tray-A1:

Advertisement

Quick Links

Download this manual See also: Service Manual
Installation Procedure
Finisher, Sorter, DeliveryTray
Additional Finisher Tray-A1
Dec 10 2003

Advertisement

loading

Related Manuals for Canon Additional Finisher Tray-A1

Summary of Contents for Canon Additional Finisher Tray-A1

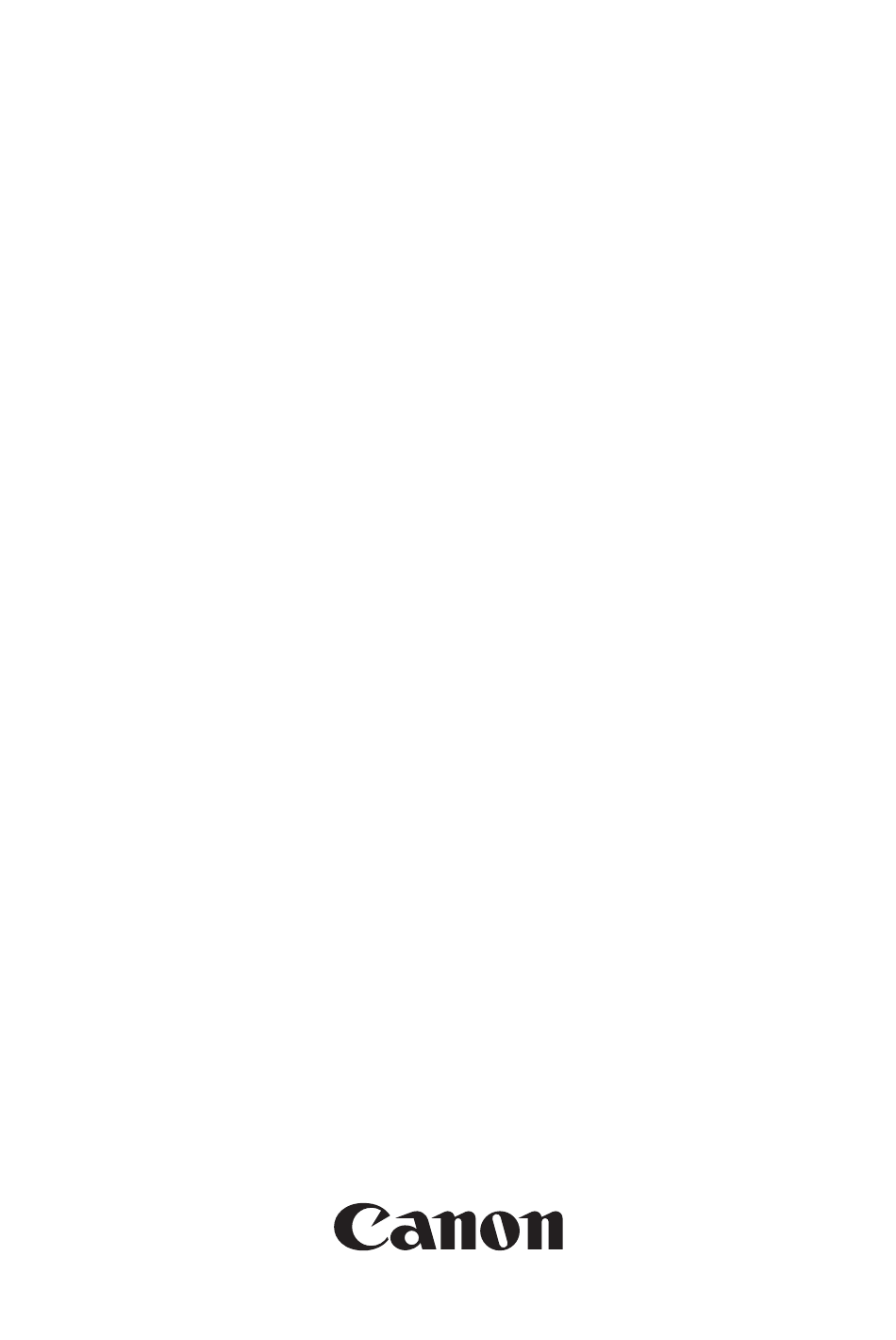

  • Page 1 Installation Procedure Finisher, Sorter, DeliveryTray Additional Finisher Tray-A1 Dec 10 2003...
  • Page 3 When changes occur in applicable products or in the contents of this manual, Canon will release technical information as the need arises. In the event of major changes in the contents of this manual over a long or short period, Canon will issue a new edition of this manual.
  • Page 4 Introduction Symbols Used This documentation uses the following symbols to indicate special information: Symbol Description Indicates an item of a non-specific nature, possibly classified as Note, Caution, or Warning. Indicates an item requiring care to avoid electric shocks. Indicates an item requiring care to avoid combustion (fire). Indicates an item prohibiting disassembly to avoid electric shocks or problems.
  • Page 5 Introduction The following rules apply throughout this Service Manual: 1. Each chapter contains sections explaining the purpose of specific functions and the relationship between electrical and mechanical systems with reference to the timing of operation. 　In the diagrams, represents the path of mechanical drive; where a signal name accompanies the symbol , the arrow indicates the direction of the electric signal.

  • Page 7: Table Of Contents

    Contents Contents 第 1 章　Installation Procedure 1.1 Making Pre-Checks ............................... 2 1.1.1Checking the Contents............................. 2 1.1.2Installing the Accessories ..........................3 1.2 Installation Procedure............................5 1.2.1Installation ............................... 5 1.3 Attaching the Labels etc............................12 1.3.1Attaching the Label ............................12...
  • Page 8 Contents...
  • Page 9 Chapter 1　Installation Procedure...

  • Page 10: Making Pre-Checks

    Chapter 1 　 1.1 Making Pre-Checks 1.1.1 Checking the Contents 0003-2135 [12] [12] [10] [12] [11] [11] [12] F-1-1 T-1-1 [1]Additional finisher tray 1 pc. [7]Sensor unit 1 pc. [2]Slide guide 1 pc. [8]Sensor cable 1 pc. [3]Front tray stay 1 pc.

  • Page 11: 2Installing The Accessories

    Chapter 1 1.1.2 Installing the Accessories 0003-2136 If you are installing other accessories at the same time as the additional finisher tray, be sure to install the host machine and then the accessories in the following order: 1.Side paper deck (See the Side Paper Deck Installation Procedure.) 2.Finisher [1], [2] (See “Preparing the Host Machine for Installation”...
  • Page 12 Chapter 1 　 3.Disconnect the host machine’s power plug (from the power outlet).

  • Page 13: Installation Procedure

    Chapter 1 1.2 Installation Procedure 1.2.1 Installation 0003-2137 1) In the case of the Finisher-Q1/R1, open the front door [1], remove the 3 screws [2], and detach the front cover [3]. F-1-5 4) In the case of the Saddle Finisher-Q2/R2, detach the cable cover [1], remove the 6 screws [2], and detach the rear cover [3].
  • Page 14 Chapter 1 　 [2]. F-1-9 8) Remove the 2 screws [1], and detach the grounding wire [2] and the cable fixing plate [3]; then, disconnect the 2 connectors [4]. F-1-7 6) Remove the screw [1], and detach the slide guide stopper [2];...
  • Page 15 Chapter 1 11) Cut off the face cover [2] of the tray cover using nippers. To eliminate the possibility of injury upon contact with the tray, be sure that the cut edge on the tray cover will be smooth without burrs when cutting off the face cover.
  • Page 16 Chapter 1 　 (binding; M4x6). F-1-17 18) Mount the rear tray stay cover [1] using a screw F-1-15 [2] (tapping; M4x12). 16) Route the sensor cable [3] through the edge saddle [1] and the cable clamps [2]. Join the connector [4] to the sensor [5] and the another connector [6] to the connector [7] of the No.
  • Page 17 Chapter 1 F-1-19 20) Attach the No. 1 tray from above, and lower it by releasing the latch [1] at the back of the No. 1 tray. At this time, be sure to lower the No. 1 tray while pushing up the shutter [2] and the stack delivery gate [3] at the F-1-20 delivery outlet is covered.
  • Page 18 Chapter 1 　 F-1-22 F-1-21 24) Slide-in the slide guide from top, which is contained in the carton box, to the finisher; then fix the slide guide stopper removed at the step 6 in place 21) Mount the tray stopper removed at the step 7 using using a screw.
  • Page 19 Chapter 1 screw. The additional finisher tray detecting plate must be fixed in place by taking measurements where the vertical face of the finisher is smooth without a protrusion (indicated in the figure). F-1-23 25) Mount the upper left cover, rear cover, and front cover (in the case of the Finisher-Q1/R1) of the finisher.

  • Page 20: Attaching The Labels Etc

    Chapter 1 　 1.3 Attaching the Labels etc. 1.3.1 Attaching the Label 0003-2138 1) Attach the Settings label [1] where indicated on the additional finisher tray. F-1-25...
  • Page 21 Dec 10 2003...
