MAINTENANCE

CAUTION:
Always be sure that the tool is switched off and
•
unplugged before attempting to perform inspection
or maintenance.
Lubrication
CAUTION:
This servicing should be performed by Makita
•
Authorized or Factory Service Centers only.
This tool requires no hourly or daily lubrication because
it has a grease-packed lubrication system. However, it is
recommended to periodically replace the grease for
longer tool life.
First, switch off and unplug the tool.
For model HM1307C,HM1307CB only

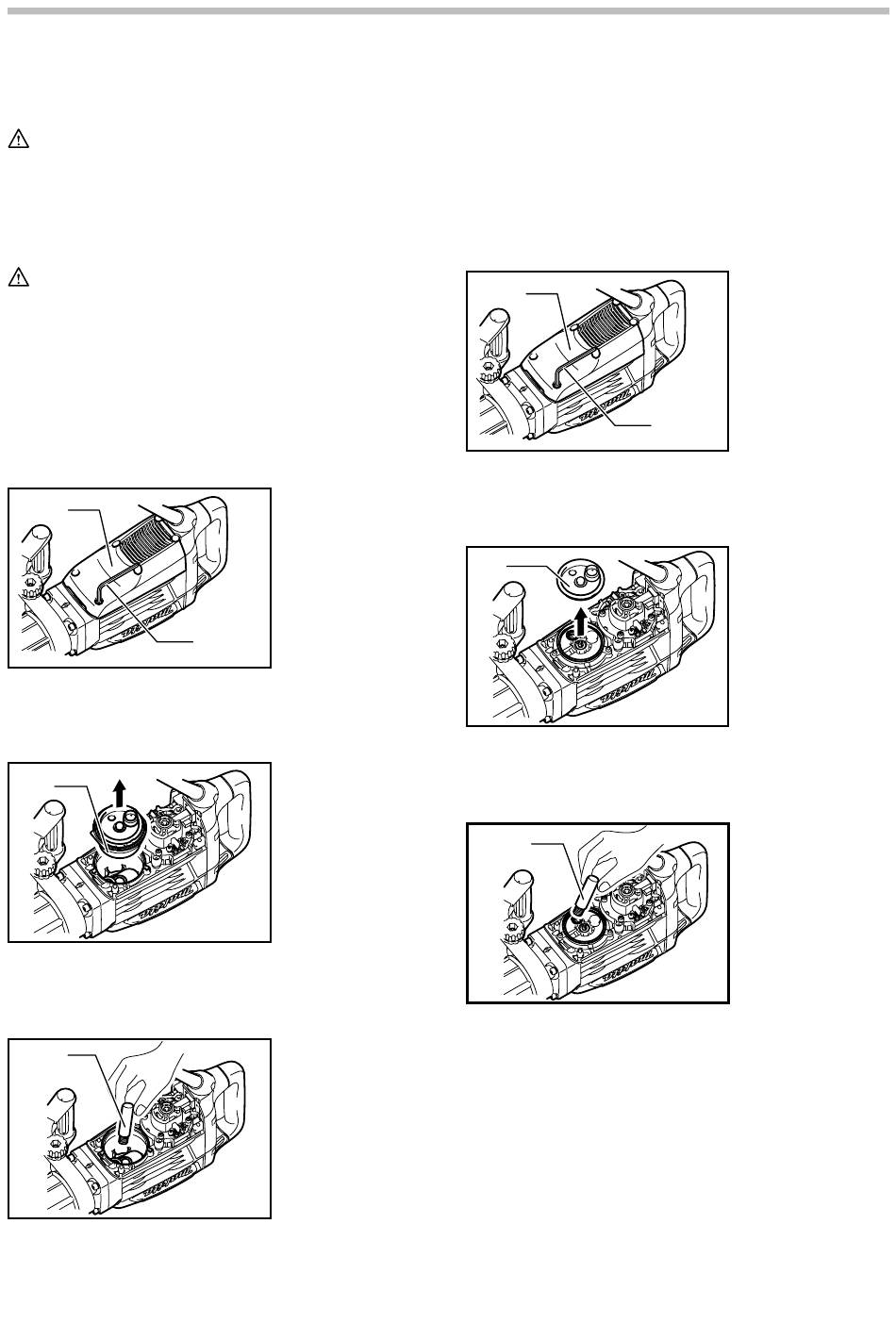

1
010289
Remove the six screws using a hex wrench and remove
the rear cover.
1
010290
Pull out the crank cap in the direction of arrow and
remove it.
1
010291
1. Rear cover
2. Hex wrench
2
1. Crank cap
1. Hammer grease
Then replenish with fresh grease (60g). Use only Makita
genuine hammer grease (optional accessory). Filling
with more than the specified amount of grease (approx.
60 g; 2 oz) can cause faulty hammering action or tool
failure. Fill only with the specified amount of grease.
To reassemble the tool, follow the disassembling
procedure in reverse.
For model HM1317C,HM1317CB only
1
010289
Remove the six screws using a hex wrench and remove
the rear cover.
1
010295
Pull out the crank cap cover in the direction of arrow and
remove it.
1
010296
Then replenish with fresh grease (60g). Use only Makita
genuine hammer grease (optional accessory). Filling
with more than the specified amount of grease (approx.
60 g; 2 oz) can cause faulty hammering action or tool
failure. Fill only with the specified amount of grease.
To reassemble the tool, follow the disassembling
procedure in reverse.
8
1. Rear cover
2. Hex wrench
2
1. Crank cap cover
1. Hammer grease
