- Page 1 ReCare User manual Recumbent stepper Please read this entire manual carefully 7.0 S before operating your new recumbent stepper and save it for future use. PTE7000MS Register your product and get support at www.philips.com/welcome...
- Page 2 Thank you for your recent purchase of the Philips physical rehabilitation recumbent stepper, 7.0 S. Philips physical therapy and exercise solutions provide simple, reliable products that o er the most relevant feedback to caregivers and users to achieve best-in-class outcomes and empower individuals to build con dence in rebuilding and maintaining healthy lifestyles and keep in touch with their communities.
-
Page 3: Table Of Contents
Contents Important safety instructions Important electrical information Important operation instructions Application speci cation Operating principle Signi cant physical characteristics Signi cant performance characteristic Intended user pro le Operating the 7.0 S... - Page 4 Operating the 7.0 S Features Operation of your new stepper Data transfer software instructions Using a heart rate transmitter Assembly instructions for 7.0 S Maintenance Speci cations Description of packaging symbols...
-
Page 5: Important Safety Instructions
Important safety instructions Attention Read all instructions in this manual before using this device. Danger To reduce the risk of electric shock disconnect your from the electrical outlet prior to cleaning and/or service work. Warning • Do not modify this equipment without authorization of the manufacturer. - Page 6 • Keep the electrical cord away from heated surfaces and out of all travel lanes and do not operate the bike if the cord or plug is damaged. • Never drop or insert any object into any openings. • Do not use outdoors. •...
- Page 7 • Do not use any after market parts on this device, other than those recommended by Philips. • Do not attempt any servicing or adjustments other than those described in this manual. All else must be left to trained service...
-
Page 8: Important Electrical Information
• The 7.0 S is not protected against the ingress of water or particulate matter. • The 7.0 S is not suitable for use in an oxygen rich environment. • If not stated otherwise Philips devices are designed for operation in normal climatic surroundings: - Temperature: + 10° ... + 36° C - Relative humidity: 30 ... -
Page 9: Important Operation Instructions
Important operation instructions • Never use the device during an electrical storm. Surges may occur in your facility power supply that could damage the unit’s components. • All users should have medical clearance before starting any rigorous exercise program. This is especially important for persons with a history of heart disease or other high risk factors. -
Page 10: Application Speci Cation
Application speci cation Medical purpose • Patient warm up before physical therapy session. • Have the patient pedal to improve range of motion after knee/hip/ankle surgery. • Allow patients to perform cardiovascular exercise. Intended patient population • There is no particular restriction on age, gender, height and nationality. •... - Page 11 Intended conditions of use • Environment including hygienic requirements - General: intended for indoors use. This product is not designed for use outdoors, near a pool or spa, or in any other high humidity environment. -Conditions of visibility: Ambient luminance: standard ambient room lighting is su cient. Viewing distance: 1 m Viewing angle: 120°...
-
Page 12: Operating Principle
Operating principle The patient pushes the pedals with their feet and the arms with their hands. The operator can increase the workload using the Up and Down Key on the console. When the workload change is requested a gear motor moves permanent magnets closer or further from the aluminum ywheel creating more or less resistance. -
Page 13: Signi Cant Performance Characteristic
Signi cant performance characteristic Please refer to ”Unique uses for the 7.0 S” in Operating the 7.0 S. -
Page 14: Intended User Pro Le
Intended user pro le Intended operator • There is no particular restriction on age, gender, height, weight, ability and culture. • Education: University or above • Knowledge: The operator should read the user’s manual before use. • Discipline: The operator should receive training from the manufacturer before use. -
Page 15: Operating The 7.0 S
Operating the 7.0 S The recumbent stepper is intended to be used in aiding in the physical rehabilitation process for patients with orthopedic and neurological problems. Also used in sports medicine, wellness and general conditioning programs. Typical applications for this type of product are •... - Page 16 Other features of the 7.0 S • Work range up to 750 watts. • Indexed seat positioning accommodates users from 147 cm to 200 cm (4’ 10” to 6’ 7”) • Heart Rate monitoring using the hand grips or optional heart rate chest-strap.
-
Page 17: Features

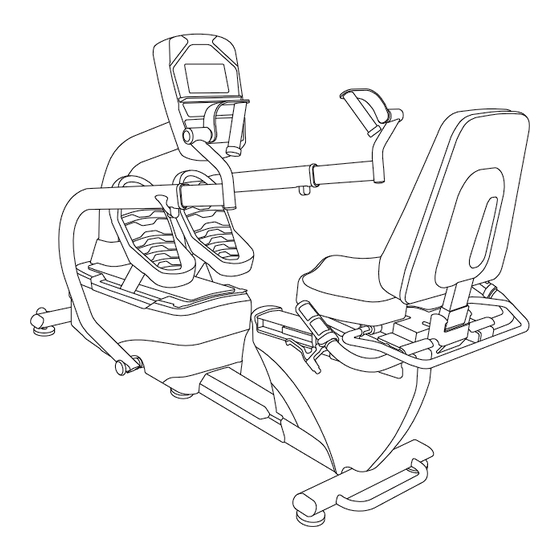

Features 7.0 S Recumbent stepper Parts and adjustments 1. Electronic console 2. Upper body rotating handles 3. Quick release lever 4. Cushioned footplates with straps 5. Lifting handle for transport 6. Leveling glides 7. Seat angle adjustment 8. Seat swivel adjustment 9. - Page 18 The 7.0 S is an easy product to set up and use, from the adjustments to the intuitive interface. This section explains how to set up, adjust and operate your 7.0 S. Leveling the 7.0 S • Once the 7.0 S is assembled, and placed on a at level oor, it may be necessary to adjust the leveling glides on the bottom of the unit to ensure proper stability of the 7.0 S.
- Page 19 Adjusting the seat fore / aft position • Squeeze the brake handle located on the left side handle bar. Move the seat to the desired position and lower the handle. Move the seat slightly until the seat lock clicks in place. There is a numbered scale located on the aluminum seat slide tube for repeatable settings.
- Page 20 Pedal strap adjustment • The ankle and foot Velcro straps are easily opened and closed for quick patient set up. Remove the ankle strap from the chrome ring. Loosen the foot strap enough so the patient’s foot can slide under. Once the foot is in the correct position reattach the ankle strap and adjust both straps for a snug t.
-
Page 21: Operation Of Your New Stepper
Operation of your new stepper 7.0 S electronic console Graphic display Data displays Message window HR percent pro le Set Up key Program keys Function keys Power on When initially powered on the console will perform an internal self-test. During this time all the lights will turn on for a short time. The message window will then show a software version (i.e. - Page 22 The odometer will remain displayed for only a few seconds then the console will go to the start up display, also known as idle Mode. The message window will be scrolling the start up message. You may now begin to use the 7.0 S. The console will automatically power down after 20 minutes of inactivity.
- Page 23 Quick start This is the quickest way to start an exercise session. After the console powers up you just press the start key to begin; this will initiate the quick start mode. In quick start, the time will count up from zero, all workout data will start to accrue and the workload may be adjusted manually by pressing the up or down key.
- Page 24 To the right of the Dot matrix display is a Heart Rate Bar Graph. Simply grasping the hand pulse sensors, or wearing a heart rate chest belt transmitter, will start the heart rate measurement function (this may take a few seconds). The Pulse window will display the heart rate in beats per minute.
- Page 25 Selecting and customizing programs When you enter a program you have the option of modifying the settings. If you want to begin without entering new settings just press the start key. This will bypass the programming of data and take you directly to the start of the program.
- Page 26 Preset programs The semi-recumbent seated stepper has four preset exercise programs that have been designed for a variety of workout goals. The initial built-in level of di culty for each program is set to a relatively easy level. You may adjust the level of di culty (max level) for each program before beginning.
- Page 27 Hill The Hill program simulates going up and down a hill. The resistance in the pedals will steadily increase and then decrease during the program. Plateau The Plateau program provides a steady state exercise with warm up and cool down periods. Cardio The Cardio program is designed to increase Cardio vascular function.
- Page 28 Programming preset programs • Select the desired program button then press the enter key. • The message window will prompt you to enter the age, weight, time and max level for the program. You may enter the age using the up and down keys or the numeric key pad then press the enter key to accept and proceed to the next screen.
- Page 29 Designing and saving a new program • Press either user key. The message window will show a welcome message; if you had previously saved a program the message will contain the name you gave it. Then press the enter key to begin programming.
- Page 30 • The message window will then tell you to press enter to save the program. After saving the program the message window says “new program saved” then will give you the option to start or modify the program. Pressing stop will exit to the start up screen. •...
- Page 31 Symmetry The symmetry program may aid in achieving a more balanced exercise stroke for patients with bi-lateral de ciencies, such as stroke patients and post-op knee patients. The program will measure the left and right power through the pedal range. The dot matrix display will show a graph indicating the leg power symmetry so the user has a visual feedback to aid in improving the involved limb’s strength.
- Page 32 Biofeedback graph Below is a sample picture showing the symmetry graph. In the message window there is an average watt measurement and it is indicating that the left leg is producing more power than the right leg, 41 vs. 34 watts. The graph re ects the higher wattage of the left leg.
-
Page 33: Data Transfer Software Instructions
Data transfer software instructions • Works with newer 7.0 T, 7.0 S, 7.5 S, 7.0 R and 7.0 U consoles with USB ports on the back • The software works with Windows 10, 7 and XP series, with .Net Framework 2.0. •... - Page 34 Step 2. Click "Connect" or "Change" to select the connecting port (left gure). After clicking the "Change", or connecting to the wrong port, the COM port selection window pops up (right gure). Select the correct COM port and click "Connect". Selecting COM port Date Transfer V1.0 Date Transfer V1.0...
- Page 35 Step 3. After the status shows “Connected” and the product model name to the right, choose the le path and create the le name for saving the data. Click the “Record” button to start collecting data. Click “Stop” or quit the program from the console of the product to stop the data collection process.
-
Page 36: Using A Heart Rate Transmitter
Using a heart rate transmitter Note The chest strap transmitter is not a standard part, but is a separate purchase. Most transmitters that operate at 5kHz frequen- cy will also work. How to wear your wireless chest strap transmitter? • Attach the transmitter to the elastic strap using the locking parts. •... - Page 37 • Sweat is the best conductor to measure very minute heart beat electrical signals. However, plain water can also be used to pre-wet the electrodes (2 black square areas on the reverse side of the belt and either side of transmitter). It’s also recommended that you wear the transmitter strap a few minutes before your work out.
- Page 38 Erratic operation Caution! Do not use the 7.0 S for heart rate control unless a steady, solid actual heart rate value is being displayed. High, wild, random numbers being displayed indicate a problem. Areas to look at for interference, which may cause erratic heart rate •...
- Page 39 • You are now asked to enter your Weight. You may adjust the Weight number using the Up and Down keys or the numeric key pad, then press enter to continue. • Next is Time. You may adjust the Time and press enter to continue. •...
-
Page 40: Assembly Instructions For 7.0 S
Assembly instructions for 7.0 S Hardware Step 1. #129- M6 x 40L #132- 3/8" x 2" #135- 5/16" x 1-1/4" (2PCS) (4PCS) (1PC) #185-5/16" x 19 x 1.5T #170-3/8" x 30 x 3T #173-8.5 x 26 x 2T (4PCS) (8PCS) (2PCS) #181-M5 x 15L #140-3/8"... - Page 41 Step 2. #152-5/16" x 1-3/4" #153-M8 x 16L #154-3/8" x 2-1/2" (2PCS) (2PCS) (2PCS) #170-3/8" x 30 x 3T #184-8 x 23 x 1.5T #190-3/8" x 7T (2PCS) (2PCS) (2PCS) #193-5/16" x 6T #194-3/8" x 2T (2PCS) (2PCS) Step 3. #122-M6 x 25L #167-10 x 25 x 2T #190-3/8"...
- Page 42 Step 4. #143-M5 x 12L #216-3/8" x 5/8" #217-3/8" x 19 x 1.5T (4PCS) (8PCS) (4PCS) #218-3/8" x 23 x 3.0T #243-M10 x 2T (4PCS) (8PCS)
- Page 43 Assembly Read each step’s instructions and study the drawing carefully to become familiar with all the parts and procedures before beginning each step. Step 1. Pedals, seat latch handle and handle bar assembly • This section is easier if you slide the seat carriage (20) all the way back before starting.
- Page 44 1 08 1 29 1 85 1 29 1 87 1 85 1 87 1 40 1 70 1 32 1 70 1 90 1 81 1 70 1 93 1 90 1 90 1 73 1 70 1 70 1 90 1 40 1 35...
- Page 45 Step 2. Console mast & transport wheels assembly • Install the transport wheels (77) using the 5/16” x 1-3/4” bolts (152) and 5/16” nylon nuts (193). • Slide the console mast cover (74) onto the console mast (2); be sure the cover orientation on the mast is correct otherwise it won’t clip in place later.
- Page 46 Step 3. Seat back and bottom cushion assembly • Slide the seat back assembly (94) into the seat back angle adjustment bracket and secure with the two 3/8” x 1-3/4” bolts (197), 3/8” washers (167) and 3/8” nuts (190). • Assemble the seat cushion (93) onto the seat frame with four m6 bolts (122).
- Page 47 Step 4. Console and arm assembly • Connect the computer cable into the back of the console and install the console (29) onto the console mast and secure with the four 5mm x 12mm screws (143). • Install the left and right arms (3&4) and secure with the 3/8” x 5/8” bolts (216) and use the 3/8”...
- Page 48 Exploded view drawing...
- Page 49 7.0 S parts list Item Description Main frame Console mast Swing arm (r) Swing arm (l) Pedal plate (r) Pedal plate (l) Swing arm(r) Swing arm(l) Drive pulley Idler bracket Brake motor bracket Lower linkage a Lower linkage b Rubber cushion bracket Seat carriage Seat back bracket Handle bar...
- Page 50 Item Description Rubber cushion Passive wheel Drive wheel Cable guide wheel Belt (8pj), 584mm Belt (8pj), 1032mm Adjustable idler wheel axle Drive pulley Lower linkage Sleeve, swing arm Flywheel mass Gear motor Braking magnet Roller Cable spring Gear motor spring Steel cable roller Plastic bushing Rubber pad...
- Page 51 Item Description Rear shroud (r) Rear shroud (l) End cap Shroud (r) Shroud (l) Top cover Console mast cover Bottom step cover End cap, swing arm Transportation wheel Shroud bracket Sensor bracket Shroud xing plate Pedal isolation rubber Seat stop axle Seat position latch Backing plate Aluminum track...
- Page 52 Item Description Square end cap Spring, 13.5 x 60l Powder metal sleeve Scale arrowhead Safety cover Locking gas cylinder Rotating plate, seat Release lever (left) steel cable Powder metal sleeve Square end cap Pedal foam cushion Socket head cap bolt, m5 × p0.8 × 25 Socket head cap bolt, m6 ×...
- Page 53 Item Description Phillips head self-tapping screw, ø3.5 × 12 Phillips head screw, m5 × p0.8 × 12l Phillips head screw, m5 × p0.8 × 20l Phillips head screw, m5 × 6l Phillips head screw, m6 × 10l Phillips head screw, m4 × 10l Hex head bolt, 5/16"...
- Page 54 Item Description Flat washer, 1/4" × 16 × 1.0t Flat washer, 5/16" × 16mm × 1.5t Flat washer, 6.6mm × 12mm Phillips head screw, m5 × p0.8 × 15l Self tapping screw, 3mm × 20mm Curved washer, 8mm × 23mm Curved washer, 5/16"...
- Page 55 Item Description Phillips head screw driver Swing arm drive weldment Button head socket bolt, 3/8" × unc16 × 5/8" Flat washer, 3/8" Curved washer, 3/8" Wire grommet Dummy plug Optical sensor board, encoder Optical sensor board, rpm Computer console cable Encoder cable Dc power cable Optical sensor cable...
- Page 56 Item Description Wave washer, ø17 Flat washer, 5/16" × ø20 × 3.0t Bolt, m8 × 10 × 30l Nylon washer, ø10 × ø24 × 3.0t Sleeve Powder metal bearing Flat washer, 3/8" × ø20 × 2.0t Snap connector, male(4.7x14x16 Snap connector, female(5.5x20x11.9)
-
Page 57: Maintenance
Maintenance • Wipe down all areas in the sweat path with a damp cloth after each use to prevent rust. • Check the pedal to make sure they are tight (monthly). • If a squeak, thump, clicking or rough feeling develops the main cause is most likely one of two reasons: - The hardware was not su ciently tightened during assembly. - Page 58 • Key Test • LCD test • Functions - Sleep mode – on - Pause mode - on (If pause mode is o then console will remained Paused inde nitely, unless Stop or Start is pressed again). - Odometer reset - Units –...
- Page 59 Error messages • EEPROM Error – Solution for this is to replace the console (Note: this is the only error message) • Motor Error – Press stop to enter idle mode – This error means the motor that controls resistance did not respond a s expected. If the error occurs press stop.
- Page 60 Console programs do not start • Perform Keypad test in Maintenance mode • If you cannot access the test, and the keys seem to have no a ect when pressed, then the keypad has malfunctioned. Program starts but no data registers when 7.0 S is pedaled •...
-
Page 61: Speci Cations
Speci cations 7.0 S Dimensions Readouts Length : 67” (172cm) Time and Segment time remaining, Width : 30” (77cm) RPM, Watts (Left and Right), METS, Height : 48” (122cm) Symmetry Index, Heart Rate, Calories, Work Level Weight Disposal 257.4 lbs. (117 kg) Reference should be made to local Patient weight capacity regulations concerning the disposal of... - Page 62 Certi cations TUV listed to ANSI/AAMI ES60601-1:2005+A2 (R2012) +A1, CAN/CSA-C22.2 No. 60601-1:14, CE conformity to EN 60601-1 EMC, Compliance to EN 60601-1-2 Classi cation Class II measuring, Type BF, ordinary equipment, continuous operation. This product is classed as ordinary equipment according to IEC/EN/UL60601-1 and is NOT protected against the ingress of water.
- Page 63 Guidance and manufacturer’s declaration – electromagnetic compatibility The 7.0 S is intended for use in the electromagnetic environment speci ed below. The customer or the user of the 7.0 S should assure that it is used in such an environment. Emissions test Compliance Electromagnetic environment –...
- Page 64 – Immunity test IEC 60601 Compliance level Electromagnetic environment test level guidance Electrical fast +/-2 kV for power +/-2 kV for power Mains power quality should be that transient/burst supply lines supply lines of a typical commercial or hospital environment. IEC 61000-4-4 +/-1 kV for +/-1 kV for...
-
Page 65: Description Of Packaging Symbols
Description of packaging symbols Indicates that the package is heavy and two or more people are required to lift. Package contains fragile electronic equipment. Care should be used when handling. The product inside the packaging could be easily damaged if dropped or handled without care and attention. - Page 66 Indicates that an object is capable of being recycled - not that the object has been recycled or will be accepted in all recycling collection systems. Top. This side up.
- Page 67 Product warranty Dyaco Commercial & Medical North America LLC (hereinafter “Dyaco”), the manufacturer of the Philips Professional Series Physical Therapy Products (hereinafter “Products”) warrants all of the Prod- ucts and their components listed below for the periods of time set...
- Page 68 • Proper connection to a grounded power supply of su cient voltage, replacement of blown fuses, repair of loose connections or defects in house or facility wiring. • Expenses for making the tness equipment accessible for servicing, including any item that was not part of the tness equipment at the time it was shipped from the factory.
- Page 69 • Manufacturer, distributor, or the Licensor shall not be responsible or liable of any direct, indirect, general, special, punitive, incidental or consequential damages; loss of or damage to property; claims of third parties; loss of life; personal injury (including further injury, or re-injury), and any other losses or damages of any kind or character, arising out of or in connection with the use of Biophysical Agents by the facilities or clinicians.
- Page 70 Service Keep your bill of sale. Twenty four (24) months from the date on the bill of sale or eighteen (18) months from the date of factory shipping as determined by the serial number establishes the warranty period should service be required. If service is performed, it is in your best interest to obtain and keep all receipts.
- Page 71 2019© Dyaco Commercial & Medical North America LLC. All right reserved. The Philips trademark and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. used under license. This product has been manufactured by and is sold under the responsibility of Dyaco Commercial & Medical North America LLC,...
