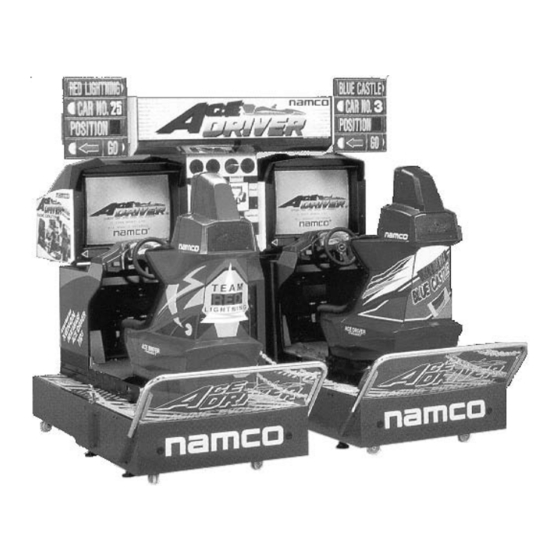

- Page 1 ACE DRIVER DELUXE Installation and Commissioning Manual T IS THE RESPONSIBILITY OF THE OPERATOR TO MAINTAIN CUSTOMER SAFETY AT ALL TIMES AND IT IS IMPERATIVE THAT THE DETAILS SET OUT IN THIS MANUAL ARE FOLLOWED PRECISELY Part No. 90500031...
- Page 2 © 1994 Ltd - all rights reserved. No part of this publication may be reproduced by any mechanical, photographic or electronic process, or in the form of phonographic recording, nor may it be stored in a retrieval system, transmitted or otherwise copied for public or private use, without permission from Ltd.
- Page 3 This machine is designed for indoor use only. Do not install the machine in the following places.
- Page 4 Warnings for Disassembly, Installation, Routine Maintenance and Troubleshooting DANGER: Namco Ltd. bears absolutely no responsibility for accidents or injuries resulting from unauthorized changes to the machine. DANGER: Ensure that the machine has been turned OFF before making adjustments or carrying out maintenance.
-
Page 5: Table Of Contents
Contents INSTALLATION................... 7 Installing the Sign Assembly .................. 8 Installing the Sign Boards (L), (R) ................. 9 Connecting the Seat Assemblies to the Tower Assembly ........10 Removing the Shipping Brackets ................ 12 Installing the Guard Fence ................... 14 Applying the Number Stickers ................15 Linking Two or More Machines. -
Page 6: Installation
1. INSTALLATION Notes on installation DANGER: NEVER turn the power to the machine ON until installation has been completed. DANGER: In order to avoid injury or damage to the machine due to mis-operation, ensure that the voltage of the mains in supply is 220-240volt AC. Also, in order to prevent possible electric shocks, be sure that the machine is connected to the mains in supply with a securely connected earthed plug. -
Page 7: Installing The Sign Assembly
1-1 Installing the Sign Assembly For your convenience, the sign assembly has already been fitted to the tower unit. NOTE: The weight of the Sign Assembly (not including the sign board) is 32kg. The centre of gravity of the Sign Assembly is to the front , making it unstable, and as assembly involves lifting the Sign Assembly above head height, at least two people should be used to install the Sign Assembly. -
Page 8: Installing The Sign Boards (L), (R)
1-2 Installing the Sign Boards (L), (R) The overall height of the machine can be adjusted by altering the position at which the sign boards are fitted. Normal Height (Total height: 2,200mm) Bring the Sign Boards (L), (R) close to the fixing position, and connect the connectors. -
Page 9: Connecting The Seat Assemblies To The Tower Assembly
1-3 Connecting the Seat Assemblies to the Tower Assembly Insert the seat assembly from the side of the tower unit so that the front legs of the tower unit are underneath the seat assembly. Remove the four security screws (M5x12) from the bottom front of the tower unit, and remove the lower front cover (F). - Page 10 Insert the front rubber brackets (L), (R) of the tower unit in the side panel of the seat assembly, and fasten them with two security screws (M5x16) and two No6X½" pozi flange head screws. Remove the five security screws (M5x16) from the tower side support. 10) Fit the rear safety rubbers to the tower unit with the retaining bracket and the five security screws (M5x16) previously removed from the tower side support.
-
Page 11: Removing The Shipping Brackets
1-4 Removing the Shipping Brackets NOTE: Store the removed shipping brackets in a safe place as they must be refitted when replacing the drive castor, when shipping, or when moving the machine. Remove two hex head bolts (M8x20) from each rear shipping bracket, and remove the brackets. - Page 12 After removing the shipping brackets, install the supplied safety rubber skirt (D) and skirt stay (F) to the upper base assembly as described below. NOTE: The safety rubber skirt is to prevent hands or feet being trapped by the moving parts. Be sure to install the safety rubber skirts. The safety rubber is installed on the outside of each seat assembly.
-
Page 13: Installing The Guard Fence
1-5 Installing the Guard Fence Fasten the guard fence with two retaining plates and security screws (M8x20), flat washers, and security washers. Fit the extension brackets (R),(L) to the seat base using six security screws (M8x20), spring washers, and flat washers on each. Ensure that the angles of the extension bracket match the angles of the extensions fitted to the seat bed. -
Page 14: Applying The Number Stickers
1-6 Applying the Number Stickers Apply the racing number stickers to the seats and sign boards as shown below. The team colours and car numbers should match those shown in the following table. TEAM COLOUR RED 25 BLUE 3 YELLOW 17 GREEN 11 Team Colour Blue... -
Page 15: Linking Two Or More Machines
1-7 Linking Two or More Machines. Up to four machines (8 seats) can be linked together. The machines should be linked as described below. NOTE: Each machine can draw up to 8 amps. Make sure that the power supply is adequate. Ensure that the power is “OFF”. -
Page 16: Setting The Link Switches
1-7-1 Setting the Link Switches The link switches are used to set the connection between seats and machines. 1). Setting only one machine (2 seats) Set the link switches to “ON”, “INT”, and “ON”. Note: Do not use a link cable. Setting two or more machines. -
Page 17: Adjustments
2 ADJUSTMENTS 2-1 Turning on the Power After the machine has been correctley installed, turn ON the power. The Power switch is located next to the IEC power inlet socket on the rear of the tower unit 2-2 Adjustment Switches The adjustment switches are located inside the coin door. -
Page 18: Test Mode
2-3 Test Mode Open the coin door and slide the test switch “ON”. The “Menu Screen” will be displayed on the monitor. Select the test required by moving the shift lever up or down. The colour of the selected test will change. Enter the selected test by stepping on the accelerator. -
Page 19: Coin Options
2-3-1 Coin Options Select item (1) COIN OPTIONS [DEFAULT IN GREEN] “COIN OPTIONS” on the menu screen, GAME COST to set the game cost 1 COIN 1 CREDIT ... and related settings. COIN1 MECH VALUE Use the shift lever to 1 COIN COUNT AS 1 COIN ... -
Page 20: Game Options
2-3-2 Game Options Select item (2) “GAME GAME OPTIONS [DEFAULT IN GREEN] OPTIONS” on the menu screen to set the PCB ID NUMBER ....(a) game options. TEAM COLOUR BLUE 3 ....(b) Use the shift lever to RACE CLASS BEG EXP PRO .... - Page 21 t i s c i f y t l i t ( ) t r i l ( ) f ( c i f y t l i t ( ) t r i l ( ) f ( c i f y t l i t ( ) t r...
-
Page 22: I/O Test
2-3-3 I/O Test Select item (3) “I/O TEST” on the menu screen. Use the shift lever to select the required item then step on the accelerator. I/O TEST DIP 2 12345678 ..(a) Option Switch (CPU-PCB Sw2) 3 12345678 ..(b) Option Switch (CPU-PCB Sw1) LINK ON 2 COUNT 0 .. -
Page 23: Switch Test
2-3-4 Switch Test The following screen is displayed when “SWITCH” is selected on the I/O screen. I/O TEST 2 12345678 3 12345678 LINK ON 2 COUNT 0 SWITCH (a) Accelerator ..... GAS: *0000 COIN 1: OFF ..(e) Coin 1 switch (b) Brake ..... -
Page 24: Motor Test
2-3-5 Motor Test The following screen is displayed when “MOTOR” is selected on the I/O screen. I/O TEST 2 12345678 3 12345678 LINK ON 2 COUNT O SWITCH MOTOR BASE MOTOR ....(a) Seat motor test STEERING TORQUE ....(b) Steering motor test EXIT GAS: TURN SHIFT: CHOOSE... -
Page 25: Lamp Test
2-3-7 Lamp Test The following screen is displayed when “LAMP” is selected on the I/O screen. I/O TEST 2 12345678 3 12345678 LINK ON 2 COUNT 0 LAMP TOP LAMP ......(a) SIGNAL LAMP RED ......(b) SIGNAL LAMP GREEN ...... -
Page 26: Sound Test
2-3-9 Sound Test To adjust the sound volume, select “SOUND TEST” in the menu screen. The following screen will be displayed. SOUND TEST [DEFAULT IN GREEN] VOLUME [MAX 63] LEFT RIGHT (a) Left speaker volume ....40 ..(b) Right speaker volume SONG EXIT GAS: ENTER... -
Page 27: Adjustments When Replacing Parts (Initialization)
2-4 Adjustments When Replacing Parts (Initialization) The following adjustments should always be performed after initial installation and after replacing the game PC board, ROM, Steering Assy, Pedal Assy, or Control Pots. The game will not operate correctly if these adjustments are not made. Ensure that accelerator and brake pedals are fully returned. -
Page 28: Disassembly
3. DISASSEMBLY NOTE: The proper number of people (listed in each item) should be used when disassembling. This machine may be disassembled further than as shipped for shipping and moving. The following is a general method of disassembly. NOTE: Parts may be damaged if placed upside down or on their side when removed. Page... -
Page 29: Removing The Monitor Assy (L), (R)
3-1. Removing the Monitor Assy (L), (R) DANGER: There are areas within the monitor that have high temperature and very high voltage even after the power has been removed. Extreme care must be taken to avoid burns or electric shock. DANGER: The monitor weighs approx 60kg, at least two people should be used to remove the monitors. -
Page 30: Disassembling The Upper Seat Assy From The Seat Base Assy
3-2 Disassembling the Upper Seat Assy from the Seat Base Assy WARNING: The weight of the upper seat assembly is approx. 120kg. Foot position is poor and the assembly heavy, so at least five people should be used for disassembly WARNING: This work involves moving the seat assembly from left to right in order to remove screws. - Page 31 Remove six security screws (M5x20) and remove the rear cover. Remove two security screws (M5x20), four security screws (M5x40), and remove the top cover plate. Loosen the hex head screws on the top joint section, slide the sleeve along the shaft and disconnect the joint.
