abyzz AFC400 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
!
User Manual
!
AFC400

! 1

Advertisement

Table of Contents
loading

Related Manuals for abyzz AFC400

Summary of Contents for abyzz AFC400

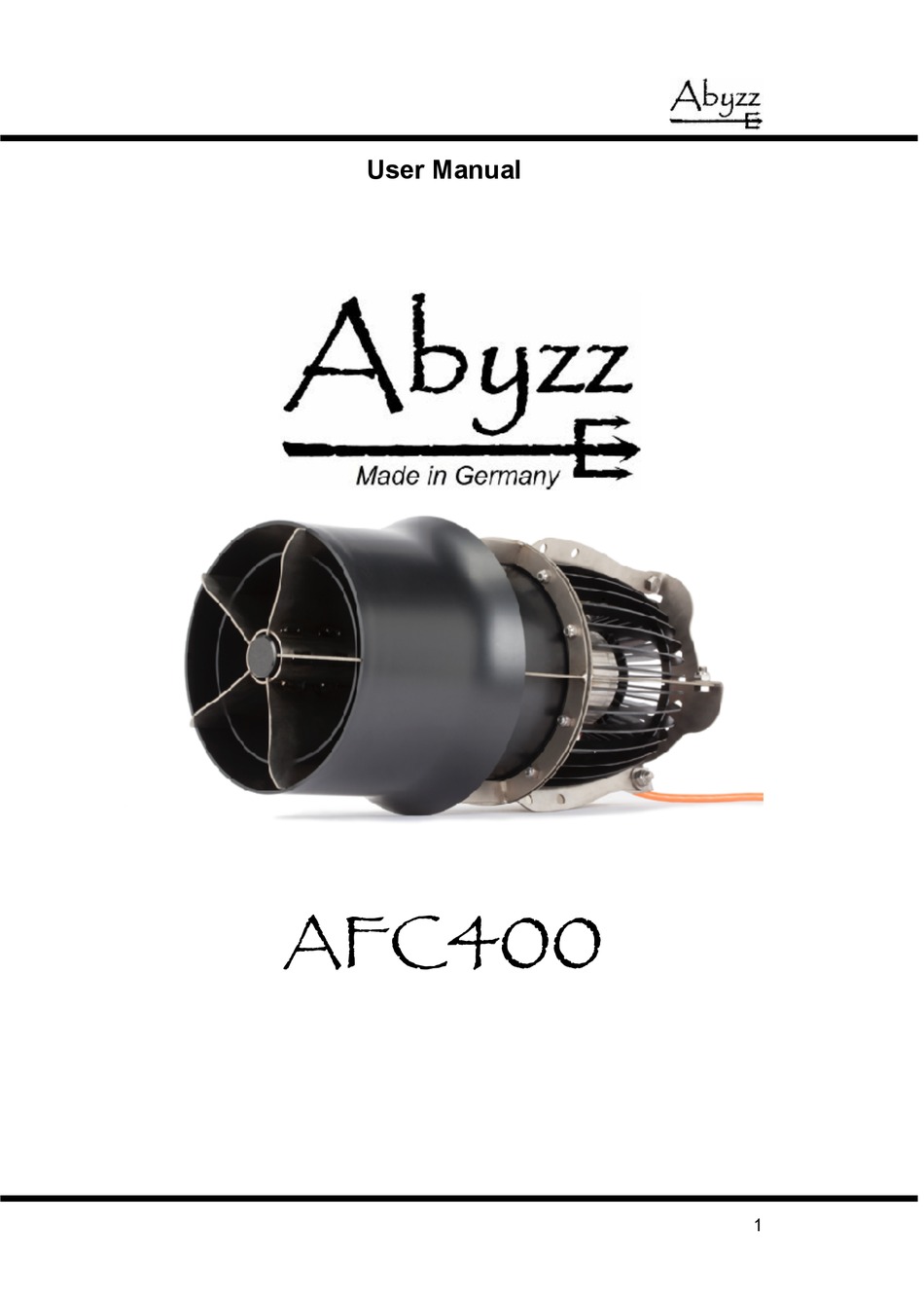

  • Page 1 User Manual AFC400
...
  • Page 2 Claims against venotec based on the products described in this manual are based exclusively on the manufacturer's warranty. Through technical improvements and innovations the product specifications may deviate from the information given in this manual. Abyzz and venotec are registered trademarks. Valid: 31.07.2017
...

  • Page 3: Table Of Contents

    Content Page Preface Scope of delivery Functional description Abyzz peripherals and connectors Warnings Application and general instructions Installation of driver Installation of pump Quick start Run in phase Description of control elements Usage Service Warranty Technical changes Troubleshooting Disposal Technical data...

  • Page 4: Preface

    Preface Thank you for choosing an Abyzz pump. With this powerful product, you have purchased a highly efficient and fully adjustable pump that is designed and manufactured to the highest standards of quality and performance in Germany. This manual is intended to help you start up the product and make the necessary settings.

  • Page 5: Scope Of Delivery

    Scope of delivery All models come with a set of registration documents for warranty and service purposes. Abyzz AFC400 pump with 10m cable Abyzz AFC400 driver Abyzz connection cable (for Abyzz peripherals) Abyzz power cable User manual...

  • Page 6: Functional Description

    Functional desciption The heart of the Abyzz pumps is a sinusoidal three-phase synchronous motor. The efficiency of the engine is over 90%, making it one of the most efficient engines. The integrated bearing flushing system provides optimum protection against calcification and ensures low-maintenance operation.

  • Page 7: Abyzz Peripherals And Connectors

    Abyzz Control System (ACS): With the ACS you have the possibility to control several (currently up to 8) Abyzz pumps. You can program different profiles, which generate waves, tides or random flow patterns, for example.

  • Page 8: Warnings

    Warnings Always disconnect the mains plug before working on the pump!
 Attention High voltage: An opening of the electronics (Abyzz driver) is forbidden and only to be performed by the manufacturer!
 Never disconnect the motor cable from the driver during operation!
...

  • Page 9: Application And General Instructions

    Application and general instructions The product is suitable for moving liquids (seawater, fresh water, brackish water, chlorine water and other liquids which are not aggressive to the components of the pump) with a temperature of + 2 ° C to + 35° C. A list of the parts that come into contact with the medium to be conveyed can be found in the appendix, for non or the like.

  • Page 10: Installation Of Driver

    Installation of driver Mounting: The product must not be mounted outdoors. The wall provided for mounting must be dry and protected from splashing water and moisture. A suitable outlet should be located at the appropriate distance. A minimum distance of 30cm is required from ceilings.

  • Page 11: Installation Of Pump

    Electrical connection: The Abyzz driver requires a voltage of 230V / 50 ... 60Hz or 100-120V / 50 ... 60Hz (US variant). The connection has to be carried out on a suitable, properly installed, protective contact socket, which is fused via a circuit breaker according to DIN VDE 0100T739 (residual current circuit breaker).

  • Page 12: Run In Phase

    Run in phase
 Despite very high precision, minimum production tolerances can not be avoided during production of the bearings. This condition can cause noise during the pump's start-up phase. However, this is normal and does not represent a long-term problem. During the equipment test after production, all pumps are tested for their performance, concentricity and noise.

  • Page 13: Usage

    Usage In the "Permanent" operating mode, you can start or stop the motor with the "Start / Stop" key and change the speed using the "Up" and "Down" keys. If you wish to permanently store the new speed, press the "M" key and the last value is retained.
  • Page 14 When you have selected the operating mode, press "Start / Stop". You are then asked to enter the corresponding data (minimum and maximum power, time interval). Confirm each setting with "Start / Stop". Finally, the settings are saved automatically and you return to the overview.
...

  • Page 15: Service

    The pump should be decalcified at regular intervals in plants which are continually and intensively calcined (for example, steinko coral basins). Tip:
 We recommend the Abyzz Pump Cleaner for cleaning, so you have the certainty not to damage your pump.
 ! 1 5...

  • Page 16: Warranty

    If you have a complaint, please contact us immediately under service@abyzz.de and if needed, send the device back - in its original packaging wherever possible and with proof of purchase - directly to the point of purchase or, if you contacted us before and received an RMA number, to the adress stated in the documents.

  • Page 17: Technical Changes

    Technical changes Due to continuous development and innovation, which in particular serve the quality, safety and progress, the manufacturer reserves the right to technical modification.
 ! 1 7...

  • Page 18: Troubleshooting

    Troubleshooting If errors occur despite the high quality standards, use the following checklist to correct or restrict them. Various errors are already detected and displayed by the electronics. Trouble Possible cause Solution Display off, LED blinking a) Screensaver active a) Press button Display off, LED off a) No power a) Check power chord...

  • Page 19: Disposal

    Disposal The product may not be disposed of in the normal household waste according to Regulation RL2002 / 96 / EC. We offer our customers to return old devices within Germany free of charge and to take over the appropriate recycling or disposal. The corresponding WEEE number at the EAR is: DE 16546900 If you do not dispose of the product by us, you accept the duty of disposal...

  • Page 20: Technical Data

    Technical data Model AFC400 Output (maximum) 220.000 l/h Output (nominal) 165.000 l/h Discharge speed (maximum) : 3,3 m/s Power consumption 4...400 W Operating voltage 230V~, 50…60Hz
 100-120V~, 50…60Hz (optional) Components and materials The following substances are used in conjunction with the medium to be conveyed: ABS GF 20, PVC, WCNi, Titan Gd.
  • Page 21 CE-Konformitätserklärung venotec GmbH Am Nordkreuz 36 26180 Rastede We hereby declare that the design of the pump system Abyzz AFC400 The following relevant provisions: EC Directive 2014/30 / EU Applied harmonized standards: DIN EN 61000-6-1 DIN EN 61000-6-2 DIN EN 61000-6-4 DIN EN 61000-3-2 These devices are Class A devices.

  • Page 22: Appendix

    Appendix
 ! 22...
  • Page 23 ! 2 3...
  • Page 24 P4

 ! 24...
  • Page 25 P6
 ! 2 5...
  • Page 26 P8

 ! 26...
  • Page 27 P10
 ! 2 7...
  • Page 28
 ! 28...
  • Page 29 ! 2 9...
  • Page 30 WWW.ABYZZ.DE
 ! 30...
