Philips 9290 014 60962 Installation Manual

For detailed information of APP , please refer to ：
www.beesmart.com.hk:88
2018 Signify Holding, IBRS 10461, 5600VB, NL. All rights reserved.
The information provided herein is subject to change, without notice. Signify does not give any representation or warranty
as to the accuracy or completeness of the information included herein and shall not be liable for any action in reliance
thereon. The information presented in this document is not intended as any commercial offer and does not form part of
any quotation or contract, unless otherwise agreed by Signify.Philips and the Philips Shield Emblem are registered trademarks
of Koninklijke Philips N.V. All other trademarks are owned by Signify Holding or their respective owners.
1. Put the power supply of accessories into 86 boxes and connect the 220V mains wire with the wire L and N of the accessories;
(where input: brown L, blue N; Output: 2 pin jack, red L, black N; Note: please disconnect the 220V power supply when wiring.
2. Fix the base of product to the 86 base of wall with screws;
3. Connect the output of the accessory power supply and the power input of the multi-function touch panel as shown below;
4. Gently press touch switch which is on the wall to the base.

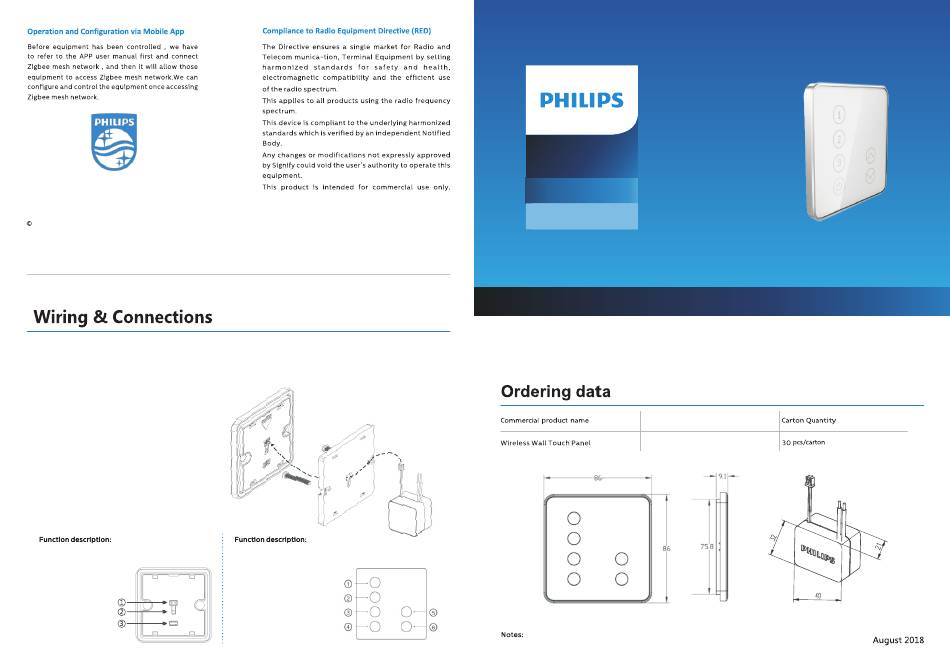

1. ① Mains input
2. ② Toggle switch
3. ③ Socket for factory
www.philips.com/lighting
1. ①/②/③ button for group
2. ④ Switch of on/off
3. ⑤/⑥ Button for dimming
Wireless
Wireless Wall Touch Panel
9290 014 60962
Installation guide
Wireless Wall Touch Panel
12NC
9290 014 60962
1. Communication distance: 15-30M
