- Page 1 DS-2CD2D21G0/M-D/NF Pinhole and Covert Mini Network Cameras Quick Start Guide...
- Page 2 Quick Start Guide: DS-2CD2D21G0/M-D/NF Pinhole and Covert Mini Network Cameras About this Manual This Manual is applicable to 2Dxx Network Camera. The Manual includes instructions for using and managing the product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons.
- Page 3 Quick Start Guide: DS-2CD2D21G0/M-D/NF Pinhole and Covert Mini Network Cameras Regulatory Information FCC Information FCC Compliance: This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 4 Quick Start Guide: DS-2CD2D21G0/M-D/NF Pinhole and Covert Mini Network Cameras which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info...
- Page 5 Quick Start Guide: DS-2CD2D21G0/M-D/NF Pinhole and Covert Mini Network Cameras according to the IEC60950-1 standard. Refer to technical specifications for detailed information. • Do not connect several devices to one power adapter as adapter overload may cause overheating or a fire hazard.
- Page 6 Quick Start Guide: DS-2CD2D21G0/M-D/NF Pinhole and Covert Mini Network Cameras • While in delivery, the camera shall be packed in its original packing or packing of the same texture. • Regular part replacement: a few parts (e.g., electrolytic capacitor) of the equipment shall be replaced regularly according to their average enduring time.
-
Page 7: Table Of Contents
Quick Start Guide: DS-2CD2D21G0/M-D/NF Pinhole and Covert Mini Network Cameras Table of Contents 1 Appearance Description ..............8 Type I, II ................8 Type III, IV ..............10 2 Installation ..................12 Type I, II ................. 12 Type III, IV ..............14 Ceiling Mounting .......... -
Page 8: Appearance Description

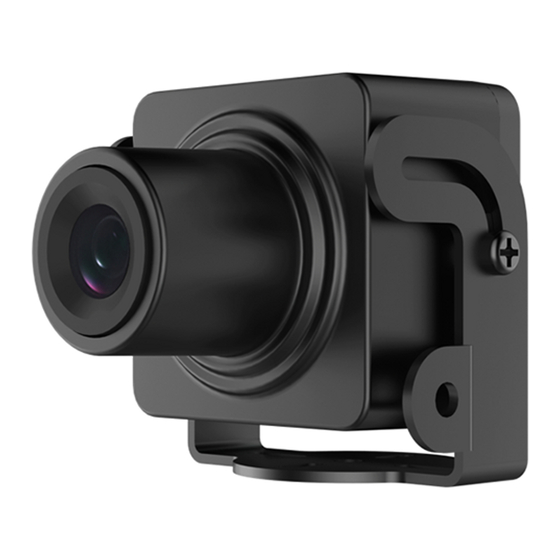

Quick Start Guide: DS-2CD2D21G0/M-D/NF Pinhole and Covert Mini Network Cameras 1 Appearance Description There are four mini camera appearances available for this camera series. Refer to the following chapters for details. Type I, II Figure 1, Overview of Type I Mini Camera... - Page 9 Quick Start Guide: DS-2CD2D21G0/M-D/NF Pinhole and Covert Mini Network Cameras Figure 2, Overview of Type II Mini Camera Table 1-1 Description Description Tilt adjust screw Power cable (12 VDC) and network cable Tieline buckle Lens Bracket Complex cable serial interface...
-
Page 10: Type Iii, Iv
Quick Start Guide: DS-2CD2D21G0/M-D/NF Pinhole and Covert Mini Network Cameras Press RESET for 10s when the camera is powering on or rebooting, to restore the default settings, including the user name, password, IP address, port no., etc. You must activate the camera after restoring. - Page 11 Quick Start Guide: DS-2CD2D21G0/M-D/NF Pinhole and Covert Mini Network Cameras Figure 4, Overview of Type IV Mini Camera Description Description Lens Network interface Reset button Audio interface (line in) Power interface (12 VDC) Note: Press RESET for 10s when the camera is powering on or rebooting, to restore the default settings, including the user name, password, IP address, port no., etc.
-
Page 12: Installation
Quick Start Guide: DS-2CD2D21G0/M-D/NF Pinhole and Covert Mini Network Cameras 2 Installation Before you start: Make sure the device in the package is in good condition and all • the assembly parts are included. The standard power supply is 12 VDC or 24 VAC, make sure your •... - Page 13 Quick Start Guide: DS-2CD2D21G0/M-D/NF Pinhole and Covert Mini Network Cameras Figure 5, Fix the Camera Adjust the camera position. 1). If you use the no. 1 screw hole to secure the camera, slightly loosen the screw to adjust the camera to the right or the left.
-
Page 14: Type Iii, Iv
Quick Start Guide: DS-2CD2D21G0/M-D/NF Pinhole and Covert Mini Network Cameras Loosen the tilt adjust screw to adjust the camera surveillance angel, and tighten the screw if the angle adjustment is completed. Figure 7, Fix the Bracket Type III, IV Ceiling Mounting... -
Page 15: Wall Mounting
Quick Start Guide: DS-2CD2D21G0/M-D/NF Pinhole and Covert Mini Network Cameras 2. Fix the camera to the bracket with the screws. Figure 9, Fix the Camera to the Bracket 3. Route and connect the camera cables. 4. Loosen the horizontal and vertical adjusting screws to adjust the camera surveillance angle, and then tighten the screws. - Page 16 Quick Start Guide: DS-2CD2D21G0/M-D/NF Pinhole and Covert Mini Network Cameras Figure 11, Fix the Bracket to the Camera 2. Install the camera to the wall with the screws. Figure 12, Install the Camera to the Wall 3. Route and connect the camera cables.
-
Page 17: Set The Network Camera Over A Lan
Quick Start Guide: DS-2CD2D21G0/M-D/NF Pinhole and Covert Mini Network Cameras 3 Set the Network Camera over a LAN Note: You shall acknowledge that the use of the product with Internet access might be under network security risks. For avoidance of any network attacks and information leakage, strengthen your own protection. -
Page 18: Activation Via Web Browser
Quick Start Guide: DS-2CD2D21G0/M-D/NF Pinhole and Covert Mini Network Cameras Activation via Web browser, activation via SADP, and activation via client software are all supported. We will take activation via SADP software and activation via Web browser as examples to introduce camera activation. -
Page 19: Activation Via Sadp Software
Quick Start Guide: DS-2CD2D21G0/M-D/NF Pinhole and Covert Mini Network Cameras STRONG PASSWORD RECOMMENDED – We highly recommend that you create a strong password of your own choosing (using a minimum of eight characters, including upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. -
Page 20: Modify The Ip Address
Quick Start Guide: DS-2CD2D21G0/M-D/NF Pinhole and Covert Mini Network Cameras Note: The SADP software supports activating the camera in batch. Refer to the SADP software user manual for details. 3. Create and input the new password in the password field, and confirm the password. - Page 21 Quick Start Guide: DS-2CD2D21G0/M-D/NF Pinhole and Covert Mini Network Cameras 3. Change the device IP address to the same subnet as your computer by either modifying the IP address manually or checking Enable DHCP. Figure 17, Modify the IP Address...
-
Page 22: Access Via Web Browser
4 Access via Web Browser System Requirements: Operating System: Microsoft Windows XP SP1 and later versions CPU: 2.0 GHz or higher RAM: 1 GB or higher Display: 1024 × 768 resolution or higher Web Browser: Internet Explorer 8.0 and later versions, Apple Safari 5.0.2 and later versions, Mozilla Firefox 5.0 and later versions, or Google Chrome 18 and later versions Steps:... - Page 23 Figure 18, Login Interface 5. Install the plug-in before viewing the live video and managing the camera. Follow the installation prompts to install the plug-in. Note: You may have to close the Web browser to finish the installation of the plug-in. Figure 19, Download Plug-in 6.
-
Page 24: Operate Via Hik-Connect App
5 Operate via Hik-Connect App Purpose: Hik-Connect is an application for mobile devices. It lets you view live images of the camera, receive alarm notifications, etc. Note: The Hik-Connect service is not supported by certain camera models. Enable Hik-Connect Service on Camera Purpose: Hik-Connect service should be enabled on your camera before using the service. -
Page 25: Enable Hik-Connect Service Via Web Browser
Figure 20, Verification Code Setting (SADP) Note: The verification code is required when you add the camera to the Hik-Connect app. 3. Click and read “Terms of Service” and “Privacy Policy.” 4. Confirm the settings. Enable Hik-Connect Service via Web Browser Before you start: You need to activate the camera before enabling the service. -
Page 26: Hik-Connect Setup
Figure 21, Platform Access Configuration (Web) 2. Select Hik-Connect from the Platform Access Mode drop-down list. 3. Check Enable. 4. Click and read “Terms of Service” and “Privacy Policy” in the pop- up window. 5. Create a verification code or change the verification code for the camera. -
Page 27: Add Camera To Hik-Connect
Add Camera to Hik-Connect Before you start: You need to enable the Hik-Connect service on the camera before adding it to your Hik-Connect account. Refer to Chapter 5.1. 1. Use a network cable to connect the camera to a router if the camera does not support Wi-Fi. -
Page 28: Initialize The Memory Card
3. Input the verification code of your camera. Note: The verification code is the code you created or changed when • you enabled the Hik-Connect service on the camera. If you forget the verification code, you can check the current •...
