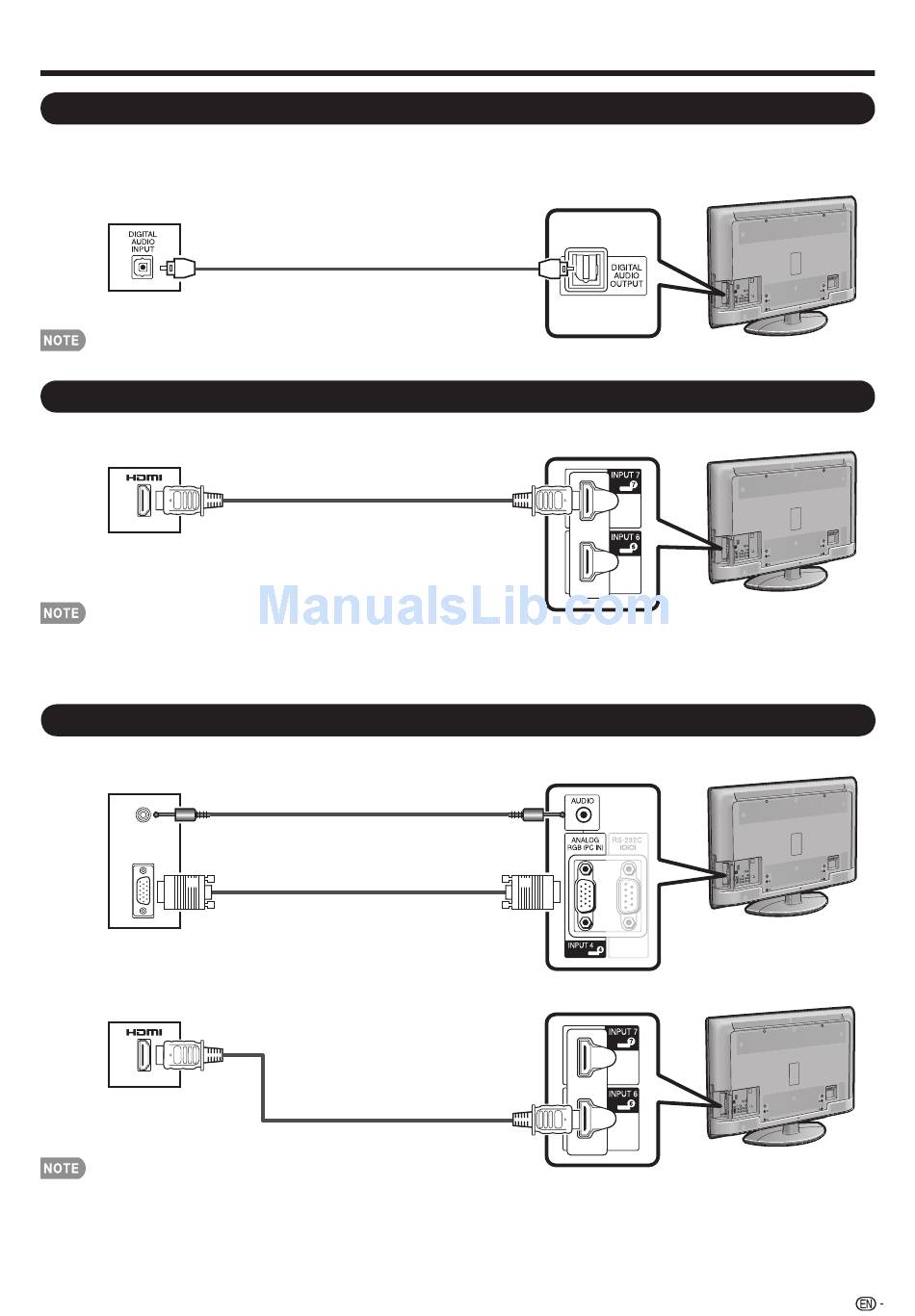

Connecting to External Equipment

Using Digital Audio Output

It is possible to output audio through the DIGITAL AUDIO OUTPUT terminal. (See page 25 for details.) PCM audio
outputs from the terminal.
To optical digital input of
external audio devices
• Digital audio can only be output when receiving a digital broadcast.

Connecting HDMI Equipment

You can use the INPUT 5, INPUT 6, INPUT 7 or INPUT 8 terminal when connecting HDMI equipment.
HDMI equipment
• When using an HDMI-DVI conversion cable, input the audio signal to the AUDIO terminal of INPUT 6.
When you input the audio signal via the AUDIO terminal with INPUT 6, set "PC Audio Select" to "Input 6 (HDMI)". (See page 25.)
• To enjoy the AQUOS 1080p display capability, connect your Blu-ray disc player or other external equipment using an HDMI-
certifi ed cable and set the equipment to 1080p output.

Connecting a PC

When connecting to a PC with an analog RGB terminal (INPUT 4):
PC
When connecting to a PC with an HDMI terminal (INPUT 5, 6, 7 or 8):
PC
• When connecting a PC to the INPUT 4, set "PC Audio Select" to "Input 4 (PC)". (See page 25.)
• When connecting a PC to the INPUT 6, set "PC Audio Select" to "Input 6 (HDMI)". (See page 25.)
• The HDMI terminals only support digital signal.
• Refer to page 42 for a list of PC signals compatible with the TV.
Optical fi ber cable
(commercially available)
HDMI-certifi ed cable
(commercially available)
Ø 3.5 mm stereo minijack cable
(commercially available)
RGB cable
(commercially available)
HDMI-certifi ed cable
(commercially available)
13
