Manual
Pipe Inspection System
WARNING!
Read this Operator's Man-
ual carefully before using
this tool. Failure to under-
stand and follow the con-
tents of this manual may
result in electrical shock,
fire, and/or serious per-
sonal injury.
Operator's Manual
Mini
For support and additional informa-
tion about using your See Snake Mini
go to support.seesnake.com/mini
or scan this QR code.
Original Instructions – English – 1
Advertisement
Table of Contents
Related Manuals for RIDGID SeeSnake Mini
Summary of Contents for RIDGID SeeSnake Mini
- Page 1 Operator’s Manual Mini Pipe Inspection System WARNING! Read this Operator’s Man- ual carefully before using this tool. Failure to under- For support and additional informa- stand and follow the con- tion about using your See Snake Mini tents of this manual may go to support.seesnake.com/mini result in electrical shock, or scan this QR code.
-
Page 2: Table Of Contents
Table of Contents Introduction ............................3 Regulatory Statements ..............................3 Safety Symbols General Safety Rules ..............................4 Work Area Safety ..............................4 Electrical Safety ..............................4 Personal Safety ............................5 Equipment Use and Care ............................5 Pre-Operation Inspection See Snake Mini Overview ................................6 Description .................................7 Specifications ..............................8 System Components Specific Safety Information .............................8... -
Page 3: Regulatory Statements
Introduction Safety Symbols In this manual and on the product, safety symbols and sig- The warnings, cautions, and instructions discussed nal words are used to communicate important safety infor- in this manual cannot cover all possible conditions mation. This section is provided to improve understanding of and situations that may occur. -
Page 4: General Safety Rules
General Safety Rules Personal Safety • Stay alert, watch what you are doing, and use com- WARNING mon sense when operating equipment. Do not use equipment while you are tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating equipment may result in serious injury. -
Page 5: Equipment Use And Care
Equipment Use and Care Pre-Operation Inspection WARNING • Do not force equipment. Use the correct equipment for your application. The correct equipment does the job bet- ter and more safely. • Do not use equipment if the power switch does not turn it on and off. -
Page 6: See Snake Mini Overview

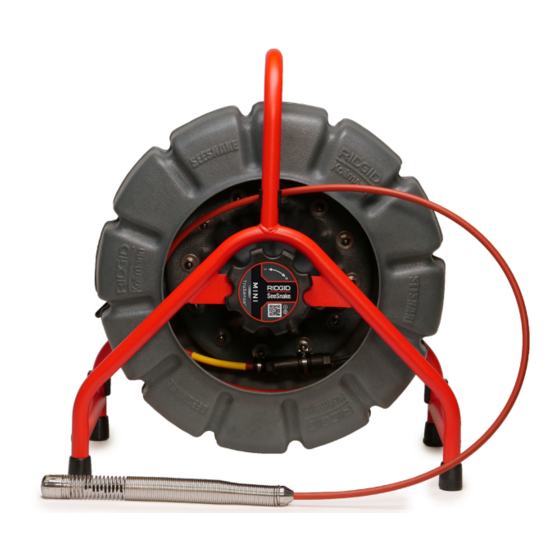

See Snake Mini Overview Description The RIDGID See Snake Mini Pipe Inspection System is a ® ® Each Mini reel includes a built-in FleX mitter sonde that ® portable camera reel in the See Snake family of premier di- helps locate points of interest in the pipe. FleX mitter sondes agnostic systems. -
Page 7: Specifications
Specifications Specifications Weight Push Cable 30 m [100 ft] 8.6 kg [19 lb] 30 m [100 ft] Length 61 m [200 ft] 11.8 kg [26 lb] 61 m [200 ft] Dimensions Diameter 9.1 mm [0.36 in] Length 519 mm [20.4 in] Fiberglass core diameter 3.5 mm [0.14 in] Depth... -
Page 8: System Components
Specific Safety Information System Components Handle WARNING Drum Push Cable This section contains important safety information that is specific to the See Snake Mini Pipe Inspection Sys- Brake tem. Read these precautions carefully before using the equipment to reduce the risk of electrical shock, fire, and/or serious injury. -
Page 9: Operating Instructions Placement
Operating Instructions Inspection Overview To perform a pipe inspection, connect any See Snake mon- Placement itor to the reel, power on the system, push the push cable through the pipe, and observe the display. Set up your SeeSnake system near the pipe entrance so For advanced inspection options, such as capturing media, you can manipulate the push cable while viewing the moni- locating the sonde, tracing the push cable, and delivering... -
Page 10: Count Plus
Count Plus Note: Many See Snake monitors include the ability to control what information is displayed on the monitor and recorded The Mini reel comes with the Count Plus counter accessory. to media, including the cable distance. Read your monitor’s The Count Plus measures the total length of the push cable operator’s manual to find out if the monitor includes this fea- and can measure the push cable’s distance from a tempo-... -
Page 11: Maintenance And Support Cleaning
EC Countries: Do not dispose of electrical Storage equipment with household waste! The SeeSnake Mini must be stored in a dry, secure area be- According to the European Guideline 2002/96/ tween -10°C and 70°C [14°F and 158°F]. Store your equip-... - Page 12 RIDGID and the RIDGID logo are trademarks of Ridge Tool Company, registered in the USA and other countries. All other registered and unregistered trademarks and logos mentioned herein are the property of their respective owners. Mention of third-party products is for informational purposes only and constitutes neither an endorsement nor a recommendation.
