Honeywell OELD Operating Instructions Manual

Smart junction box
Hide thumbs Also See for OELD:
Table of Contents

Advertisement

Quick Links

Gas Detection
OELD
Smart Junction Box
Operating Instructions

Advertisement

Table of Contents
loading

Related Manuals for Honeywell OELD

Summary of Contents for Honeywell OELD

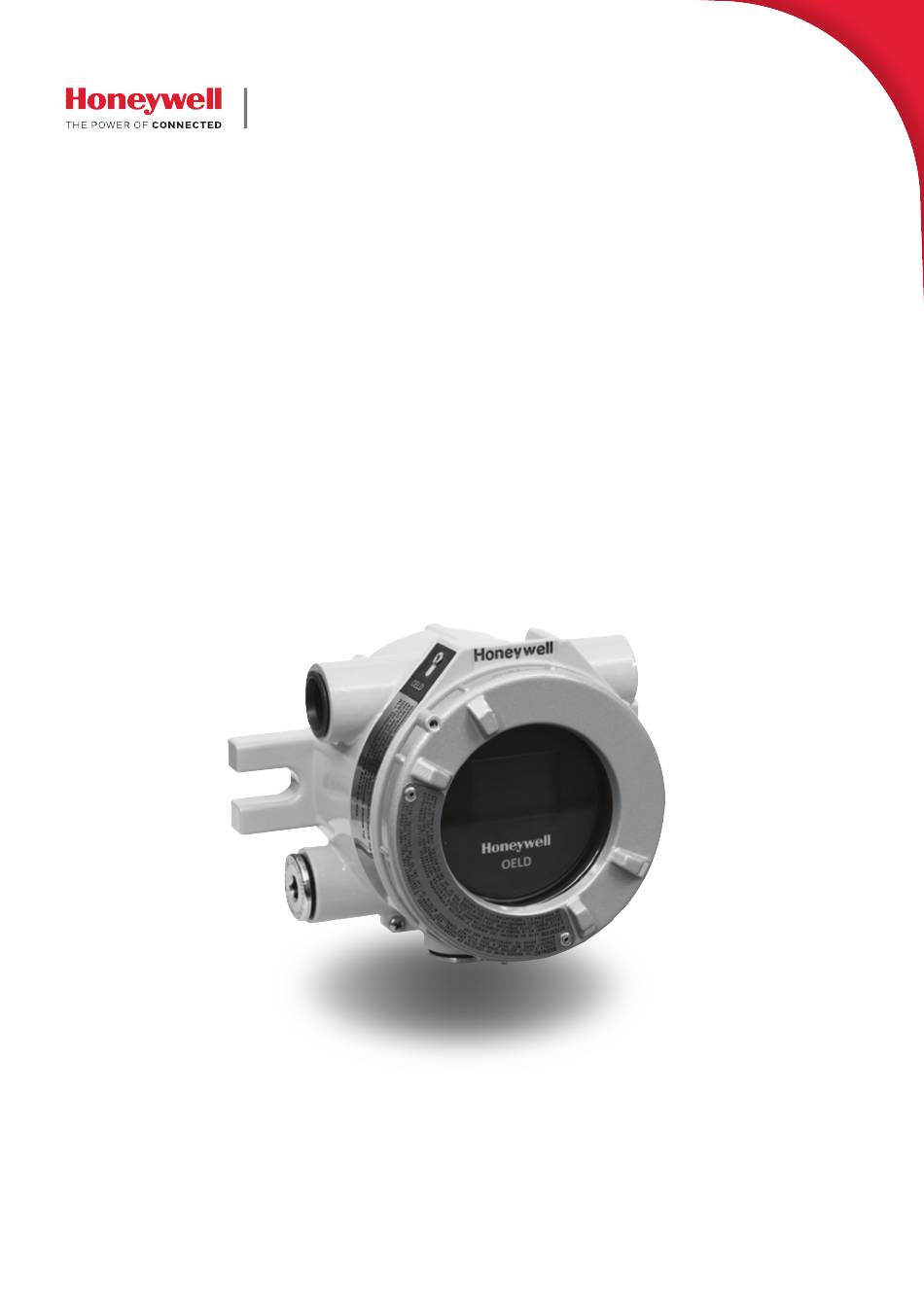

  • Page 1 Gas Detection OELD Smart Junction Box Operating Instructions...

  • Page 2: Table Of Contents

    2.2 Optional Accessories ................6 7.1 Installing the Mobile App ...............24 2.2.1 Pipe Mount Kit (1226A0358) ............6 7.2 Running the OELD Mobile App ...........24 2.2.2 Ceiling Mount Bracket Kit (1226A0355) ........7 7.3 Connecting to OELD Units ............25 2.2.3 Sunshade (94000-A-1006) ............7 7.4 Configure the OELD device ............26...

  • Page 3: Safety

    5. Access to the interior of the product, when carrying out any work, must be conducted only by trained personnel. 6. Measuring function not approved under ATEX. Do not rely on the OELD display backlight status indication for safety-related purposes.

  • Page 4: Important Information

    This manual is for use with the OELD smart junction box only. Honeywell Analytics can take no responsibility for installation and/or use of its equipment if not done so in accordance with the appropriate issue and/or amendment of the Operating Instructions.

  • Page 5: Overview

    Bluetooth® low energy interface for configuration and maintenance using a Bluethooth®-enabled mobile device. The OELD unit is ATEX and IECEx approved for use in either Zone 1 (gas) or Zone 21 (dust) hazardous areas as well as being cULus approved for use in Class I Division 1 or Class II Division 1.

  • Page 6: Optional Accessories

    The optional pipe mount, ceiling bracket and sunshade accessories are not included as part of the assessment to EN60079-29-1. 2.2.1 Pipe Mount Kit (1226A0358) The Pipe Mount kit (1226A0358) allows the OELD to be mounted to pipe from 2” to 6” (50 to 150 mm) in diameter. The kit includes the pipe mount bracket, two carriage bolts, nuts, and lock washers.

  • Page 7: Ceiling Mount Bracket Kit (1226A0355)

    2 Overview 2.2.2 Ceiling Mount Bracket Kit (1226A0355) The Ceiling Mount Bracket Kit (1226A0355) allows the OELD to be mounted to the ceiling. The kit includes two stainless steel ceiling mount brackets, bolts, and nuts. Note When considering the final mounting position using the Ceiling Mount Bracket Kit, consider the ability to see the OELD display when installed.

  • Page 8: Installation

    3.2 Mechanical Installation The OELD can be mounted in a number of ways using the integral mounting tabs. The OELD can be attached to flat wall surfaces or to Unistrut®. With the optional Pipe Mount kit, the unit can be mounted to pipe or pole. A ceiling mount bracket kit (1226A0358) is also available.

  • Page 9: Installation To A Flat Surface

    3.2.2 Optional Pipe and Ceiling Mount Installation The OELD may be fixed to a vertical pipe of 2" to 6" (50 to 150 mm) in diameter using the Pipe Mounting kit. This kit (1226A0358) consists of one bracket, two sets of carriage bolts, nuts and lock washers.

  • Page 10: Using The Searchline Excel Mounting Plate

    3.2.3 Using the Searchline Excel Mounting Plate The OELD may be fixed to the Searchline Excel mounting plate (2104D0237), which is included in the Searchline Excel kits. Two M10 tapped holes, ‘K’, are provided for mounting the OELD. Refer to the Searchline Excel technical manual for other details. The mounting plate fixings are not supplied.

  • Page 11: Electrical Connections

    4 Electrical Connections 4 Electrical Connections <Figure 8. OELD Electronics Module> Terminal Block 1 (TB1) Number Marking Colour Description Input power +ve Black Input power 0V White mA Signal to Field Wiring Auxiliary power e.g. Excel cross duct heater Black Auxiliary power e.g.
  • Page 12 Spare conductors must be suitably terminated. Wiring must be in accordance with local, national and/or company regulations. Exposed, bare conductors must be avoided. The following diagrams show the wiring of the OELD to Searchpoint Optima and Searchline Excel. For other sensors, refer to the manufacturer’s wiring details.
  • Page 13 The earth bonding arrangement must ensure that the maximum peak voltage between the unit case earth and any field cable conductor is less than 350V. Voltages in excess of this can cause permanent damage to the units’ internal RFI protection filters. Connecting the OELD to Searchline Excel Cross-Duct (XD) OELD...
  • Page 14 4 Electrical Connections OELD Connection for Sensors Configured as Current Sink Sensor Controller <Figure 12. mA Input Sink Configuration> OELD Connection for Sensors Configured as Current Source Sensor Controller <Figure 13. mA Input Source Configuration> Caution The maximum permissible mA loop voltage is 32 VDC and the maximum current is 22 mA.
  • Page 15 4 Electrical Connections SHC-1 Connection WARNING Do not Attempt to connect SHC-1 Handheld interrogator directly to the OELD. Always use the SHC Protection Device. Connect the SHC-1 Handheld Interrogator to the OELD using the SHC Protection Device. IS Connector Flying Lead <Figure 14.

  • Page 16: Power Supply

    M25 or 3/4”NPT gland entry or conduit. The allowable conductor size for the terminals is 0.2 – 2.5 mm² (24 - 12 AWG). The OELD terminals will accept only wire sizes(solid- core or stranded) in this range. The temperature rating of the conductors should be greater than 80°C. The terminals should be torqued between 0.5 Nm to 0.6 Nm.

  • Page 17: Configuration

    5.1.1 Threshold for Local Alarm Indication The gas reading at which the the OELD indicates an alarm (flashing red lights) can be set between 5 and 65 % FSD. The default setting is 20 % FSD.

  • Page 18: Oeld General Display Settings

    • reading resolution • gas name These settings are used to convert the 4-20 mA output from the sensor into a reading on the OELD display. WARNING Do not rely on the OELD LCD backlight status indication for safety-related purposes.

  • Page 19: Configuration Process

    During the connection, the blue light of the OELD will indicate different states. Once the connection has been successfully established and if the sensor status is normal, the OELD blue light will be lit solid blue to indicate this. Connect the mobile device to the OELD as follows: 1.

  • Page 20: Operation

    The start-up and self-test sequence of the OELD takes approximately 60 seconds. During this time the user can check that each of the functions listed below are operating correctly as well as the OELD checking the correct operation of its critical circuits and processes.

  • Page 21: Normal Operation

    Note The visual output of the OELD is derived from the 4-20 mA output of the sensor and/or status of the OELD unit. Use a suitable mobile device and the OELD app to connect to the OELD using Bluetooth® to access further diagnostic information. When used in conjunction with a Searchpoint Optima Plus or Searchline Excel, diagnostic and maintenance functions of the sensor can be accessed also.

  • Page 22: Display Screen

    During normal operation the instrument LCD shows a steady GREEN backlight. In case of a gas alarm or fault the red or yellow backlight respectively will flash. The screen is visible through the window of the OELD top cover and the display shows the gas concentration information both graphically and numerically, as well as other information including full scale range, measurement units, alarm / fault status etc.

  • Page 23: Bluetooth® Communication

    6.3 Alternative Communications (SHC-1 Hand-Held Interrogator) If the OELD is being used in conjunction with the Searchpoint Optima Plus or Searchline Excel the sensor can be accessed using the Honeywell Analytics SHC-1 Handheld Interrogator and the SHC Protection Device. Use the dedicated terminals inside the OELD to do this.

  • Page 24: Oeld Mobile App

    7.2 Running the OELD Mobile App Note To register a new user account you will need 1) a connection to the internet and 2) the QR code from at least one OELD device. 1. Find and tap the OELD App icon 2.

  • Page 25: Connecting To Oeld Units

    7.3 Connecting to OELD Units 1. Standing in proximity to the OELD to which you want to connect, tap on the Detectors button on the main screen of the OELD 2. A list of detectors to which you have access will be shown. Should you require access to a detector that is currently restricted, tap on the device and simply scan the QR code of that device.

  • Page 26: Configure The Oeld Device

    OELD. 7.5 Optima Plus Configuration The OELD Mobile App allows a user to configure a Searchpoint Optima Plus gas detector that is connected to the OELD unit. The configurable parameters are as shown in the table below.

  • Page 27: Calibration

    7 OELD Mobile App 7.6 Calibration The OELD App allows a user to calibrate the Searchpoint Optima Plus or Searchline Excel. Note that this feature is not available for other gas detectors or sensors that may be used. Caution Searchpoint Optima Plus is factory calibrated and does not require routine calibration. In most cases, a re-zero will correct any inaccuracy in the gas reading.

  • Page 28: Maintenance

    8 Maintenance 8.1 General Periodically inspect the OELD and cabling for signs of physical damage. Clean the glass window with a damp cloth. Do not use solvents or abrasive cleaners. The OELD has no user serviceable parts. Honeywell Analytics recommend that the unit’s configuration and operation are checked annually as a minimum.

  • Page 29: Faults And Warning

    The output from the connected sensor is exceeding LooP High F-03 Input current is too high the upper input range of the OELD. Check the sensor by referring to sensor manual Supply voltage fault or Internal power Check the input voltage to the OELD. Reset the...

  • Page 30: Specifications

    Green (normal) indication can be disabled via app. Power supply 18 to 32 Vdc (24 Vdc nominal), <2 W Bluetooth® (BLE) non-intrusive connection to suitable mobile device running the OELD App. Range up to 10 m (depends on mobile device and environmental conditions) Interfaces...
  • Page 31 IEC 60092-504 Other Approvals Bluethooth® certified, RED, FCC+, country-specific wireless approvals Bluetooth® Certificate-based mutual authentication. Encryption to AES128. communication security Note +flameproof versions only *Contact Honeywell Analytics for availability Gas Performance: ISA 60079-29-1 approved for methane gas only OELD Operating Instructions...

  • Page 32: Ordering Information

    OELD Smart Junction Box, Display, C1D1 Z1, Painted 316SST, 5 x 3/4" Cable Entries, cULus OELDBXXXXXADMRX OELD Smart Junction Box, Display, Ex d, Aluminum, 5 x M25 Cable Entries, CU-TR Ex OELDBXXXXXSDMRX OELD Smart Junction Box, Display, Ex d, Painted 316SST, 5 x M25 Cable Entries, CU-TR Ex OELDVSK01 OELD General Service Kit OELDVSK02...

  • Page 33: Certification And Approvals

    12 Certification and Approvals 12 Certification and Approvals 12.1 EU Declaration of Conformity A full EC declaration of conformity is included with the product. This document lists the European Standards with which the OELD smart junction box complies. 12.2 Hazardous Area Certification Special conditions for safe use Please confirm that these are ALL of the ATEX Special Conditions of Safe Use are listed here.

  • Page 34: Performance Approvals

    Certificate Number: E484838 WARNING 1. Model OELD Smart Junction Box has been evaluated for gas performance testing in accordance with ISA 60079-29-1 (12.13.01) for Methane gas only. 2. Model OELD Smart Junction Box has been evaluated for gas performance testing in accordance with ISA 60079-29-1 (12.13.01) for use as a stand-alone controller only.
  • Page 35 WARNING • OELD has been tested and meets applicable limits for radio frequency (RF) exposure. According to the RF Exposure report, minimum 20 cm separate distance is required. • OELD a été testé et respecte les limites applicables à l’exposition aux radiofréquences (RF). Selon le rapport d’exposition RF, un minimum de 20 cm de distance séparée est nécessaire.

  • Page 36: Warranty Summary

    13 Warranty Summary Honeywell Analytics warrants the OELD against defective parts and workmanship and will repair or (at its option) replace any instruments which are or may become defective under proper use within 24 months from date of shipment from Honeywell Analytics.
  • Page 37 Tel: +41 (0)44 943 4300 Fax: +41 (0)44 943 4398 gasdetection@honeywell.com Asia Pacific, India Honeywell Analytics Asia Pacific, Co., Ltd. 7F SangAm IT Tower Please Note: While every effort has been made to ensure accuracy in this publication, no responsibility 434 Worldcup Buk-ro, Mapo-gu can be accepted for errors or omissions.
