Toshiba IK-M50H Instruction Manual

MICRO CAMERA HEAD
IK-M50H
CAUTION
This product is class A of EN55022. In residential area, it may cause radio interference. In this
case, user takes measures to meet the situation.
INFORMATION
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This equip-
ment generates, uses, and can radiate radio frequency energy and, if not installed and used in accor-
dance with the instruction manual, may cause harmful interference to radio communications. Opera-
tion of this equipment in a residential area is likely to cause harmful interference in which case the user
will be required to correct the interference at his own expense.
USER-INSTALLER CAUTION: Your authority to operate this FCC verified equipment could be voided
if you make changes or modifications not expressly approved by the party responsible for compliance
to Part 15 of the FCC rules.
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.
CAUTIONS ON USE
G
Please use this apparatus by connecting only with camera control unit IK-CU50.
G
Read the "CAUTIONS ON USE AND INSTALLATION" in the instruction manual of IK-CU50, and comply
with request.
COMPONENTS
(1) Camera head (without lens) .............................................................................. 1
(2) Accessories
(a) Camera holder ............................................................................................. 1
(b) Instruction manual ....................................................................................... 1
CONNECTION
Lens
(option)

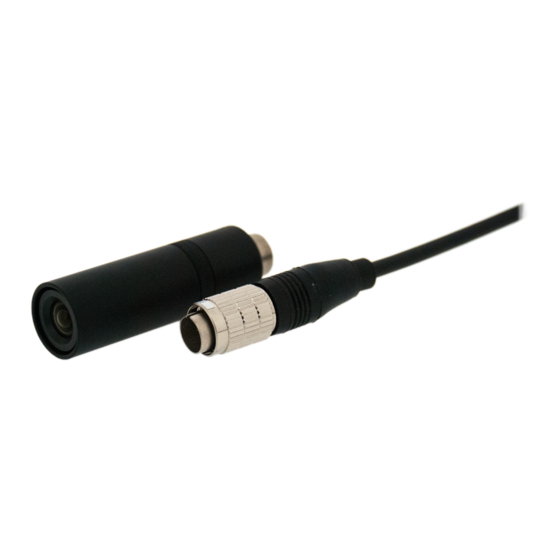

Camera head
CAMERA
Camera cable
(option)

INSTRUCTION MANUAL

IK-CU50 (option)
Camera control unit
VIDEO
DC IN 12V
DC Supply
(12V)
When connecting or discon-
G
necting the camera cables
(for the camera head and
camera control unit), always
turn off the power switch of
the camera control unit.
If not, the camera head may
be damaged.
