Warning: This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance
with the Instructions Manual, may cause interference with radio communication. It has been tested and found to comply with
the limits for a Class A computing device pursuant to Subpart J of Part 15 of FCC Rules, which are designed to provide
reasonable protection against such interference when operated in a commercial environment. Operation of this equipment in
a residential area is likely to cause interference, in which case, user at their own expense will be required to take whatever
measures may be required to correct the interference. Any unauthorized modification of this equipment may result in the
revocation of the owner's authority to continue its operation.
BEFORE INSTALLATION
1. Unpack Door assembly and Subpanel from carton.
Check equipment and report any damage to a
Honeywell representative.
2. Unpack DeltaNet R7515C MacroCel Controller
("MacroCel") Card Cage Assembly ("Assembly") from
carton. Check Assembly and report any damage to a
Honeywell representative.
3. Before installing, verify that Ring Cabinet is installed per
job drawings. (Refer to General Purpose Cabinet
Installation Instructions 95-7438 for details.)
4. Installation requires No. 10 x 1/2-in. sheet metal screws
(not supplied). Six screws are required for full-sized
subpanel; four for half-sized subpanel.
5. If application requires a tamper switch, use 14505159
Tamper Switch. The Tamper Switch includes a
4-40 x 5/8-in. machine screw.
6. Screw terminals are rated for 12 to 24 AWG solid or
stranded conductors.
7. Install in a controlled environment relatively free of
contaminants.
® U.S. Registered Trademark
Copyright © 1998 Honeywell Inc. • All Rights Reserved
R7515C MacroCel
INSTALLATION INSTRUCTIONS
INSTALLATION
Install Subpanel
1. Position MacroCel subpanel in cabinet so all labeling
is visible.
2. Secure MacroCel subpanel in place with No. 10 x
1/2-in. sheet metal screws (Fig. 1 and 2).
NOTE: Subpanel must mount flat and should not
buckle anywhere.
LOWER OUTER
KNOCKOUTS
(4) RECOMMENDED
FOR EASE OF
INSTALLATION
MacroCel
SUBPANEL

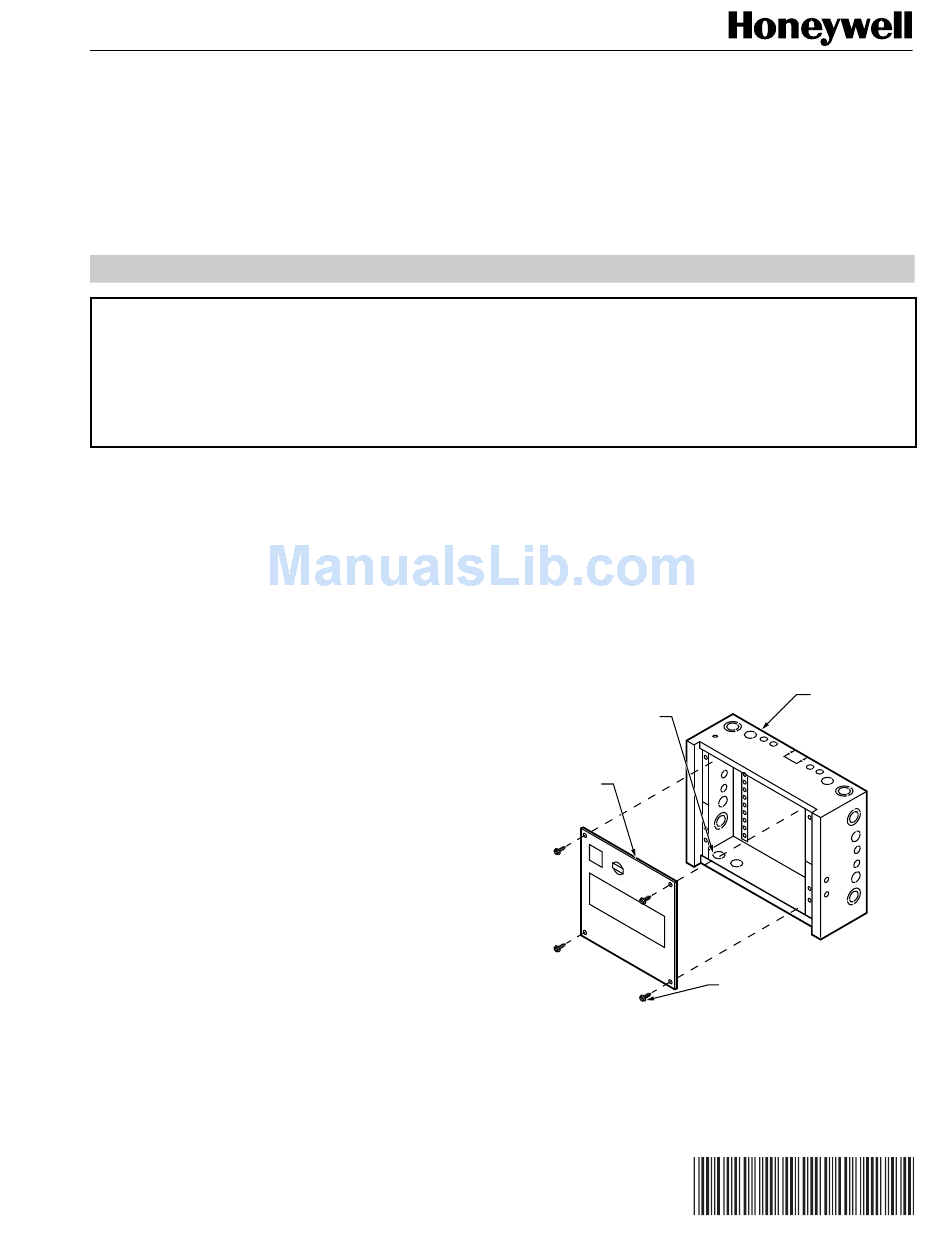

Fig. 1. Mounting MacroCel subpanel in half-sized
ring cabinet.
™
Controller
HALF-SIZE
CABINET
SIX NO. 10 X 1/2-IN.
MOUNTING SCREWS
C5691
95-7456-1
