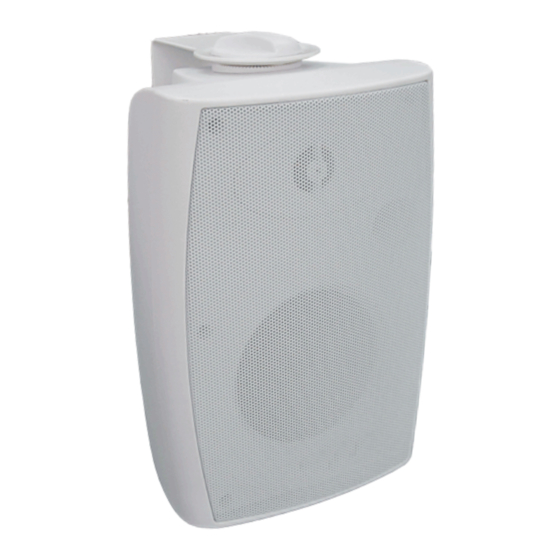

L-PWP40A
Cabinet Loudspeaker
L-PWP40A is a 40W cabinet loudspeaker intended for use in
general indoor and outdoor applications. It is excellent in
recreating original audio effects, foreground and background
music. The cabinet is available in charcoal or white. Three
types of speaker inputs: 8 ohm, 70V and 100V are suitable for
either high or low voltage audio signal inputs.
Equipped with high linearity anti-fatigue rubber, the bass
audio performance is free from distortion due to prolonged
low-frequency operation. Treble circuit unit adopts dome
cortina design, extending the treble range of frequency
response and increasing the high quality acoustic
performance. Anode and cathode screw terminals on the back
box make it easier for cable connection. The loudspeaker is
ideal for use in theme bars, music restaurants, groceries,
video shops, meeting rooms, office buildings, exhibition halls,
gyms and presentation rooms. The adjustable installation
brackets flexibly position the loudspeaker, meeting the needs
of different indoors' sound field characteristics and
idiosyncrasies. The loudspeaker is CE and RoHS compliant.

Technical Specifications

Electrical
Max power 60 W
Rated power 40 W
Power tapping 40 W / 20 W / 10W
Sound pressure level 101 dB / 86 dB
at 40 W/1 W (4k Hz,1m)
Frequency response 100 Hz ~20k Hz
(-10 dB)
Dispersion angle 160°
(1k Hz / -6 dB)
100 V / 70 V / 8Ω
Rated input voltage
250 Ω / 500 Ω / 1k Ω
Rated impedance
Binding post terminals
Connection
Mechanical
Dimensions 172 mm x 302 mm x 165 mm
Weight 3.2 kg
Color White (RAL9003)
Speaker size
5" woofer + 1" tweeter
Environmental
Operating temperature -25℃ to +55℃
Storage temperature -40℃ to +70℃
Relative humidity <95%
Extraordinary sound effect, intelligible treble and
powerful bass
Sturdy ABS enclosure
Popular and stylish design
Stylish design
Simple power setting
Easy installation and cost effective
Adjustable installation brackets
CE and RoHS compliant
Installation/Configuration Notes
Mounting
The cabinet can be mounted horizontally to allowing the
loudspeaker to directed up or down, or vertically to allow left
and right rotation by means of a steel U-shaped wall bracket
(standard supplied).
Power setting
The cabinet include a built-in transformer that offers a
selection of nominal full-power, half-power or quarter-power
radiation for 70 V / 100 V, or 8 ohms bypass. Selection is
done by a convenient switch on the rear enclosure.
165
302
Dimensions in mm
172
