Bosch RFRP-A Installation Manual

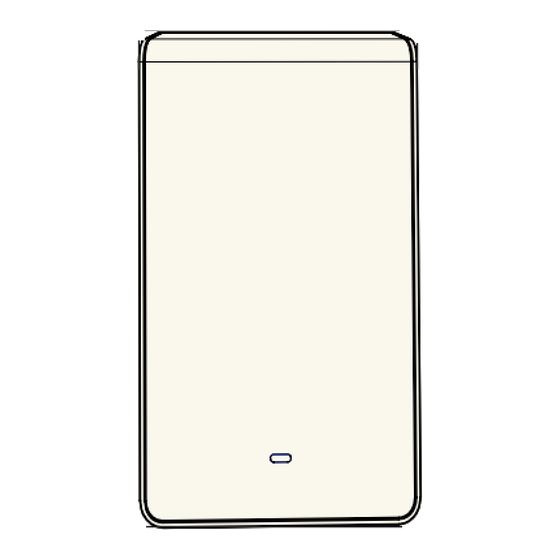

RADION repeater
RFRP/RFRP-A
Installation Manual
1
© 2018 Bosch Security Systems, Inc.
UL - only model RFRP-A is evaluated by UL
UL1023: Standard for Household Burglar-Alarm System Units
UL1076: Standard for Propriety Burglar Alarm Units and Systems
UL1610: Standard for Central-Station Burglar-Alarm Units
UL365: Standard for Police Connected Burglar Alarm Units and System
UL609: Standard for Local Burglar Alarm Units and Systems
UL636: Standard for Holdup Alarm Units and Systems
UL985: Standard for Household Fire Warning System Units
FCC, Part 15
Industry Canada (IC)
Classified to ANSI/SIA CP01-2010
2
CX4010 (18VAC [
D1640 (16.5VAC [
P/N: F.01U.261.834 - B810
P/N: F.01U.261.835 - RFRC-OPT
EN
EN 50131-3
EN 50131-5-3
Grade 2
Environment Class II
INCERT B-509-0074
~
], 22VA)
~
], 40VA)
P/N: F.01U.261.834 - B810
P/N: F.01U.261.835 - RFRC-OPT
139.70 mm 31.80 mm
(5.50 in) (1.25 in)
175.79 mm
209.60 mm
(6.92 in)
(8.25 in)
EVE ENERGY CO CO Part No P0046-LF
3.7 VDC,
3050mAH (Not user replaceable)
P/N: F.01U.261.834 - B810
Functional range: -10°C to +49°C (+14°F to +120°F)
UL only: 0°C to +49°C (+32°F to +120°F)
EN 50130-5 Class II only: -10°C to +40°C (+14°F to +104°F)
3
5x
EN
EN 50131-3:2009
EN 50131-5-3:2005+A1:2008
F.01U.261.824 | 09 | 2018.05 | 1
111.58 mm
(4.39 in)
433.42 MHz
10 mW maximum
0 - 93% Non-condensing
humidity
