Radial Engineering REGENCY User Manual

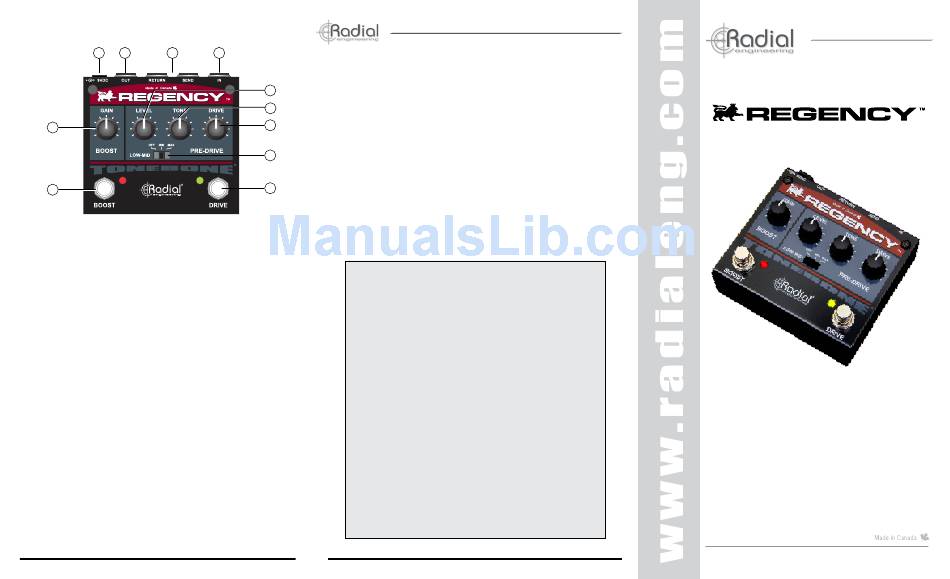

FEATURES
1 2 3
11
10
1. 9VDC POWER: Connection for 9 volt (center negative) power adapter.
Includes a cable clamp to prevent accidental power disconnection.
2. OUTPUT: High-Z ¼" connection to your amplifier.
3. EFX LOOP: Send & receive ¼" jacks used to connect pedals. The effects
loop is engaged by depressing the Boost footswitch and used to add
effects when soloing.
4. IN: Standard ¼" instrument input used to connect your guitar.
5. LEVEL: Used to set the output volume level for the Pre-Drive.
6. TONE: Brightens or darkens the Pre-Drive circuit to suit your guitar and
amp setup.
7. DRIVE: Sets the amount of distortion in the Pre-Drive from very slight
grit to full-on overdrive.
8. LOW-MID: 3-position switch used to tailor the bottom end of the circuit
to adapt the tone to your guitar and amp setup.
9. PRE-DRIVE FOOTSWITCH: Used to activate the Pre-Drive circuit.
10. BOOST FOOTSWITCH: Footswitch activates the power booster and the
effects loop.
11. BOOST GAIN: Variable Class-A power booster – 100% discrete with up
to +18dB of clean gain.
Radial Engineering Ltd.
®
4
Radial Regency Specifications
5
Circuit Type ............................................................................Class A discrete
6
Frequency Response .....................Adjustable via tone and low-mid controls
7
Gain – Boost ....................................................... Variable from 0dB to +23dB
Gain – Overdrive ................................................ Variable from 8dB to +43dB
8
Footswitch - Drive ....................................Latching switch engages overdrive
Footswitch - Boost ...............Latching switch engages boost and effects loop
9
Effects Loop .....Send & return jacks for additional pedals before boost stage
Power ..................................................................9VDC, adapter not included
RADIAL ENGINEERING LTD. ("Radial") warrants this product to be free from defects in
material and workmanship and will remedy any such defects free of charge according to the
terms of this warranty. Radial will repair or replace (at its option) any defective component(s)
of this product (excluding finish and wear and tear on components under normal use) for
a period of three (3) years from the original date of purchase. In the event that a particular
product is no longer available, Radial reserves the right to replace the product with a similar
product of equal or greater value. In the unlikely event that a defect is uncovered, please call
800-939-1001 or email service@radialeng.com to obtain an RA number (Return Authorization
number) before the 3 year warranty period expires. The product must be returned prepaid in
the original shipping container (or equivalent) to Radial or to an authorized Radial repair center
and you must assume the risk of loss or damage. A copy of the original invoice showing date
of purchase and the dealer name must accompany any request for work to be performed
under this limited and transferable warranty. This warranty shall not apply if the product has
been damaged due to abuse, misuse, misapplication, accident or as a result of service or
modification by any other than an authorized Radial repair center.
THERE ARE NO EXPRESSED WARRANTIES OTHER THAN THOSE ON THE FACE
HEREOF AND DESCRIBED ABOVE. NO WARRANTIES WHETHER EXPRESSED
OR IMPLIED, INCLUDING BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE SHALL EXTEND
BEYOND THE RESPECTIVE WARRANTY PERIOD DESCRIBED ABOVE OF THREE
YEARS. RADIAL SHALL NOT BE RESPONSIBLE OR LIABLE FOR ANY SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSS ARISING FROM THE USE OF
THIS PRODUCT. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU
MAY ALSO HAVE OTHER RIGHTS, WHICH MAY VARY DEPENDING ON WHERE YOU
LIVE AND WHERE THE PRODUCT WAS PURCHASED.
™
Regency Radial Engineering Ltd.
True to the Music
RADIAL ENGINEERING 3 YEAR
TRANSFERABLE LIMITED WARRANTY
Regency
PRE-OVERDRIVE PEDAL
USER GUIDE
Radial Engineering Ltd.
1588 Kebet Way, Port Coquitlam BC V3C 5M5
tel: 800-939-1001 • fax: 604-942-1010
info@radialeng.com • www.radialeng.com
Regency ™ User Guide - Part# R870 1013 00 / 09-2016 All rights reserved.
Specifications and appearance are subject to change without notice.
™
True to the Music
®
