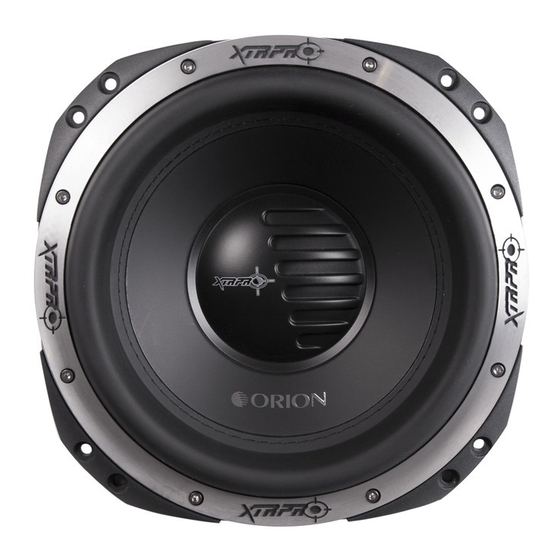

- Page 1 S u b w o o f er MODE L XTRPRO102D XTRPRO104D XTRPRO122D XTRPRO124D XTRPRO152D XTRPRO154D OWNER'S MANUAL...
-
Page 2: Table Of Contents
Warranty ..........Back cover INTRODUCTION Thank you for your purchase of the Orion XTRPRO Subwoofers. These woofers represent a combination of incredible performance and value. -
Page 3: What's In The Box
Care taken with the installation process will be rewarded by years of satisfying performance. If you are unsure of your installation abilities, please refer to your local authorized ORION dealer for assistance. Orion dealers are trained professionals dedicated to extracting the maximum performance out of your Orion system. -
Page 4: Features
FEATURES Figure 1 Figura 1 Abbildung 1 Polypropylene dust cap - moisture and UV resistant. Oversized Santoprene surround for linear controlled long excursion. Vented paper cone - moisture and UV resistant. Custom stamped aluminum frame. Spider ring attachment screws.Part of re-cone feature (8 hex screws) Vented Kapton voice coil former (10”... -
Page 7: Figure
Figure 5 Figura 5 Abbildung 5... -
Page 8: Figure
Figure 6 Figura 6 Abbildung 6... - Page 9 Figure 7 Figura 7 Abbildung 7...
- Page 10 Figure 8 Figura 8 Abbildung 8...
- Page 11 Figure 9 Figura 9 Abbildung 9...
- Page 12 Figure 10 Figura 10 Abbildung 10...
- Page 13 Figure 11 Figura 11 Abbildung 11...
- Page 14 Figure 12 Figura 12 Abbildung 12...
-
Page 15: Specifications
SPECIFICATIONS XTRPRO102D XTRPRO104D XTRPRO122D Model/Part Number Thiele/Small Parameters 39.3 38.7 37.1 Fs (free-air resonance, Hz) 0.634 0.779 1.033 Vas (equivalent compliance, cu. ft.) 17.952 22.056 29.255 Vas (equivalent compliance, liters) 9.776 11.349 Qms (Q, mechanical) 0.407 0.382 Qes (Q, electrical) 0.391... - Page 16 SPECIFICATIONS XTRPRO124D XTRPRO152D XTRPRO154D Model/Part Number Thiele/Small Parameters 34.9 29.1 31.6 Fs (free-air resonance, Hz) 1.346 3.249 2.589 Vas (equivalent compliance, cu. ft.) 38.123 92.002 73.308 Vas (equivalent compliance, liters) 11.337 11.35 9.271 Qms (Q, mechanical) 0.433 0.399 0.471 Qes (Q, electrical) 0.417 0.385 0.448...
-
Page 18: Explanation Of Enclosure Specifications
-3dB. This is an important number when it comes to setting your high-pass filter or your ORION Intelli-Q. The Intelli-Q should be set at the same frequency as the “F3”as this will keep the speaker from damaging or what... -
Page 19: Enclosure Recommendations
ENCLOSURE RECOMMENDATIONS Enclosure Details 1. External dimensions calculated for 3/4” building material 2. Includes speaker displacement 3. Volumes given are net tuning volume 4. Enclosures include a minimal amount of damping material. Just enough material to line the inside of the enclosure is required. XTRPRO102 &... - Page 20 XTRPRO102 & 104 Vented Enclosure Recommendations Box Properties — Box Parameters — — Vents — — Description — Type: Vented Box 0.75 cu.ft No. of Vents V(total) = 0.841 cu.ft Vent shape = round Shape: Prism, Square 44 Hz Vent ends = one flush = 3 in.
- Page 21 XTRPRO122 & 124 Sealed Enclosure Recommendations Box Properties — Box Parameters — — Description — 1.5 cu.ft Type: Closed Box Shape: Prism, Square V(total) = 1.55 cu.ft 0.717 6.886 43.09 Hz Fill none External Dimensions A = 16 in. (406 mm) B = 16 in.
- Page 22 XTRPRO122 & 124 Vented Enclosure Recommendations Box Properties — Box Parameters — Vb — Vents — — Description — Type: Vented Box 1.5 cu.ft No. of Vents V(total) = 1.637 cu.ft Vent shape = round Shape: Prism, Square 40 Hz Vent ends = one flush 6.886...
- Page 23 XTRPRO152 & 154 Sealed Enclosure Recommendations Box Properties — Description — — Box Parameters — Vb Type: Closed Box 2 cu.ft V(total) = 2.078 cu.ft Shape: Prism, Square 0.963 5.281 37.55 Hz Fill none External Dimensions A = 17.5 in. (445 mm) B = 17.5 in.
- Page 24 XTRPRO152 & 154 Vented Enclosure Recommendations Box Properties — Box Parameters — Vb — Vents — — Description — Type: Vented Box 3 cu.ft No. of Vents Shape: Prism, Square V(total) = 3.116 cu.ft Vent shape = round 36 Hz Vent ends = one flush = 4 in.
- Page 25 MDXTRPRO 2014 15 View other subwoofers made by Orion on our website.
