XtendLan HD2MI-111CS User Manual

SD/HD/3G SDI to HDMI Converter PROFESSIONAL MODEL

User Manual

Safety notes:
1). In order to avoid fire, electricity shock or product damage, please
keep the product away from rain, damp, any other liquid, and
pressure.
2). Keep ventilation. Don't put the product in any enclosed cabinet
during it is working, otherwise product damage or fire may be
caused by high temperature.
3). Don't touch the power adapter with wet hands.
4). Please keep the user manual for future reference.
1. Box Content
SDI to HDMI User manual
Converter
2. Installation equipment
1) HDTV or HDMI LCD.
2) SDI source, such as SDI camera, with SDI format SD-SDI, HD-SDI
or 3G-SDI
3. Installation steps
1). Connect the SDI camera to the converter box with SDI cable
2). Connect the converter to the display with HDMI cable
3). Connect power adapter of all devices, and switch the display to
the right channel. As per user's need, the SDI output can be
connected with SDI DVR, etc.
4. Operation
1). SDI input:
adjust the SDI input resolution as per the parameters of the
converter box, and the SDI resolution the converter box supports
is: 480i@60HZ; 576i@50HZ; 720P@50HZ/60HZ;
1080i@50HZ/60HZ; 1080P@24/25/30/50/60HZ.
DC 5V 1A
power adapter
When the converter box is compatible with the input SDI
resolution, the green LED lights, otherwise, the red LED will light.
2). HDMI output
Switch the display to the right channel. Please switch the output
resolution between 720P and 1080P as per the display features.
NOTE: this product is with scaler function, and will upscale the
SDI resolution to HDMI and the output resolution is fixed at 720P
or 1080P.
3). SDI output :
There is one more SDI output pass through, and users can
connect to SDI display or SDI DVR as per their need

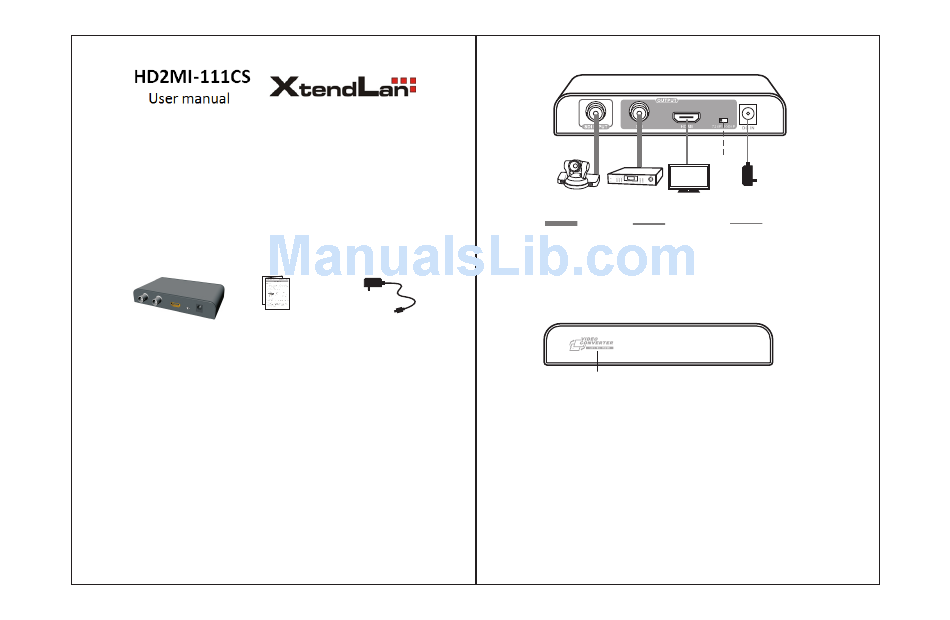

A B
C
SDI Input SDI Input SDI Output SDI Output HDMI Output HDMI Output Resolution Resolution
Switch Switch
SDI camera or other SDI DVR or other
HDMI display
SDI devices
SDI devices
SDI cable HDMI cable
LED
（1）
Rear panel
Power in Power in
5V/1A
Power adapter
（2）
Front panel
