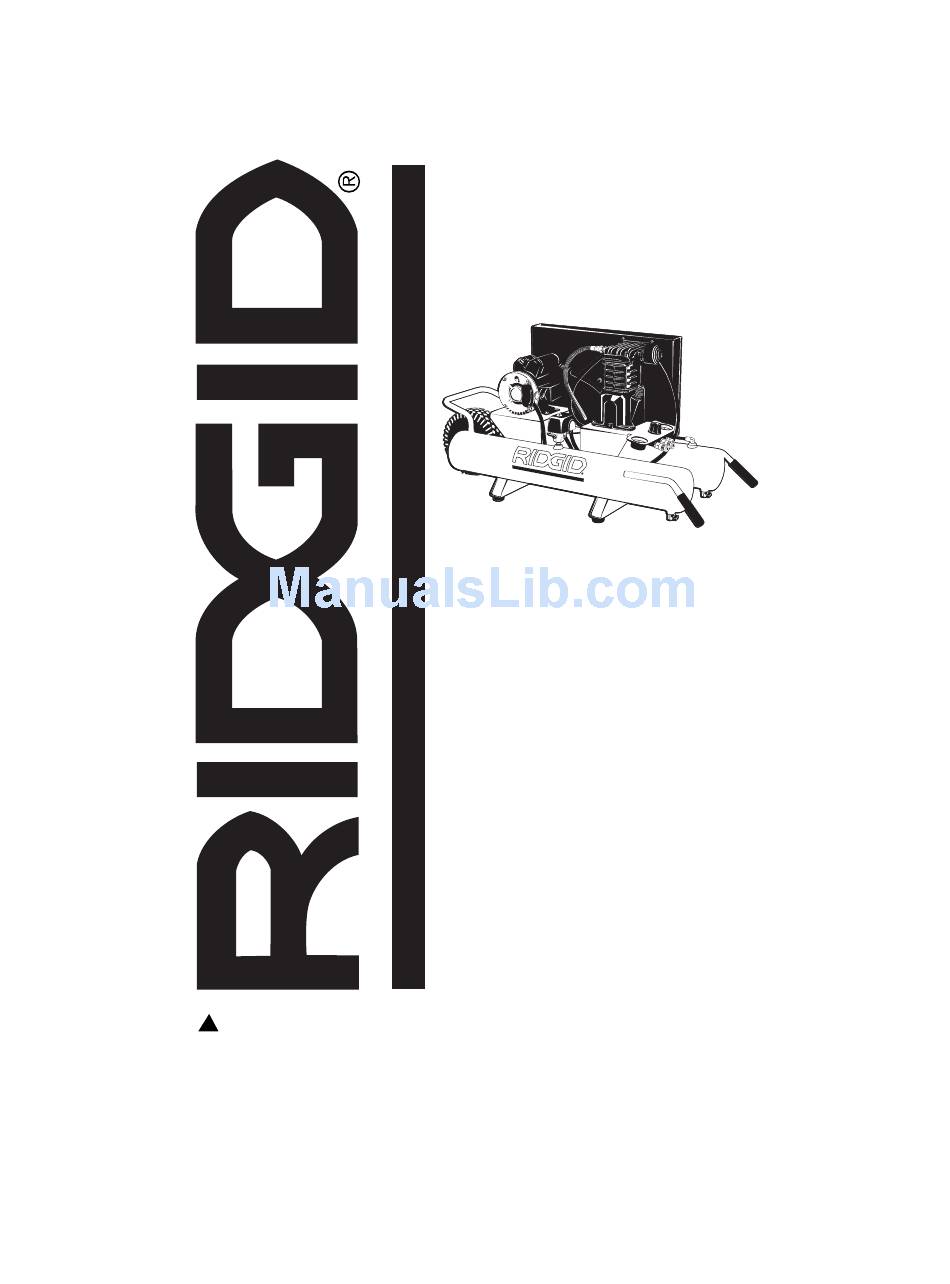

- Page 1 WARNING: To reduce the risk of injury, the user must read and understand the Operator’s Manual before using this product. IN614300AV 9/04 OL90150 OPERATOR’S MANUAL WHEELBARROW COMPRESSOR Printed in U.S.A.
-
Page 2: Table Of Contents
Getting to Know Your Air Compressor ....12 Operating Your Air Compressor . . .14 Moisture in Compressed Air ..14 Lubrication . -
Page 3: Safety Instructions
WILL result in death or serious injury. Before Using the Air Compressor Since air compressors and other compo- nents (material pump, spray gun, filters, lubrications, hoses, etc.) used make up a... - Page 4 Safety Instructions (continued) 8. Follow all local electrical and safety codes, as well as the National Electrical Code (NEC) and the Occupational Safety and Health Act (OSHA). 9. Wiring and fuses should follow electri- cal codes, current capacity, and be properly grounded.
-
Page 5: Spraying Precautions
This compressor/pump is not equipped and should not be used “as is” to supply breathing quality air. For any application of air for human consumption, the air compressor/pump will need to be fitted with suitable in-line safety and alarm equipment. This additional... -
Page 6: Warning Labels
Safety Instructions (continued) Warning Labels Find and read all warning labels found on the air compressor shown below DK724100AV 1000... -
Page 7: Motor Specifications And Electrical Requirements
Motor Specifications and Electrical Requirements Power Supply and Motor Specifications WARNING: To reduce the risk of electrical hazards, fire hazards or damage to the tool, use proper circuit protection. Your tool is wired at the factory for operation using the voltage shown. Connect tool to a power line with the appropriate voltage and a 15- amp branch circuit. -
Page 8: 110-120 Volt, 60Hz Tool Information
Extension Cords 1. The air compressor should be located where it can be directly plugged into an outlet. An extension cord should not be used with this unit. -
Page 9: Changing Motor Voltage
Changing Motor Voltage NOTE: The motor is prewired at the fac- tory for 120V operation. Use the follow- ing procedure to change motor voltage to 240V. 1. Unplug the power cord before making or modifying connections. 2. Remove the hitch pin. 3. -
Page 10: Thermal Overload Protector
Amps or Amperage A measure of the electrical force minus the resistance on an electrical line. RIDGID air compressors require 15 amps for operation. Be sure the com- pressor will operate on an electrical line with the proper amps. If other appliances operate on the same line, they will reduce the available amps. -
Page 11: Contents
Tank Pressure Gauge Indicates tank pressure in psi. Unpacking and Checking Contents 1. Remove the air compressor from the carton. 2. Place the compressor on a secure, stationary work surface and look it over carefully. -
Page 12: Getting To Know Your Air Compressor
Getting to Know Your Air Compressor Motor Voltage Selector Switch Air Storage Tank On/Off Switch (Pressure Switch) Regulated Outlet Gauge Air Outlet Fittings Belt Guard Air Filter Dipstick Handles Tank Drain Valve Regulator Knob Tank Pressure Gauge ASME Safety Valve... - Page 13 1. Belt Guard. The belt guard encloses the pulleys and drive belt. It protects the user from moving parts and directs cooling air to the compressor pump. 2. Air Filter. The air filter keeps dirt and debris from entering the compressor pump and reduces compressor noise.
-
Page 14: Operating Your Air Compressor
Operating Your Air Compressor All lubricated compressor pumps dis- charge some condensed water and oil with the compressed air. Install appropri- Moisture in Compressed Air Moisture in compressed air will form into droplets as it comes from an air com- pressor pump. -
Page 15: Operating Your Air Compressor
Operating Your Air Compressor 1. Remove the dipstick and fill pump to the proper oil level. See Lubrication Section. 2. Open tank drain valves and turn regu- lator knob counterclockwise. 3. Turn pressure switch knob to OFF position and plug in power cord. -
Page 16: For Trouble-Free Operation
Operating Your Air Compressor (continued) For Trouble-Free Operation 1. Read instructions: Carefully read through this operator’s manual BEFORE OPERATING the new air compressor. It contains information about operation and maintenance of the unit. 2. Drain tanks daily: Depressurize sys- tem prior to draining tanks. Open tank drain valves and drain moisture from tanks. -
Page 17: Maintenance
Maintenance WARNING: Release all pressure and dis- connect power before making any repair. 1. Check compressor for any visible problems, especially check air filter to be sure it is clean. 2. Pull ring on safety valve and allow it to snap back to normal position. -
Page 18: Tank
Maintenance (continued) Tank DANGER: Never attempt to repair or modi- fy a tank! Welding, drilling or any other modification will weaken the tank resulting in damage from rupture or explo- sion. Always replace worn, cracked or damaged tanks. NOTICE: Drain liquid from tanks daily. The tanks should be carefully inspected at a minimum of once a year. -
Page 19: Storage
2. With a marker, mark the edge where the motor meets the base (the edge farthest away from the pump). 3. Remove the belt guard bolt and nut. 4. Remove the front belt guard cover. 5. Loosen the four motor mounting bolts. -
Page 20: Troubleshooting
Troubleshooting WARNING: For your own safety do not try and run the air compressor while troubleshooting. TROUBLE PROBABLE CAUSE Compressor will not 1. Unit is plugged into extension cord 2. No electrical power 3. Blown fuse 4. Breaker open 5. Thermal overload open 6. - Page 21 TROUBLE PROBABLE CAUSE Thermal overload 1. Low voltage protector cuts out 2. Clogged air filter repeatedly 3. Lack of proper ventila- tion/room temperature too high 4. Unit is plugged into extension cord Air tank pressure 1. Loose connections (fit- drops when com- tings, tubing, etc.) pressor shuts off 2.
- Page 22 Troubleshooting (continued) TROUBLE PROBABLE CAUSE Low discharge pres- 1. Air leaks sure 2. Leaking valves 3. Restricted air intake 4. Slipping belts 5. Blown gaskets 6. Low compression REMEDY 1. Listen for escaping air. Apply soap solution to all fittings and connections. Bubbles will appear at points of leakage.
- Page 23 TROUBLE PROBABLE CAUSE Excessive belt wear 1. Pulley out of alignment 2. Belt too loose or too tight 3. Belt slipping 4. Pulley wobbles Oil in the discharge 1. Worn piston rings 2. Compressor air intake restricted 3. Restricted breather 4.
-
Page 24: Repair Parts
Repair Parts To pump... - Page 25 Repair Parts For Repair Parts, Call 1-800-4-RIDGID Please provide following information: -Model number -Serial number (if any) -Part description and number as shown in parts list Ref. Catalog Part Number Number 20353 AR054700CG 17853 ST158300AV 18038 ST116400AV 20358 ST085800AV 20363...
- Page 26 Repair Parts...
- Page 27 Repair Parts For Repair Parts, Call 1-800-4-RIDGID Please provide following information: -Model number -Serial number (if any) -Part description and number as shown in parts list Ref. Catalog Part Number Number 18143 VT040300AG — 18133 VT041700AJ 18128 VT040750AG — 18158...
-
Page 28: Warranty
(toll free) 1-800-4-RIDGID. WHAT IS COVERED UNDER THE LIMITED THREE YEAR WARRANTY This warranty covers all defects in workmanship or materials in this RIDGID air com- pressor for the three-year period from the date of purchase. This warranty is specif- ic to this air compressor.
