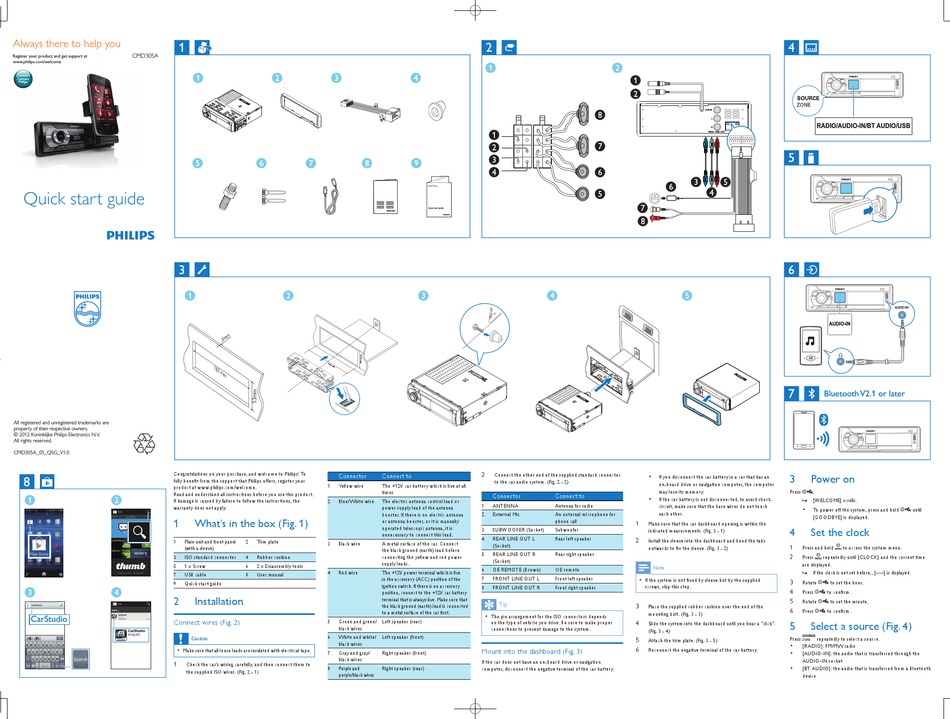

Philips CMD305A Quick Start Manual

1
CMD305A
Question?
Contact
Philips

Quick start guide

3
All registered and unregistered trademarks are
property of their respective owners.
© 2012 Koninklijke Philips Electronics N.V.
All rights reserved.
CMD305A_05_QSG_V1.0
Congratulations on your purchase, and welcome to Philips! To
fully benefit from the support that Philips offers, register your
product at www.philips.com/welcome.
Read and understand all instructions before you use this product.
If damage is caused by failure to follow the instructions, the
warranty does not apply.
1
1 Main unit and front panel
(with a sleeve)
3 ISO standard connector
5 1 x Screw
7 USB cable
9 Quick start guide
2
CarStudio
Connect wires (Fig. 2)
Caution
•
Make sure that all loose leads are insulated with electrical tape.
1
Check the car's wiring carefully, and then connect them to
the supplied ISO wires. (Fig. 2 - 1)
c
1 8
3 m
m
Connector
1 Yellow wire
2 Blue/White wire
What's in the box (Fig. 1)
2 Trim plate
3 Black wire
4 Rubber cushion
6 2 x Disassembly tools
4 Red wire
8 User manual
Installation
5 Green and green/
black wires
6 White and white/
black wires
7 Gray and gray/
black wires
8 Purple and
purple/black wires
2
d
Quick start guide
2
Connect the other end of the supplied standard connector
Connect to
to the car audio system. (Fig. 2 - 2)
The +12V car battery which is live at all
times
Connector Connect to
The electric antenna control lead or
1 ANTENNA Antenna for radio
power supply lead of the antenna
External Mic
booster. If there is no electric antenna 2 An external microphone for
phone call
or antenna booster, or it is manually
operated telescopic antenna, it is
3 SUBWOOFER (Socket) Subwoofer
unnecessary to connect this lead.
4 REAR LINE OUT L Rear left speaker
A metal surface of the car. Connect
(Socket)
the black ground (earth) lead before
REAR LINE OUT R
5 Rear right speaker
connecting the yellow and red power
(Socket)
supply leads.
6 OE REMOTE (Brown) OE remote
The +12V power terminal which is live
7 FRONT LINE OUT L Front left speaker
in the accessory (ACC) position of the
ignition switch. If there is no accessory
8 FRONT LINE OUT R Front right speaker
position, connect to the +12V car battery
terminal that is always live. Make sure that
Tip
the black ground (earth) lead is connected
to a metal surface of the car first.
•
The pin arrangement for the ISO connectors depends
Left speaker (rear)
on the type of vehicle you drive. Be sure to make proper
connections to prevent damage to the system.
Left speaker (front)
Mount into the dashboard (Fig. 3)
Right speaker (front)
If the car does not have an on-board drive or navigation
Right speaker (rear) computer, disconnect the negative terminal of the car battery.
a
b
SUB-W
h
L
R
REAR LINE OUT
g
f
c e
f
d
e
g
h
•
If you disconnect the car battery in a car that has an
on-board drive or navigation computer, the computer
may lose its memory.
•
If the car battery is not disconnected, to avoid short-
circuit, make sure that the bare wires do not touch
each other.
1
Make sure that the car dashboard opening is within the
indicated measurements. (Fig. 3 - 1)
2
Install the sleeve into the dashboard and bend the tabs
outwards to fix the sleeve. (Fig. 3 - 2)
Note
•
If the system is not fixed by sleeve but by the supplied
screws, skip this step.
3
Place the supplied rubber cushion over the end of the
mounting bolt. (Fig. 3 - 3)
4
Slide the system into the dashboard until you hear a "click".
(Fig. 3 - 4)
5
Attach the trim plate. (Fig. 3 - 5)
6
Reconnect the negative terminal of the car battery.
4
RESET
RADIO/AUDIO-IN/BT AUDIO/USB
5
RESET
RESET
AUDIO-IN
AUDIO-IN
Bluetooth V2.1 or later
RESET
3 Power on
Press .
[WELCOME] scrolls.
»
•
To power off the system, press and hold until
[GOODBYE] is displayed.
4 Set the clock
1
Press and hold to access the system menu.
2
Press repeatedly until [CLOCK] and the current time
are displayed.
» If the clock is not set before, , [--:--] is displayed.
3
Rotate to set the hour.
4
Press to confirm.
5
Rotate to set the minute.
6
Press to confirm.
5 Select a source (Fig. 4)
Press repeatedly to select a source.
•
[RADIO]: FM/MW radio
•
[AUDIO-IN]: the audio that is transferred through the
AUDIO-IN socket
•
[BT AUDIO]: the audio that is transferred from a Bluetooth
device
