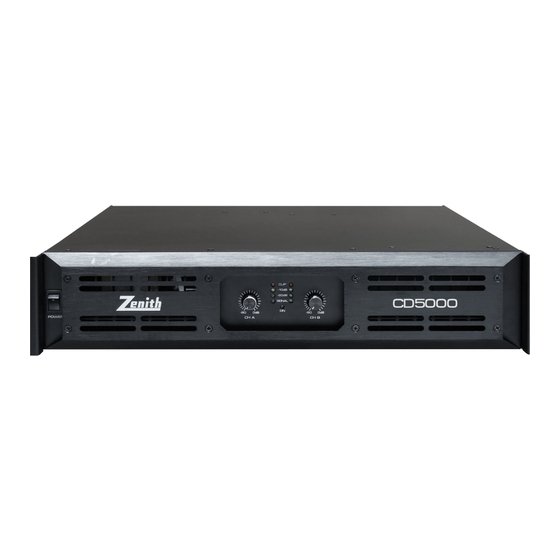

- Page 1 CD Series Amplifiers User Manual Order codes: AMP06 - CD 5000 AMP07 - CD 8000...
-
Page 2: Safety Advice
Safety advice WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! • Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all the parts are present. • Before initial start-up, please make sure that there is no damage caused during transportation. • Should there be any damage, consult your dealer and do not use the equipment. • Retain the carton and all packaging materials. • In the event that the equipment must be returned to the supplier, it is important that the equipment is returned in the original carton and packaging. • To maintain the equipment in good working condition and to ensure safe operation, it is necessary for the user to follow the safety instructions and warning notes written in this manual. • Please note that damages caused by user modifications to this equipment are not subject to warranty. CAUTION! CAUTION! KEEP THIS EQUIPMENT TAKE CARE USING AWAY FROM MOISTURE, THIS EQUIPMENT! RAIN AND LIQUIDS, AND... - Page 3 1 x 5000Wrms 1 x 5000Wrms Switchable stereo, Frequency response 20Hz to 20kHz 20Hz to 20kHz parallel and bridge and Input sensitivity 1.2V, 32dB or 26dB 1.2V, 32dB or 26dB low pass filter Min. Load impedance (Stereo) 2Ω 2Ω Min. Load impedance (Bridge) 4Ω 4Ω Power supply 220-240V AC 50/60Hz 220-240V AC 50/60Hz Power consumption 1200W (1/8 power @ 8Ω) 1860W (1/8 power @ 8Ω) Dimensions 88 x 483 x 460mm 88 x 483 x 460mm Weight 9.5kg 10.8kg Order code AMP06 AMP07 483mm 460mm www.prolight.co.uk CD Series Amplifiers User Manual...
-
Page 4: Technical Specifications
Technical specifications Front panel CLIP -10dB -20dB CD8000 SIGNAL POWER CH A CH B 01 - Clip LEDs - These LEDs flash red to indicate when the 03 - Power LED - This LED illuminates when the amplifier output of the amplifier has reached the maximum, and is is switched on right on the edge of clipping. Clipping is bad for speakers 04 - Signal LEDs - These LEDs illuminate when the amplifier and should be avoided. It is okay if the LED blinks is relieving an input signal occasionally. It means that the transient peaks of the 05 - Power switch - Press this switch to power on the amplifier music are just hitting the full output of the amplifier. 02 - Gain control - These two knobs control the levels of Amplifiers should be the last device in the audio chain to Channels 1 and 2. Usually, these controls are set all be powered on. the way up. After you have set the levels for the mixer (or other signal source), adjust the Level controls on the amplifier as the final adjustment to set the overall volume for the system. In stereo and mono mode, use both level controls to control the levels going to each speaker. In bridged mode, turn the channel 2 level control down, and just use the channel 1 control. www.prolight.co.uk CD Series Amplifiers User Manual... -
Page 5: Rear Panel
Rear panel 01 - These balanced XLR outputs can be used to pass Example: through the signal to additional power amplifiers. • One mono signal driving both channels, with independent gain control for each speaker system. 02 - XLR inputs - These inputs allow you to connect balanced XLR plugs. These are wired with pin 2 hot, pin 3 cold and Bridge mode - This mode combines the full power pin 1 ground capabilities of both channels into a single speaker 03 - There are two ways of connecting your speakers: system. The amplifier internally re-configures so that Locking speaker connectors or binding posts. both channels operate as a unit. This delivers double the The connectors are wired in parallel. (e.g. Channel 1 output voltage, resulting in four times the peak power binding post and locking speaker connectors are in and three times the sustained power into a single 8- or parallel and the same for channel 2). 4-ohm speaker load. Connections for bridge mono mode When the amplifier is used in bridged mono mode use are different to those used in Stereo or Parallel mode. the output bridge locking speaker connector or the two Examples: red binding posts. • Driving a single 8-ohm speaker with the combined 04 - Locking power socket - This is where you connect the 4-ohm power of both channels. detachable locking power cable. Connect the other end • Driving a single 4-ohm speaker with the combined to a 220-240V, 50/60Hz AC outlet. 2-ohm power of both channels. 05 - Amp mode - This switch determines the input signal Precautions: Bridge Mono mode makes it possible routing within the amplifier. For most applications stereo to drive thousands of watts into a single speaker. will be used. AC current consumption will usually be higher. Avoid excessive signal level, and make sure the wiring and Stereo mode - This is the "normal" way of using the speaker can handle the power. -
Page 6: Rack Installation
Operating instructions Rack installation The CD Series is built for 19” racks. The rack you use should be a ‘double door rack’ where you can open the front and rear panel. When mounting the amplifier into the rack, please make sure that there is enough space around the amplifier. Be careful when mounting the amplifier into the rack. Put the heaviest products into the lower part of the rack. Be aware that fastening the amplifier with four screws on the front panel is not enough. If the racks are being transported or used for mobile use, additionally fasten the products by connecting the rear brackets with the side or ground bars of the rack. In this way, the amplifier cannot be pushed backwards. The front panel is not designed to absorb acceleration forces occurring during transportation. Inputs Short cables runs improve the sound quality remarkably. Input cables should be short and direct, since high frequencies will mostly be absorbed if the cables are unnecessarily long. Besides that a longer cable may lead to humming and noise problems. If the cable runs are unavoidable, you should use balanced cables. Outputs The high damping factor of your amplifier supplies a clear sound reproduction. Unnecessarily long and thin cables will influence the damping factor and thus the low frequencies in a negative way. In order to safeguard good sound quality, the damping factor should lie around 50. The longer a cable has to be the thicker it should be, as a minimum 2.5m should be used, however 4.0m or 6.0m is recommended. Connect your speaker systems via the locking speaker connectors or the Banana/Screw combination (red+, black-) Connection to the mains Connect the amplifier only after having made sure that the correct voltage (220-240V) is supplied and that the ground cable is earthed. This product falls under Class 1. Do not detach the ground cable. www.prolight.co.uk CD Series Amplifiers User Manual... -
Page 7: Operation
Operating instructions Operation After having connected your amplifier to the mains, turn both gain controls counter clockwise to the “-80” position. The last product to be switched on is amplifier. The “ON” LED lights up now. If it does not, check if the amplifier is connected to the mains correctly. After having powered on the amplifier, turn the gain controls of your amplifier to mid-position. Now adjust the volume with the gain controls CH A and CH B. All important operating modes of the amplifier are arranged on the front panel. -10 dB to -20dB - Output level Clip - Short circuit or impedance too low or signal distorted If you want to switch off the system, switch off the amplifier first in order to avoid acoustic shocks on the speakers. Problem Chart Problem Cause Solution No power The power cable is not connected Check the power cable and any extension cables The power cable of the respective product is Check the power cable and if the plugs are properly not connected correctly or not at all. connected with the sockets No sound The connection socket or the plug is dirty Clean the socket and/or the plug Noise The input signal is too strong Reduce the input signal via the gain control Fan does not work, The power cable is not connected Connect the power cable LEDs do not light up www.prolight.co.uk CD Series Amplifiers User Manual... -
Page 8: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk CD Series Amplifiers User Manual...
