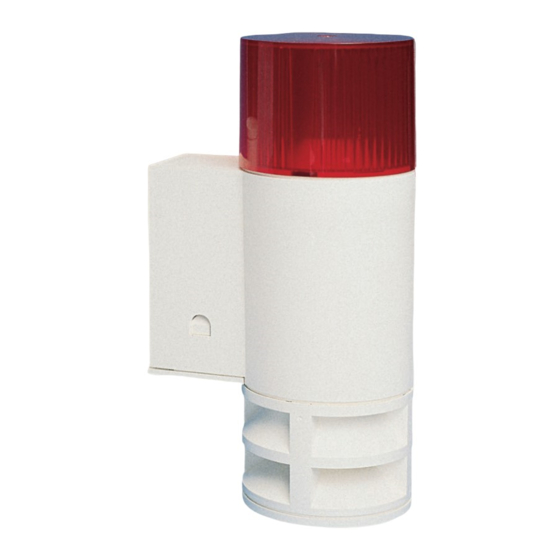

- Page 1 BES External Signaling Devices IUI-BES-AO, IUI-BES-A Installation Manual...
-
Page 3: Table Of Contents
BES External Signaling Devices Table of Contents | en Table of contents Safety Short information System overview Installation Connection Technical data Bosch Sicherheitssysteme GmbH Installation Manual 2017.07 | 04 | F.01U.318.493... -
Page 4: Safety
(in accordance with the European Waste Electrical and Electronic Equipment Directive). To dispose of old electrical or electronic devices, you should use the return and collection systems put in place in the country concerned. 2017.07 | 04 | F.01U.318.493 Installation Manual Bosch Sicherheitssysteme GmbH... -
Page 5: Short Information
Short information | en Short information This manual describes the installation and connection of the BES external signaling devices. It applies only to the following products: – IUI-BES-AO, sold as of 12/2015 – IUI-BES-A, sold as of 07/2017 Bosch Sicherheitssysteme GmbH Installation Manual... -
Page 6: System Overview
| System overview BES External Signaling Devices System overview Figure 3.1: System overview Element Description Connectors Wall-mounting bracket Threaded bolt, only accessible from the right Snap-in latches Holes for black screws 2017.07 | 04 | F.01U.318.493 Installation Manual Bosch Sicherheitssysteme GmbH... -
Page 7: Installation
In case of difficult installation conditions (for example walls with full thermal insulation or roughcast plaster), an adapter module must be used. – When mounting, clearance (to roof overhang) of at least 350 mm for IUI-BES-AO and of at least 280 mm for IUI-BES-A must be allowed for. Opening the housing... -
Page 8: Connection
Connector B Terminal resistors The terminal resistors depend on the security system (12k1 prefitted). Connection of the system to connector A on the wall-mounting bracket (without using an optional wall tamper) 2017.07 | 04 | F.01U.318.493 Installation Manual Bosch Sicherheitssysteme GmbH... - Page 9 Description Wall-mounting bracket Connector A Wall tamper Acoustic input Visual input If you are using a long cable with a resistance higher than 9 ohm, use B2 instead of B1. Bosch Sicherheitssysteme GmbH Installation Manual 2017.07 | 04 | F.01U.318.493...
- Page 10 | Connection BES External Signaling Devices Wiring of the system to connector A on the wall-mounting bracket (class C) for IUI-BES-AO IUI-BES-AO Element Description Security system System-depending output voltage Acoustic control Optical control Terminal resistors The terminal resistors depend on the security system (12k1 prefitted).
- Page 11 BES External Signaling Devices Connection | en If you are using a long cable with a resistance higher than 9 ohm, use B2 instead of B1. Bosch Sicherheitssysteme GmbH Installation Manual 2017.07 | 04 | F.01U.318.493...
-
Page 12: Technical Data
Maximum current consumption in mA (peak) Flashes per s Duration of flashes in ms Mechanical Dimension in cm (H x W x D) IUI-BES-AO: 30.05 x 11.0 x 16.5 IUI-BES-A: 22.5 x 16.5 x 11 Weight in g IUI-BES-AO: 1200 IUI-BES-A: 1050... - Page 14 Bosch Sicherheitssysteme GmbH Robert-Bosch-Ring 5 85630 Grasbrunn Germany www.boschsecurity.com © Bosch Sicherheitssysteme GmbH, 2017...
