Summary of Contents for HIKVISION DS-2CD4025FWD-A
- Page 1 Network Box Camera Quick Start Guide UD04345B Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com...
- Page 2 Any and all information, including, among others, wordings, pictures, graphs are the properties of Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter referred to be “Hikvision”). This user manual (hereinafter referred to be “the Manual”) cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of Hikvision.
- Page 3 LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS.
-
Page 4: Fcc Information
Network Box Camera·Quick Start Guide IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS. Regulatory Information FCC Information FCC compliance: This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of the FCC Rules. -
Page 5: Safety Instruction
Network Box Camera·Quick Start Guide 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. - Page 6 Network Box Camera·Quick Start Guide Warnings Follow these Cautions Follow these safeguards to prevent precautions to prevent serious injury or death. potential injury or material damage. Warnings ● Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user. ● In the use of the product, you must be in strict compliance with the electrical safety regulations of the nation and region.
- Page 7 Network Box Camera·Quick Start Guide ● If smoke, odor or noise rise from the device, turn off the power at once and unplug the power cable, and then please contact the service center. Cautions ● Make sure the power supply voltage is correct before using the camera.
- Page 8 Network Box Camera·Quick Start Guide ● While in delivery, the camera shall be packed in its original packing, or packing of the same texture. ● Regular part replacement: a few parts (e.g. electrolytic capacitor) of the equipment shall be replaced regularly according to their average enduring time.
-
Page 9: Table Of Contents
Network Box Camera·Quick Start Guide Table of Contents 1 Appearance Description ..............9 2 Installation..................13 2.1 Ceiling Mounting............14 2.2 Wall Mounting .............. 16 2.3 Installing the SD Card ............ 20 3 Setting the Network Camera over the LAN ........21 3.1 Wiring ................ -
Page 10: Appearance Description

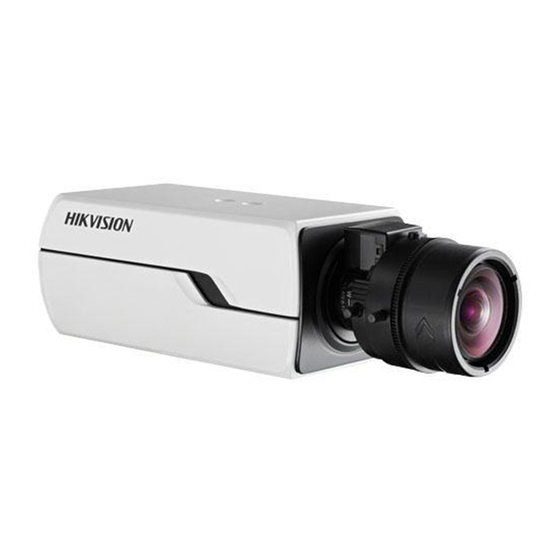

Network Box Camera·Quick Start Guide 1 Appearance Description The overview of the box camera is shown below: Figure 1-1 Overview (1) The overview of the components and the interface are shown below: Figure 1-2 Overview (2) The interfaces on the rear panel are shown below: Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com... - Page 11 Network Box Camera·Quick Start Guide Figure 1-3 Overview (3) Table 1-1 Description Description Description Lens Mount ¼ -20 UNC Screw Hole Power Indicator Description Description Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com...
- Page 12 Network Box Camera·Quick Start Guide Auto-iris Interface LAN(PoE) Power Outlet Reset Micro SD Card Slot Video Out Grounding Alarm Out RS-232 RS-485 Alarm In Audio Out Audio In To reset the camera default parameters, you need to press and hold the RESET button and power on the camera.
- Page 13 Network Box Camera·Quick Start Guide DC-driven Damp Damp+ Drive+ Drive- Power, Video and GND pins are used when the auto-iris is driven by video; Damp+, Damp-, Drive+ and Drive- pins are used when the auto-iris is driven by DC. Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com...
-
Page 14: Installation
Network Box Camera·Quick Start Guide 2 Installation Before you start: ● Make sure the device in the package is in good condition and all the assembly parts are included. ● The standard power supply is 12V DC or 24V AC, please make sure your power supply matches with your camera. -
Page 15: Ceiling Mounting
Network Box Camera·Quick Start Guide 2.1 Ceiling Mounting Steps: 1. Install the ceiling mount to the ceiling with the supplied expansion screws. Adjustable Nut Figure 2-1 Install the Mount 2. Fit the lens (not supplied) to the camera and rotate it to get it tightened. - Page 16 Network Box Camera·Quick Start Guide 3. Plug the auto-iris cable to the auto-iris interface. Figure 2-2 Install the Lens 4. Align the screw hole on the camera with the ceiling mount and rotate the camera to get it fixed. 5. Adjust the surveillance angle. 1).
-
Page 17: Wall Mounting
Network Box Camera·Quick Start Guide Knob Figure 2-3 Install the Camera to the Mount and Adjust the Angle 2.2 Wall Mounting Steps: 1. Install the lens (not supplied) to the camera and rotate it to get it tightened. 2. Plug the auto-iris cable to the auto-iris interface. Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com... - Page 18 Network Box Camera·Quick Start Guide Figure 2-4 Install the Lens You need to use the CS adapter ring if C type lens is adopted. 3. Fix the bracket to the wall with the screws. Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com...
- Page 19 Network Box Camera·Quick Start Guide Pedestal Tilt Adjust Screw Figure 2-5 Install the Wall Bracket 4. Align the camera to the pedestal, and fix the camera with the supplied screws. Pan Adjust Screw Figure 2-6 Install the Camera to the Bracket 5.
- Page 20 Network Box Camera·Quick Start Guide 2). Adjust the focus level to obtain a perfect image on the monitor. Please do not remove the lens cap until you finish the installation to avoid the scrape and dust during the installation and wiring. 6.
-
Page 21: Installing The Sd Card
Network Box Camera·Quick Start Guide 7. (Optional) For the camera supports ABF, you can adjust the focus manually, or click the ABF button on the rear panel of the camera to adjust the focus automatically. 2.3 Installing the SD Card ... -
Page 22: Setting The Network Camera Over The Lan
Network Box Camera·Quick Start Guide 3 Setting the Network Camera over the Note: You shall acknowledge that the use of the product with Internet access might be under network security risks. For avoidance of any network attacks and information leakage, please strengthen your own protection. -
Page 23: Activating The Camera
Network Box Camera·Quick Start Guide 3.2 Activating the Camera You are required to activate the camera first by setting a strong password for it before you can use the camera. Activation via Web Browser, Activation via SADP, and Activation via Client Software are all supported. -
Page 24: Activation Via Sadp Software
Network Box Camera·Quick Start Guide Figure 3-3 Activation Interface(Web) 3. Create a password and input the password into the password field. STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. - Page 25 Network Box Camera·Quick Start Guide Get the SADP software from the supplied disk or the official website, and install the SADP according to the prompts. Follow the steps to activate the camera. Steps: 1. Run the SADP software to search the online devices. 2.
-
Page 26: Modifying The Ip Address
Network Box Camera·Quick Start Guide STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. - Page 27 Network Box Camera·Quick Start Guide Steps: 1. Run the SADP software. 2. Select an active device. 3. Change the device IP address to the same subnet with your computer by either modifying the IP address manually or checking the checkbox of Enable DHCP. Figure 3-5 Modify the IP Address Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com...
- Page 28 Network Box Camera·Quick Start Guide Note: You can enable the Hik-Connect service for the device during activation. Refer to Chapter 5.1 for detailed information. 4. Input the admin password and click Modify to activate your IP address modification. The batch IP address modification is supported by the SADP. Refer to the user manual of SADP for details.
-
Page 29: Accessing Via Web Browser
Network Box Camera·Quick Start Guide 4 Accessing via Web Browser System Requirement: Operating System: Microsoft Windows XP SP1 and above version CPU: 2.0 GHz or higher RAM: 1G or higher Display: 1024×768 resolution or higher Web Browser: Internet Explorer 8.0 and above version, Apple Safari 5.0.2 and above version, Mozilla Firefox 5.0 and above version and Google Chrome 18 and above version Steps:... - Page 30 Network Box Camera·Quick Start Guide 4. Click Login. Figure 4-1 Login Interface 5. Install the plug-in before viewing the live video and managing the camera. Follow the installation prompts to install the plug-in. Note: You may have to close the web browser to finish the installation of the plug-in.
-
Page 31: Operating Via Hik-Connect App
Network Box Camera·Quick Start Guide 5 Operating via Hik-Connect App Purpose: Hik-Connect is an application for mobile devices. With the App, you can view live image of the camera, receive alarm notification and so Note: Hik-Connect service is not supported by certain camera models. Enable Hik-Connect Service on Camera Purpose: Hik-Connect service should be enabled on your camera before using... -
Page 32: Enable Hik-Connect Service Via Web Browser
Network Box Camera·Quick Start Guide Figure 5-1 Verification Code Setting (SADP) Note: The verification code is required when you add the camera to Hik-Connect app. 3. Click and read "Terms of Service" and "Privacy Policy". 4. Confirm the settings. 5.1.2 Enable Hik-Connect Service via Web Browser Before you start: You need to activate the camera before enabling the service. - Page 33 Network Box Camera·Quick Start Guide Steps: 1. Access the camera via web browser. Refer to Chapter 4. 2. Enter platform access configuration interface: Configuration > Network > Advanced Settings > Platform Access Figure 5-2 Platform Access Configuration (Web) 3. Select Platform Access Mode as Hik-Connect. 4.
-
Page 34: Hik-Connect Setup
Network Box Camera·Quick Start Guide Hik-Connect Setup Steps: 1. Download and install the Hik-Connect app by searching “Hik-Connect” in !pp Store or Google Play 2. Launch the app and register for a Hik-Connect user account. 3. Log in Hik-Connect app after registration. Adding Camera to Hik-Connect Before you start: You need to enable the Hik-Connect service on camera before... - Page 35 Network Box Camera·Quick Start Guide You can find the QR code on the camera or on the cover of the Quick Start Guide of the camera in the package. Figure 5-4 Scan QR Code Note: If the QR code is missing or too blur to be recognized, you can also add the camera by tapping the icon and inputting the camera's serial number.
-
Page 36: Initializing The Memory Card
Network Box Camera·Quick Start Guide Initializing the Memory Card Steps: Check the memory card status by tapping on the Storage Status in the Device Settings interface. If the memory card status displays as Uninitialized, tap to initialize it. The status will then change to Normal. You can then start recording any event triggered video in the camera such as motion detection. - Page 37 Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com...
