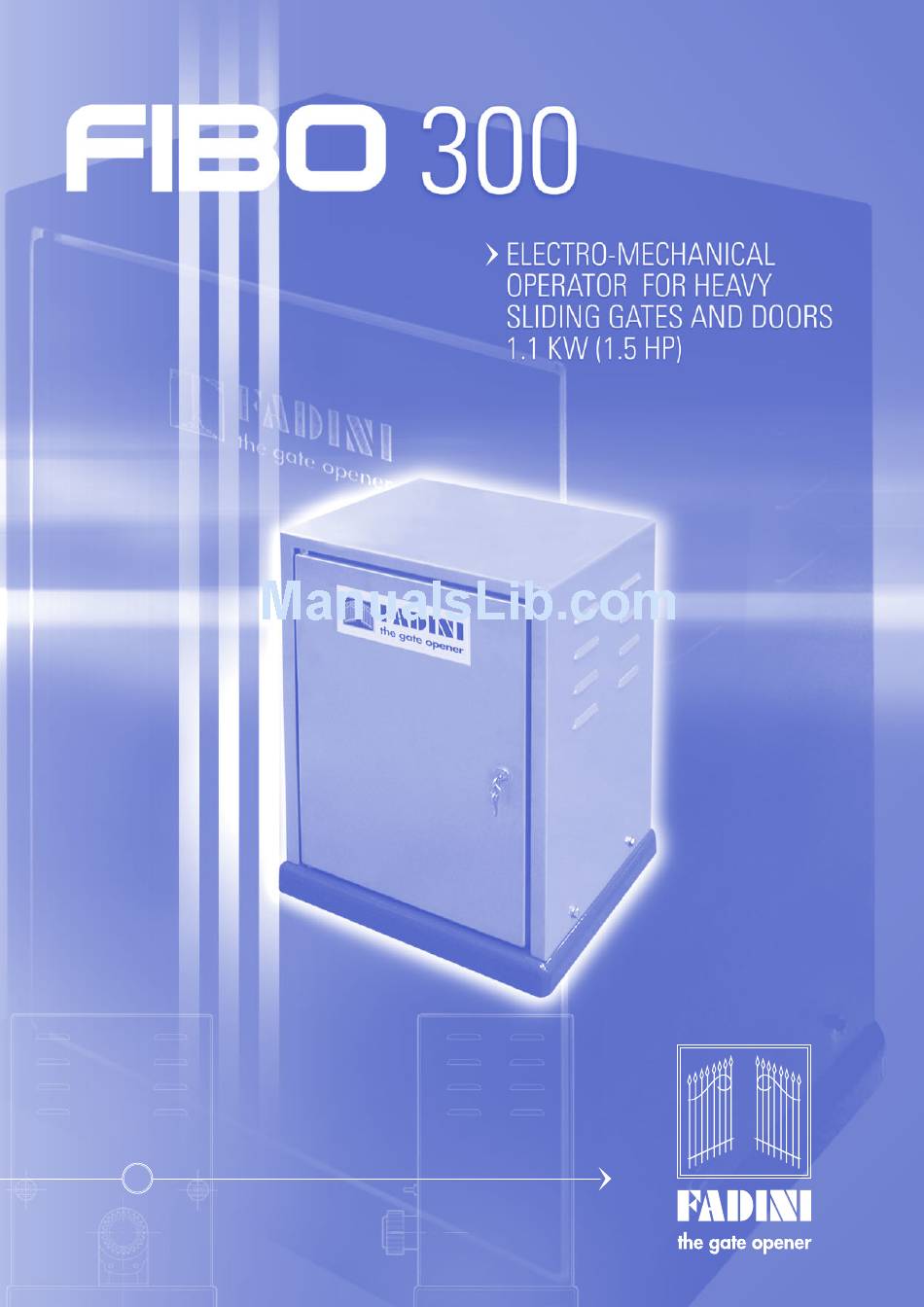

- Page 1 INSTALLATION MANUAL ®...

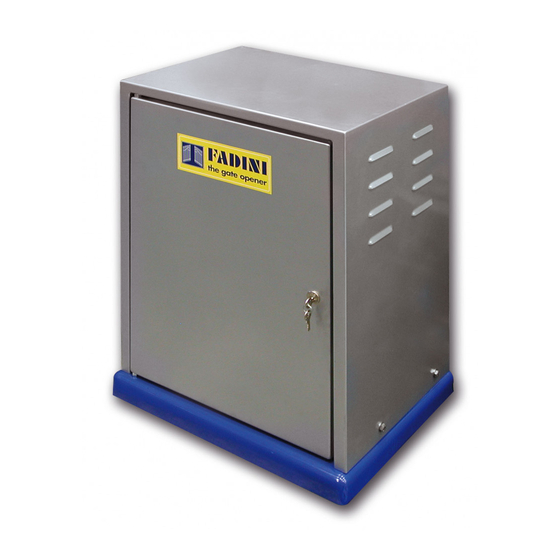

- Page 2 GENERAL INFORMATION The three-phase 1.1KW (1.5 HP) FIBO 300 is an automation for heavy sliding gates and industrial doors (the field of use varies from a gate weight of 1˙000 to approx. 2˙500 Kg); the gear motor unit is installed inside a sheet steel protection cover, which is fixed to a thick metal base plate.
- Page 3 FITTING THE BASE PLATE - The first operation involves preparing a cable containment well near the installation, connected to the FIBO 300 base plate by an appropriate conduit for electrical connections (Pic. 3). - In order to fit the base plate “G” it is necessary to firstly remove the protection cover “H” by unscrewing the four fixing screws “A”...
- Page 4 MANUAL GATE AUTOMATION RELEASE The release operation frees the gate’s movement from the installed operator in events such as power cuts and during Fibo 300 installation operations. - Open the cover door using the customized key “C” (Pic. 2) - Use a 27 mm box spanner “M” on the M18 self-locking nut on the drive shaft located immediately beneath the electric panel support: turn the nut a few times in an anti-clockwise direction so that the drive gear “I”...
- Page 5 INSTALLATION OF LIMIT SWITCH STRIKE PLATES “F’ In order to stop the gate’s movement, the Fibo 300 has two hermetic roller tip limit switches positioned behind the automation, one of which operates during closing and one during opening (Pic. 5).
- Page 6 FIBO 300 ELECTRIC POWER PANEL 3499 Drwg. No. FADINI SLIDING GATES THREE-PHASE 230V/400V VOLTAGE CHANGE 630mA DIP-SWITCH 1 2 3 4 5 6 7 8 OPEN RELAY LINE RELAY CLOSE RELAY MICROPROCESSOR ELPRO10plus 1.4 DANGER L2 L3 L4 L5 L8 L9 L7 L6...
- Page 7 PLUS SLIDING GATES - THREE-PHASE POWER CONTACTOR "CLOSE" 100 n K 630 100 n K 630 22 23 POWER CONTACTOR "OPEN" 1 2 3 4 5 HIGH VOLTAGE 10 A - 380 V FUSES 16 17 18 19 20 SUPPLY VOLTAGE 21 22 23 THREE- 230 - 400 V ±...
- Page 8 PLUS The electronic control panel Elpro 10 Plus, new generation, is designed to operate the sliding gates. Power supply is 230/400V three-phase. Built in full compliance with BT 93/68/CE Low/High Voltage and EMC 93/68/CE Electro-Magnetic Compatibility Regulations. Fitting operations are recommended by a qualified technician in conformity to the existing safety standards.
- Page 9 Drwg. 3499. - The ELPRO 10 PLUS three-phase electronic programmer is installed in its own panel, inside the Fibo 300 protection cover; it is prepared for all programmed automatic and semiautomatic logic services, line relays and incorporated indication lights (Pic. 11 - Drwg. 3499).
- Page 10 Fibo 300 is fitted with a safety system that is activated upon opening the front cover door, through an “NC” power cut-off switch which, for automations without an installed electric panel, must be connected to the Elpro 10 PLUS programmer, terminals 14-15 (Pic. 10 and Pic.
- Page 11 FIBO 300 TECHNICAL DATA ELECTRIC MOTOR FIBO 300 GEAR MOTOR Power output...............1.1 KW (1.5 HP) Output revolutions ..............40.7 rpm Three-phase supply voltage..........230/400 V Drive gear..................Z 24 Frequency ..................50 Hz Module....................4.0 Absorbed current...............5.1/3 A Ratio ....................1 / 32 Absorbed power ..............1˙500 W Maximum nominal torque ............128 Nm...
