- Page 1 User Manual Xper module 12 inch Wireless Thin Client (Rev. 1.00 )
-
Page 2: Fcc Notice
This manual is copyrighted with all rights reserved. Under the copyright law, this manual may not be copied, in whole or part, without written consent of Philips. Under the law, copying includes translating into another language or format. The monitor described in this manual, has been certified/registered by the safety agencies/regulatory authorities as model n°... -
Page 3: Rf Exposure Statement

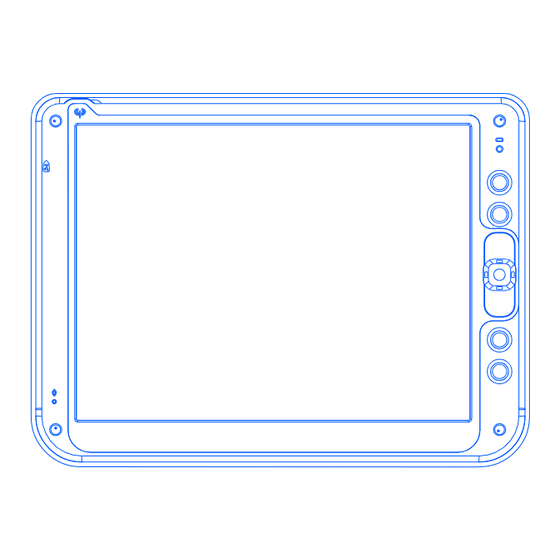

RF Exposure Statement This EUT is compliance with SAR for general population / uncontrolled exposure limits in ANSI/IEEE C95.1-1999 and had been tested in accordance with the measurement methods and procedures specified in OET bulletin 65 Supplement C. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. In order to avoid the pos- sibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 1.5 cm during normal operation. - Page 4 INTRODUCTION A ruggedized wireless thin client display The Philips ProScribe is a ruggedized wireless thin client display, released with Windows XP embedded, both for ITE and medical applications. The ProScribe is designed upon PMS CV requirements. It makes use of wireless technology and thin-client computing to allow workers to access applications stored on a central server as if they were sitting behind their desktop monitor.
- Page 5 CONTENTS TECHNICAL INFORMATION ..........6 INSTALLATION ..............7 DIMENSIONS ................8 WEIGHT ................8 INPUT INSTRUCTION ............9 right view ..............9 left view ...............9 back view ..............10 CONTROL PANEL DESCRIPTION .........11 BEFORE YOU BEGIN ............12 GETTING STARTED ............12 stylus re-calibration ............12 power saving mode ............13 set data and time ............13 WLAN setup ..............14 ethernet LAN setup ............14...
-
Page 6: Technical Information
1.1.0 TECHNICAL INFORMATION INTEL Celeron M 1GHz Processor INTEL 852GM+ICH4-M Chipset INTEL 852GM Graphic processor Bios Insyde software Operating System Microsoft Windows XP Embedded with SP2 Networking Built-in 802.3 network card (Intel PRO/100 VE) Built-in 802.11 b/g/n WLAN module with double integral antenna Built-in Bluetooth 2.1 (Optional) Remote Protocol Microsoft RDP / Citrix ICA... -
Page 7: Installation
2.1.0 INSTALLATION See BBRS ver. 0.8 PMS CV customer spec. paragraph. 5.1.3 cod. 4522 901 05890 While unpacking the ProScribe, inspect it and other package contents for shipping damage that could cause a fire or shock hazard. Immediately report any shipping damage to the carrier or transportation company and contact customer service for assistance. -
Page 8: Dimensions
3.1.0 DIMENSIONS 313,4 60,5 (fig. 8a) 3.2.0 WEIGHT Weight without packaging : 2,17 Kg. Xper module... -
Page 9: Input Instruction
4.1.0 INPUT INSTRUCTION 4.1.1 RIGHT VIEW 1. USB 2.0 port type A 2. USB 2.0 port type A 3. Switch reset (fig. 9a) 4.1.2 LEFT VIEW 1. D-SUB 9 pins male Pinning configuration: 1 Screen (PE) 2 TX+ 3 RX+ 4 24V 5 24V 6 TX-... -
Page 10: Back View
4.1.4 BACK VIEW 1. Speakers 2. Desktop feet support mounting screw holes (2 x M3) 3. VESA MIS-D mounting screw holes (4 x M4) 4. TSM swing-arm and pedestal mounting screw holes (4 x M3) (fig. 10a) Xper module... -
Page 11: Control Panel Description
5.1.0 CONTROL PANEL DESCRIPTION 1. Battery LED 2. Programmable buttons 3. Track stick buttons 4. Track stick 5. Programmable buttons 6. Microphone 7. WLAN status LED (fig. 11a) Xper module... -
Page 12: Before You Begin
6.1.0 BEFORE YOU BEGIN The ProScribe is intended for use as Windows XP embedded powered wireless thin client touch-screen device. To use your ProScribe you must have the following; ● a AC / DC power supply (24Vdc output voltage - 3,42 Adc output current) ●... -
Page 13: Power Saving Mode
6.2.2 POWER SAVING MODE To make changes to power saving setup, ● Navigate through: “START -> Settings -> Control panel -> Power Options” and select the Power Schemes that best meets your needs. ● Navigate through: “START -> Settings -> Control panel -> Tablet and Pen Settings”. ●... -
Page 14: Wlan Setup
6.2.4 WLAN SETUP The WLAN setup is strictly dependent on the existing wireless network infrastructure. A example of WLAN setup is depicted: ● From the Ralink Wireless Utility icon on the Windows Taskbar select: “Start Windows Zero Configuration” ● Navigate through : “START -> Settings -> Control Panel -> Network Connections -> Wireless Network Connection”... -
Page 15: Data Input To The Touch Screen
7.1.0 DATA INPUT TO THE TOUCH SCREEN 7.1.1 TOUCH THE SCREEN Use a stylus pen to move the mouse cursor or select the desired desktop icon or menu. (fig. 15a) NOTE: The stylus pen is designed for your screen. The stylus pen can be provided upon customer request. Use of fingertip or other pointers could damage your screen. -
Page 16: Touch-Panel Calibration
8.1.0 TOUCH-PANEL CALIBRATION To calibrate the stylus tapping pattern: ● Select this Icon on the task bar and right click with the mouse ● Select “Calibration Utility” Xper module... - Page 17 ● Select “Tools” on the Touchkit menu. ● Press “Linearization” to start the calibration on nine points. Xper module...
- Page 18 ● Execute the calibration on the nine points. Keep pressed each point until it stops blinking. ● Press OK to continuel Xper module...
-
Page 19: Connecting To A Network
10.0.0 CONNECTING TO A NETWORK You can setup a connection to a wireless network (WLAN) or a wired network (LAN). 10.1.0 WLAN Your ProScribe includes a wireless LAN module. 10.1.1 START A CONNECTION Method One Tap (right click) on the Ralink network icon that resides in the taskbar at the bottom of your screen. ●... - Page 20 10.1.2 When the connection is ready, you may be required to launch a remote control application to communicate between your ProScribe and the host computer. The ProScribe ships with two applications to do this: ● Remote Desktop Connection connects to a Window server Xper module...
- Page 21 To complete the connections with Remote Desktop Connection, you will need information including user name, password and network IP. Ask your network administrator to provide the required setup information. 10.2.1 The D-SUB 9 pins is used to connect your ProScribe to a LAN network. Pinning definition for sub-D (male) Pinning configuration Signal...
-
Page 22: Featured Software Application
11.0.0 FEATURED SOFTWARE APPLICATIONS Your ProScribe has a suite of applications designed to create, share, and manage your information. 11.1.1 CONTROL PANEL The Control Panel provides access to system settings allowing you to manage the properties of your ProScribe such as: ●... -
Page 23: Hot Key Utility
11.6.1 HOT KEY UTILITY There are 4 hot keys buttons to quick launch software applications. You can customize three of these hot keys functions with the tablet and pen settings applet: ● Navigate through: “START -> Settings -> Control panel -> Tablet and Pen Settings” ●... -
Page 24: Troubleshooting
12.0.0 TROUBLESHOOTING 12.1.1 THE ProScribe WILL NOT TURN ON... When power is on, you will see: On the pad: Power indicator light above the screen on the right will turn green If power is on, but you still don’t see anything on the screen, wake up the pad by tapping on the screen or by pressing control buttons located on the right hand side of the screen. -
Page 25: Safety And Product Care Instructions
13.0.0 SAFETY AND PRODUCT CARE INSTRUCTIONS 13.1.1 TO CLEAN THE SCREEN: 1. To removes dust and other particles, wipe the screen with a clean, soft, lint-free cloth. 2. For heavy duty cleaning, wipe the screen with a soft, clean cloth lightly sprayed with a commercial window cleaner that does not contain wax or abrasives. -
Page 26: Precautions
13.0.0 PRECAUTIONS 13.1.0 Installation The equipment should be installed near an easily accessible outlet. Do not install or leave the monitor: In places subject to extreme temperatures, for example near a radiator, heating vent, or in direct sunlight. Subjecting the LCD monitor to extreme temperatures, could cause deformations of the casing or malfunctions. - Page 27 14.1.0 DISPOSAL OF THE LCD ProScribe Do not dispose of this monitor with general household waste. The fluorescent tube used in this LCD monitor contains mercury. Disposal of this monitor must be carried out in accordance with the regulations of your local sanitation authority. ●...
-
Page 28: Identification Label
15.0.0 IDENTIFICATION LABEL The identification label is visible on the back monitor side. Type number Code number (12NC) Model number CMPD12CV-I 9919 326 12011 Type N: Xper module 2009 - 01 Date of Manufactured FIMI - via S. Banfi 1... -
Page 29: Symbol Description
16.0.0 SYMBOL DESCRIPTION The following symbols may appear on the ProScribe WARNING: This symbol alerts you to important operating considerations or a potential operating condition that can be a risk for damaging equipment. Dangerous voltage Product complies with 2002/96/EC Federal Communications Commission notice (USA) Wireless symbol Canada Interference-Causing Equipment Standard #3 Class B device... -
Page 30: Index
INDEX Approved for medical applications 4 SAFETY AND PRODUCT CARE INSTRUCTIONS 25 SCREEN BRIGHTNESS 14 SET DATA AND TIME 13 BACK VIEW 10 START A CONNECTION 19 BEFORE YOU BEGIN 12 STYLUS RE-CALIBRATION 12 SYMBOL DESCRIPTION 29 CITRIX ICA CLIENT 22 CONNECTING EXTERNAL PERIPHERALS 23 TECHNICAL INFORMATION 6 CONNECTING TO A NETWORK 19... - Page 32 Specifications subject to change without notice. All dimensions shown are approximate. FIMI S.r.l. Saronno - Italy All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of the copyright owner Printed in Italy 4519 206 1019.2 4519 206 10192...
