Unpacking the FS-900 Triple Studio Camera Interface System
Items that are shipped with a particular
order option:
SMPTE Option:
Qty
Description
1
FS-900BS1S Base Station
3
FS-900CAM1S Camera Head
3
Return video cables
3
Hirose Power cables
1
Line cord
1
Mounting Hardware kit
Installation Instructions
Base Station Unit:
When mounting the Base Station into a rack allow at
least 1RU of open space above and below it for proper
cooling to occur.
Camera Head Unit :
JVC Camera Silverback attachment procedure
Step 1: Remove the existing camera back and
battery plate.
(for more information visit JVC website: http://pro.jvc.com/splash.jsp)
6
Neutrik Option:
Qty
Description
1
FS-900BS1N Base Station
3
FS-900CAM1N Camera Head
3
Return video cables
3
Hirose Power cables
1
Line cord
1
Mounting Hardware kit

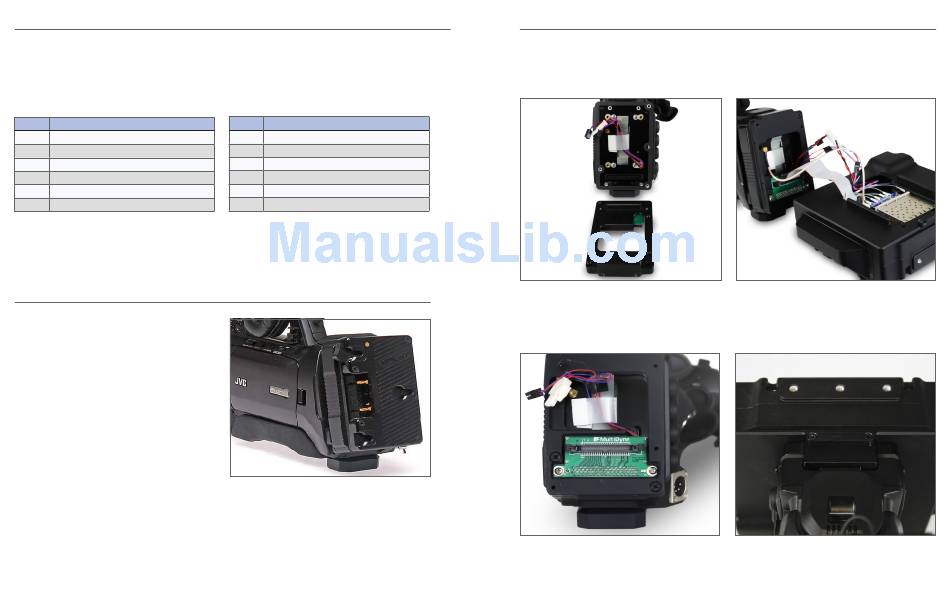

Figure 1: JVC ProHD camera back
Installation Instructions (cont .)
Step 2: Attach camera mount plate
Position the camera mount on the back of the camera
and fasten the right screws to attach the camera
mount plate
Figure 2: Attaching camera mount plate
Step 3: Attach PCB connector
Attach the camera connector PCB on back of the
camera mount plate"'
Figure 3: Attaching PCB connector
Step 4: Camera and Silverback connection
Connect the MCX connector, the power connector,
the battery data connectors and the camera interface
connector as show in the figure 4
Figure 4: : Camera and Silverback connections
Step 5: Final mount
Install the camera back on the mounting plate and
fasten the six #4-40 screws on the mounting plate
Figure 5: Final mount
7
