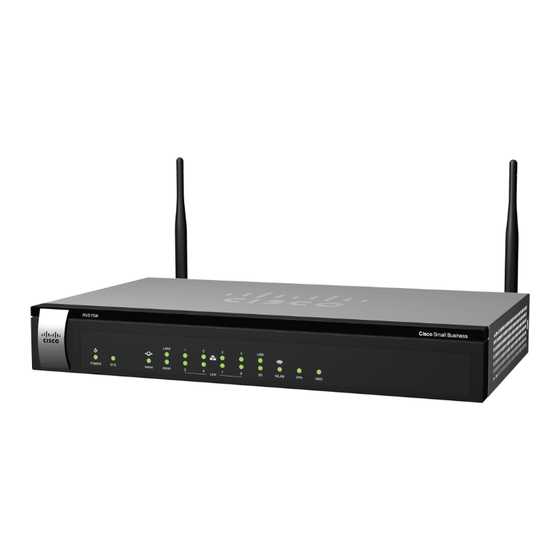

Broadband wireless vpn router
Hide thumbs Also See for RV315W:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Administration Manual
ADMINISTRATION
GUIDE
Cisco Small Business
RV315W Broadband Wireless VPN Router

Advertisement

Table of Contents
loading

Related Manuals for Cisco RV315W

Summary of Contents for Cisco RV315W

  • Page 1 ADMINISTRATION GUIDE Cisco Small Business RV315W Broadband Wireless VPN Router...
  • Page 2 Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this URL: www.cisco.com/go/trademarks. Third-party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company.
  • Page 3 2. 33 cm minimum when the product is operated with a plug-in 3G USB device which has maximum of 7W ERP output power. 3. For co-transmission scenario which is not covered above, please consult the RF technician or device supplier. © 2013 Cisco Systems, Inc. All rights reserved. OL-25648-01...

  • Page 4: Table Of Contents

    Chapter 2: Using the Setup Wizard Starting the Setup Wizard Configuring WAN Connection Configuring Default LAN Settings Configuring Wireless Connection Completing the Setup Wizard Chapter 3: Viewing System Status Device Information WAN Connection Cisco RV315W Broadband Wireless VPN Router Administration Guide...
  • Page 5 Configuring 3G Wireless Connection Chapter 5: Networking Configuring DDNS Configuring ALG Configuring Port Forwarding Configuring Single Port Forwarding Configuring Port Range Forwarding Configuring Port Triggering Configuring DMZ Configuring Software DMZ Configuring Hardware DMZ Cisco RV315W Broadband Wireless VPN Router Administration Guide...

  • Page 6: Federal Communication Commission Interference Statement

    Configuring Flow Control Policies Configuring Session Limits Chapter 8: Security Configuring Firewall Configuring DDoS Configuring Content Filtering Configuring Access Control Configuring Access Control Objects Configuring Access Control Policies Configuring MAC Address Filtering Cisco RV315W Broadband Wireless VPN Router Administration Guide...
  • Page 7 Configuring System Time Configuring TR-069 Configuring TR-069 Settings Configuring Logic ID Authentication Configuring SNMP Configuring Remote Management Configuring Remote Access Protocols and Ports Configuring Trusted Remote Hosts Appendix A: Where to Go From Here Cisco RV315W Broadband Wireless VPN Router Administration Guide...

  • Page 8: Chapter 1: Getting Started

    RV315W provides routing, switching, security, wireless, 3G, Virtual Private Network (VPN), quality of service (QoS), and flow-control capabilities for small businesses. Before you use the RV315W, become familiar with the lights on the front panel and the ports on the rear panel. Front Panel The lights are located on the front panel of the RV315W.
  • Page 9 • Solid green when the RV315W is powered on and is operating normally. • Off when the RV315W is powered off or the power has problems. • Solid green when the RV315W is connected to the Internet through your cable or DSL modem.
  • Page 10 • Flashes green when the RV315W is sending or receiving data over the 3G USB port. • Off when the RV315W does not connect to a 3G wireless network. WLAN • Solid green when the wireless module is enabled, but there is no traffic over the wireless network.

  • Page 11: Back Panel

    Flashes green when the RV315W is sending or receiving data over the VPN tunnels. • Flashes green once per two seconds when the RV315W is attempting to establish a VPN tunnel, or the attempt of establishing a new VPN tunnel fails.

  • Page 12: Default Settings

    The POWER port is where you connect the supplied power adapter (12 V/3 A). Power Switch Powers the unit on or off. Default Settings These are the default settings used when configuring your RV315W for the first time. Parameter Default Value Username...

  • Page 13: Mounting The Rv315W

    • Mechanical Loading—Be sure that the RV315W is level and stable to avoid any hazardous conditions. Place the RV315W horizontally on a flat surface so that it sits on its four rubber feet. Wall-Mounting The RV315W can be wall-mounted. The wall-mounting hardware is user-supplied.

  • Page 14: Connecting The Rv315W

    PC with an Ethernet cable or through a wireless connection to perform the initial configuration. Use the default wireless network name (SSID) and pre-shared key that are provided on the product label at the bottom of the RV315W to connect the PC to your wireless network for the first time.

  • Page 15: Getting Started With The Configuration

    Devices Supply Getting Started with the Configuration You can use web-based Configuration Utility of the RV315W to view the system information, configure the key parameters, upgrade system firmware, reboot the unit, or restore the unit to its factory default settings.

  • Page 16: Logging In To The Configuration Utility

    Connect a computer to an available LAN port on the back panel. After you power STEP 1 on the PC, your PC becomes a DHCP client of the RV315W and receives an IP address in the 192. 1 68. 1 .xxx range.

  • Page 17: Performing Basic Configuration Tasks

    After you log in to web-based Configuration Utility for the first time, we recommend that you upgrade your firmware to the latest version before you do any other tasks. This feature requires that you have an active WAN connection to access the NOTE Internet. Cisco RV315W Broadband Wireless VPN Router Administration Guide...
  • Page 18 PC. Click Upgrade. STEP 4 After the new firmware image is validated, the new image is written to flash. The RV315W will be automatically rebooted with the new firmware. Cisco RV315W Broadband Wireless VPN Router Administration Guide...

  • Page 19: Backing Up Your Configuration

    To back up your configuration: Click System Management > Configuration Management. The Configuration STEP 1 Management page opens. To back up the settings currently used on your RV315W, click Backup STEP 2 Configuration. Select where to locate the configuration file, and then click OK.

  • Page 20: Chapter 2: Using The Setup Wizard

    Internet Service Provider (ISP). Depending on the requirements of your ISP, choose the Internet connection type and configure the corresponding fields. The RV315W supports four types of network addressing modes: DHCP, Static IP, PPPoE, and L2TP.
  • Page 21 The following table provides the configuration instruction for each Internet connection type. Confirm that you have proper network information from your ISP or a peer router to configure the RV315W to access the Internet. Internet Configuration...
  • Page 22 Internet service. If you choose this option, enter the interval to automatically reestablish the WAN connection after the connection is down. The default value is 30 seconds. Cisco RV315W Broadband Wireless VPN Router Administration Guide...
  • Page 23 • VLAN ID: Enter the tag of the VLAN ID. • 802.1p Priority: Enter the value of the 802. 1 p priority. Cisco RV315W Broadband Wireless VPN Router Administration Guide...

  • Page 24: Configuring Default Lan Settings

    Subnet Mask: Enter the subnet mask of the default LAN. • DHCP Service: Check Enable to allow the RV315W to act as a DHCP server and assign IP addresses to all devices that are connected to the LAN. Any new DHCP client joining the LAN is assigned an IP address of the DHCP pool.

  • Page 25: Configuring Wireless Connection

    Using the Setup Wizard Configuring Wireless Connection Configuring Wireless Connection From the Wireless Configuration page you can configure the wireless network of the RV315W and the security settings for the selected SSID. Enter the following information: STEP 9 • Current SSID: Select a SSID as the default wireless access point of the RV315W.
  • Page 26 Key boxes. The length of the key should be 5 ASCII characters (or 10 hex characters) for 64-bit encryption and 13 ASCII characters (or 26 hex characters) for 128-bit encryption. Cisco RV315W Broadband Wireless VPN Router Administration Guide...
  • Page 27 SSID. A value of zero (0) indicates that the key is not refreshed. The default value is 3600 seconds. • WPA Encryption: Choose TKIP, AES, or TKIP+AES as the encryption algorithm for data encryption. The default is TKIP. Cisco RV315W Broadband Wireless VPN Router Administration Guide...
  • Page 28 SSID. A value of zero (0) indicates that the key is not refreshed. The default value is 3600 seconds. • WPA Encryption: Choose TKIP, AES, or TKIP+AES as the encryption algorithm for data encryption. The default is AES. Cisco RV315W Broadband Wireless VPN Router Administration Guide...
  • Page 29 RADIUS Server Port: Enter the port number of the primary RADIUS server. The default value is 1812. • RADIUS Server Key: Enter the key for authentication used by the RADIUS server and the RV315W. Cisco RV315W Broadband Wireless VPN Router Administration Guide...

  • Page 30: Completing The Setup Wizard

    RADIUS server. The default value is 1812. • RADIUS Server Key: Enter the key for authentication used by the RADIUS server and the RV315W. If you want to continue, click Next to proceed to the Complete Setup Wizard page. STEP 10 If you want to return to the previous page, click Back.

  • Page 31: Chapter 3: Viewing System Status

    Viewing System Status This chapter describes how to view real-time statistics and other information about the RV315W. It includes the following sections: • Device Information • WAN Connection • 3G Wireless Connection • LAN Interfaces • Application Information • Refresh Rate Click System Summary.

  • Page 32: Wan Connection

    3G Wireless Connection The 3G Wireless Connection area displays the following information: • 3G Wireless Network: Displays whether the RV315W is connected to a 3G wireless network or not. • 3G Modem Status: Displays whether a 3G USB dongle is detected or not.

  • Page 33: Lan Interfaces

    • 3G Network Information: Service Operator: Name of the 3G network service provider. Operating Status: Displays whether the RV315W is connected to a 3G wireless network or not. Flow Rate: Current flow rate of the 3G wireless network. Transfer Rate: Current transfer rate of the 3G wireless network.

  • Page 34: Application Information

    The wireless module of the RV315W is enabled by default. The RV315W provides four virtual wireless networks, or four SSIDs (Service Set Identifiers). To see complete details for all wireless clients that are connected to the RV315W: Click View Connected Devices. The following information is displayed: STEP 1 •...

  • Page 35: Chapter 4: Port Management

    Configuring 3G Wireless Connection Configuring WAN Connections By default, the RV315W is configured to receive a public IP address from your ISP automatically through DHCP. Depending on the requirements of your ISP, you may need to modify the WAN settings to ensure the Internet connectivity.

  • Page 36: Configuring Wan Connections

    Configuring WAN Connections By default, the WAN1/LAN0 port on the back panel of the RV315W is set to a secondary WAN interface so that the RV315W can support a second Internet connection to ensure continuous connectivity or to increase available bandwidth and balance traffic.
  • Page 37 Configuring WAN Connections The following table provides the configuration instruction for each Internet connection type. Confirm that you have proper network information from your ISP or a peer router to configure the RV315W to access the Internet. Internet Configuration Connection...
  • Page 38 This option is recommended if you pay a flat fee for your Internet service. You can specify the interval to automatically reestablish the WAN connection after the connection is down. The default value is 30 seconds. Cisco RV315W Broadband Wireless VPN Router Administration Guide...
  • Page 39 IP addresses. Enter the IP address of the primary DNS server. You can get the DNS server addresses from your ISP. • Secondary DNS Server: Enter the IP address of the secondary DNS server. Cisco RV315W Broadband Wireless VPN Router Administration Guide...
  • Page 40 In the MTU field, choose Auto to use the default MTU size, or choose Manual if STEP 7 you want to specify another size. If you choose Manual, enter the custom MTU size in bytes. Cisco RV315W Broadband Wireless VPN Router Administration Guide...

  • Page 41: Configuring Default Route Of The Physical Wan Interface

    STEP 1 Settings page opens. In the Configure WAN Interface's Default Route area, select the default route STEP 2 interface for each physical WAN interface. Click OK to save your settings. STEP 3 Cisco RV315W Broadband Wireless VPN Router Administration Guide...

  • Page 42: Configuring Dual Wan

    The default value is 60 seconds. • Ping Timeout: If the connection to the ISP is down, the RV315W tries to connect to the ISP after a specified timeout. Enter the timeout, in seconds, to reconnect to the ISP. The default value is 5 seconds.

  • Page 43: Configuring Wan1/Lan0 Interface

    STEP 8 Configuring WAN1/LAN0 Interface The WAN1/LAN0 port on the back panel of the RV315W can be configured to a secondary WAN port (WAN1) or an additional LAN port (LAN0). Click Port Settings > WAN > WAN1/LAN0 Interface Settings. The WAN1/LAN0 STEP 1 Interface Settings page opens.

  • Page 44: Configuring Lan

    Netmask: Enter the subnet mask for the VLAN. • DHCP Server: Check Enable to allow the RV315W to act as a DHCP server and assign IP addresses to all devices that are connected to the LAN. Any new DHCP client joining the LAN is assigned an IP address of the DHCP pool.

  • Page 45: Configuring Vlan Settings

    To edit the settings of the VLAN, select the VLAN from the drop-down menu, and STEP 5 then change the physical ports that are mapped to the VLAN. To delete a VLAN, Cisco RV315W Broadband Wireless VPN Router Administration Guide...

  • Page 46: Configuring Wireless Settings

    VLAN1 and VLAN2 cannot be deleted. Configuring Wireless Settings The wireless module of the RV315W is enabled by default. To connect to the default wireless network of the RV315W for the first time, use the default wireless network name (SSID) and pre-shared key that are provided on the product label at the bottom of the RV315W.

  • Page 47: Configuring Wireless Security

    To edit the settings of a SSID, check the corresponding SSID and click Edit. STEP 4 Enter the following information: STEP 5 • SSID Name: Enter the name of the wireless network. Cisco RV315W Broadband Wireless VPN Router Administration Guide...
  • Page 48 SSID. • Allow Remote Management: Check to allow you to remotely access the RV315W through the wireless network and configure the settings of the RV315W. • User Limit: Specify the maximum number of users that can simultaneously connect to this SSID.
  • Page 49 Key boxes. The length of the key should be 5 ASCII characters (or 10 hex characters) for 64-bit encryption and 13 ASCII characters (or 26 hex characters) for 128-bit encryption. Cisco RV315W Broadband Wireless VPN Router Administration Guide...
  • Page 50 SSID. A value of zero (0) indicates that the key is not refreshed. The default value is 3600 seconds. • Encryption: Choose TKIP, AES, or TKIP+AES as the encryption algorithm for data encryption. The default is TKIP. Cisco RV315W Broadband Wireless VPN Router Administration Guide...
  • Page 51 SSID. A value of zero (0) indicates that the key is not refreshed. The default value is 3600 seconds. • Encryption: Choose TKIP, AES, or TKIP+AES as the encryption algorithm for data encryption. The default is AES. Cisco RV315W Broadband Wireless VPN Router Administration Guide...
  • Page 52 RADIUS Server Port: Enter the port number of the primary RADIUS server. The default value is 1812. • RADIUS Server Key: Enter the key for authentication used by the RADIUS server and the RV315W. Cisco RV315W Broadband Wireless VPN Router Administration Guide...
  • Page 53 RADIUS server. The default value is 1812. • RADIUS Server Key: Enter the key for authentication used by the RADIUS server and the RV315W. Click OK to apply your settings. STEP 6 Cisco RV315W Broadband Wireless VPN Router Administration Guide...

  • Page 54: Configuring 3G Wireless Connection

    The RV315W supports the 3G wireless connection capability. To connect to a 3G wireless network, insert an applicable 3G USB dongle into the 3G interface on the back panel of the RV315W, and then configure the settings of the 3G wireless network through web-based Configuration Utility. See the latest datasheet to get the list of 3G USB dongle models supported by the RV315W.
  • Page 55 Manual Dial: If you select Manual, click Connect to manually dial in the 3G wireless network. To manually disconnect the 3G wireless connection, click Disconnect. • Status: Shows whether the RV315W is connected to a 3G wireless network or not. Click OK to apply your settings. STEP 3...

  • Page 56: Chapter 5: Networking

    Networking This chapter describes how to configure other network settings of the RV315W. It includes the following sections: • Configuring DDNS • Configuring ALG • Configuring Port Forwarding • Configuring Port Triggering • Configuring DMZ • Configuring UPnP • Configuring Port Mirroring •...

  • Page 57: Configuring Alg

    To configure ALG: Click Networking > ALG. The ALG page opens. STEP 1 Check the box of a protocol to enable the ALG support. The RV315W supports STEP 2 ALG for GRE, SIP, H.323, IPSEC, L2TP, RTSP and NAT Passthrough.

  • Page 58: Configuring Port Forwarding

    Click Add to add this single port forwarding rule in the list. STEP 3 To edit a single port forwarding rule, select the corresponding rule and click the STEP 4 Edit icon. To delete a single port forwarding rule, select the corresponding rule Cisco RV315W Broadband Wireless VPN Router Administration Guide...

  • Page 59: Configuring Port Range Forwarding

    Edit icon. To delete a port range forwarding rule, select the corresponding rule and click the Delete icon. To delete multiple port range forwarding rules at a time, select the corresponding rules and click the Delete button. Cisco RV315W Broadband Wireless VPN Router Administration Guide...

  • Page 60: Configuring Port Triggering

    STEP 3 To edit a port triggering rule, select the corresponding rule and click the Edit icon. STEP 4 To delete a port triggering rule, select the corresponding rule and click the Delete Cisco RV315W Broadband Wireless VPN Router Administration Guide...

  • Page 61: Configuring Dmz

    To edit a software DMZ rule, select the corresponding rule and click the Edit icon. STEP 4 To delete a software DMZ rule, select the corresponding rule and click the Delete icon. Cisco RV315W Broadband Wireless VPN Router Administration Guide...

  • Page 62: Configuring Hardware Dmz

    Click Networking > UPnP. The UPnP page opens. STEP 1 Click Enable to enable UPnP, or click Disable to disable UPnP. If UPnP is disabled, STEP 2 the RV315W will not allow for automatic device configuration. Cisco RV315W Broadband Wireless VPN Router Administration Guide...

  • Page 63: Configuring Port Mirroring

    STEP 4 Configuring Routing This section provides information on configuring the routing mode between WAN and LAN, viewing the routing table, and configuring the static routing, dynamic routing, and policy-based routing settings. Cisco RV315W Broadband Wireless VPN Router Administration Guide...

  • Page 64: Configuring Basic Routing Settings

    Networking Configuring Routing Configuring Basic Routing Settings Depending on the requirements of your ISP, you can configure the RV315W to operate in NAT mode or Routing mode. By default, NAT mode is enabled. Configuring Routing Mode To configure the routing mode: Click Networking >...

  • Page 65: Configuring Policy-Based Routing

    Destination IP: Enter the destination IP address for outbound traffic. • Port Number: Select the port number that the policy-based routing sends out the packages. Select Any to automatically select a routing port. Select Single to manually set the port number. Cisco RV315W Broadband Wireless VPN Router Administration Guide...

  • Page 66: Configuring Dynamic Routing

    Dynamic routing enables the RV315W to automatically adjust to physical changes in the network's layout and exchange routing tables with the other routers. The RV315W determines the network packets’ route based on the fewest number of hops between the source and the destination.

  • Page 67: Viewing The Routing Table

    • RIP: Displays whether RIP is enabled or disabled on this interface. • Port Passive: Determines how the RV315W receives RIP packets. Check Enable to enable this feature on the port. • Authentication: Specify the authentication method for the port.

  • Page 68: Configuring Igmp

    IGMP Version: Choose either IGMP v1 or IGMP v2. • IGMP Proxy: Click Enable to enable IGMP Proxy so that the RV315W can act as a proxy for all IGMP requests and communicate with the IGMP servers of the ISP, or click Disable to disable it.

  • Page 69: Chapter 6: Vpn

    PC that installs third-party VPN client software. For example, you can configure the RV315W at a branch site to connect to the VPN router at the corporate site so that the branch site can securely access the corporate network.

  • Page 70: Configuring Ipsec Vpn Policies

    Setting Up a Site-to-Site VPN A site-to-site VPN policy is used to create a new tunnel between two VPN devices, such as a Cisco RV315W router at your office and a Cisco RV315W router at a remote office. Cisco RV315W Broadband Wireless VPN Router Administration Guide...
  • Page 71 Pre-shared Key field. The pre- shared key must be entered exactly the same here and on the remote peer. • Filter Method: Select one of the following options: Cisco RV315W Broadband Wireless VPN Router Administration Guide...
  • Page 72 Authentication Algorithm: Specify the authentication algorithm for the VPN header. There are two hash algorithms supported by the RV315W: SHA1 and MD5. The default is SHA1. Encryption Algorithm: Choose the algorithm used to negotiate the security association.

  • Page 73: Setting Up A Pc To Site Vpn

    IPsec Connection Name: Enter a unique name for the IPsec VPN policy. • Interface: Select a WAN interface that traffic passes through over the IPsec VPN tunnel. • Connection Type: Select pc-to-site as the type of the VPN connection. Cisco RV315W Broadband Wireless VPN Router Administration Guide...
  • Page 74 Authentication Algorithm: Specify the authentication algorithm for the VPN header. There are two hash algorithms supported by the RV315W: SHA1 and MD5. The default is SHA1. Encryption Algorithm: Choose the algorithm used to negotiate the security association.

  • Page 75: Modifying Or Deleting An Ipsec Vpn Policy

    Edit icon. See Setting Up a Site-to-Site VPN Setting up a PC to Site for more information. To delete an IPsec VPN policy, select the corresponding policy and click the STEP 3 Delete icon. Cisco RV315W Broadband Wireless VPN Router Administration Guide...

  • Page 76: Chapter 7: Quality Of Service (Qos)

    • Queue Name: Name of the queue. • Guaranteed Rate: Enter the amount of minimum bandwidth in Kbps for upstream traffic allowed on the interface queue. Cisco RV315W Broadband Wireless VPN Router Administration Guide...

  • Page 77: Configuring Flow Control Policies

    Configuring Flow Control Policies Use the Flow Control Policies page to configure the flow control policies. Up to 25 flow control policies can be configured on the RV315W. To create a flow control policy: Click QoS > Flow Control Policies. The Flow Control Policies page opens.

  • Page 78: Configuring Session Limits

    Use the Session Limits page to configure the maximum number of connection sessions for the complete system, for a range of IP addresses, or for each physical port. When the connection table is full, the new sessions that access the RV315W are dropped.
  • Page 79 Quality of Service (QoS) Configuring Session Limits Click OK to save your settings. STEP 4 Cisco RV315W Broadband Wireless VPN Router Administration Guide...

  • Page 80: Chapter 8: Security

    Click Security > Firewall. The Firewall page opens. STEP 1 Check Enable to enable the firewall feature (recommended), or check Disable to STEP 2 disable this feature. Enter the following information: STEP 3 Cisco RV315W Broadband Wireless VPN Router Administration Guide...
  • Page 81 Enter the port number that is used for filtering HTTP traffic. The firewall only monitors and controls the website visits through this HTTP port. Click OK to save your settings. STEP 4 Cisco RV315W Broadband Wireless VPN Router Administration Guide...

  • Page 82: Configuring Ddos

    To configure DoS prevention: Click Security > DDoS. The DDoS page opens. STEP 1 The RV315W supports three types of DoS preventions: SYN Flood, UDP Flood, STEP 2 and ICMP Flood. Check Enable to enable DoS Prevention, or check Disable to disable this feature.

  • Page 83: Configuring Access Control

    STEP 2 Settings page opens. Enter the following information: STEP 3 • Time Range: Enter the starting time and ending time. • Interface Name: Select the interface used by the access control object. Cisco RV315W Broadband Wireless VPN Router Administration Guide...

  • Page 84: Configuring Access Control Policies

    Source IP Address: Enter the source IP address to which the access control policy applies. • Destination Port: Enter the destination port to which the access control policy applies. • Action: Select Enable to enable this policy. Cisco RV315W Broadband Wireless VPN Router Administration Guide...

  • Page 85: Configuring Mac Address Filtering

    In the MAC Addresses List area, specify the list of MAC addresses. To add a MAC STEP 3 address, click Create. The MAC Address Filtering Policy page opens. Up to 20 MAC addresses can be configured on the RV315W. Enter the following information: STEP 4 •...

  • Page 86: Preventing Arp Attacks

    STEP 3 In the Manual IP&MAC Binding area, you can manually add the IP&MAC binding STEP 4 rule. To create a new IP&MAC binding rule, click Create. The IP&MAC Binding Rule page opens. Cisco RV315W Broadband Wireless VPN Router Administration Guide...
  • Page 87 To edit the settings of an IP&MAC binding rule, select the corresponding rule and STEP 7 click the Edit icon. To delete an IP&MAC binding rule, select the corresponding rule and click the Delete icon. Cisco RV315W Broadband Wireless VPN Router Administration Guide...

  • Page 88: Chapter 9: System Management

    • Configuring Remote Management Rebooting the RV315W To reboot the RV315W, you can press and release the RESET button on the back panel for less than 5 seconds, or perform the Reboot operation from web-based Configuration Utility. To reboot the RV315W through web-based Configuration Utility: Click System Management >...

  • Page 89: Configuring User Accounts

    Use the User Management page to manage the user accounts. Viewing User Information The RV315W predefines an administrative account (admin) and a normal user (cisco). The administrative account has full privilege to set the configuration and read the system status. The normal users can only read the system status after they login.

  • Page 90: Creating A New User

    To create a normal user, you must log in to web-based Configuration Utility using the system administrator account. Up to 5 user accounts can be configured on the RV315W, including the default system administrator (admin) and normal user (cisco). To create a new user account: Click System Management >...

  • Page 91: Deleting A Local User

    STEP 3 Restoring Factory Default Settings To restore the RV315W to the factory default settings, you can press and hold the RESET button on the back panel for more than 5 seconds, or perform the Reset to Factory Defaults operation from web-based Configuration Utility.

  • Page 92: Managing System Configuration

    This operation reboots the unit and restores the RV315W to the factory default STEP 3 settings. The settings that you have previously made to the RV315W are lost. Click Managing System Configuration This section describes how to work with the configuration. You can perform the following tasks to maintain system configuration: •...

  • Page 93: Upgrading The Firmware

    System Management Upgrading the Firmware The RV315W first sends a message to the upper-level NMS. The upper-level NMS automatically gets the configuration file of the RV315W after the NMS receives the requesting message. Upgrading the Firmware During a firmware upgrade, do NOT turn off the device, shut down the PC, remove CAUTION the cable, or interrupt the process in any way until the operation is complete.

  • Page 94: Using Diagnostic Utilities

    Use the following diagnostic utilities to access configuration of the RV315W and to monitor the overall network health. Ping Use the Ping page to test the connectivity between the RV315W and a connected device on the network. Click System Management > Diagnostic Utilities > Ping. The Ping page opens.

  • Page 95: Http Get

    The Current System Time field displays the current date and time. In the Set System Time area, select the Manually radio button to manually set the STEP 2 date and time. Enter the values in the Date and Time fields. Cisco RV315W Broadband Wireless VPN Router Administration Guide...

  • Page 96: Configuring

    Username: Enter the username to log in to the ACS remote management server. Password: Enter the password to log in to the ACS remote management server. • CPE: Specify the CPE settings for TR-069 remote management: Cisco RV315W Broadband Wireless VPN Router Administration Guide...

  • Page 97: Configuring Logic Id Authentication

    RV315W to the TR-069 server, or select Vendor Configuration to send a request to upload the configuration file with the factory default settings of the RV315W to the TR-069 server. Then click OK to send the corresponding upload request to the TR-069 server.

  • Page 98: Configuring Snmp

    Configuring SNMP Simple Network Management Protocol (SNMP) is a network protocol used over User Datagram Protocol (UDP) that lets you monitor and manage the RV315W from a SNMP manager. SNMP provides a remote means to monitor and control the network devices, and to manage the configuration, statistics collection, performance, and security.
  • Page 99 Entering 0.0.0.0 in this field allows any host to access the SNMP entity. • Trap Receiver Host: Enter the IP address or domain name of the remote host that is used to receive the SNMP traps. Click OK to save your settings. STEP 3 Cisco RV315W Broadband Wireless VPN Router Administration Guide...

  • Page 100: Configuring Remote Management

    Configuring Remote Management You can access web-based Configuration Utility from the LAN side by using the RV315W’s LAN IP address and HTTP, or from the WAN side by using the RV315W’s WAN IP address and HTTPS (HTTP over SSL) or HTTP.

  • Page 101: Configuring Trusted Remote Hosts

    System Management Configuring Remote Management Configuring Trusted Remote Hosts Only the trusted hosts can be allowed to access the RV315W by using HTTPS or HTTP from the WAN side. To specify the trusted hosts: Click System Management > Remote Management > Trusted Remote Hosts.

  • Page 102: Appendix A: Where To Go From Here

    Where to Go From Here Cisco provides a wide range of resources to help you and your customer obtain the full benefits of the Cisco RV315W Broadband Wireless VPN Router. Cisco Small Business Support www.cisco.com/go/smallbizsupport Community Cisco Small Business Support www.cisco.com/go/smallbizhelp...
