Specifications; Names Of Parts; Front Panel; Power Button - Sharp SM-SX100 Service Manual

Rated output power:
RMS; 100 W + 100 W (DIN 45 500)
Total harmonic distortion:
0.02 % (1 kHz, 1 W)
Frequency response:
5 Hz-20 kHz (+1dB, -1dB)
5 Hz-100 kHz (+1dB, -3dB)
Dynamic range:
105 dB (5 Hz-20 kHz)
A/D noise shaping:
7th-order (delta-sigma) modulation
Input terminals:
DIGITAL1; ST link optical
DIGITAL2; BNC coaxial
DIGITAL3; RCA coaxial
DIGITAL4; Square type optical
SACD; RCA analog, 1 BIT digital
LINE 1; RCA analog
(350 mV rms / 50 k ohms)
LINE 2; XLR analog balanced
(350 mV rms / 50 k ohms)

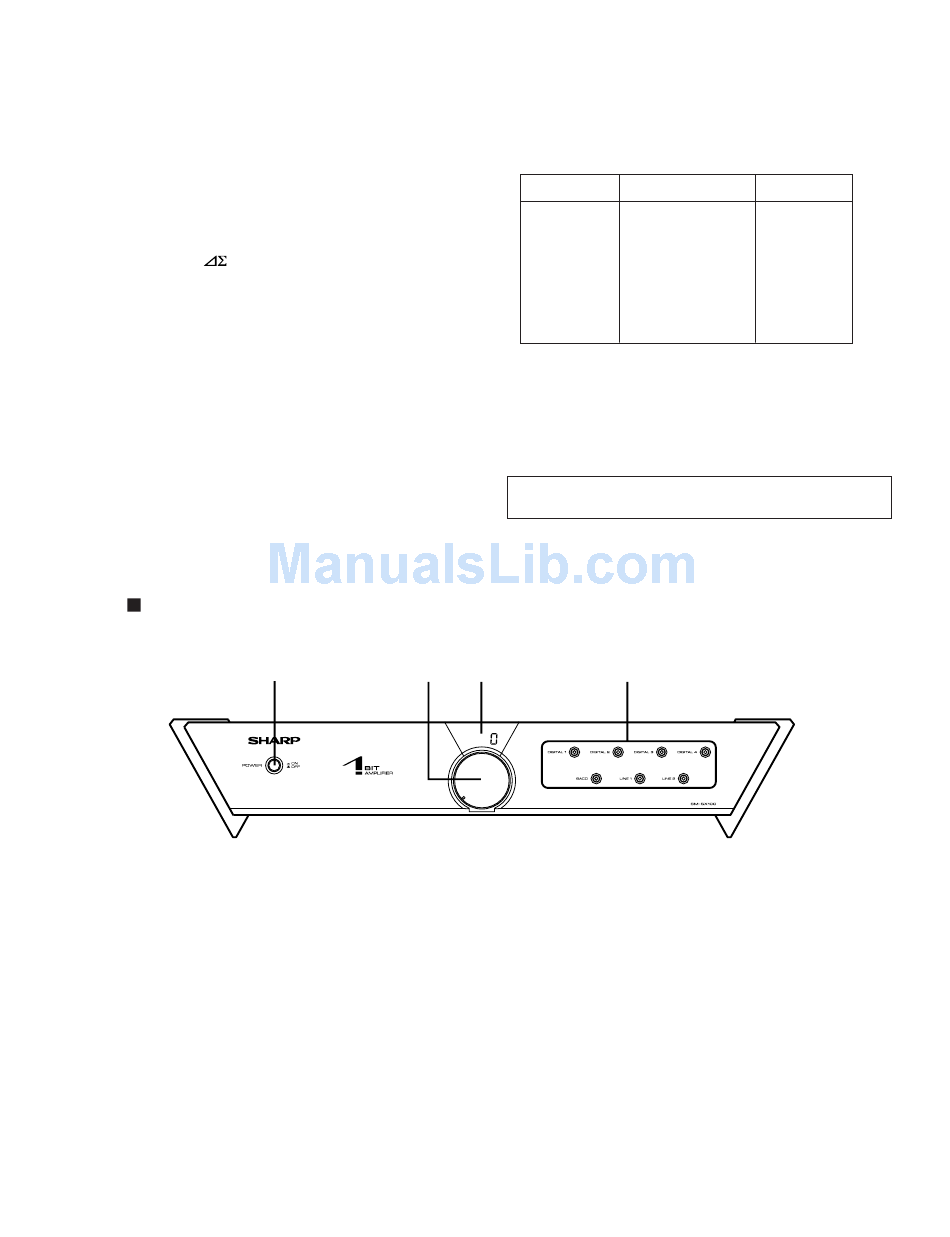

Front Panel

1 Power button

Turns the unit on or off.
2 Volume control knob
Controls the sound level.

3 Volume display

Displays the sound level within the range
of "0" - "128".

SPECIFICATIONS

NAMES OF PARTS

1 2
Output terminals:
DIGITAL OUT; Square type optical
LINE OUT; RCA analog
SPEAKERS; 8 ohms/4 ohms selectable
Power source/power consumption:
POWER SOURCE
120 V, 60 Hz
North America
230 V, 50 Hz
Europe
Australia,
220 - 240 V, 50/60 Hz
New Zealand
230V, 50 Hz
Singapore
220 V, 50 Hz
Hong Kong
110 - 120 V, 50/60 Hz
Other countries
220 - 240 V, 50/60 Hz
Dimensions:
Width; 472 mm (18 - 5/8")
Height; 89 mm (3 - 1/2")
Depth; 462 mm (18 - 3/16")
Weight:
Approx. 18.5 kg (40.8 lbs.)
Specifications for this model are subject to change without
prior notice.
3 4
4 Input selector buttons
Used to select the equipment source you
want to play back.
When the power is turned on, the unit is
switched to "SACD".
To cut the output to the speaker with
the power turned on:
Set the sound level at "0" then press and
hold the corresponding input selector but-
ton for 2 seconds or more.
The signal output to the speaker returns
when you reset the sound level at "1" or
higher.
– 3 –
SM-SX100
POWER
CONSUMPTION
76 W
70 W
70 W
70 W
72 W
70 W
70 W
