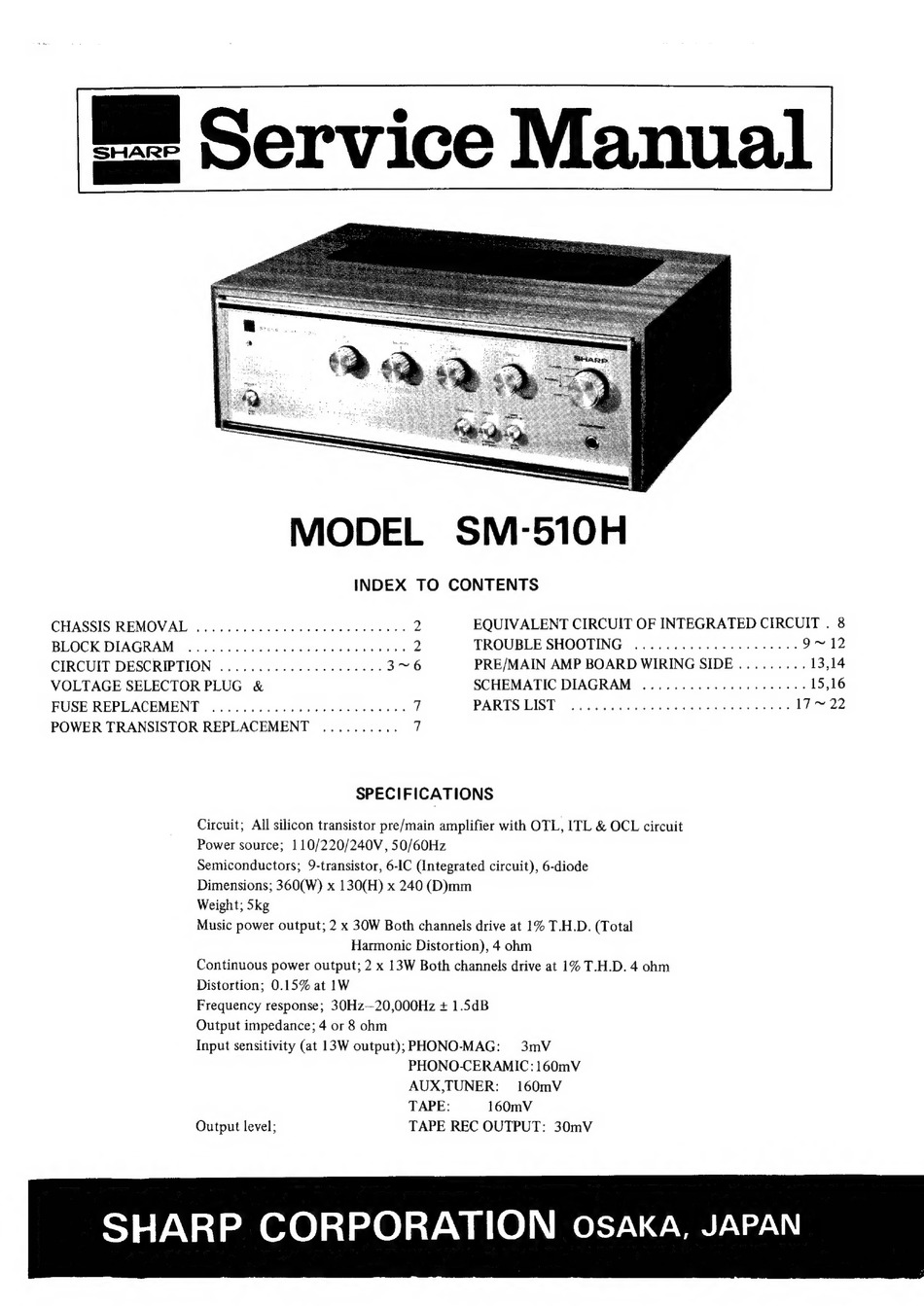

SHARP
Service Manual
MODEL
SM-510H
INDEX TO CONTENTS
SPECIFICATIONS
Circuit; All silicon transistor pre/main amplifier with OTL, ITL & OCL circuit
Power source;
110/220/240V, 50/60Hz
Semiconductors; 9-transistor, 6-IC (Integrated circuit), 6-diode
Dimensions; 360(W) x 130(H) x 240 (D)mm
Weight; 5kg
Music power output; 2 x 30W Both channels drive at 1% T.H.D. (Total
Harmonic Distortion), 4 ohm
Continuous power output; 2 x 13W Both channels drive at 1% T.H.D. 4 ohm
Distortion; 0.15% at 1W
Frequency response;
30Hz—20,000Hz + 1.5dB
Output impedance; 4 or 8 ohm
Input sensitivity (at 13W output); PHONO-MAG:
3mV
PHONO-CERAMIC:160mV
AUX,TUNER:
160mV
TAPE:
160mV
Output level;
TAPE REC OUTPUT:
30mV
