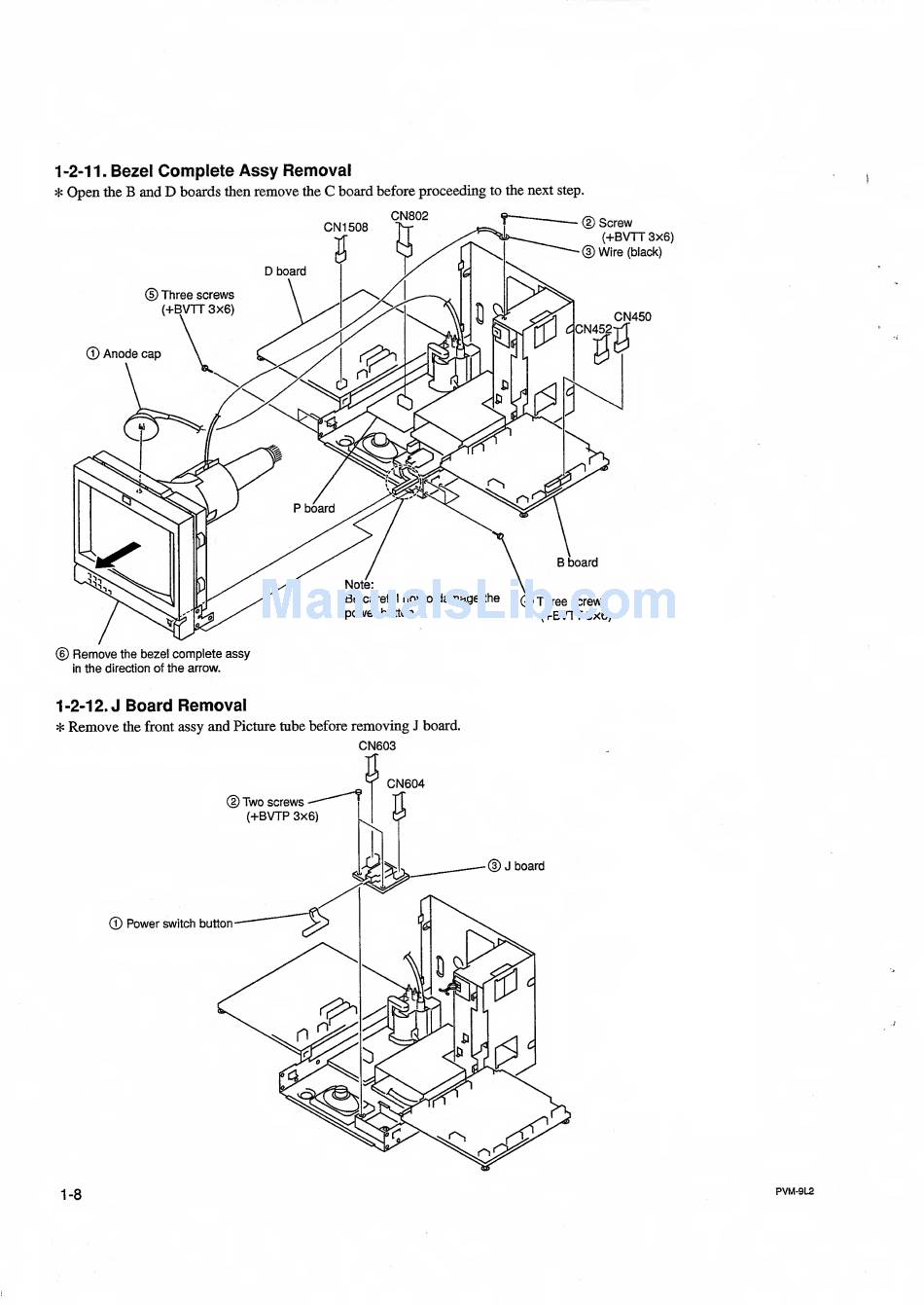

1-2-11.
Bezel
Complete Assy Removal
* Open
the
B
and
D
boards
then
remove
the
C
board
before proceeding
to the
next
step.
In
the
direction of
the arrow.
1-2-12.
J
Board
Removal
* Remove
the front
assy
and
tube before
removing
J
board.
CN603
i-ft
PVM-9L2
