FEDERAL COMMUNICATIONS
COMMISSION STATEMENTS:
The user shall not make any
changes or modifications to the
equipment unless authorized by the
Installation Instructions or User's
Manual. Unauthorized changes or
modifications could void the user's
authority to operate the equipment.
See inside of carton for
Installation Instructions
MOUNTING
HOLE
BATTERY
(1.5VDC, AAA
LITHIUM.
SEE NOTE
INSIDE.)
+
TAMPER
PROTECTION
TAMPER
SWITCH
MOUNTING
HOLE
Tamper Protection
Front and back-case tamper is
provided using the same switch.
The front-case tamper is always
enabled. Adding the third screw
as shown in the figure enables
the back-case tamper.
ASSEMBLED IN MEXICO
© 2009 Honeywell International Inc.
All Rights Reserved
ÊK9230V3HŠ
7/11
K9230V3
ADEMCO 5820L

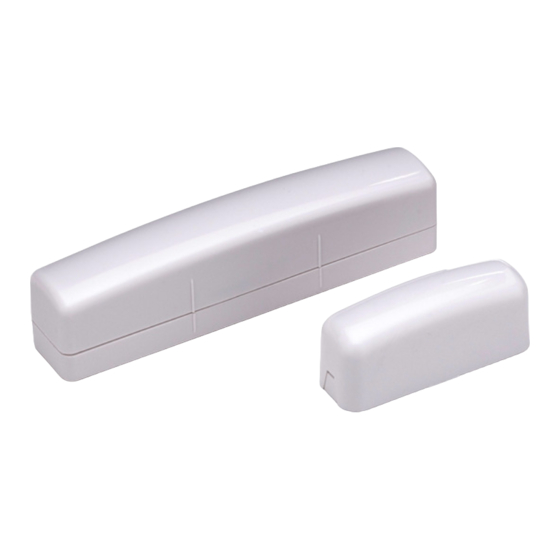

Slim Line Transmitter
Ideal for casement and
double hung windows
N219
Long Life Battery Included
5820L Exterior of box
File: K9230V3_Blueline_Ademco_5820L_instruct_exterior.eps
R
LITHIUM
LITHIUM
R
Ademco
K9230V3
