- Page 1 WIRELESS TRANSCEIVER SYSTEM User Guide CCR24PNA User Guide:CCR24PNA --------------------------------------------------------- •Read this user guide carefully for safe operation and proper use of the product. •Features and specifications are subject to change without notification.
-
Page 2: Safety Approval
Safety Approval FCC ID: ROYCCR24PNAR ROYCCR24PNAT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. - Page 3 Safety Approval Industry Canada IC ID: 5479A-CCR24PNAR 5479A-CCR24PNAT Operation is subject to the following two conditions: (1) This device may not cause interference and (2) This device must accept any interference, including interference that may cause undesired operation of the device. The term “IC:”...
-
Page 4: Box Contents

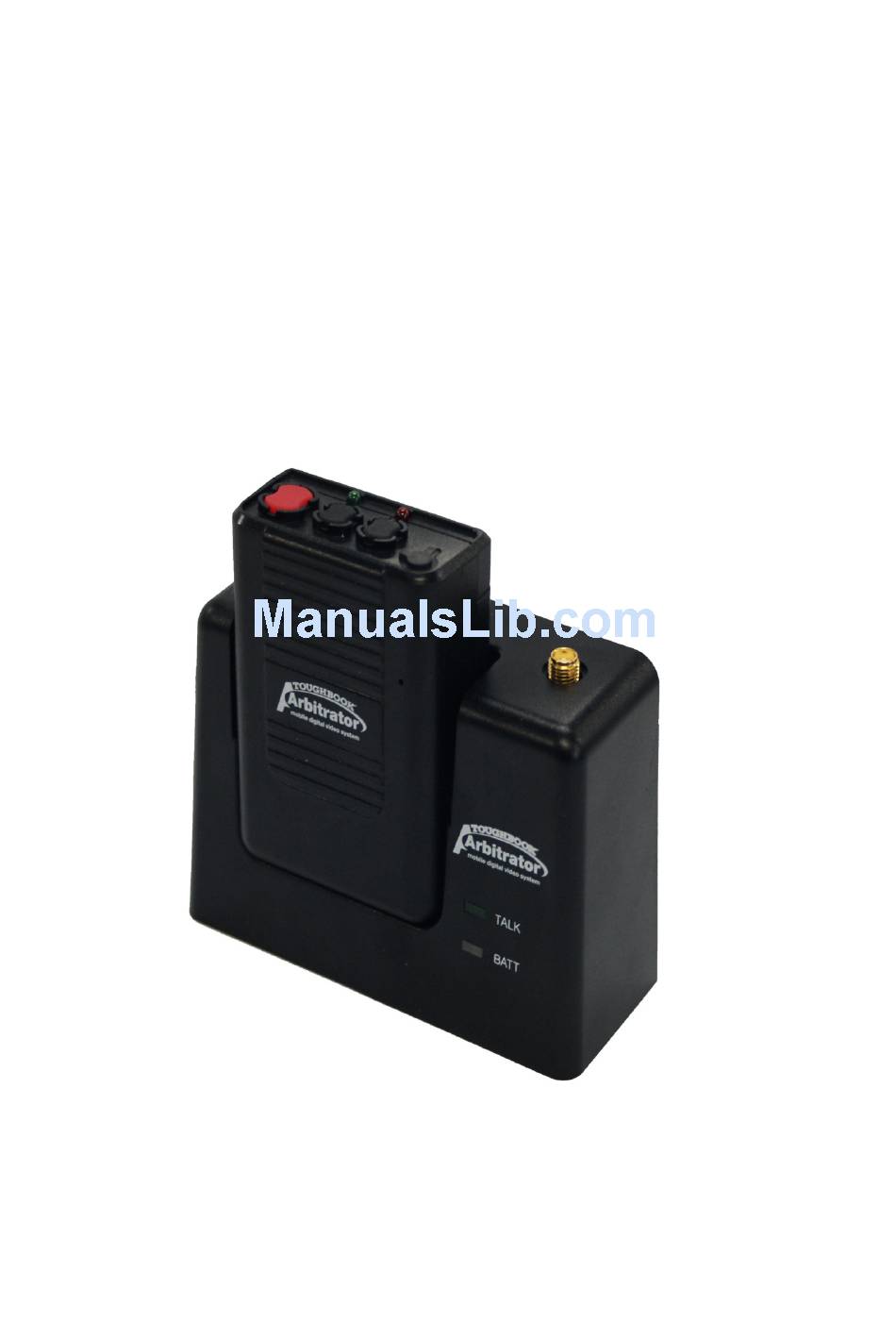

BOX CONTENTS • 1. Transmitter (TX) • 2. Receiver (RX) • 3. Plug-In Microphone (MONO) • 4. Mounting Bracket for Receiver with screws • 5. Rechargeable Li-Ion Polymer Battery • 6. Leather Pouch • 7. External antenna • 8. Desktop charger for transmitter •... - Page 5 DESCRIPTION - Transmitter 1 LED Indication TX Power On/Off 2 Built in MIC Battery Cover 3 Microphone Jack Mute Button 4 FCC , IC , cULus Talk Button Labels 5 Serial Number Mode Selection Label Button...
- Page 6 DESCRIPTION - Receiver Antenna connection Serial Number Label Talk On (Green LED) Main Cable Connection Battery Charger Status FCC , cULus , IC Labels (Green + Red LED) Charging PIN/Matching #2 Talk On LED #3 Charging Status Red LED-In Charging When TX triggers the Green LED-Fully charged recording of the system ,...
- Page 7 DESCRIPTION – Receiver LED function When TX is docked in RX If completed ID setting – RX “TALK” L ED once blinking If uncompleted ID setting –LED blinking at TX,RX TALK LED After ID setting , turn off RX “TALK” When TX is docked in RX RX LED indicate TX’s power status.
- Page 8 DESCRIPTION – Control Reference Guide Transmitter (TX) with Top of Transmitter(TX) Receiver (RX) “REC”, “Mute” “Low Battery”, “Out of Indication Green Range”, Internal “Mute” indication TALK Button Press for REC Lapel MODE Mute Selection Button Input Button [TALK] Bottom of Transmitter(TX) Green LED ON/OFF: REC ON/OFF Green...
-
Page 9: Operation
OPERATION - Install the mounting bracket by using the screws - Slide RX Set onto the Bracket - Connect the main cable to RX Set - Connect external antenna to the RX Set. - Assemble the battery pack into TX Set - How to change battery pack -Separate battery cover as shown next picture. - Page 10 OPERATION • Indication of LED Button Out of TALK Mode Mute Battery Range V(1 time V(2 times V(1 time V(1 time per TALK (REC only) 5seconds OFF): second) 3seconds) Green ON LED+ TALK: Green Green REC: & Vibration Green Blink Green Fast Blink Red Blink...
- Page 11 DESCRIPTION – Main Cable 1A In-Line fuse To Receiver # Important -These three ground wires have to be all connected together - Power ground wire from CCR24PNA, Trigger ground wire from CCR24PNA,and Ground wire of the Recorder GPIO. Connection with the system - Power DC12V (Red), Power GND (Black): Power Cables to engine battery.
- Page 12 DESCRIPTION – Desktop Charger * Battery LED : In Charging – Red LED Fully Charged – Green LED (4V ~ 4.2V) (Note) Place TX on the charger at least 4.5sec for the initializing. Installation for Charger Stand Charger Stand TIP1 How to undock TX from RX and Home Charger To prevent units from being broken by the...
-
Page 13: Troubleshooting
RECOMMENDATIONS - Prior to use, charge TX at least 3 hours - Disconnect the battery or switch the power OFF. when TX Set is not in use for long periods - Charge TX Set when not in use for short periods TROUBLESHOOTING Problems Check points... -
Page 14: Specification
SPECIFICATION Power DC 12V for RX Frequency 2.4GHz FHSS with 2,401.056 ~ 2,478.816MHz (MHz) Number of 91Channels Channel Channel Space 864 KHz Speech Coder 32Kbps ADPCM with Parity Type of GFSK MODULATION / DEMODULATION Modulation Data Rate 576Kbps Time Division Duplex Receiver Min : -90 dBm Sensitivity... - Page 15 SPECIFICATION SC14435 2G4HZ Frequency hopping The number of used frequencies (NUF) in the hopping algorithm is 95. In base and handset a Primary Hopping lndex Number (PHIN) exist. This number is incremented modulo NUF in the end of the normal downlink half-frame.
- Page 16 CAUTION • Li-Ion Battery Safety Precautions (sample document) • 1. When Using the Battery • Danger • (1) Misusing the battery may cause the battery to get hot, explode, or ignite and cause DANGER serious injury. • Be sure to follow the safety rules listed below: •...
- Page 17 CAUTION • or appears abnormal in any other way. Contact your sales location or Panasonic if any of these problems are observed. • (2) Do not place the batteries in microwave ovens, high-pressure c ontainers, or on induction cookware. •...
- Page 18 CAUTION • 2. While Charging • Caution • The temperature range over which the battery can be charged is 10 °C to 45°C. Charging the battery at temperatures outside of this ran ge may cause the battery to become hot or to break. Charging the battery outside of this temperature range may also harm the perfor mance of the battery or reduce the battery’s expectancy.
