Summary of Contents for Bosch DINION IP 5000 MP

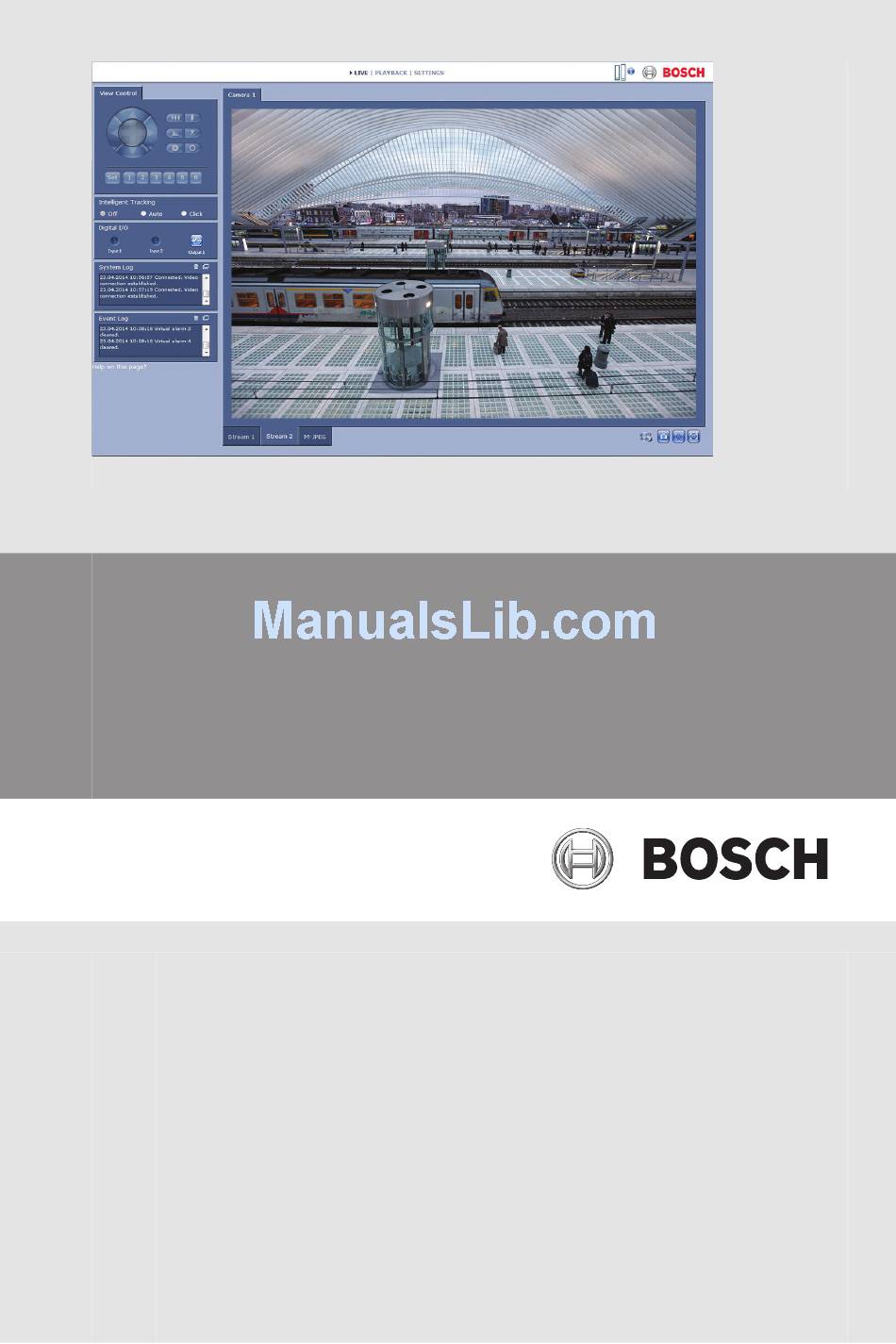

- Page 1 Camera Browser Interface DINION IP 5000 MP Software manual...
-
Page 3: Table Of Contents
Storage, CPU and network status 3.1.11 Status icons Playback 3.2.1 Selecting recordings for playback 3.2.2 Exporting tracks 3.2.3 Searching for tracks 3.2.4 Controlling playback Basic Mode Device Access 4.1.1 Name 4.1.2 Password Date/Time Network Bosch Security Systems 2015.04 | v1.592 | AM18-Q0678... - Page 4 Alarm mode stamping 5.4.5 Alarm message 5.4.6 Transparent stamping 5.4.7 Video authentication GB/T 28181 Web Interface Appearance 6.1.1 Website language 6.1.2 Company logo 6.1.3 Device logo 6.1.4 Show VCA metadata 6.1.5 Show VCA trajectories 2015.04 | v1.592 | AM18-Q0678 Bosch Security Systems...
- Page 5 Reboot device 7.1.8 Factory defaults 7.1.9 Lens Wizard Picture settings – Scene mode 7.2.1 Current mode 7.2.2 Mode ID 7.2.3 Copy mode to 7.2.4 Restore Mode Defaults 7.2.5 Scene mode factory defaults Bosch Security Systems 2015.04 | v1.592 | AM18-Q0678...
- Page 6 Profile name 8.1.4 Target bit rate 8.1.5 Maximum bit rate 8.1.6 Encoding interval 8.1.7 Standard definition video resolution 8.1.8 Expert Settings 8.1.9 Default Encoder Streams 8.2.1 H.264 settings 8.2.2 JPEG stream Encoder Regions 2015.04 | v1.592 | AM18-Q0678 Bosch Security Systems...
- Page 7 10.1.3 Destination IP address 10.1.4 Destination password 10.1.5 Video transmission 10.1.6 Stream 10.1.7 Remote port 10.1.8 Video output 10.1.9 Decoder 10.1.10 SSL encryption 10.1.11 Auto-connect 10.1.12 Audio 10.2 Video Content Analyses (VCA) Bosch Security Systems 2015.04 | v1.592 | AM18-Q0678...
- Page 8 Motion detector 11.2.4 Tamper detection 11.3 VCA - Scheduled 11.3.1 Weekdays 11.3.2 Holidays 11.4 VCA - Event triggered 11.4.1 Trigger 11.4.2 Trigger active 11.4.3 Trigger inactive 11.4.4 Delay [s] Interfaces 12.1 Alarm input 2015.04 | v1.592 | AM18-Q0678 Bosch Security Systems...
- Page 9 13.2 DynDNS 13.2.1 Enable DynDNS 13.2.2 Provider 13.2.3 Host name 13.2.4 User name 13.2.5 Password 13.2.6 Force registration now 13.2.7 Status 13.3 Advanced 13.3.1 Cloud-based Services 13.3.2 RTSP port 13.3.3 Authentication (802.1x) Bosch Security Systems 2015.04 | v1.592 | AM18-Q0678...
- Page 10 IPv4 Filter 13.9 Encryption Service 14.1 Maintenance 14.1.1 Update server 14.1.2 Firmware 14.1.3 Upload History 14.1.4 Configuration 14.1.5 SSL certificate 14.1.6 Maintenance log 14.2 Licenses 14.3 System Overview Appendices 15.1 Copyright notices 2015.04 | v1.592 | AM18-Q0678 Bosch Security Systems...
-
Page 11: Browser Connection
In Windows Vista, deactivate protected mode on the Security tab under Internet Options. To play back live video images, an appropriate ActiveX must be installed on the computer. If necessary, install Bosch Video Client. This can be downloaded from the following address: http://downloadstore.boschsecurity.com/ Establishing the connection The unit must have a valid IP address to operate on your network and a compatible subnet mask. -
Page 12: Password Protection In Camera
If you cannot connect, the unit may have reached its maximum number of connections. Depending on the device and network configuration, each unit can have up to 50 web browser connections, or up to 100 connections via Bosch Video Client or Bosch Video Management System. 1.2.1... -
Page 13: System Overview
The LIVE page is used to display the live video stream and control the unit. Playback The PLAYBACK page is used for playing back recorded sequences. Settings The SETTINGS page is used to configure the unit and the application interface. Bosch Security Systems 2015.04 | v1.592 | AM18-Q0678... -
Page 14: Operation Via The Browser
The items shown depend on the settings on the LIVE Functions page. 3.1.1 Image selection Figure 3.1: Live page Click a tab below the video image to display a camera image stream. 2015.04 | v1.592 | AM18-Q0678 Bosch Security Systems... -
Page 15: View Control Roi
Set positions To store the current view: Select a region of interest. Click Set. Click a number. To display a pre-set region of interest, click one of the buttons numbered one to six. Bosch Security Systems 2015.04 | v1.592 | AM18-Q0678... -
Page 16: Digital I/O
If no recording is taking place, a static icon is displayed. 3.1.6 Saving snapshots Individual images from the video sequence that is currently being shown can be saved in JPEG format on the computer's hard drive. 2015.04 | v1.592 | AM18-Q0678 Bosch Security Systems... -
Page 17: Recording Video Sequences
Saving begins immediately. The red dot on the icon indicates that a recording is in progress. Click the recording icon again to stop recording. Play back saved video sequences using the Player from Bosch Security Systems. 3.1.8 Full-screen display Click the full-screen icon to view the selected stream in full-screen mode;... -
Page 18: Storage, Cpu And Network Status
When accessing the unit with a browser, the local storage, processor and network status icons are shown in the upper right of the window next to the Bosch logo. When a local storage card is available, the memory card icon changes color (green, orange or red) to indicate the local storage activity. -
Page 19: Status Icons
Watermark invalid Indicates that the watermark is not valid. Motion alarm Indicates that a motion alarm has occurred. Storage discovery Indicates that recorded video is being retrieved. Bosch Security Systems 2015.04 | v1.592 | AM18-Q0678... -
Page 20: Playback
To view tracks beginning from a particular time, enter the time code and click Get Tracks. Click a track. The playback for the selected track starts. 3.2.2 Exporting tracks Select a track in the track list. Click the export tab 2015.04 | v1.592 | AM18-Q0678 Bosch Security Systems... -
Page 21: Searching For Tracks
A green arrow above the bar indicates the position of the image currently being played back within the sequence. The time bar offers various options for navigation in and between sequences. Bosch Security Systems 2015.04 | v1.592 | AM18-Q0678... - Page 22 Set bookmark Jump to the following bookmark Bookmarks are only valid while in the Recordings page; they are not saved with the sequences. All bookmarks are deleted when you leave the page. 2015.04 | v1.592 | AM18-Q0678 Bosch Security Systems...
-
Page 23: Basic Mode
– user is the middle authorization level. At this level you can operate the device, play back recordings, and also control camera, for example, but you cannot change the configuration. Bosch Security Systems 2015.04 | v1.592 | AM18-Q0678... -
Page 24: Date/Time
It is recommended to select the SNTP server protocol. This protocol provides high accuracy and is required for special applications and future function extensions. Select Time server if the server uses the RFC 868 protocol. 2015.04 | v1.592 | AM18-Q0678 Bosch Security Systems... -
Page 25: Network
Pre-programmed profiles are available that give priority to different parameters and they should be selected based on your operating environment. When a profile is selected, its details are displayed. Bosch Security Systems 2015.04 | v1.592 | AM18-Q0678... -
Page 26: Audio
This page provides general information on the hardware and firmware system, including version numbers. No items can be changed on this page but they can be copied for information purposes when troubleshooting. 2015.04 | v1.592 | AM18-Q0678 Bosch Security Systems... -
Page 27: General Settings
Add text to an initiator name to make identification easier in large iSCSI systems. This text is added to the initiator name, separated from it by a full stop. (You can see the initiator name in the System Overview page.) Bosch Security Systems 2015.04 | v1.592 | AM18-Q0678... -
Page 28: Password
Define and change a separate password for each level. Enter the password (19 characters maximum; no special characters) for the selected level. 5.2.2 Confirm password Re-enter the new password to ensure that there are no typing mistakes. 2015.04 | v1.592 | AM18-Q0678 Bosch Security Systems... -
Page 29: Date/Time
DST table is automatically created. If you decide to create alternative daylight saving time dates by editing the table, note that values occur in linked pairs (DST start and end dates). Bosch Security Systems 2015.04 | v1.592 | AM18-Q0678... -
Page 30: Time Server Ip Address
It is recommended to select the SNTP server protocol. This protocol provides high accuracy and is required for special applications and future function extensions. Select Time server if the server uses the RFC 868 protocol. 2015.04 | v1.592 | AM18-Q0678 Bosch Security Systems... -
Page 31: Display Stamping
Custom option, or it can be set to Off for no overlay information. If the Custom option is selected, enter values in the X and Y position fields. Bosch Security Systems 2015.04 | v1.592 | AM18-Q0678... -
Page 32: Alarm Message
GB/T 28181 This page allows you to set the parameters for conformance to the GB/T 28181 national standard “Security and protection video monitoring network system for information transport, switch and control”. 2015.04 | v1.592 | AM18-Q0678 Bosch Security Systems... -
Page 33: Web Interface
When video analysis is activated, additional information from the video content analysis (VCA) function is displayed in the live video image. With the MOTION+ analysis type, for example, the sensor fields in which motion is recorded are marked with rectangles. Bosch Security Systems 2015.04 | v1.592 | AM18-Q0678... -
Page 34: Show Vca Trajectories
Select the size, update interval and quality of the M‑JPEG image displayed on the livepage. The highest quality is 1. When Best possible is selected for size, the unit determines the quality based on the network capacity. 2015.04 | v1.592 | AM18-Q0678 Bosch Security Systems... -
Page 35: Live Functions
If an output is switched, the icon changes color. 6.2.5 Show event log The event messages are displayed with the date and time in a field next to the video image. Bosch Security Systems 2015.04 | v1.592 | AM18-Q0678... -
Page 36: Show System Log
Path for JPEG and video files Enter the path for the storage location of individual images and video sequences saved from the LIVE. If necessary, click Browse... to find a suitable folder. 2015.04 | v1.592 | AM18-Q0678 Bosch Security Systems... -
Page 37: Logging
This file can be viewed, edited, and printed with any text editor or standard office software. File for system log Enter the path for saving the system log. If necessary, click Browse... to find a suitable folder. Bosch Security Systems 2015.04 | v1.592 | AM18-Q0678... -
Page 38: Camera
Click Reboot to restart the camera. 7.1.8 Factory defaults Click Defaults to restore the factory defaults for the camera. A confirmation screen appears. Allow several seconds for the camera to optimize the picture after a reset. 2015.04 | v1.592 | AM18-Q0678 Bosch Security Systems... -
Page 39: Lens Wizard
Camera Browser Camera | en Interface 7.1.9 Lens Wizard Click Lens Wizard... to open a separate window which can be used to focus the camera lens (not for all cameras). Bosch Security Systems 2015.04 | v1.592 | AM18-Q0678... -
Page 40: Picture Settings - Scene Mode
Outdoor This mode covers most situations. It should be used in applications where the lighting changes from day to night. It takes into account sun highlights and street (sodium vapor) lighting. 2015.04 | v1.592 | AM18-Q0678 Bosch Security Systems... - Page 41 This mode is optimized for scenes with people moving in front of a bright background. Vibrant This mode has enhanced contrast, sharpness and saturation. Bosch Security Systems 2015.04 | v1.592 | AM18-Q0678...
-
Page 42: Picture Settings - Color
(reducing red introduces more cyan). G-gain In Manual white balance mode, adjust the green gain slider to offset the factory white point alignment (reducing green introduces more magenta). 2015.04 | v1.592 | AM18-Q0678 Bosch Security Systems... - Page 43 (reducing blue introduces more yellow). Note: It is only necessary to change the white point offset for special scene conditions. Default Click Default to set all video values to their factory setting. Bosch Security Systems 2015.04 | v1.592 | AM18-Q0678...
-
Page 44: Picture Settings - Alc
Select the shutter speed for fixed exposure. (The values available depend on the value set for the ALC mode.) 7.4.4 Day/night Auto - the camera switches the IR cut-off filter on and off depending on the scene illumination level. 2015.04 | v1.592 | AM18-Q0678 Bosch Security Systems... - Page 45 A high (positive) value means that the camera switches to monochrome at a higher light level. Note: To ensure stability when using IR illuminators, use the alarm interface for reliable Day/Night switching. Bosch Security Systems 2015.04 | v1.592 | AM18-Q0678...
-
Page 46: Picture Settings - Enhance
Adjusts the Temporal noise filtering level between -15 and +15. The higher the value, the more noise filtering. Spatial noise filtering Adjusts the Spatial noise filtering level between -15 and +15. The higher the value, the more noise filtering. 2015.04 | v1.592 | AM18-Q0678 Bosch Security Systems... -
Page 47: Picture Settings - Scene Mode Scheduler
Select the mode you wish to use during the day from Day mode drop-down box. Select the mode you wish to use during the night from Night mode drop-down box. Use the two slider buttons to set the Day time range. Bosch Security Systems 2015.04 | v1.592 | AM18-Q0678... -
Page 48: Encoder Settings
Refer to Encoder Profile for more information on setting up the encoder profile. Refer to Encoder Streams for more information on setting up the encoder streams. Refer to Encoder Regions for more information on setting up the encoder regions. 2015.04 | v1.592 | AM18-Q0678 Bosch Security Systems... -
Page 49: Privacy Masks
Select the pattern to be used for all masks. Check the box of the mask you wish to activate. Use the mouse to define the area for each of the masks. Bosch Security Systems 2015.04 | v1.592 | AM18-Q0678... -
Page 50: Audio
Select a format for audio recording. The default value is AAC 48 kbps. You can select AAC 80 kbps, G.711 or L16 depending on the required audio quality or sampling rate. AAC audio technology is licensed by Fraunhofer IIS. (http://www.iis.fraunhofer.de/amm/) 2015.04 | v1.592 | AM18-Q0678 Bosch Security Systems... -
Page 51: Pixel Counter
To change the shape of a zone, place the cursor over the edge of the zone, hold down the mouse button and drag the edge of the zone to the required position. Bosch Security Systems 2015.04 | v1.592 | AM18-Q0678... -
Page 52: Encoder Settings
The Encoder Regions page allows you to select different quality levels for various areas of the image. This can help in reducing the bit rate. For example, important objects can be selected to provide higher quality encoding than selected background areas. 2015.04 | v1.592 | AM18-Q0678 Bosch Security Systems... -
Page 53: Encoder Profile
If a setting outside the permitted range for a parameter is entered, the nearest valid value is substituted when the settings are saved. 8.1.3 Profile name If required, enter a new name for the profile. Bosch Security Systems 2015.04 | v1.592 | AM18-Q0678... -
Page 54: Target Bit Rate
These resolutions are not used by a HD stream. 8.1.8 Expert Settings If necessary, use the expert settings to adapt the I-frame quality and the P-frame quality to specific requirements. The setting is based on the H.264 quantization parameter (QP). 2015.04 | v1.592 | AM18-Q0678 Bosch Security Systems... - Page 55 This is how to save bandwidth and memory in normal scenes. The image quality is retained even in the case of increased movement since the bandwidth is then filled up to the value that is entered under Maximum bit rate. Bosch Security Systems 2015.04 | v1.592 | AM18-Q0678...
-
Page 56: Default
Select the appropriate encoding quality level for an object region defined in Encoder Regions. The lower the QP value, the higher the encoding quality. 8.1.9 Default Click Default to return the profile to the factory default values. 2015.04 | v1.592 | AM18-Q0678 Bosch Security Systems... -
Page 57: Encoder Streams
Regions of Interest (ROI) If you select an ROI property for stream 2, you can set up a region of interest on the LIVE page. Bosch Security Systems 2015.04 | v1.592 | AM18-Q0678... -
Page 58: Jpeg Stream
Select the Max. frame rate in images per second (ips). – The Picture quality slider allows adjustment of the M‑JPEG image quality from Low to High. Note: The M-JPEG frame rate can vary depending on system loading. 2015.04 | v1.592 | AM18-Q0678 Bosch Security Systems... -
Page 59: Encoder Regions
If required, select another region and repeat steps 2 and 3. Click Set to apply the region settings. Preview Click to open a viewing window where a 1:1 live image and the bit rate for the region settings can be previewed. Bosch Security Systems 2015.04 | v1.592 | AM18-Q0678... -
Page 60: Recording
A Video Recording Manager (VRM) can control all recording when accessing an iSCSI system. The VRM is an external program for configuring recording tasks for video servers. For further information, contact your local customer service at Bosch Security Systems. Storage Management 9.1.1 Device manager An external Video Recording Manager (VRM) system for the unit is configured via the Configuration Manager. -
Page 61: Activating And Configuring Storage Media
(class) and performance of the SD card. An SD card of Class 6 or higher is recommended. 9.1.3 Activating and configuring storage media Available media or iSCSI drives must be transferred to the Managed storage media list, activated, and configured for storage. Bosch Security Systems 2015.04 | v1.592 | AM18-Q0678... -
Page 62: Formatting Storage Media
It is then no longer used for recordings. Click a storage medium in the Managed storage media list to select it. Click Remove below the list. The storage medium is deactivated and removed from the list. 2015.04 | v1.592 | AM18-Q0678 Bosch Security Systems... -
Page 63: Recording Profiles
Set up the standard and alarm recording parameters for track 1 as described below. Click the Recording 2 entry in the list. Set up the standard and alarm recording parameters for track 2 as described below. Bosch Security Systems 2015.04 | v1.592 | AM18-Q0678... -
Page 64: Standard Recording
Select a period for the Pre-alarm time from the list box. Select a period for the Post-alarm time from the list box. Alarm stream Select the stream to be used for alarm recordings: – Stream 1 – Stream 2 – I-frames only 2015.04 | v1.592 | AM18-Q0678 Bosch Security Systems... - Page 65 Select the alarm type that is to trigger an alarm recording: – Alarm input – Analysis alarm – Video loss Select the Virtual alarm sensors that are to trigger a recording, via RCP+ commands or alarm scripts, for example. Bosch Security Systems 2015.04 | v1.592 | AM18-Q0678...
-
Page 66: Maximum Retention Time
Recordings are overwritten when the retention time entered here has expired. Enter the required retention time in days for each recording track. Make sure that the retention time does not exceed the available recording capacity. 2015.04 | v1.592 | AM18-Q0678 Bosch Security Systems... -
Page 67: Recording Scheduler
The window closes. Assign the defined holidays to the recording profile as described above. Delete user-defined holidays as follows: Click Delete in the Holidays tab. A new window opens. Bosch Security Systems 2015.04 | v1.592 | AM18-Q0678... -
Page 68: Profile Names
Click Stop to deactivate the recording schedule. Recordings that are currently running are interrupted and the configuration can be modified. 9.4.5 Recording status The graphic indicates the recording activity. An animated graphic is displayed when recording is taking place. 2015.04 | v1.592 | AM18-Q0678 Bosch Security Systems... -
Page 69: Recording Status
Camera Browser Recording | en Interface Recording Status Details of the recording status are displayed here for information. These settings cannot be changed. Bosch Security Systems 2015.04 | v1.592 | AM18-Q0678... -
Page 70: Alarm
Bosch Video Client or Bosch Video Management System. The unit connects to all remote stations protected by the same general password. To define a general password: Select 10 in the Number of destination IP address list box. -
Page 71: Video Transmission
The connected monitor only displays images when an alarm is triggered. Note: Refer to the destination unit documentation for more information on image display options and available video outputs. Bosch Security Systems 2015.04 | v1.592 | AM18-Q0678... -
Page 72: Decoder
Select On to automatically re-establish a connection to one of the previously specified IP addresses after each reboot, connection breakdown, or network failure. 10.1.12 Audio Select On to transmit the audio stream with an alarm connection. 2015.04 | v1.592 | AM18-Q0678 Bosch Security Systems... -
Page 73: Video Content Analyses (Vca)
This can lead to impairment of the VCA system. Observe the processor load and optimize the encoder settings or the VCA settings if necessary, or turn off VCA completely. Bosch Security Systems 2015.04 | v1.592 | AM18-Q0678... -
Page 74: Audio Alarm
10.3.2 Name The name makes it easier to identify the alarm in extensive video monitoring systems, for example with the Bosch Video Client and the Bosch Video Management System. Enter a unique and clear name here. 10.3.3 Signal Ranges Exclude particular signal ranges in order to avoid false alarms. -
Page 75: Alarm E-Mail
Obtain information on operating your mobile phone from your mobile phone provider. 10.4.6 Image size Select the size of the JPEG images that are to be sent from the camera. Bosch Security Systems 2015.04 | v1.592 | AM18-Q0678... -
Page 76: Attach Jpeg From Camera
This makes it easier to identify the origin of the e‑mail. 10.4.10 Test e-mail Click Send Now to test the e‑mail function. An alarm e-mail is immediately created and sent. 2015.04 | v1.592 | AM18-Q0678 Bosch Security Systems... -
Page 77: Alarm Task Editor
When finished, click Set to transmit the scripts to the device. If the transfer was successful, the message Script successfully parsed. is displayed over the text field. If it was not successful, an error message is displayed with further information. Bosch Security Systems 2015.04 | v1.592 | AM18-Q0678... -
Page 78: Setting Up Vca
In this configuration, metadata is created to facilitate searches of recordings, however, no alarm is triggered. In the VCA configuration drop-down list, select Silent VCA. No parameters can be changed for this selection. 2015.04 | v1.592 | AM18-Q0678 Bosch Security Systems... -
Page 79: Vca - Profiles
With the Motion+ analysis type, for example, the sensor fields in which motion is recorded are marked with rectangles. Bosch Security Systems 2015.04 | v1.592 | AM18-Q0678... -
Page 80: Motion Detector
Specify the number of sensor fields that a moving object must cover to generate an alarm. This setting prevents objects that are too small from triggering an alarm. A minimum value of 4 is recommended. This value corresponds to four sensor fields. 2015.04 | v1.592 | AM18-Q0678 Bosch Security Systems... -
Page 81: Tamper Detection
Run a series of tests at different times of the day and night to ensure that the video sensor is operating as intended. Sensitivity and Trigger delay [s] can only be changed if Reference check is selected. Bosch Security Systems 2015.04 | v1.592 | AM18-Q0678... - Page 82 Activate this function if tampering associated with exposure to extreme light (for instance, shining a flashlight directly on the objective) should trigger an alarm. The average brightness of the scene provides a basis for recognition. 2015.04 | v1.592 | AM18-Q0678 Bosch Security Systems...
- Page 83 If the selected area is too homogenous, so that concealing and moving the structure would not trigger an alarm, then an alarm is triggered immediately to indicate the inadequate reference image. Bosch Security Systems 2015.04 | v1.592 | AM18-Q0678...
- Page 84 Right-click any fields to deactivate. Click OK to save the configuration. Click the close button (X) in the window title bar to close the window without saving the changes. 2015.04 | v1.592 | AM18-Q0678 Bosch Security Systems...
-
Page 85: Vca - Scheduled
These will later be displayed as a single entry in the table. Click OK to accept the selection. The window closes. Assign the individual holidays to the VCA profiles, as described above. Bosch Security Systems 2015.04 | v1.592 | AM18-Q0678... - Page 86 Click Delete. A new window opens. Click the date to delete. Click OK. The item is deleted from the table and the window closes. The process must be repeated for deleting additional days. 2015.04 | v1.592 | AM18-Q0678 Bosch Security Systems...
-
Page 87: Vca - Event Triggered
A delay period may be useful in avoiding false alarms or frequent triggering. During the delay period, the Silent VCA configuration is always enabled. Bosch Security Systems 2015.04 | v1.592 | AM18-Q0678... -
Page 88: Interfaces
This switches the camera to the monochrome mode. – Switch mode When this is selected, you can select the Scene Mode to be used for the active and inactive period of the alarm. 2015.04 | v1.592 | AM18-Q0678 Bosch Security Systems... -
Page 89: Alarm Output
12.2.5 Trigger output Click the button to switch the alarm output manually (for example, for testing purposes or to operate a door opener). Bosch Security Systems 2015.04 | v1.592 | AM18-Q0678... -
Page 90: Network
Gateway address For the device to establish a connection to a remote location in a different subnet, enter the IP address of the gateway here. Otherwise, this field can remain empty (0.0.0.0). 2015.04 | v1.592 | AM18-Q0678 Bosch Security Systems... -
Page 91: Ip V6 Address
To limit browser access to encrypted connections, choose an HTTPS port from the list. The standard HTTPS port is 443. Select the Off option to deactivate HTTPS ports and limit connections to unencrypted ports. Bosch Security Systems 2015.04 | v1.592 | AM18-Q0678... -
Page 92: Rcp+ Port 1756
This gives the option to adjust the size of the data packets to the network environment and to optimize data transmission. In UDP mode, comply with the MTU value set below. 2015.04 | v1.592 | AM18-Q0678 Bosch Security Systems... -
Page 93: Iscsi Mss [Byte]
13.1.13 Network MTU [Byte] Specify a maximum value in bytes for the package size (including IP header) to optimize data transmission. Bosch Security Systems 2015.04 | v1.592 | AM18-Q0678... -
Page 94: Dyndns
To transfer the IP address of the device, click the Register button. 2015.04 | v1.592 | AM18-Q0678 Bosch Security Systems... -
Page 95: Status
Camera Browser Network | en Interface 13.2.7 Status The status of the DynDNS function is displayed here for information purposes; these settings cannot be changed. Bosch Security Systems 2015.04 | v1.592 | AM18-Q0678... -
Page 96: Advanced
Advanced 13.3.1 Cloud-based Services The operation mode determines how the camera communicates with Bosch Cloud-based Security and Services. For more information about these services and their availability, visit: http://cloud.boschsecurity.com – Select Auto to allow the camera to poll the server a few times;... -
Page 97: Network Management
This function should not be used in large installations due to the large number of registration notifications. Bosch Security Systems 2015.04 | v1.592 | AM18-Q0678... -
Page 98: Quality Of Service
252 as a multiple of four. For alarm video you can set a higher priority than for regular video and you can define a Post Alarm Time over which this priority is maintained. 2015.04 | v1.592 | AM18-Q0678 Bosch Security Systems... -
Page 99: Multicast
To do this, check the box and enter the multicast address. 13.5.2 Multicast Address Enter a valid multicast address to be operated in multicast mode (duplication of the data stream in the network). Bosch Security Systems 2015.04 | v1.592 | AM18-Q0678... -
Page 100: Port
A value can be entered to specify how long the multicast data packets are active on the network. If multicast is to be run via a router, the value must be greater than 1. 2015.04 | v1.592 | AM18-Q0678 Bosch Security Systems... -
Page 101: Image Posting
Posting interval Enter the interval in seconds at which the images are sent to an FTP server. Enter zero for no images to be sent. Target Select the target account for JPEG posting. Bosch Security Systems 2015.04 | v1.592 | AM18-Q0678... -
Page 102: Accounts
Enter an exact path to post the images on the account server. Click Browse... to browse to the required path. Maximum bit rate Enter the maximum bit rate in kbps that will be allowed when communicating with the account. 2015.04 | v1.592 | AM18-Q0678 Bosch Security Systems... -
Page 103: Ipv4 Filter
If either of these ranges are set, no IP V6 addresses are allowed to actively connect to the device. The device itself may initiate a connection (for example, to send an alarm) outside the defined ranges if it is configured to do so. Bosch Security Systems 2015.04 | v1.592 | AM18-Q0678... -
Page 104: Encryption
Camera Browser en | Network Interface 13.9 Encryption If an encryption license is installed, this submenu gives access to the encryption parameters. 2015.04 | v1.592 | AM18-Q0678 Bosch Security Systems... -
Page 105: Service
Bosch Security Systems download area. 14.1.1 Update server The address of the Bosch update server appears in the address box. Click Check to make a connection to this server. Select the appropriate version for your camera to download the firmware from the server. -
Page 106: Upload History
14.1.5 SSL certificate To work with an SSL connection, both sides of the connection must have the appropriate certificates. Upload one or more certificate files, one at a time, to the camera. 2015.04 | v1.592 | AM18-Q0678 Bosch Security Systems... -
Page 107: Maintenance Log
The new SSL certificate is valid. 14.1.6 Maintenance log Download an internal maintenance log from the device to send it to Customer Service for support purposes. Click Save As...and select a storage location for the file. Bosch Security Systems 2015.04 | v1.592 | AM18-Q0678... -
Page 108: Licenses
14.2 Licenses This window is for the activation of additional functions by entering activation codes. An overview of installed licenses is shown. The installation code of the unit is also displayed here. 2015.04 | v1.592 | AM18-Q0678 Bosch Security Systems... -
Page 109: System Overview
Keep this information at hand when seeking technical support. Select the text on this page with a mouse and copy it so that it can be pasted into an e-mail if required. Bosch Security Systems 2015.04 | v1.592 | AM18-Q0678... -
Page 110: Appendices
Corporation not be used in advertising or publicity pertaining to distribution of the software without specific, written prior permission. This software is based in part on the work of the Independent JPEG Group. 2015.04 | v1.592 | AM18-Q0678 Bosch Security Systems... - Page 112 Bosch Security Systems B.V. Torenallee 49 5617 BA Eindhoven The Netherlands www.boschsecurity.com © Bosch Security Systems B.V., 2015...
