For servicing the R4-Mechanism Chassis for PV-Model, Please refer to the R4-Mechanism-Chassis-for-PV-
Model Service Manual (Order No. MKE0401000C1).

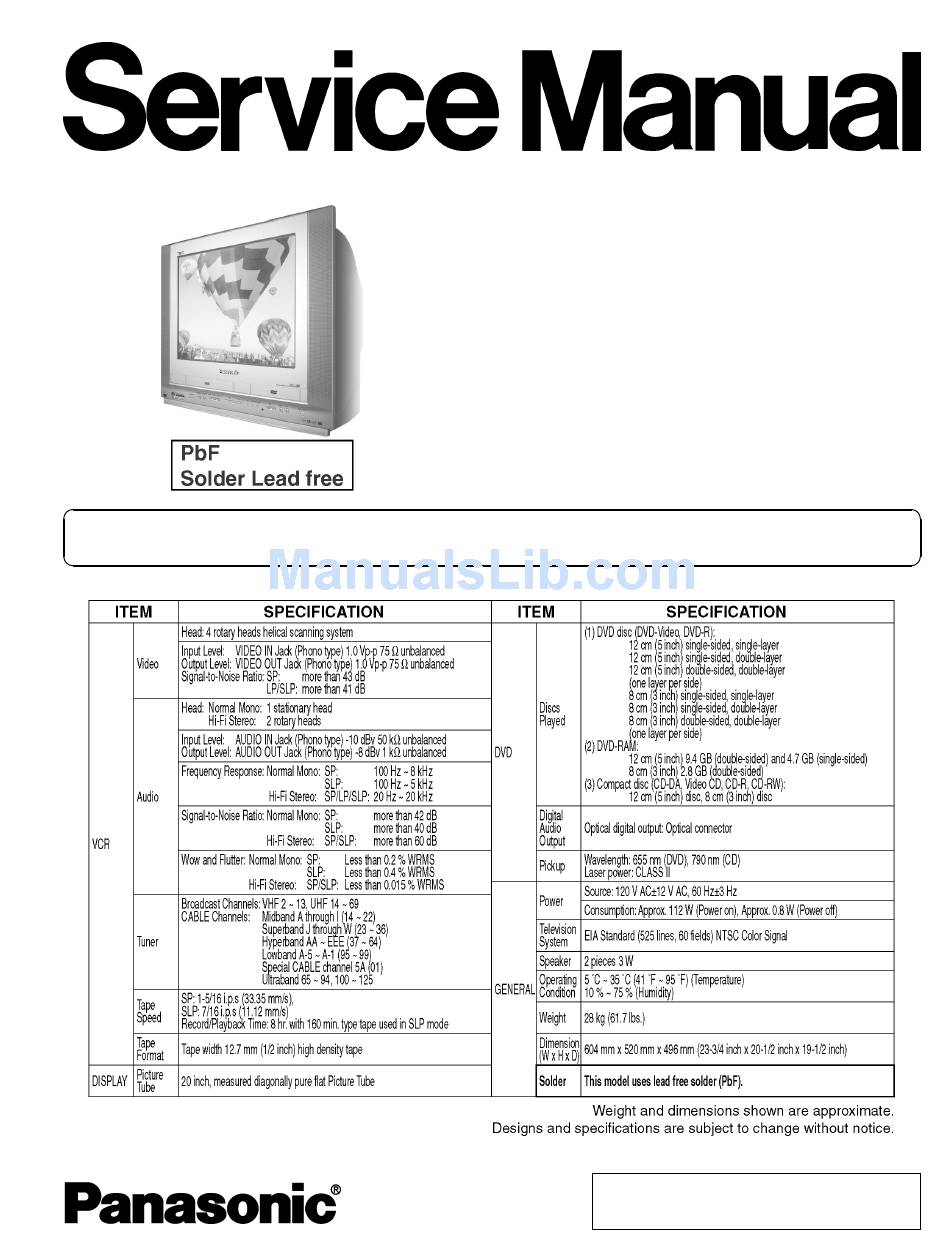

TV/DVD/VCR Combination
AG-520VDH
© 2005 Panasonic Shikoku Electronics Co., Ltd. All
rights
reserved.
distribution is a violation of law.
ORDER NO. MKE0507602CE
D1
Unauthorized
copying
and
