Installation Manual
SPECIFICATIONS
AY-RP500
Power Supply :
Power Consumption :
Ambient Operating Temperature :
Ambient Operating Humidity :
Weight :
AY-EB500
Power Supply :
Power Consumption :
WIDE SCSI Input :
WIDE SCSI Output :
HDD dimensions :
Installable HDD Units :
Connectable HDD-BOXes :
Ambient Operating Temperature :
Ambient Operating Humidity :
Dimensions :
Weights :
Weight and dimensions are approximate.
Specifications are subject to change without notice
AY-RP500 / AY-EB500
AY-RP500
5V DC, -12V
JOG Board : 37.7W
JOGPAD : 2.1W
5˚C - +35˚C
10% - 90%
JOG Board : 0.3kg
JOGPAD : 1.15kg
220-240V AC 50Hz
89W
x2
x2 (Loop through output)
3.5" (102 (W) x 152 (D) x MAX. 42 (H) mm)
max. 2
max. 5
0˚C - +35˚C
10% - 90%
210(W)x132(H)x310(D) mm
8-1/4"(W)x5-3/16"(H)x12-3/16"(D)
Min. 5.4 kg (11.9 lbs.)
without HDD
Max. 7.5 kg (16.6 lbs.)
with HDD's
Nonlinear Editing System
Control Panel Kit / Hard Disk Box
AY-EB500
C 1 9 9 8 M a t s u s h i t a C o m m u n i c a t i o n I n d u s t r i a l C o . , L t d .
A l l r i g h t s r e s e r v e d . U n a u t h o r i z e d c o p y i n g a n d
d i s t r i b u t i o n i s a v i o l a t i o n o f l a w .
ORDER NO. BSD9802022C1
Advertisement
Related Manuals for Panasonic AY-RP500
Summary of Contents for Panasonic AY-RP500

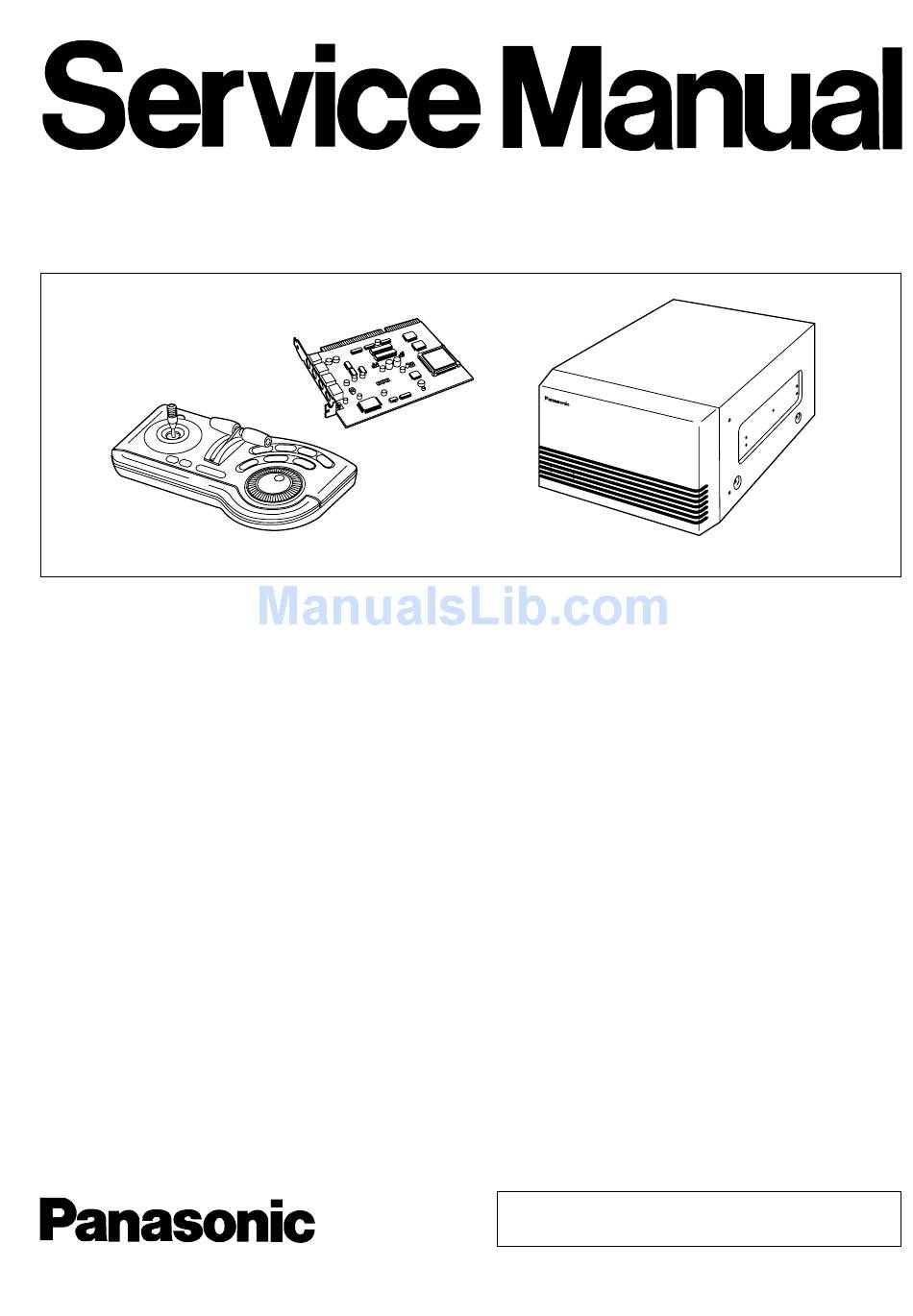

- Page 1 ORDER NO. BSD9802022C1 Nonlinear Editing System Control Panel Kit / Hard Disk Box AY-RP500 / AY-EB500 AY-RP500 AY-EB500 SPECIFICATIONS AY-RP500 Power Supply : 5V DC, -12V Power Consumption : JOG Board : 37.7W JOGPAD : 2.1W Ambient Operating Temperature : 5˚C - +35˚C...
-
