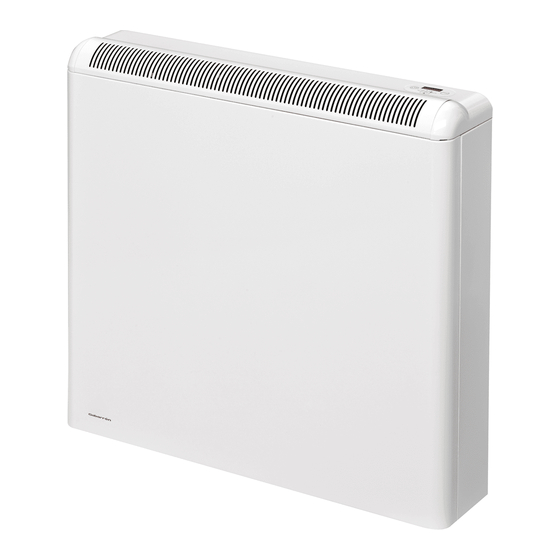

Wall fixed electric storage heater
Hide thumbs
Also See for ECOMBI ECO158:
- Installation manual and user's manual (32 pages) ,
- Installation instructions and user manual (25 pages) ,
- Installation manual (32 pages)
Related Manuals for Gabarron ECOMBI ECO158
Summary of Contents for Gabarron ECOMBI ECO158

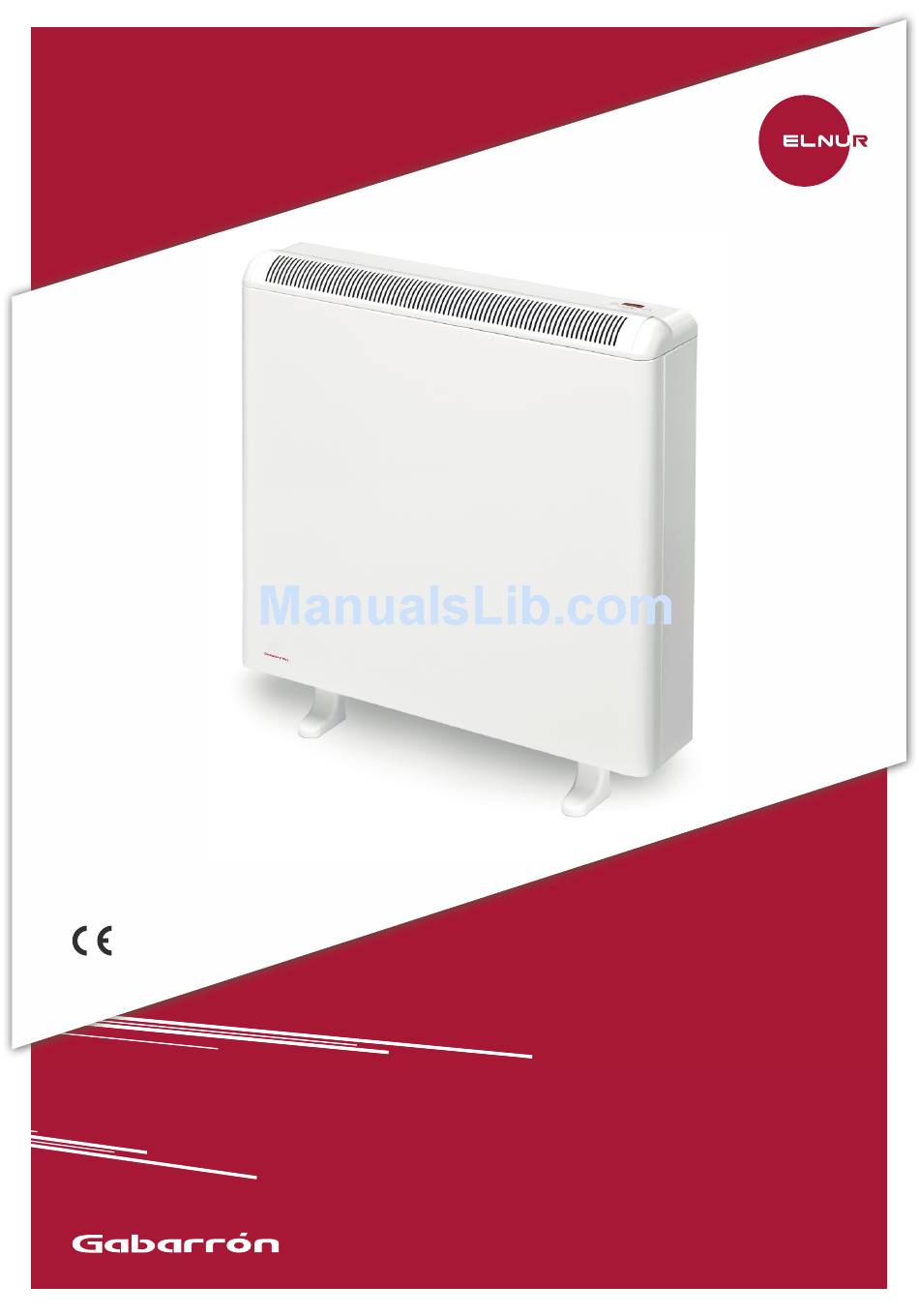

- Page 1 INSTALLATION INSTRUCTIONS AND USER GUIDE ECOMBI WALL FIXED ELECTRIC STORAGE HEATER ECO158 ECO208 ECO308 ECO408 Please read these instructions CAREFULLY before installing or using this appliance for the first time.
-
Page 2: Important Instructions
1. –IMPORTANT INSTRUCTIONS When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: • WARNING: Please read all instructions before installing or using this heater for the first time. •... -
Page 3: Installation Instructions
2. - INSTALLATION INSTRUCTIONS The symbols used in the text are explained below: WARNING This indication shows the possibility of causing death from electric shock. WARNING This indication shows the possibility of causing death or serious injury. CAUTION This indication shows the possibility of causing injury or damage to properties only. Symbol for useful information. - Page 4 Turn the carton upside down to allow the heater to stand on its feet and remove the carton. Check that it is the correct model and that it is in good conditions. Check that all parts have been delivered and are intact. 1 Ecombi heater casing.
- Page 5 7. - - Disconnect t the aluminum m heating elem ment by remov ving the FAST -ON termina l on each end of the eleme WARN NING Steel edges can cu ext unscrew th he inner pane el and remove CAUTION In the inter ior part of t...
- Page 6 Do not disco onnect the ele ectrical heatin g elements. R Remove the p packing cardbo oard. Lift and tilt the elem ents outward ds being reful not to da amage the ins ulation on the e bottom of th he heater.
- Page 7 . Replace the inner front p panel. If the br ricks have bee en fitted corr ectly you will have no diffi culty in replac cing the pane l. Make re the bottom m edge of the i inner panel is inside the fro ont lip of the h heater.
- Page 8 . - OP ERAT TING I NSTR RUCTI IONS AUTION: DO O NOT USE T THIS HEATER TO DRY CL LOTHES. Do n not cover this s heater at any y time. ONNECTIO ON / DISCON NNECTION wer switch.Al ll models are equipped with h a switch on ck side panel.
- Page 9 PERATION MODES: pressing the key, va arious operati on modes ma ay be selected : FROST PRO OTECTION, S STORAGE HE EATER, EMITT TER, COMBI MANU UAL or ECOM MBI AUTOMA ATIC. - FROST PR ROTECTION N MODE: o select this m ode press the key s several times u...
- Page 10 3 – –EMITTERM MODE: is operation m mode is used w when it is nec cessary to hea at the room te emporarily an nd there is no need for stor rage heating. ess the key several t times until the e message displayed.
- Page 11 o activate this mode press t y several times s until the me essage is disp layed. А s stands for AU UTOMATIC m mode. ,5 is the set u up temperatur re in ºC. hen the Emitt ter is on, a sm mall red dot at the very righ t of the scree...
- Page 12 ECO INTERVAL PERIOD WITH REDUCED TEMPERATURE It is possible to set up a reduced temperature to a daily time period. During this ECO TEMPERATURE time period the set up temperature will be reduced by 3ºC. Using the PC and PD settings under GENERAL SETTINGS it is possible to program the ECO TEMPERATURE time period. See the “General Settings”...
- Page 13 ENERAL SE TTINGS: COMBI genera al operation se ettings can be e modified. pressing the key at the same tim e as we turn on the heater r with the pow wer switch, lo ocated at the r right side pane el, we n access to th he general sett...
-
Page 14: Maintenance Instructions
5.- MAINTENANCE INSTRUCTIONS Before cleaning, make sure the power has been turned off at the circuit breaker panel and that the heating element of the heater is cool. Occasionally, clean dust with a dry, soft cloth. Do not use any solvent or abrasive product for cleaning. When the Heating season is finished, please disconnect the device by turning off the power switch located at the right back of the unit or at the circuit breaker. - Page 15 CHNICAL FEA ATURES Modelo ECO15 ECO208 ECO308 ECO408 CONNECT TION 230- 240V 30- 240V ~ 230- 240V 0- 240V ~ CONVECTO OR OUTPUT* * 230/240 450/490W 00/653W 900/980W 00/1307W STORAGE HEATER OUT TPUT 230/240 975/1062 00/1415W 1950/2123W 00/2831W CHARGE P PERIOD 8 –...
- Page 16 Green Vision Energy Limited Nottingham Sustainability and Enterprise Centre 662 Nuthall Road Nottingham NG8 6AQ United Kingdom T. 0115 8547498 sales@greenvisionenergy.co.uk www.greenvisionenergy.co.uk Manufactured by: ELNUR S.A. Travesía de Villa Esther, 11 28110, Algete - Madrid Telephone +34 916281440 As part of the policy of continuous product improvement the manufacturer reserves the right to alter specifications without notice. 15190015 R4...
