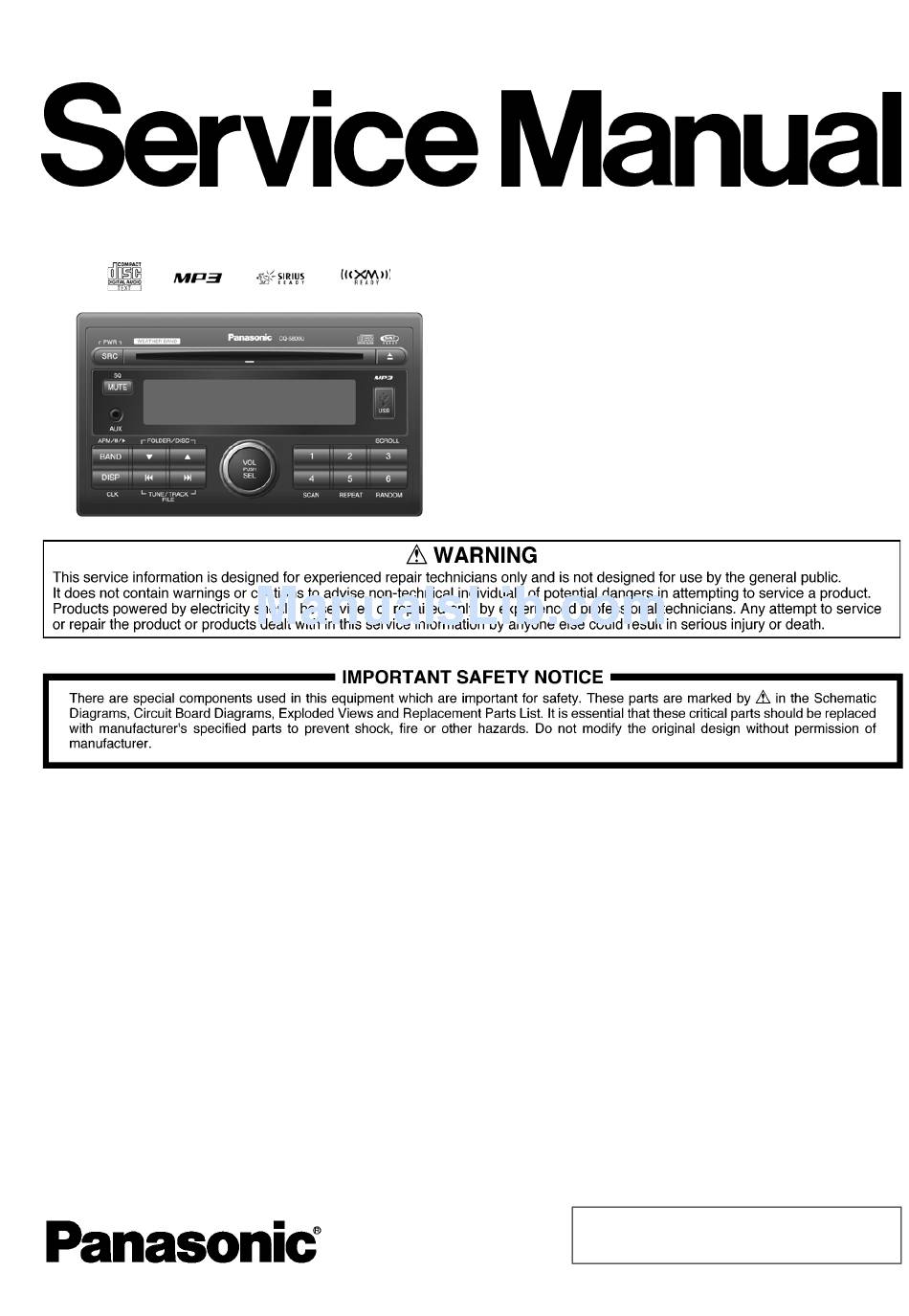

Panasonic CQ-5800U Service Manual

Heavy duty mp3 cd player/weather band receiver with cd changer control/ satellite radio ready
Hide thumbs Also See for CQ-5800U:
Table of Contents

Advertisement

Quick Links

TABLE OF CONTENTS

1 Service Navigation ----------------------------------------------- 2
2 Specifications ----------------------------------------------------- 3
3 Features ------------------------------------------------------------- 4
4 Technical Descriptions ----------------------------------------- 5
5 Block Diagram----------------------------------------------------- 9
6 Wiring Connection Diagram ---------------------------------10
7 Schematic Diagram ---------------------------------------------11
8 CD Interface Block ----------------------------------------------14
9 Printed Circuit Board-------------------------------------------15
AUTOMOTIVE AFTERMARKET
Model No.
Heavy Duty MP3 CD Player/Weather
Band Receiver with CD changer control/
satellite radio ready
PAGE
© 2008 Matsushita Electric Industrial Co., Ltd. All
rights reserved. Unauthorized copying and distribu-
tion is a violation of law.
ORDER NO. ACED080402C1
CQ-5800U
C4
PAGE

Advertisement

Table of Contents
loading

Related Manuals for Panasonic CQ-5800U

Summary of Contents for Panasonic CQ-5800U

  • Page 1: Table Of Contents

    ORDER NO. ACED080402C1 AUTOMOTIVE AFTERMARKET CQ-5800U Model No. Heavy Duty MP3 CD Player/Weather Band Receiver with CD changer control/ satellite radio ready TABLE OF CONTENTS PAGE PAGE 1 Service Navigation ----------------------------------------------- 2 2 Specifications ----------------------------------------------------- 3 3 Features ------------------------------------------------------------- 4...

  • Page 2: Service Navigation

    1 Service Navigation 1.4. Maintenance Your products is designed and manufactured to ensure a mini- 1.1. About Lead Free Solder(PbF) mum of maintenance. Use a dry, a soft cloth for routine exterior cleaning. Never use benzine, thinner or other solvents. Distinction of PbF PCB •...

  • Page 3: Specifications

    2 Specifications 2.2. Dimensions 2.1. Specfications General Power Supply 12V DC (11V - 16V), Test Voltage 14.4V Negative Ground Current consumption Less than 2.5A (CD mode, 0.5 W 4-speaker) Maximum Power Output 45W×4 channels at 400Hz, Vol- ume Control Maximum Tone adjustment range: Bass ;...

  • Page 4: Features

    3 Features • Front AUX terminal. • Sound Control(FLAT,ROCK,POP and VOCAL). • USB Connector(The USB connector is equipped front pan- nel).

  • Page 5: Technical Descriptions

    4 Technical Descriptions Pin. Port Description FM(V) AM(V) CD(V) 60 P03 LCD_DI 4.84 4.85 4.85 4.1. Terminals Description 61 P04 62 P05/CK0 SUB_CLOCK_OUT 4.1.1. Main Block 63 P06/T60 CAN_RESET 5.09 5.11 5.11 64 P07/T70 BEEP NC IC600:LC8783C8PA 65 P20/INT4/T1IN/ USB_IN TOLCP/TOHCP/ INT6/TOLCP1 Pin.
  • Page 6 Pin. Port. Description Pin. Port Description I/O FM(V) AM(V) CD(V) DSP_CE P16/T1PWML 26 VVSS1 Internal VCO ground USB_MUTE P17/T1PWMH/BUZ 27 PDOUT Internal VCO control phase com- O 0.33 0.33 parator output 1 PWM1/MCLKI 28 PDOUT Internal VCO control phase com- O 0.34 0.34 MCLKO...
  • Page 7 Note 1 : 4.2. IC Block Diagram Voltage measuerments are with respect to ground, with a voltmeter (internal resistance : 10M ohms). 4.2.1. Main Block 4.1.2. Display Block IC901:C0HBA0000246 Pin. PORT Description General-purpose output General-purpose output General-purpose output Segment outputs 2.58 Segment outputs 2.58...
  • Page 8 IC201:C1BB00000543 IC701:C0EBY0000389 IC771:C0DBZHE00024 IC400:C1BB00001088 IC772:C0CBADG00023 IC804:C0CBCYG00004 IC700:C0DAZHF00004...

  • Page 9: Block Diagram

    5 Block Diagram...

  • Page 10: Wiring Connection Diagram

    6 Wiring Connection Diagram...

  • Page 11: Schematic Diagram

    P50 C5BA00000122...
  • Page 12 7.2. Main-2 Block...
  • Page 13 7.3. Display Block...

  • Page 14: Cd Interface Block

    8 CD Interface Block...

  • Page 15: Printed Circuit Board

    9 Printed Circuit Board 9.1. Main Block (Top View) [E-4C342][Top View] CQ-5800U MAIN P.C.B...
  • Page 16 9.2. Main Block (Bottom View) [E-4C342][Bottom View] CQ-5800U MAIN P.C.B...
  • Page 17 9.3. Display Block (Top View) [E-4C343][Top View} CQ-5800U DISPLAY P.C.B...
  • Page 18 9.4. Display Block (Bottom View) [E-4C343][Bottom View] CQ-5800U DISPLA Y P.C.B...
  • Page 19 9.5. CD Interface Block [E-4C345][Bottom View] CQ-5800U CD INTERFACE P.C.B...

  • Page 20: Exploded View And Replacement Parts List

    10 Exploded View and Replacement Parts List 10.1. Exploded View (Unit)

  • Page 21: Replacement Parts List

    10.2. Replacement Parts List Notes: Ref. No. Part No. Part Name & Description Remarks DIODEs 1. Be sure to make your orders of replacement parts accord- ing to this list. B0ACCK000005 Diode 2. Important safety notice: Components, identified by B0ACCK000005 Diode mark have special characteristics important for safety.
  • Page 22 Ref. No. Part No. Part Name & Description Ref. No. Part No. Part Name & Description Remarks Remarks C208 F1J1H221A732 Ceramic 220pF 50WV C705 F1H1C104A107 Ceramic 0.1µF 16WV C209 F1K1C106A098 Ceramic 10µF 16WV C706 F1J1E104A161 Ceramic 0.1µF 25WV C210 F2A1C222A715 Electrolytic 2200µF 16WV C707 F1J1E104A161...
  • Page 23 Ref. No. Part No. Part Name & Description Ref. No. Part No. Part Name & Description Remarks Remarks D0YFR00J0001 Chip 0Ω 1/8W R512 D0GD102JA017 Chip 1kΩ 1/10W D0YFR00J0001 Chip 0Ω 1/8W R513 D0GD561JA017 Chip 560Ω 1/10w D0YFR00J0001 Chip 0Ω 1/8W R514 D0GD102JA017 Chip 1kΩ...
  • Page 24 Ref. No. Part No. Part Name & Description Ref. No. Part No. Part Name & Description Remarks Remarks R674 D0GB102JA008 Chip 1kΩ 1/16W R861 D0GD101JA017 Chip 100Ω 1/10W R675 D0GB102JA008 Chip 1kΩ 1/16W R862 D0GD331JA017 Chip 330Ω 1/10W R676 D0GD473JA017 Chip 47kΩ...
  • Page 25 Ref. No. Part No. Part Name & Description Ref. No. Part No. Part Name & Description Remarks Remarks DIODEs D975 B3ABB0000284 LED(YELLOW GREEN) D901 B0BC5R000009 Zener Diode D976 B3ABB0000284 LED(YELLOW GREEN) D902 B0BC4R0A0006 Zener Diode D977 B3ABB0000284 LED(YELLOW GREEN) D903 B0BC4R0A0006 Zener Diode D978 B0BC5R600010...
  • Page 26 Ref. No. Part No. Part Name & Description Ref. No. Part No. Part Name & Description Remarks Remarks NOISE FILTER K1MN15BA0238 Connector FL901 J0JHC0000026 Noise Filter ACCESSORIEs FL903 D4ZZ00000024 Surge Protector PRINTINGs COIL Operating Instructions L901 G1BYYYB00007 Coil INSTSALLATION PART SURGE PROTECTORs YFX214C437ZA Mounting Collar...
  • Page 27 Ref. No. Part No. Part Name & Description Remarks YFE134C601CA Preset Button(2/5) YFE134C602CA Preset Button(3/6) YFA054C060CA Bottom Cover ESC5800U-TY ESC Ass’y T/RTL YFX214C357ZB TR Bracket YFE134C609CA VOL Knob(CAP) XTB2+4GFZ Screw YFX994C171CA Two-Side Tape...
  • Page 28 10.3. Exploded View (CD Deck)
  • Page 29 10.4. CD Player Parts List Notes: Ref. No. Part No. Part Name & Description Remarks YDFW04000007 Roller Shaft Ass’y 1. Be sure to make your orders of replacement parts accord- YDFP05000011 Loading Gear Plate Rivet Ass’y ing to this list. YDFP05000012 Loading Plate Ass’y 2.
  • Page 30 10.5. Packing Parts List Item numbers listed below should not order reguler spare parts. (not available) Item No Parts No Part Name&Description Q’ty Remarks Inner Carton Not available Packing Pad (Right) Not available Packing Pad (Left) Not available YFX214C437ZA Mounting Collar YFC054C091ZA Trim Plate ZZBIS5800U Installation Kit (Lock Cancel...

  • Page 31: Schematic Diagram For Printing With Letter Size

    11 Schematic Diagram for Printing with Letter Size 11.1. Main-1 Block (Left Side) P50 C5BA0000122...
  • Page 32 11.2. Main-1 Block (Right side)
  • Page 33 11.3. Main-2 Block (Left Side)
  • Page 34 11.4. Main-2 Block (Right side)
  • Page 35 11.5. Display Block (Left Side)
  • Page 36 11.6. Display Block (Right side)
  • Page 37 Printed in Taiwan 2008.06...
